AX92320

產品階段 : 供應中

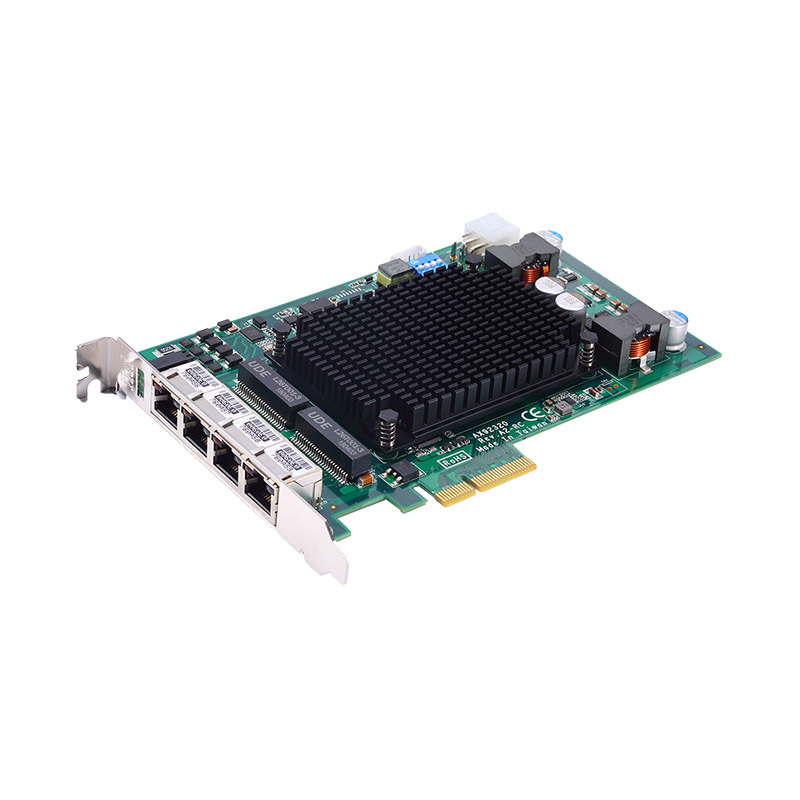

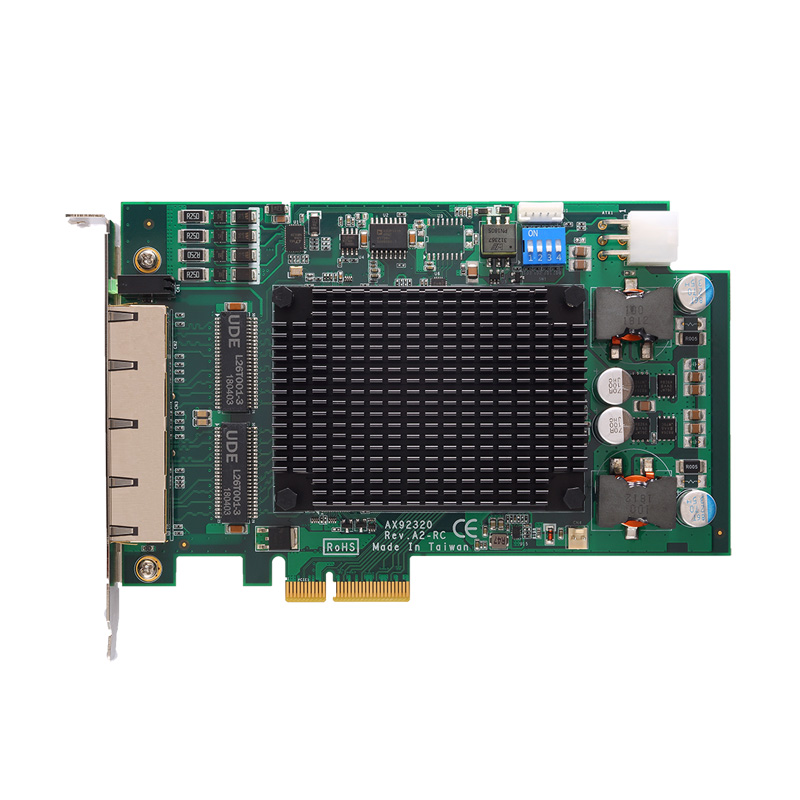

2/4-port PCI Express GigE Frame Grabber Card

產品規格表 (PDF)
產品規格表 (PDF)
立即詢價
立即詢價
AX92320
AX92320
  • 產品特色
  • 產品規格
  • 訂購資訊
  • 技術文件
  • 常見問題

產品特色

  • PCI Express x4 compliant
  • 2 or 4 independent Gigabit PoE ports
  • Supports 9.5KB jumbo frames and IEEE 1588
  • Compliant with IEEE802.3at to deliver 30W at 54 VDC per port
  • Up to 20/120W PoE power through PCIe 6-pin ATX power connector
  • 0°C to +60°C operating temperature range
  • PoE power management software
  • Supports smart on/off for LAN ports

產品規格

Bus Type
  • PCI Express x4
Connector
  • 2 or 4 GbE LANs supported by the Intel® I210-AT controller, with support for 9.5KB jumbo frames and IEEE 1588
Power Connector
  • 8-pin RJ-45
Power Requirements
  • Power from PCIe slot (up to 20W PoE power output)
  • 2.1A @ +12V
  • 1.2A @ +3.3V
  • Power from ATX power connector (up to 120W PoE power output)
  • 12A @ +12V or 6A @ +24V
  • 1.2A @ +3.3V (from PCIe slot)
Operating Temperature
  • 0°C to +60°C (+32°F to +140°F) (with air flow)
Relative Humidity
  • 10% to 95%, non-condensing
Dimensions
  • 168 x 111 mm
Certifications
  • CE
Software
  • PoE power management software
OS
  • Windows® 7/10 (32/64-bit)

訂購資訊

  • AX92320-2GbE (P/N-E392320107)
    2-port PCI Express GigE frame grabber card
  • AX92320-4GbE (P/N-E392320106)
    4-port PCI Express GigE frame grabber card
  • PoE Power Cable (P/N-59492320700E)
    4P 3.0/6P 4.2, L=10 cm (only be used with IPC962, IPC964 & IPC974)
  • Power Cable (P/N-591000007400)
    ATX6P to HS4P x2 power cable, L=150 mm (used for ATX power)

技術文件

Drivers

日期 說明 版本 下載檔案
2020/02/15 CE-Conformity Declaration
2018/11/20 AXPOE_Manager 1.0
2018/11/20 Universal Windows drivers 1.0

Software

Manual

日期 說明 版本 下載檔案
2018/11/20 AX92320 User's Manual VA1_06-26-2018 1.0

Design Guide

Technical Announcement

Certificates
