IoT, AI, and Automation Bring Rail Safety to a New Level
Railway incidents can lead to serious injuries or even fatalities, underscoring why safety remains a critical concern for transportation authorities worldwide. As the railway sector embraces the convergence of IoT, AI, and advanced automation technologies, train stations are evolving into smarter and more secure environments. Cutting-edge solutions such as platform screen doors (PSDs) and AI-powered vision systems are increasingly being deployed not only to prevent accidents, but also to enable real-time monitoring, predictive risk management, and streamlined passenger flow. Together, these innovations are transforming railway safety, enhancing intelligence, reliability, and operational efficiency across every platform.

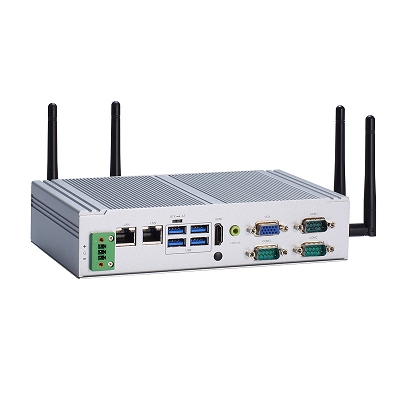

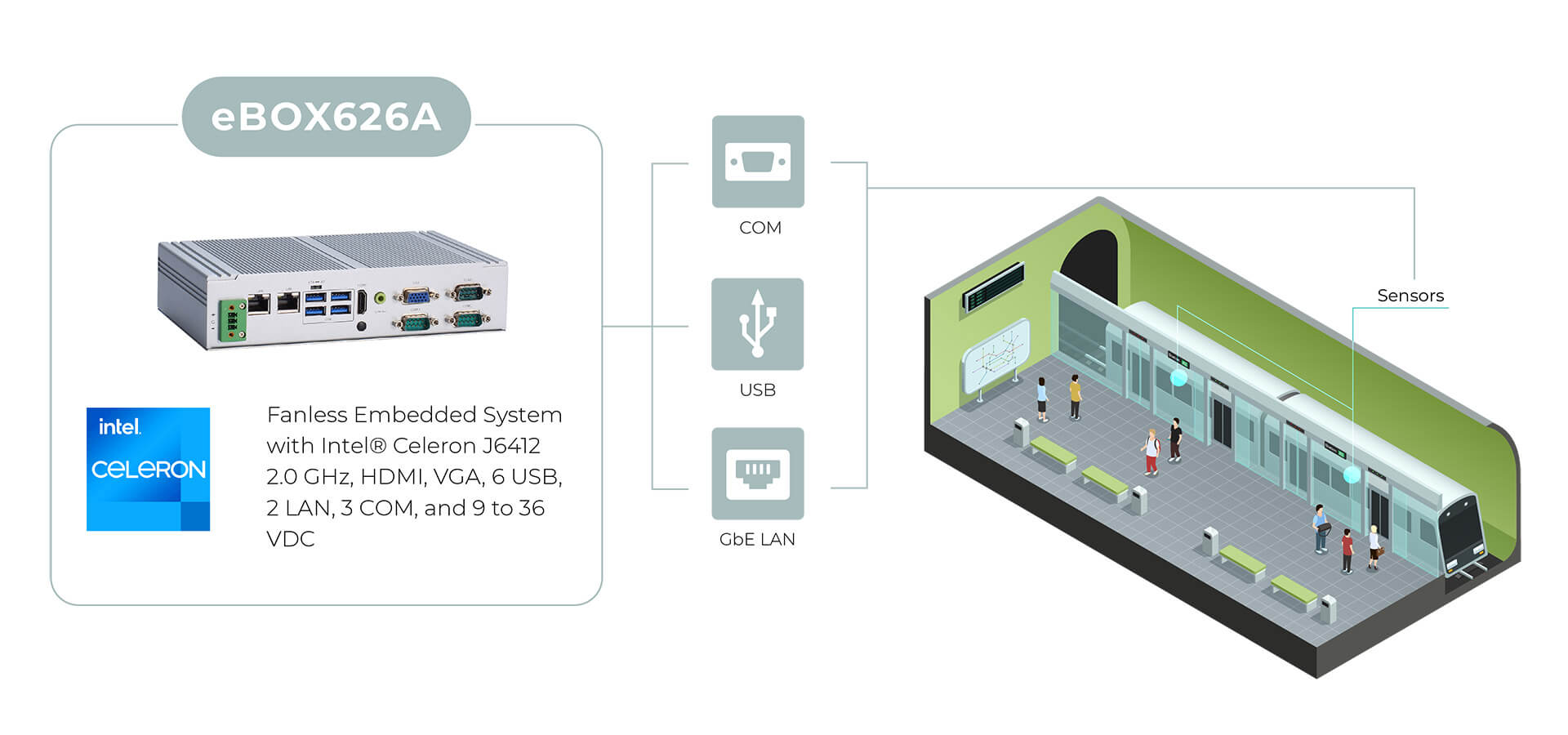

eBOX626A: Compact Fanless Embedded System
Compact Entry-Level System
The entry-level eBOX626A, powered by the onboard quad-core Intel® Celeron® processor J6412, helps lower system costs and is easy to deploy. Weighing just 1.2 kg and measuring 200 mm (W) x 120 mm (D) x 46 mm (H), it offers flexible installation for space-limited applications.
Over-Voltage Protection
Some subway systems have been operating for over a century, and their power infrastructure may face aging or instability challenges. To help ensure continuous operation, the eBOX626A features over-voltage protection (OVP) to guard against sudden power surges and support reliable system performance.
Great Durability
The eBOX626A is compliant with IEC 60068-2 standards, and its vibration endurance reaches 3 Grms, allowing it to withstand daily vibrations caused by train operations. Additionally, its operating temperature range of -10°C to +60°C makes it suitable for indoor and semi-outdoor train station platforms.
AIE100-ONX: Compact Edge AI System Powered by NVIDIA® Jetson Orin™ NX
Compact Yet Powerful
The AIE100-ONX measures only 148.6 mm x 129.8 mm x 34.6 mm and weighs just one kilogram, making it a compact and versatile choice for general-purpose edge AI use cases. Powered by the NVIDIA® Jetson Orin™ NX, it delivers up to 100 TOPS of AI performance, allowing it to handle machine vision tasks smoothly.
Rich I/O Interface
To enhance connectivity, the compact AIE100-ONX is equipped with a variety of I/O options, including one HDMI, two USB ports, one LAN port, and one 15W GbE PoE port. Despite being a cost-efficient entry-level platform, it offers robust functionality for edge AI deployment.
Reliable and Durable
To maximize deployment versatility, the AIE100-ONX features a wide operating temperature range from -25°C to +50°C and provides an optional IP42-rated cover kit for semi-outdoor environments. This is especially useful for train station platforms that require reliable operation in varying environmental conditions.
