AIE100-ONA

Status : Available

Fanless Edge AI System with NVIDIA® Jetson Orin™ Nano, 1 HDMI, 1 GbE LAN, 1 GbE PoE, and 2 USB, featuring Remote Management Service Powered by Allxon

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
AIE100-ONA
AIE100-ONA
AIE100-ONA
  • Features
  • Specifications
  • Ordering Information
  • Download
  • FAQ

Features

  • NVIDIA® Jetson Orin™ Nano (up to 67 TOPS)
  • Supports Super Mode with Jetpack 6.2 and above
  • Ideal for edge AI smart city applications
  • Supports one 15W GbE PoE for camera
  • Wide operating temperature from -25°C to +70°C
  • Optional IP42 cover kit for semi-outdoor applications
  • Enables 24/7 secure remote monitoring, control, and OTA deployment, powered by Allxon
Rugged Design
Rugged Design

Operating temperature -25°C to +70°C IP42 Rating

AI Vision
AI Vision

Jetson Orin™ Nano / Up to 40 TOPS PoE Port

Compact Size
Compact Size

148.6 mm × 129.8 mm × 34.6 mm



Powered with NVIDIA Jetson Orin

The AIE100-ONX system is an edge AI system powered by the NVIDIA® Jetson Orin™ Nano platform, which features a 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU (1.5MB L2 + 4MB L3), delivering up to 40 TOPS of accelerated AI computing performance, and integrates an advanced 1024-core NVIDIA Ampere GPU with 32 Tensor Cores.

Partner with NVIDIA JetPack Ecosystem

The AIE100-ONX system can seamlessly integrate with the full portfolio of NVIDIA JetPack, offering a comprehensive development environment tailored for accelerated development on NVIDIA Jetson modules.




Compact yet Evolving

By leveraging the smallest form factor of NVIDIA® Jetson Orin™ Nano, the AIE100-ONX is compact and low-profile, allowing for rapid deployment wherever needed. Combined with the powerful JetPack and Jetson Generative AI Lab, developers can quickly train their AI models and accelerate time-to-market.

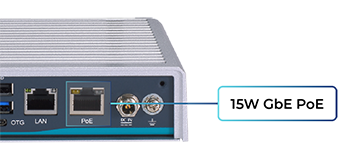

15 W GbE PoE Port

The AIE100-ONX features a 15 W GbE PoE port for robotics and intelligent video analytics deployments. This enables customers to simplify integration with cameras and sensors.

15W GbE PoE Port

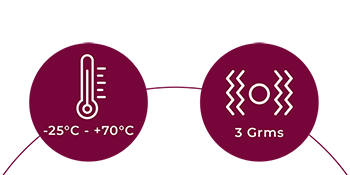

Rugged & Reliable Design

The AIE100-ONX operates efficiently within a wide temperature range of -25°C to +70°C and can withstand vibrations up to 3 Grms. In addition to fanless operation, it offers an optional waterproof IP42-rated cover kit for enhanced protection in semi-outdoor environments.

Rugged & Reliable Design

Great Expandability

  • 1 x full-size PCIe Mini Card slot: mSATA/USB/PCIe
  • 1 x half-size PCIe Mini Card slot: mSATA/USB
  • 1 x M.2 Key E 2230: Wi-Fi and Bluetooth modules
  • 1 x M.2 Key B 3042/3052: 4G LTE
  • 2 x external accessible SIM card slots for easy access to the network


Applications

Railway Safety

  • Crowd Management
  • Passenger Counting
  • Security Warnings
  • Abnormal Behavior Detection
  • Passenger Flow Detection

Customer Analysis

  • Facial Recognition
  • People Counting
  • People Flow Detection
  • Abnormal Behavior Detection

Smart Manufacturing

  • Appearance Defect Detection
  • Object Filtering and Sorting
  • Size, Shape and Color Detection

Smart Parking

  • ANPR/ALPR Solutions
  • Parking Space Detection
  • Automatic Paying
  • VIP/Valet Parking Management

Rich I/O Interfaces

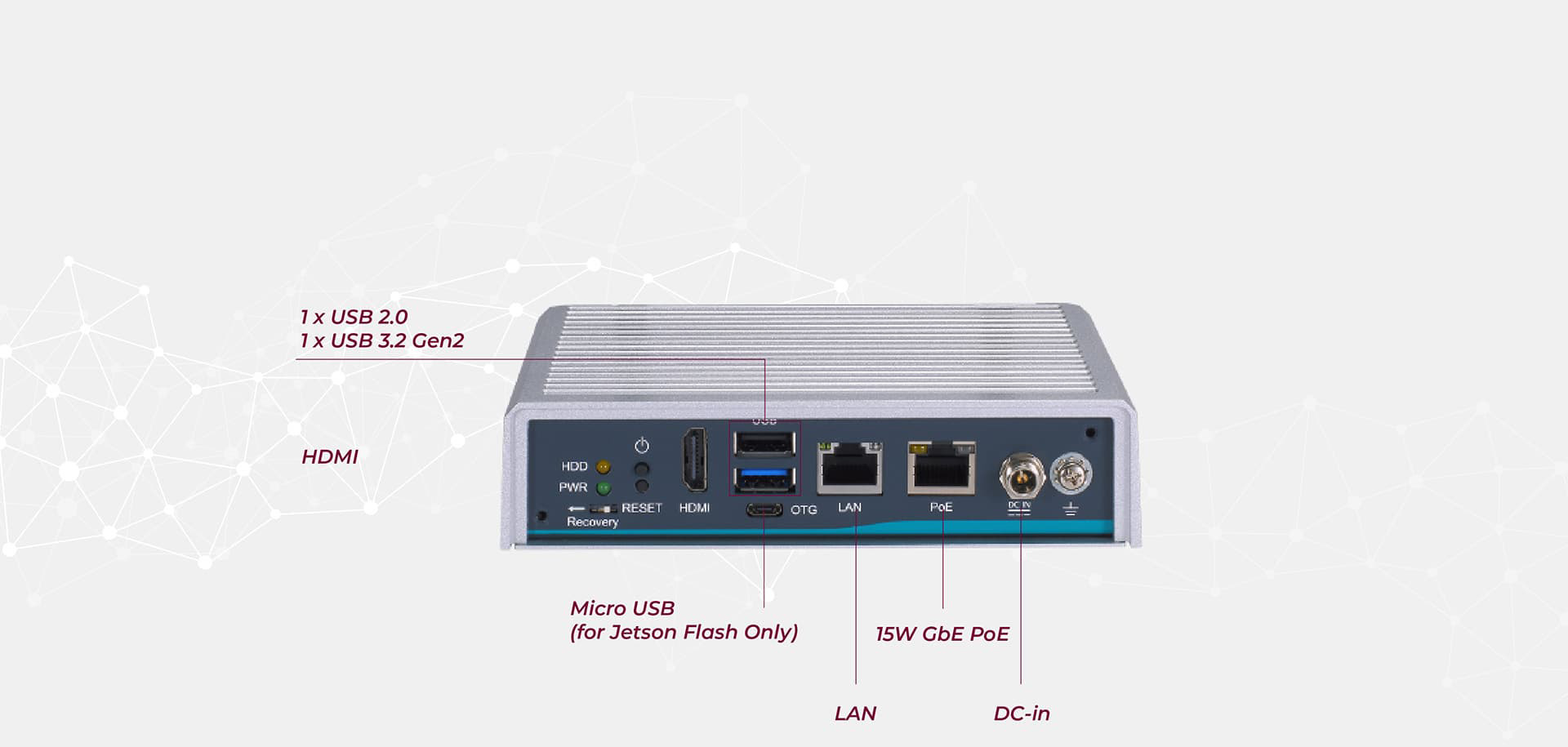

Front View
AIE100-ONX Front I/O

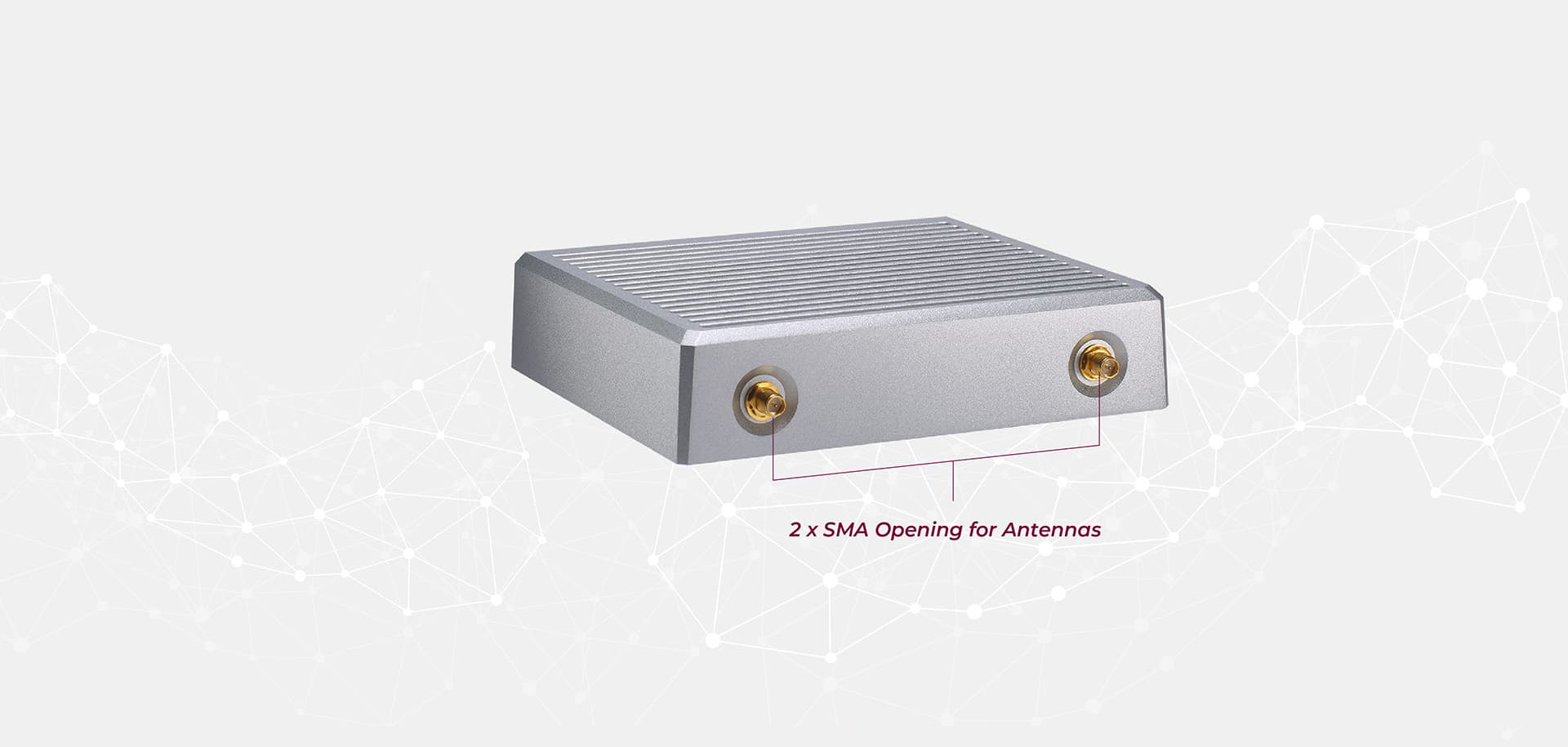

Rear View
AIE100-ONX Rear I/O

Specifications

AI Accelerator
  • NVIDIA® Jetson Orin™ Nano (up to 67 TOPS)
CPU
  • 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3
GPU
  • 4GB: 512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores
  • 8GB: 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores
Chipset
  • SoC integrated
System Memory
  • 4GB 64-bit LPDDR5 onboard
  • 8GB 128-bit LPDDR5 onboard
COM
  • N/A
USB
  • 1 x USB 3.2 Gen2
  • 1 x USB 2.0
  • 1 x Micro USB for image flash
Ethernet/PoE
  • 1 x 10/100/1000 Mbps Ethernet (via Jetson Orin™ Nano)
  • 1 x 10/100/1000 Mbps PoE (Intel® I210-IT, up to 15W)
Display
  • 1 x HDMI 1.4 with 4K2K supported
GMSL
  • N/A
Digital I/O
  • N/A
Audio
  • N/A
Storage
  • 1 x M.2 Key M 2280 with PCIe x4 NVMe SSD slot
Expansion
  • 1 x Full-size PCI Express Mini Card slot (USB + PCI Express signal)
  • 1 x SIM slot
Others
  • 1 x Recovery switch
  • 1 x Reset button
  • 1 x Power button
  • 1 x 12 VDC power input connector
  • 2 x SMA-type antenna connector
Power Supply
  • 12 VDC screw type
Watchdog Timer
  • Built-in Orin Nano
Construction
  • Aluminum extrusion and heavy-duty steel, IP40 (IP42 by optional cover kit)
Operating Temperature
  • AIE100-ONA-8GB: -25°C to +60°C (-13°F to +140°F)
  • AIE100-ONA-4GB: -25°C to +70°C (-13°F to +158°F)
  • *Super mode: -25°C to +60°C (-13°F to +140°F)
Relative Humidity
  • 10% to 95% relative humidity, non-condensing
Vibration
  • IEC 60068-2-64 (with SSD: 3Grms STD, random, 5 to 500 Hz, 1 hr/axis)
Shock
  • IEC 60068-2-27 (with SSD: 50G, half-sine, 11 ms duration)
Dimensions (W x D x H)
  • 148.6 x 129.8 x 34.6 mm (5.85" x 5.11" x 1.36")
Weight (net/gross)
  • 0.9 kg (1.93 lb)/1.8 kg (3.97 lb)
Certifications
  • CE, FCC Class A, and UKCA
EOS Support
  • Linux Ubuntu 20.04 or later
  • *Super mode is only supported in Jetpack 6.2 or above
Mounting
  • Wall mount kit
  • DIN-rail kit
  • VESA mount kit

Ordering Information

  • AIE100-ONA-4GB (P/N-E27H100107)
    Fanless edge AI system with NVIDIA® Jetson Orin™ Nano 4GB, 1 HDMI, 1 GbE LAN, 1 GbE PoE, and 2 USB
  • AIE100-ONA-8GB (P/N-E27H100106)
    Fanless edge AI system with NVIDIA® Jetson Orin™ Nano 8GB, 1 HDMI, 1 GbE LAN, 1 GbE PoE, and 2 USB
  • E29R150100
    Wall mount kit
  • E29R150102
    DIN-rail kit
  • E29R150101
    VESA mount kit
  • E29R150103
    IP42 waterproof cover kit
  • M.2 NVMe SSD
    128GB or above
  • LTE module
  • Wi-Fi module
  • Power cord
  • 50966124050E
    12V/60W adapter
