Deploying High-Performance and Purpose-Built Platforms to Actualize the Smart Factory
Smart manufacturing operations utilize digital transformation and industrial automation technologies to improve productivity, efficiency, accuracy, and yield rates. High-end IPCs control robotic arms to ensure accurate and fast assembly of parts, while advanced inspection solutions help guarantee quality. AMRs not only enhance worker safety but also transport materials, allowing workers to focus on more valuable tasks. Furthermore, analyzing real-time data from industrial control systems (ICS) enables continuous monitoring and optimization of operations. To facilitate manufacturing optimization and digitalization, Axiomtek offers a range of intelligent computing platforms for unmanned operation, machine vision, motion control, and cybersecurity.

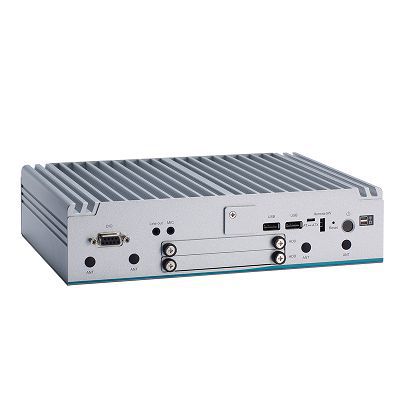

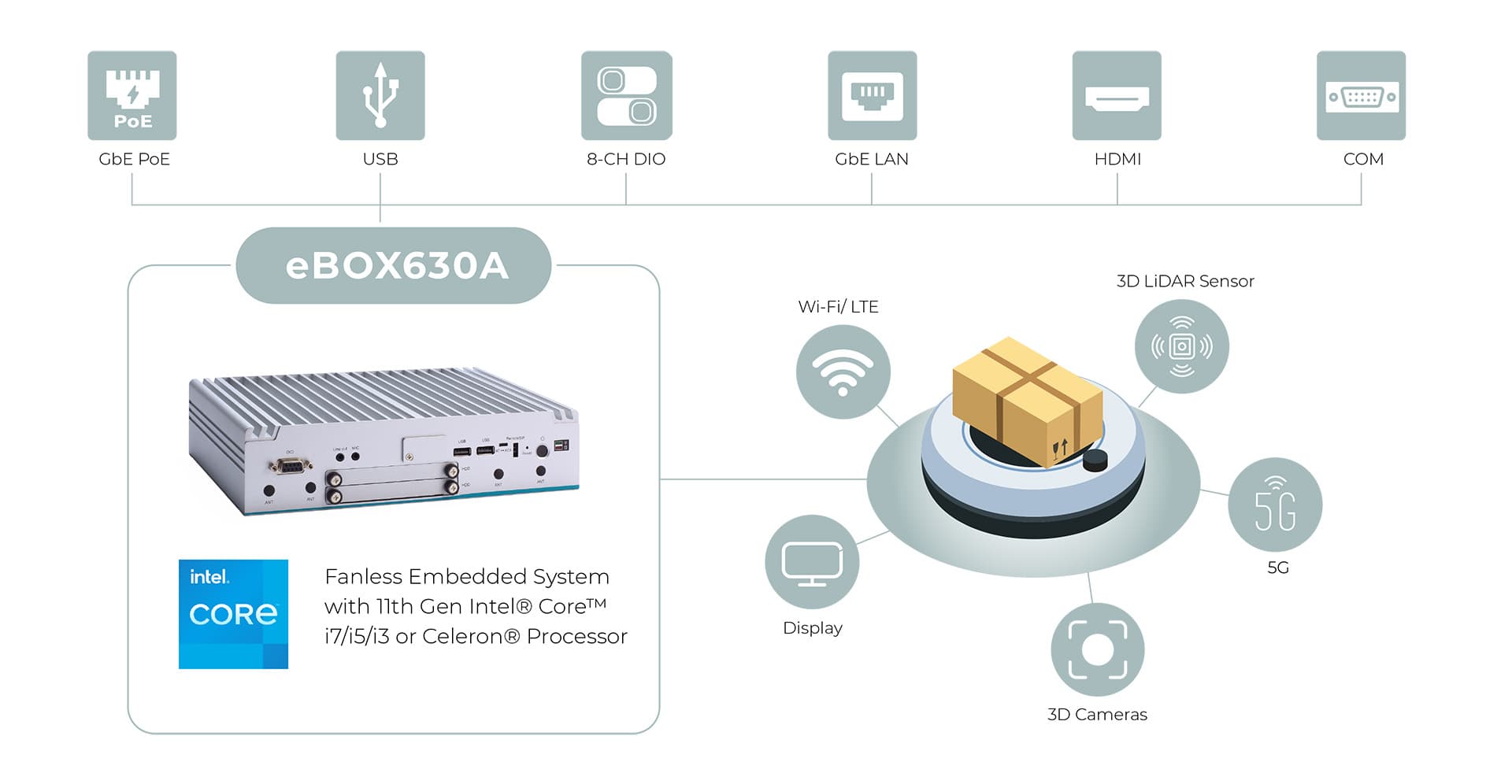

eBOX630A: High Performance, Compact Size, and Rugged Design
High-Performance Intel Processor
The eBOX630A is based on the 11th Gen Intel® Core™ i7/i5/i3 processor with powerful Intel® Iris® Xe graphics, allowing sensor data to be offloaded to the integrated GPU while enabling the CPU to deliver strong computing performance.
Rich I/O and Great Connectivity
An AMR requires multiple I/O interfaces for peripherals such as LiDAR and 3D cameras. The eBOX630A provides six USB ports in total on both the front and rear sides, as well as three 2.5GbE LAN ports to support various sensors. It also has an M.2 Key E 2230 slot and a PCIe Mini Card slot for wireless communication modules.
Rugged Design
The eBOX630A is durable and rugged, supporting an operating temperature range from -40°C to +60°C and meeting the IEC 60068-2-64 vibration endurance standard at 3 Grms.

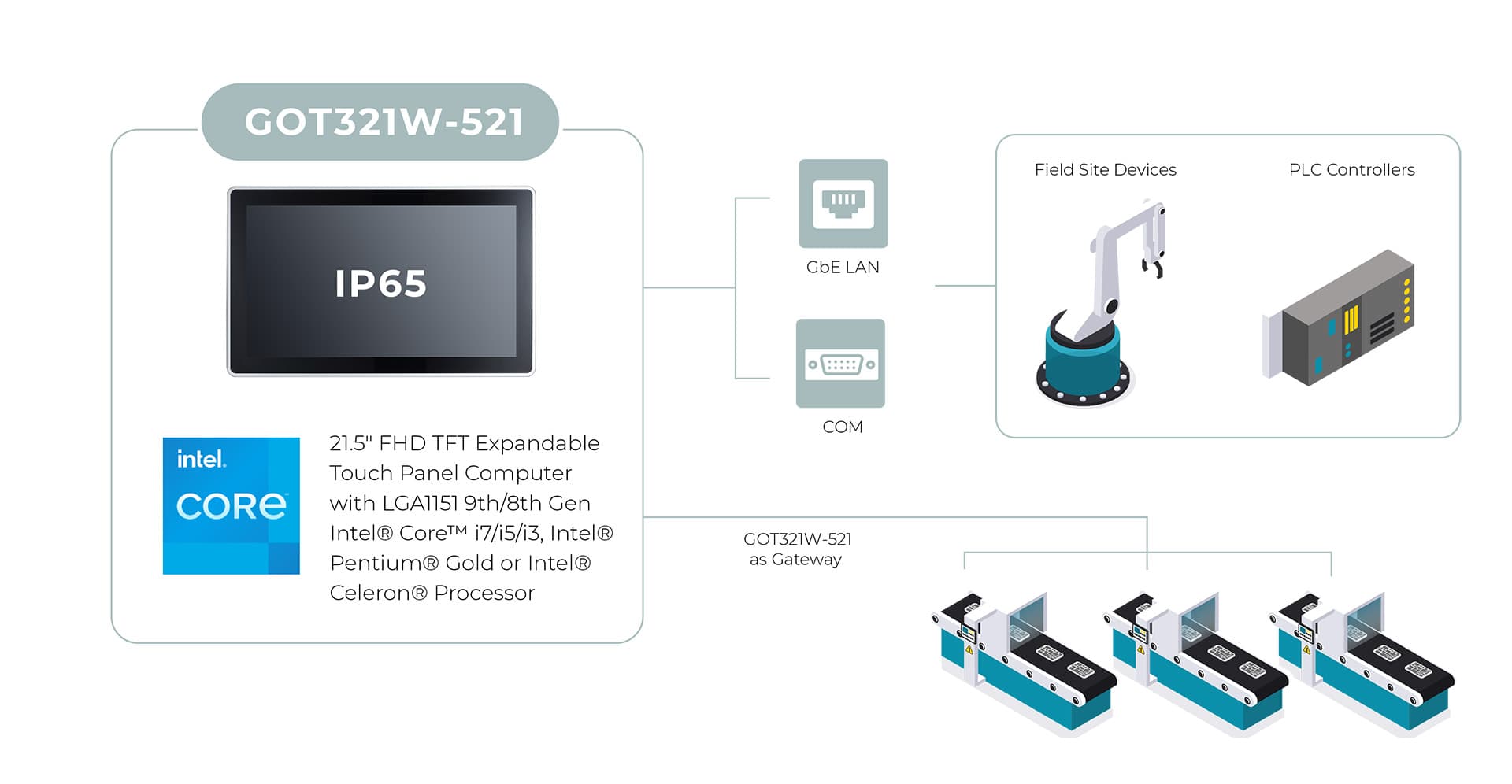

GOT321W-521: Recommended Panel PC for Manufacturing
High-Performance Intel Processor
The GOT321W-521 is powered by LGA1151 socket 9th/8th Gen Intel® Core™ i7/i5/i3, Pentium® Gold, or Celeron® processors with the Intel® H310 chipset.
Rugged Design for Industrial Use
The GOT321W-521 features an IP65-rated aluminum front bezel for dust and spill resistance, and supports a wide operating temperature range from 0°C to +50°C and up to 1G vibration endurance, making it a reliable choice for factory environments.
Rich I/O
The I/O interfaces include two COM ports, two LAN ports, four USB ports, and one flexible I/O window for Mini Card expansion. The HMI can connect to PLC controllers or other field-site devices via RS-485 or Ethernet.

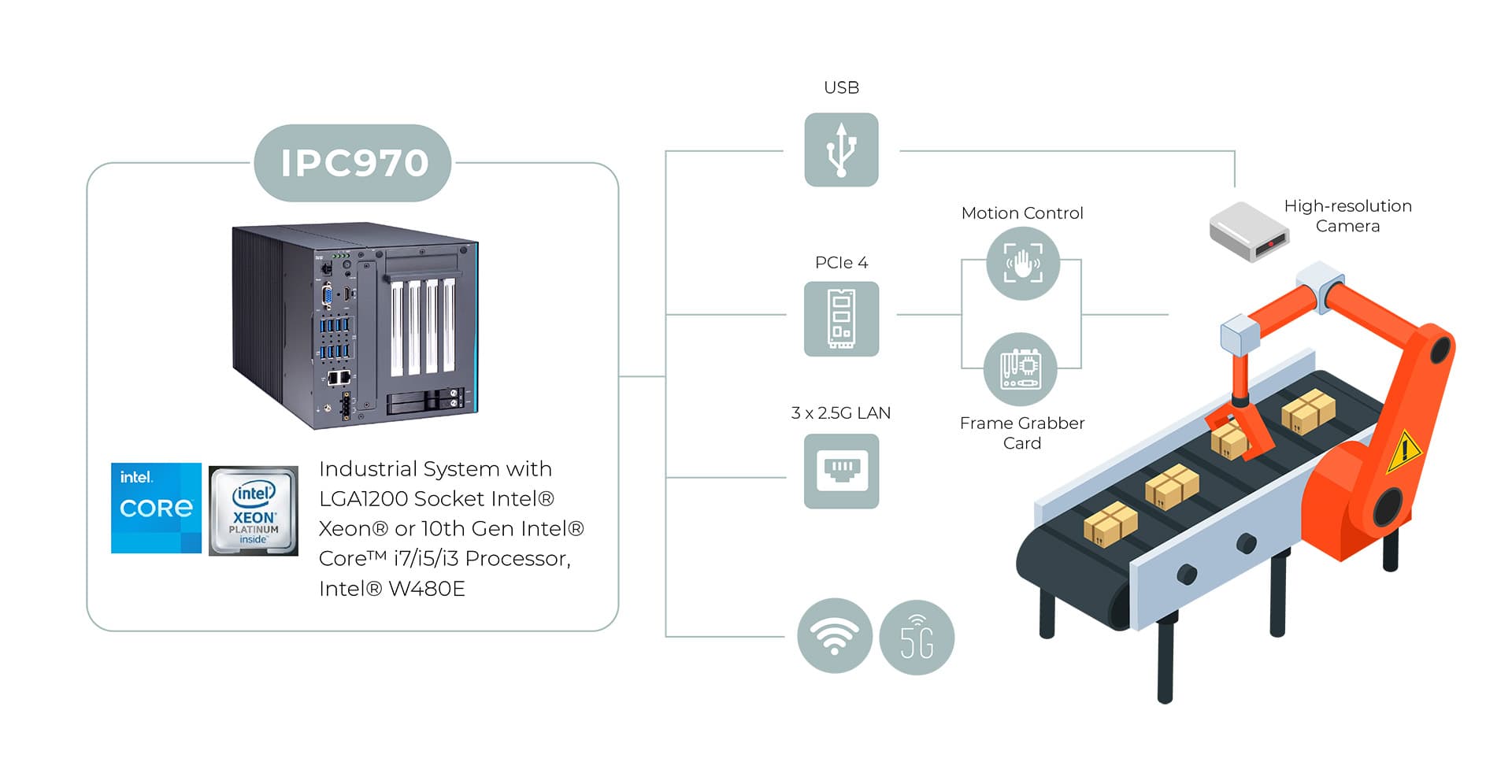

IPC970: High-Performance Industrial System for Robotic Arms
Intel Processor and GPU Card Support
The IPC970 is powered by Intel® Xeon® or 10th Gen Intel® Core™ i7/i5/i3 processors and supports an NVIDIA RTX3090 graphics card to boost AI performance for machine vision and automation applications.
Flexible and Rich I/O Interface
As a controller for robotic arms, the IPC970 features rich I/O interfaces to connect sensors and industrial cameras, while flexible I/O options provide customers with more choices for DIO and COM port expansion.
Flexible Wireless Expansion
To transmit data gathered at the edge to the cloud or data center for analysis, the system supports multiple wireless expansion interfaces, including a PCIe Mini Card slot for Wi-Fi, Bluetooth, or LTE modules and an M.2 Key B 3042/3050 socket for 5G wireless connectivity.

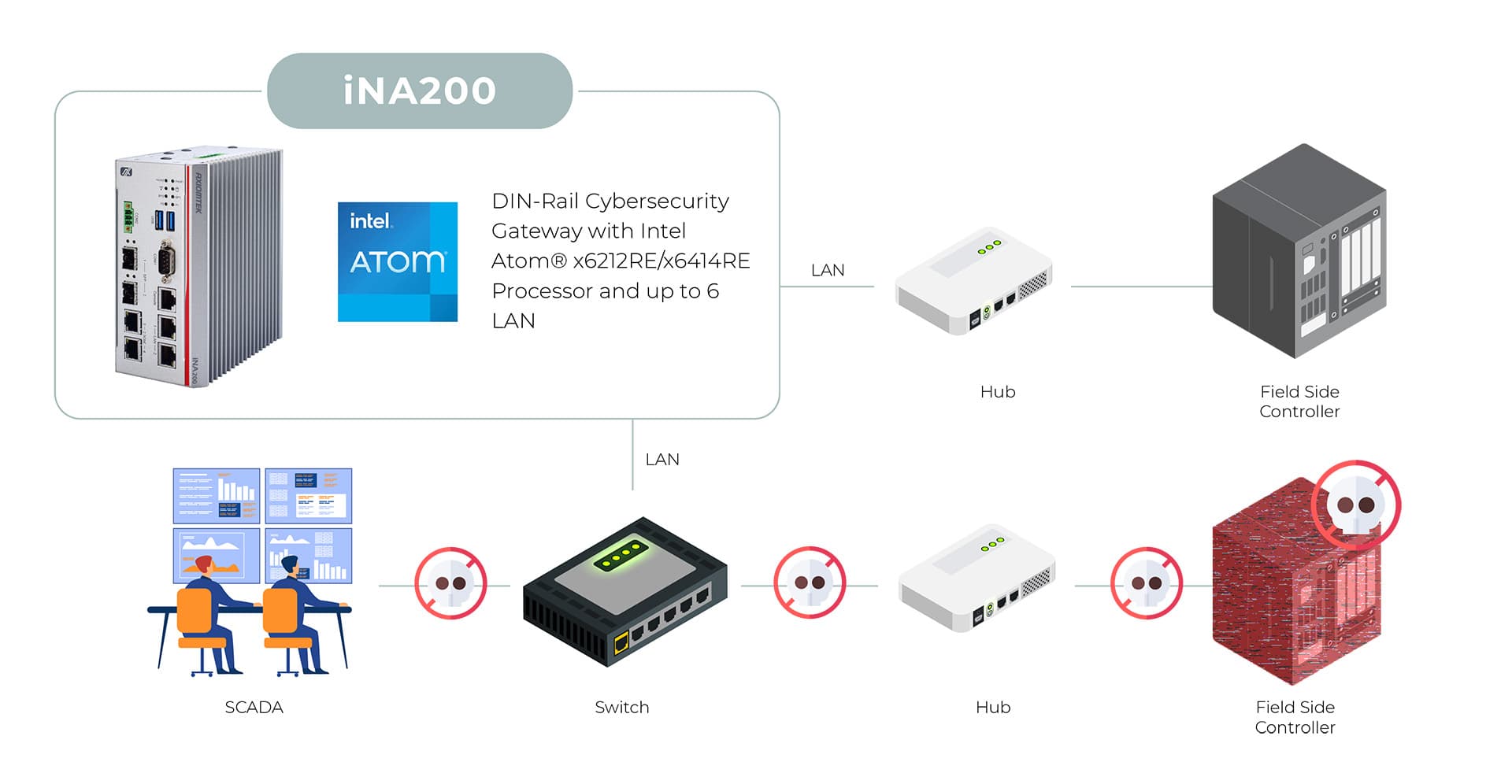

iNA200: Designed to Safeguard OT Devices
Four LAN Ports with LAN Bypass
The iNA200 provides two LAN and two 2.5GbE LAN ports for high bandwidth, with LAN bypass to ensure nonstop data transmission. For wired connections over longer distances, it also has two 1GbE SFP ports.
Compact Size with Rugged Design
With a compact size of only 66 mm x 127 mm x 150 mm, the iNA200 is designed to withstand harsh environments with its wide operating temperature range from -40°C to +70°C and wide power input from 9 to 36 VDC.
5G-Ready Connectivity
The iNA200 provides an M.2 Key B slot to support 5G for next-generation industrial use cases, as well as a full-size PCIe Mini Card slot with USB and SATA interfaces for wireless modules.
