iNA200

Status : Available

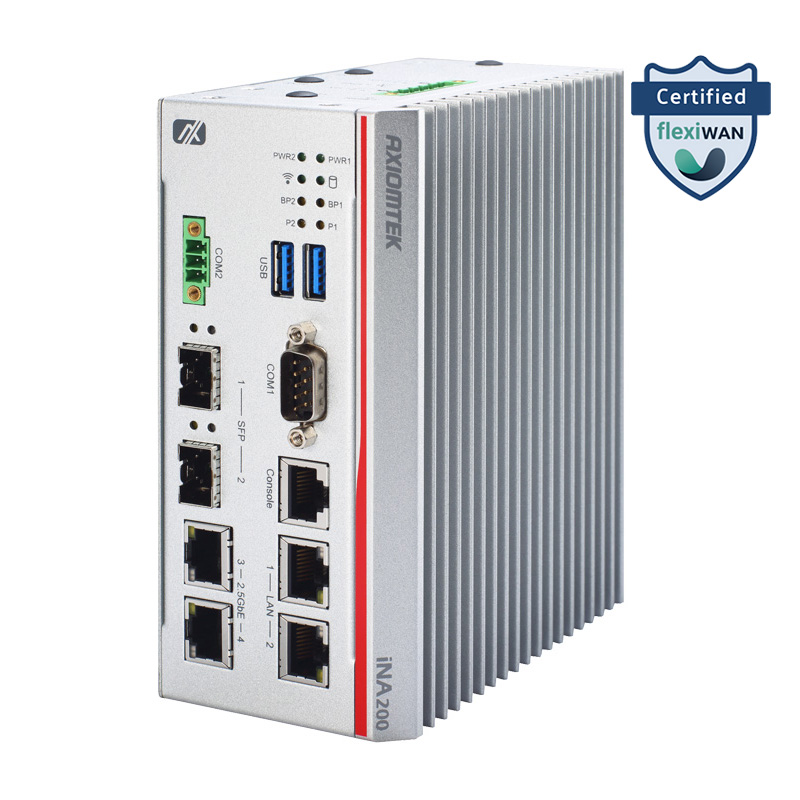

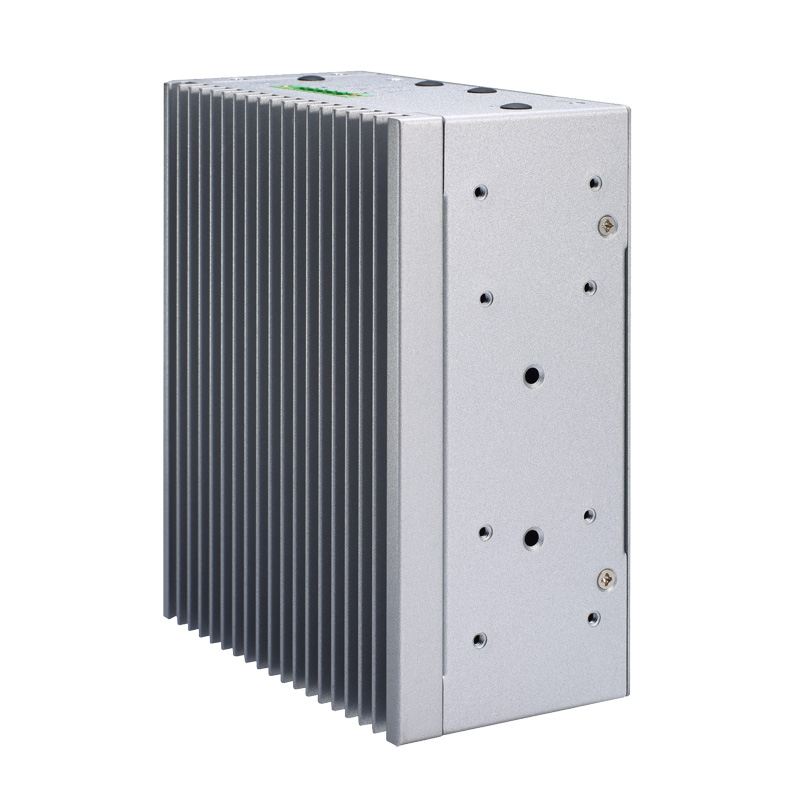

DIN-Rail Cybersecurity Gateway with Intel Atom® x6212RE/x6414RE Processor and up to 6 LAN

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
iNA200
iNA200
iNA200
iNA200
iNA200
iNA200
2.5G LAN

2.5G LAN

Fanless

Fanless

LAN Bypass

LAN Bypass

TPM

TPM

Wide Temperature

Wide Temperature

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Intel Atom® x6212RE/x6414RE processor (Elkhart Lake)
  • DDR4-3200 SO-DIMM, up to 32GB
  • 2 GbE LAN, 2 2.5GbE LAN, and 2 SFP
  • Wide operating temperature from -40°C to +70°C
  • Wide power input of 9 to 36V DC with dual power input
  • Supports 5G with M.2 Key B 3042/3052
  • Supports TPM 2.0
  • Ideal for OT field site cybersecurity and secured edge

Specifications

Form Factor

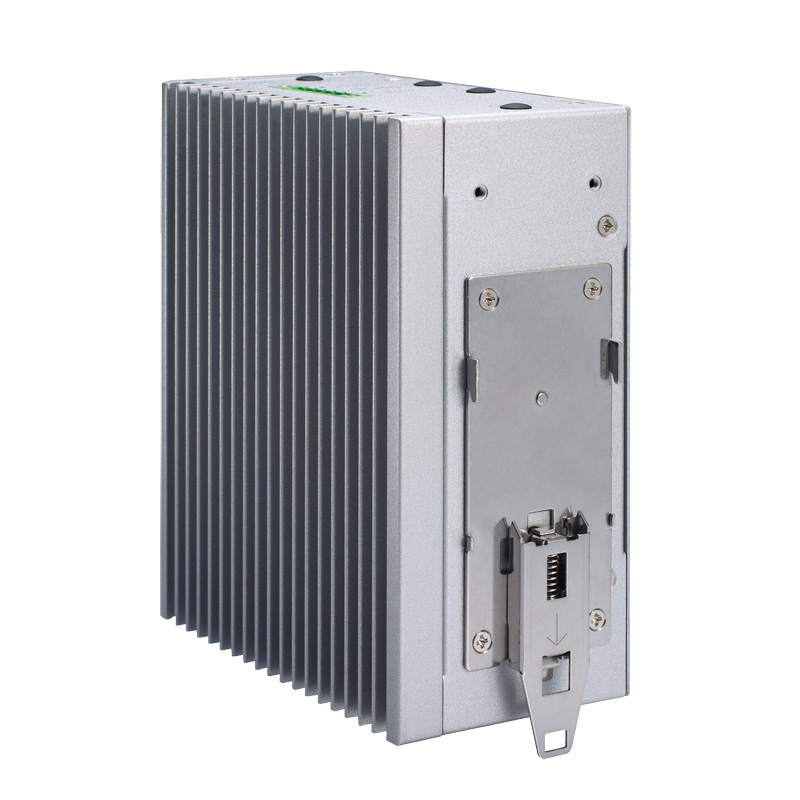

  • DIN-rail
CPU
  • Intel Atom® x6212RE/x6414RE processor (Elkhart Lake)
Chipset
  • SoC integrated
System Memory
  • DDR4-3200 SO-DIMM, up to 32GB
BIOS
  • AMI
Ethernet
  • 2 x 10/100/1000 Mbps (Marvell 88E1512) with LAN Bypass
  • 2 x 2.5G (Intel® I225-IT) with LAN Bypass and TSN function
  • 2 x 1G SFP (Intel® I210-IS)
Storage
  • 1 x 2.5" SATA 3.0 SSD
  • 1 x eMMC onboard (optional)
Expansion
  • 1 x M.2 Key B 3042/3052 slot (PCIe + USB interface)
  • 1 x Full-size PCIe Mini Card slot (USB + SATA interface)

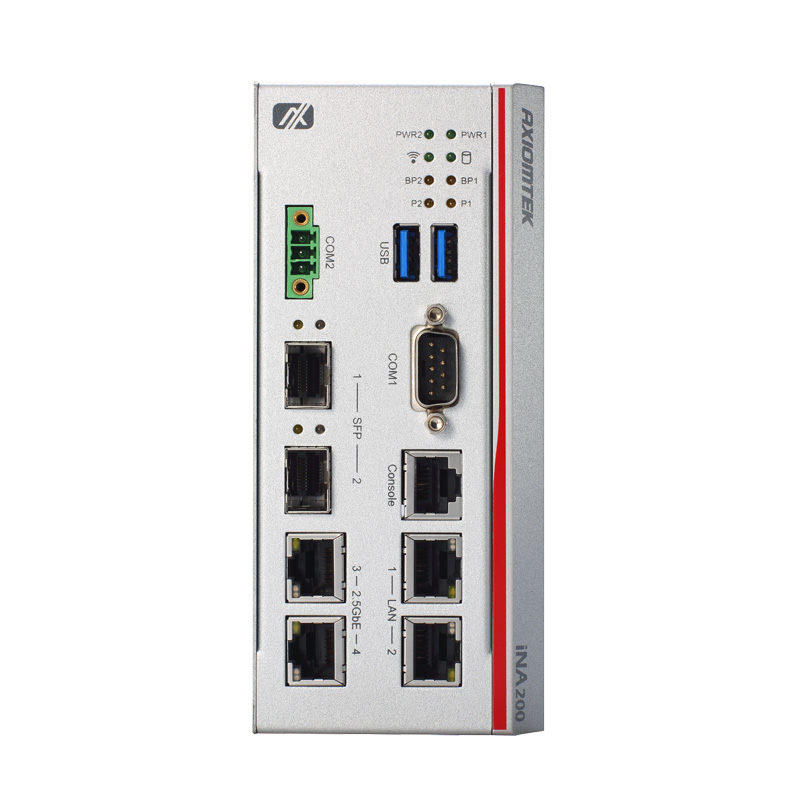

I/O Interface

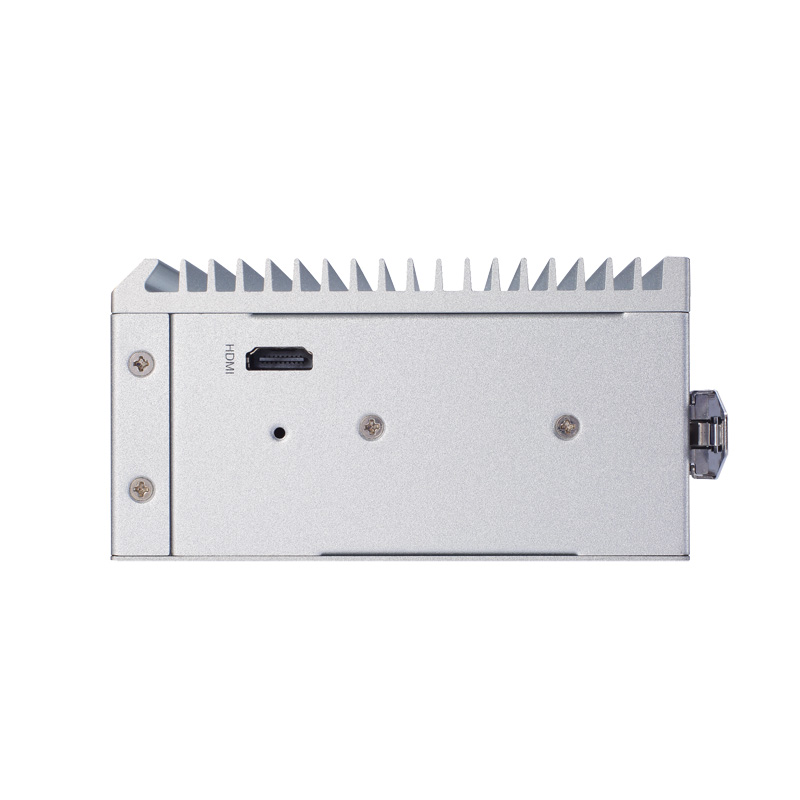

  • 1 x HDMI
  • 2 x USB 3.1
  • 1 x COM port (RS-232/422/485) with DB9 type
  • 1 x COM port (RS-485) with 3-pin terminal block
  • 1 x Tact switch
  • 4 x Antenna hole
  • 1 x Power input connector
  • 4 x Copper
  • 2 x Fiber
  • 1 x Console port (RJ-45)
Power Supply

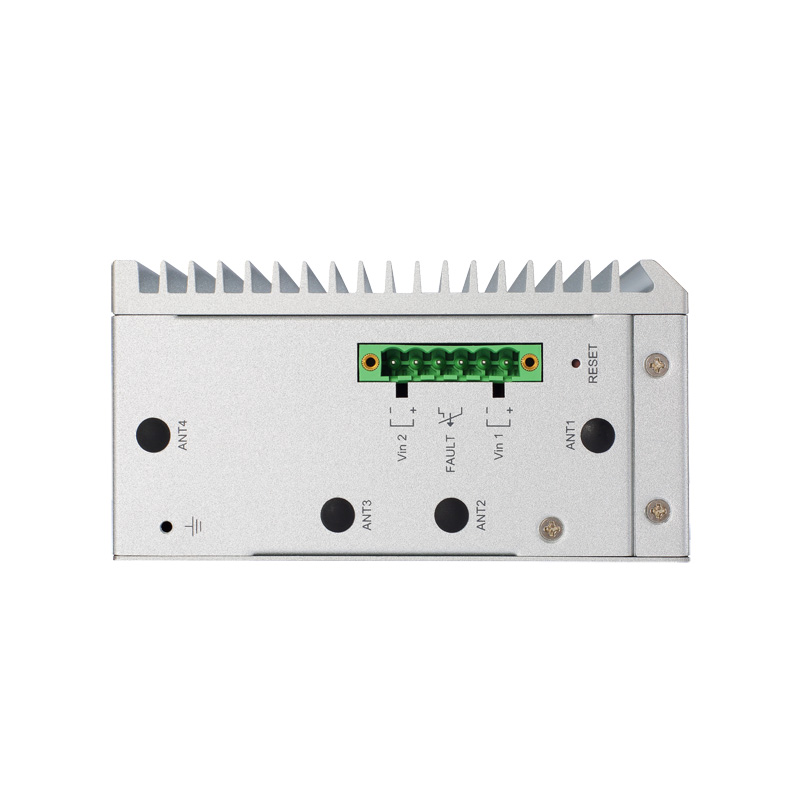

  • 9 to 36V DC (typical 12/24V) with terminal block for dual power input
  • OVP, UVP, OCP, RPP power protection design
Others
  • TPM 2.0
Watchdog Timer
  • 255 stepping for system reset
Dimensions
(W x D x H)
  • 66 x 127 x 150mm (2.6" x 5" x 5.9")
Operating Temperature
  • -40°C to +70°C (-40°F to +158°F)
Weight (net/gross)
  • 1.5 kg (3.3 lb)/1.8 kg (3.97 lb)
OS
  • Linux, Windows® 10
Certifications
  • CE (Class A), FCC (Class A)

Ordering Information

  • iNA200-X6414-A (P/N-E27B200100)
    DIN-rail cybersecurity gateway with Intel Atom® x6414RE processor and up to 6 LAN
  • iNA200-X6212-A (P/N-E27B200101)
    DIN-rail cybersecurity gateway with Intel Atom® x6212RE processor and up to 6 LAN
