VAM706/VAM707

Status : Available

Value-added Module with 4 M12 X-coded GbE LAN Ports (PoE Optional)

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
VAM706/VAM707
VAM706/VAM707
  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • 4 M12 X-coded GbE LAN or PoE/PoE+
  • Swappable modular design
  • Maximize I/O flexibility
  • Designed for tBOX500 series
  • CE, LVD, FCC and EN 50155 certified

Specifications

I/O
  • 4 x M12 X-coded GbE LAN
  • 4 x Manageable M12 output, up to 60W, supporting PoE and PoE+
  • PoE (802.3af 15.4W/port), PoE+ (802.3at 30W/port)
  • Manageability in total power budget and port enable/disable
Expansion
  • N/A
Isolation Voltage
  • N/A
Operating Temperature
  • -40°C to +70°C (-40°F to +158°F) with the tBOX500 series & wide operating temperature peripheral
Vibration
  • 3 Grms with the tBOX500 series (5 to 500Hz, X/Y/Z direction; random, operating)
Certifications
  • CE, LVD, FCC and EN 50155 certified

Ordering Information

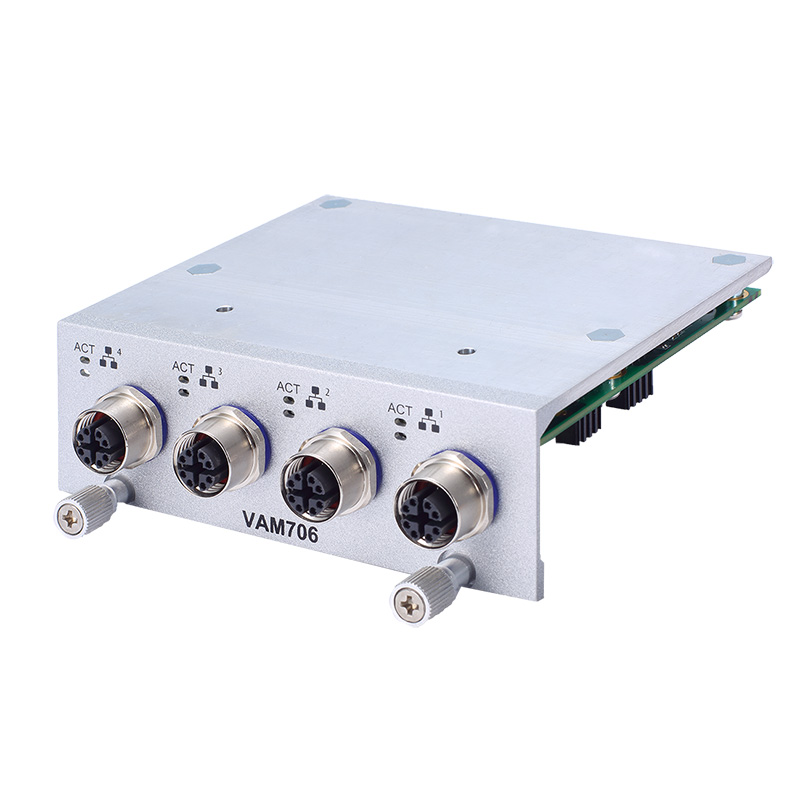

  • VAM706 (P/N-E277706100)
    Value-added module with 4 M12 X-coded GbE LAN ports and designed for the tBOX500 series

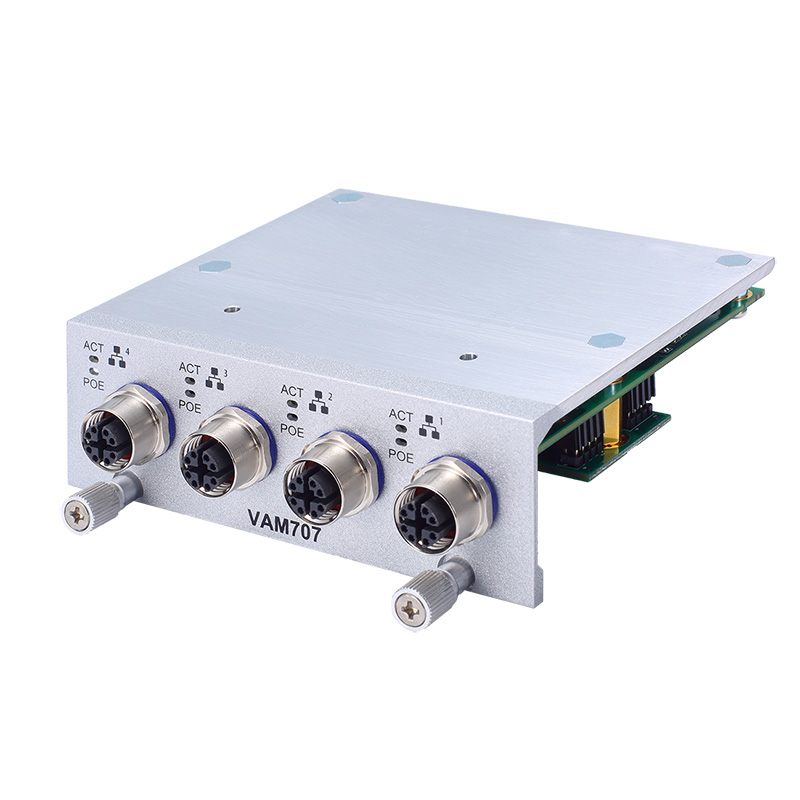

  • VAM707 (P/N-E277707100)
    Value-added module featuring 4 M12 X-coded GbE LAN ports with PoE, designed for the tBOX500 series

Download

Drivers

Date Description Version Download File
2025/10/22 VAM706_707_driver VA1.0

Software

Manual

Date Description Version Download File
2021/06/21 VAM706 Quick Manual VA1_03-14-2019 VA1
2021/06/21 VAM707 Quick Manual VA1_06-17-2019 VA1

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2022/11/28 EN50155 Certificate
