tBOX500-510-FL

Status : Available

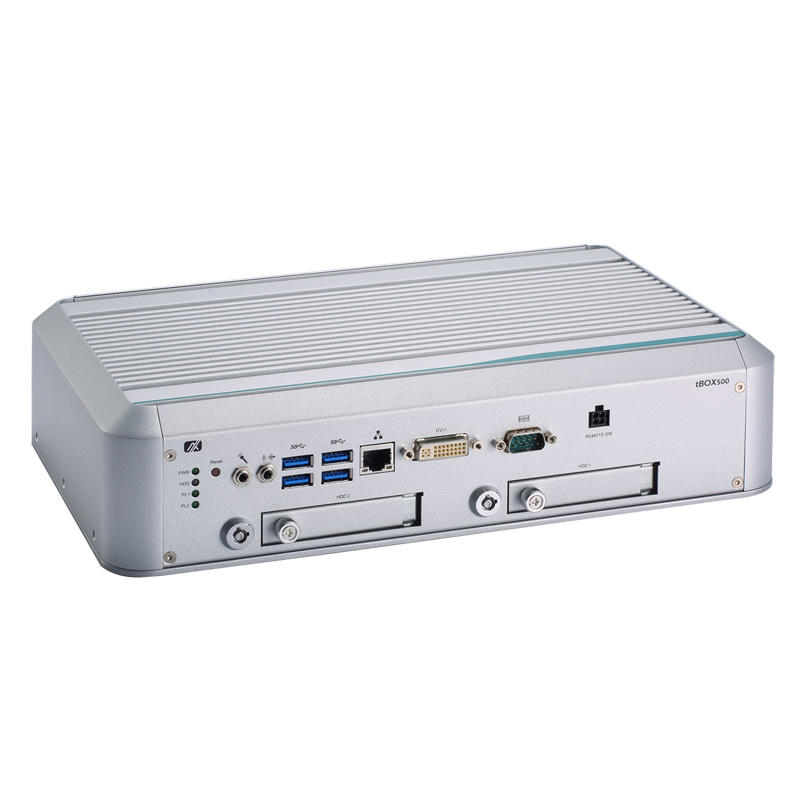

Fanless Embedded System with 7th Gen Intel® Core™ i7/i5/i3 or Celeron® Processor for Railway, Vehicle and Marine PC

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
tBOX500-510-FL
tBOX500-510-FL
tBOX500-510-FL
tBOX500-510-FL
tBOX500-510-FL
tBOX500-510-FL
tBOX500-510-FL
tBOX500-510-FL
EN 45545

EN 45545

EN 50155

EN 50155

IEC 60945

IEC 60945

ISO 7637

ISO 7637

Wide Temperature

Wide Temperature

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • CE, LVD, FCC, EN 50155, EN 45545-2, and IEC 60945 certified; ISO 7637-2 compliant
  • 7th gen Intel® Core™ i7/i5/i3 or Celeron® processor
  • Power supply:
    24 to 110 VDC for the railway version
    12/24 VDC for vehicle version
  • 24 VDC for the marine version
  • Value-added modules available for various I/O requirements (COM/LAN/DIO/PoE/CAN)
  • Intelligent solution for vehicle power management (Smart Ignition)
  • 2 swappable 2.5" SATA drives

Specifications

CPU
  • Intel® Core™ i7-7600U 2C@2.8 GHz, TDP: 15W
  • Intel® Core™ i5-7300U 2C@2.6 GHz, TDP: 15W
  • Intel® Core™ i3-7100U 2C@2.4 GHz, TDP: 15W
  • Intel® Celeron® 3965U 2C@2.2 GHz, TDP: 15W
Chipset
  • SoC integrated
System Memory
  • 2 x DDR4-1866/2133 SO-DIMM, up to 32GB
BIOS
  • AMI
COM
  • 1 x DB9 serial console or RS-232/422/485
USB
  • 4 x USB 3.0
Ethernet
  • 1 x RJ-45 10/100/1000 Mbps Ethernet (Intel® I210-IT)
PoE

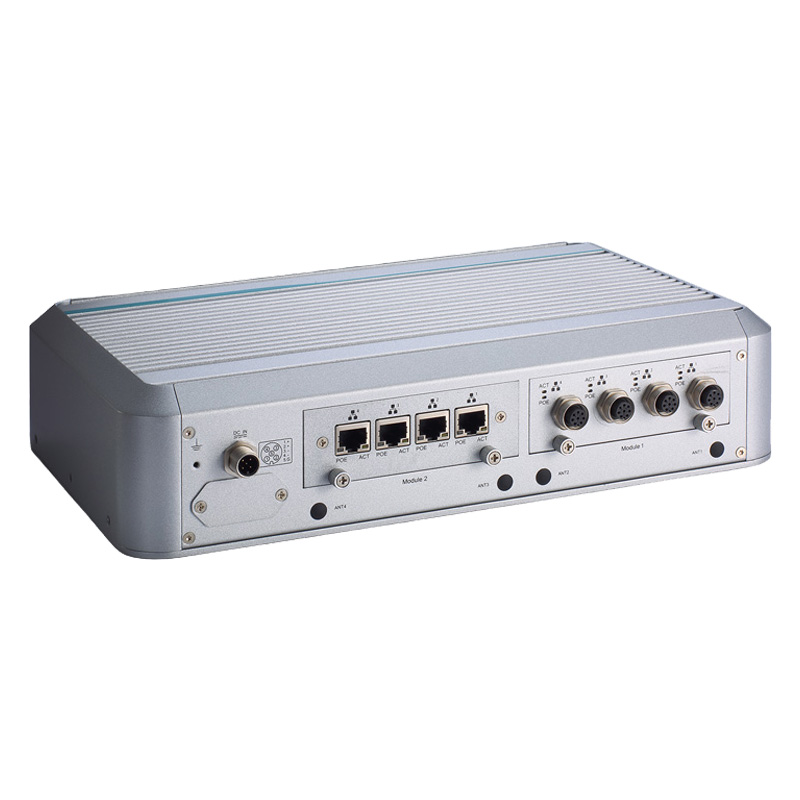

  • Internal PoE SKUs equipped with VAM701/703/705/707 can support up to 8 configurable M12/RJ-45 PoE ports
  • PoE (802.3af 15.4W per port)
  • PoE+ (802.3at 30W per port)
Display
  • 1 x DVI-I (up to 1920 x1200 @60Hz, 1 x VGA & 1 x DVI included)
CANbus
  • Available from I/O module (optional)

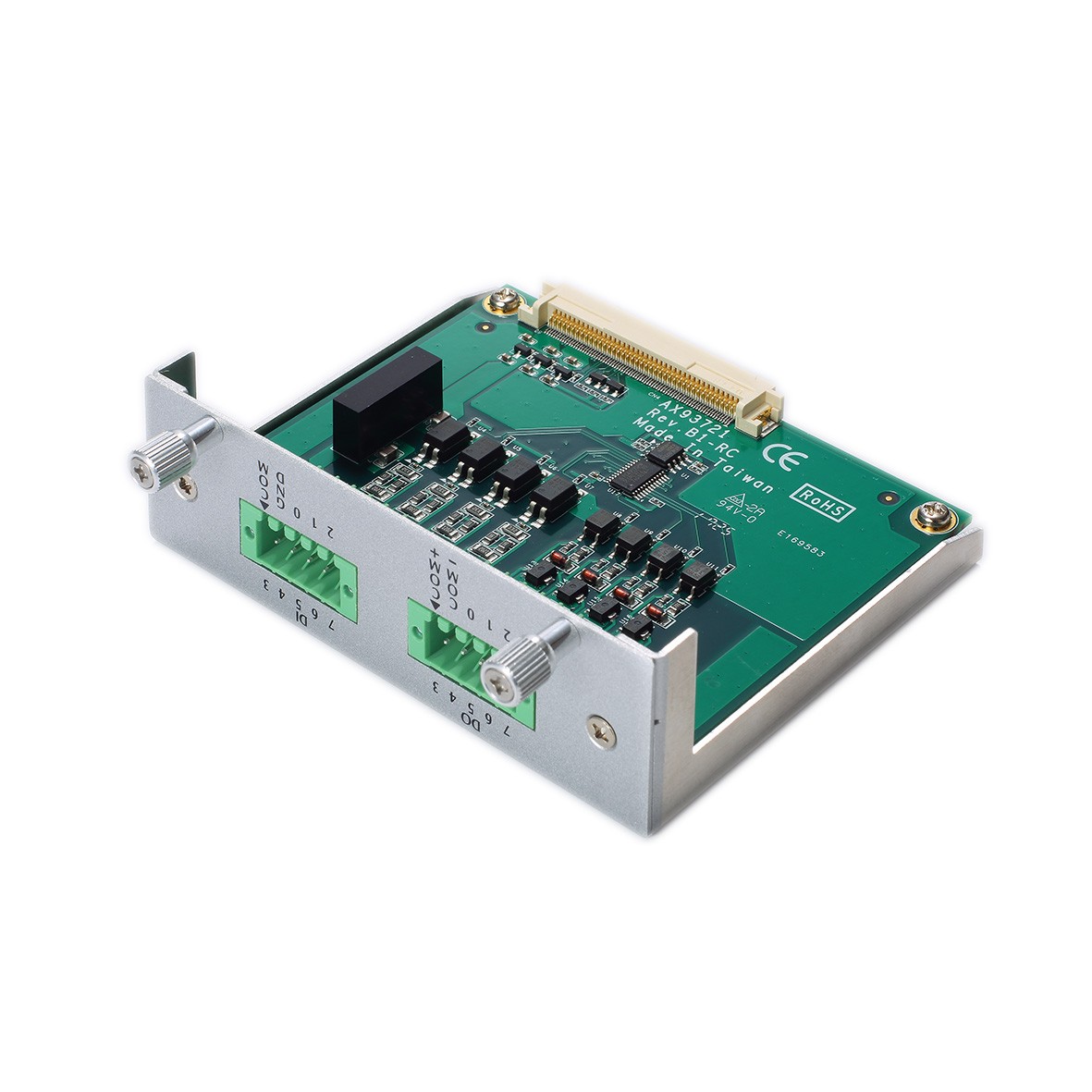

Digital I/O
  • Available from I/O module (optional)
Audio
  • 1 x Mic-in
  • 1 x Line-out
Storage
  • 2 x swappable 2.5" SATA drive (9.5 mm height), Intel® RAID 0/1 supported
  • 1 x mSATA (occupied 1 x PCI Express Mini Card slot)
Expansion
  • 1 x Full-size Rev.1.2 PCI Express Mini Card slot (mSATA/PCIe)
  • 2 x Full-size Rev.1.2 PCI Express Mini Card slot (USB/PCIe with SIM socket)
  • 2 x Value-added module slot
Others
  • TPM 2.0 (optional)
  • 1 x Reset button
  • 1 x Remote switch
  • 4 x Antenna opening
Power Supply
  • Railway: 1 x M12, 24 to 110 VDC
  • Vehicle: 1 x terminal block, 12/24 VDC with Smart Ignition
  • Marine: 1 x terminal block, 24 VDC
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Construction
  • Aluminum extrusion and heavy-duty steel, IP30
Operating Temperature
  • -40°C to +70°C (-40°F to +158°F) with W.T. peripheral
Relative Humidity
  • 0% to 95%, non-condensing
Vibration
  • 3 Grms w/ SSD (5 to 500Hz, X/Y/Z direction; random, operating)
  • 1.5 Grms w/ HDD (5 to 500Hz, X/Y/Z direction; random, operating)
  • 2 Grms w/ HDD & Anti-Vibration Kit (5 to 500Hz, X/Y/Z direction; random, operating)
  • MIL-STD-810G, Method 514.6C-VI Category 4 compliant
Shock
  • EN(IEC) 61373 category 1 class B, half-sine pulse, 5g, 30ms (longitudinal direction), 3g, 30ms (vertical/transverse direction)
Dimensions
(W x D x H)
  • 321 x 210.2 x 73.3 mm (12.64" x 8.28" x 2.89") (without wall mount)
Weight (net/gross)
  • 3.5 kg (7.72 lb)/5.1 kg (11.24 lb)
Certifications
  • CE (Class A), LVD, FCC (Class A), EN 50155, EN 45545-2, IEC 60945 certified
  • ISO 7637-2 compliant
EOS Support
  • Windows® 10 64-bit, Linux
Software Support
  • N/A
Mounting
  • Wall mount

Ordering Information

  • tBOX500-510-FL-i7-24-110MRDC (P/N-E26N500100)
    Fanless railway embedded system with Intel® Core™ i7-7600U processor, 4 USB 3.0, DVI-I, LAN, serial console, Mic-in & Line-out, two 2.5" SATA trays, M12 A-code 5P DC-in, and 24 to 110 VDC
  • tBOX500-510-FL-i5-24-110MRDC (P/N-E26N500101)
    Fanless railway embedded system with Intel® Core™ i5-7300U processor, 4 USB 3.0, DVI-I, LAN, serial console, Mic-in & Line-out, two 2.5" SATA trays, M12 A-code 5P DC-in, and 24 to 110 VDC
  • tBOX500-510-FL-i3-24-110MRDC (P/N-E26N500102)
    Fanless railway embedded system with Intel® Core™ i3-7100U processor, 4 USB 3.0, DVI-I, LAN, serial console, Mic-in & Line-out, two 2.5" SATA trays, M12 A-code 5P DC-in, and 24 to 110 VDC
  • tBOX500-510-FL-Celeron-24-110MRDC (P/N-E26N500103)
    Fanless railway embedded system with Intel® Celeron® 3965U processor, 4 USB 3.0, DVI-I, LAN, serial console, Mic-in & Line-out, two 2.5" SATA trays, M12 A-code 5P DC-in, and 24 to 110 VDC
  • tBOX500-510-FL-i7-TVDC (P/N-E26N500104)
    Fanless vehicle embedded system with Intel® Core™ i7-7600U processor, 4 USB 3.0, DVI-I, LAN, serial console, Mic-in & Line-out, two 2.5" SATA trays, 9 to 36 VDC, TB 3P DC-in, and Smart Ignition
  • tBOX500-510-FL-i3-TVDC (P/N-E26N500106)
    Fanless vehicle embedded system with Intel® Core™ i3-7100U processor, 4 USB 3.0, DVI-I, LAN, serial console, Mic-in & Line-out, two 2.5" SATA trays, 9 to 36 VDC, TB 3P DC-in, and Smart Ignition
  • tBOX500-510-FL-Celeron-TVDC (P/N-E26N500107)
    Fanless vehicle embedded system with Intel® Celeron® 3965U processor, 4 USB 3.0, DVI-I, LAN, serial console, Mic-in & Line-out, two 2.5" SATA trays, 9 to 36 VDC, TB 3P DC-in, and Smart Ignition
  • tBOX500-510-FL-i7-TMDC (P/N-E26N500108)
    Fanless marine embedded system with Intel® Core™ i7-7600U processor, 4 USB 3.0, DVI-I, LAN, serial console, Mic-in & Line-out, two 2.5" SATA trays, TB 3P DC-in, and 14 to 32 VDC
  • tBOX500-510-FL-i5-TMDC (P/N-E26N500109)
    Fanless marine embedded system with Intel® Core™ i5-7300U processor, 4 USB 3.0, DVI-I, LAN, serial console, Mic-in & Line-out, two 2.5" SATA trays, TB 3P DC-in, and 14 to 32 VDC
  • tBOX500-510-FL-i3-TMDC (P/N-E26N500110)
    Fanless marine embedded system with Intel® Core™ i3-7100U processor, 4 USB 3.0, DVI-I, LAN, serial console, Mic-in & Line-out, two 2.5" SATA trays, TB 3P DC-in, and 14 to 32 VDC
  • tBOX500-510-FL-Celeron-TMDC (P/N-E26N500111)
    Fanless marine embedded system with Intel® Celeron® 3965U processor, 4 USB 3.0, DVI-I, LAN, serial console, Mic-in & Line-out, two 2.5" SATA trays, TB 3P DC-in, and 14 to 32 VDC
  • tBOX500-510-FL-i5-POE-24-110MRDC (P/N-E26N500115)
    Fanless railway embedded system, Intel® i5-7300U processor, 4 USB 3.0, DVI-I, LAN, serial console or RS-232/422/485, Mic-in & Line-out, two 2.5" SATA trays, M12 A-code DC-in, 24 to 110 VDC and Internal PoE PSU
  • VAM100 (P/N-E277100100)
    4 x Terminal block 4-wire isolated RS-232/422/485; Isolation voltage

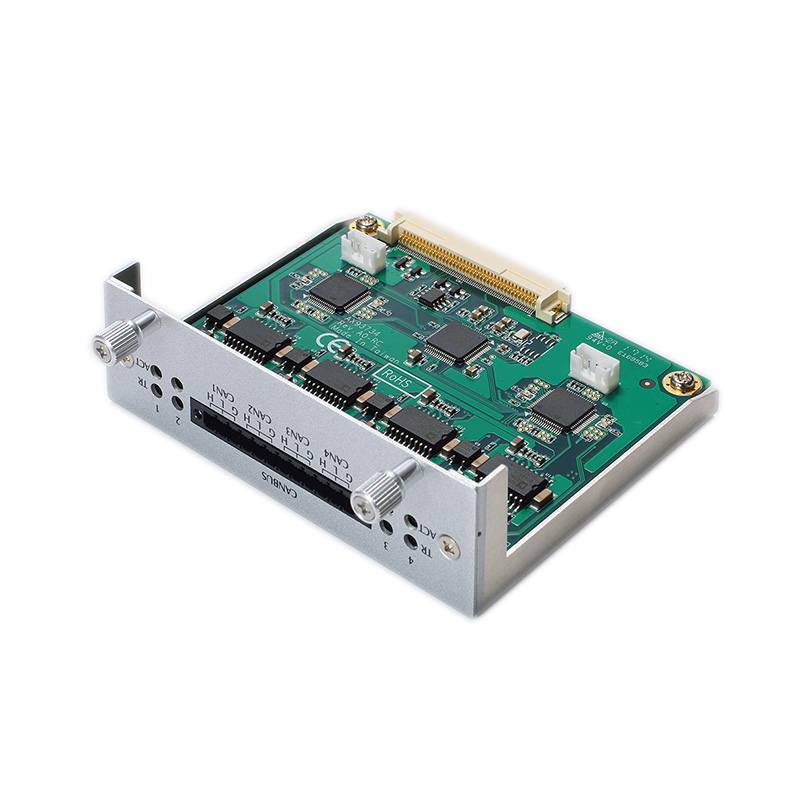

  • VAM102 (P/N-E277102100)
    4 x Terminal block isolated CANBus 2.0A/B; Isolation voltage
  • VAM600 (P/N- E277600100)
    2 x Full size Rev. 1.2 PCI Express Mini card slot (1 x USB/PCIe with SIM socket & 1 x USB with SIM socket)
    4 x Antenna opening
  • VAM700 (P/N-E277700100)
    4 x M12 A-code GbE

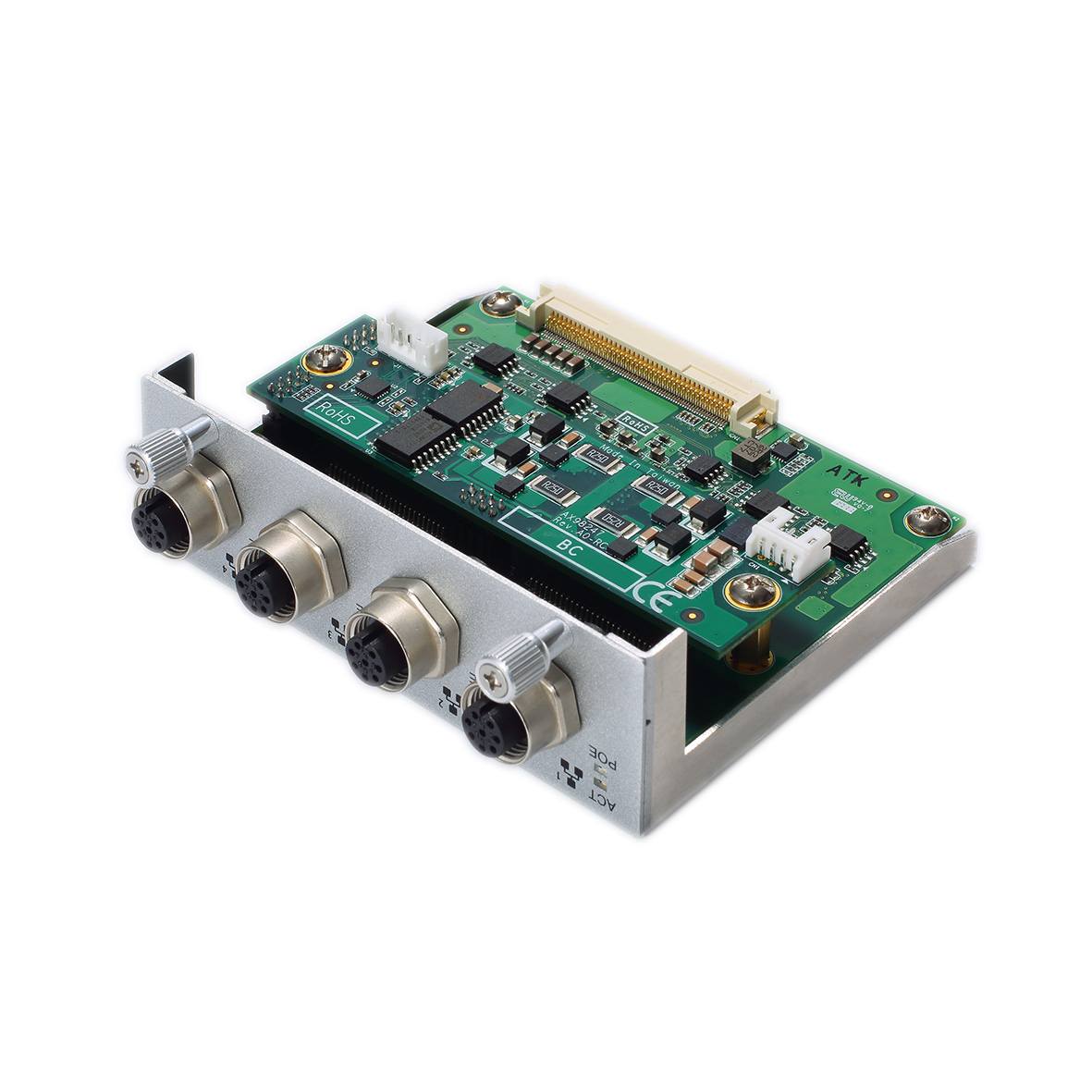

  • VAM701 (PoE) (P/N- E277701100)
    4 x M12 A-code Gigabit PoE

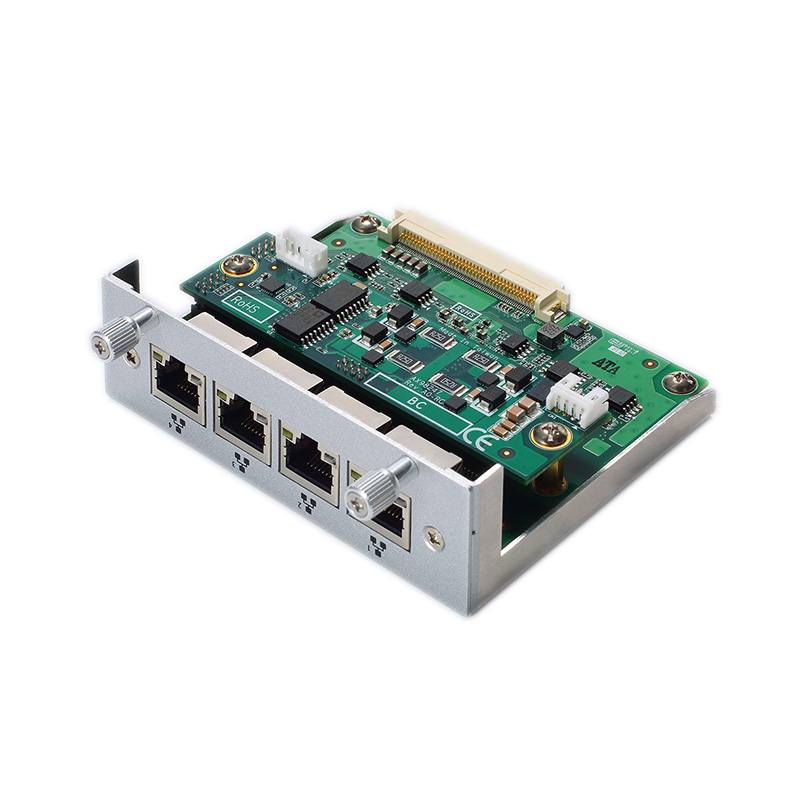

  • VAM702 (P/N-E277702100)
    4 x RJ45 GbE
  • VAM703 (PoE) (P/N-E277703100)
    4 x RJ45 Gigabit PoE
  • VAM704 (P/N-E277704100)
    4 x M12 D-code 10/100 Mbps Ethernet
  • VAM705 (PoE) (P/N- E277705100)
    4 x M12 D-code 10/100 Mbps PoE
  • VAM706 (P/N-E277706100)
    4 x M12 X-code GbE
  • VAM707 (PoE) (P/N-E277707100)
    4 x M12 X-code PoE

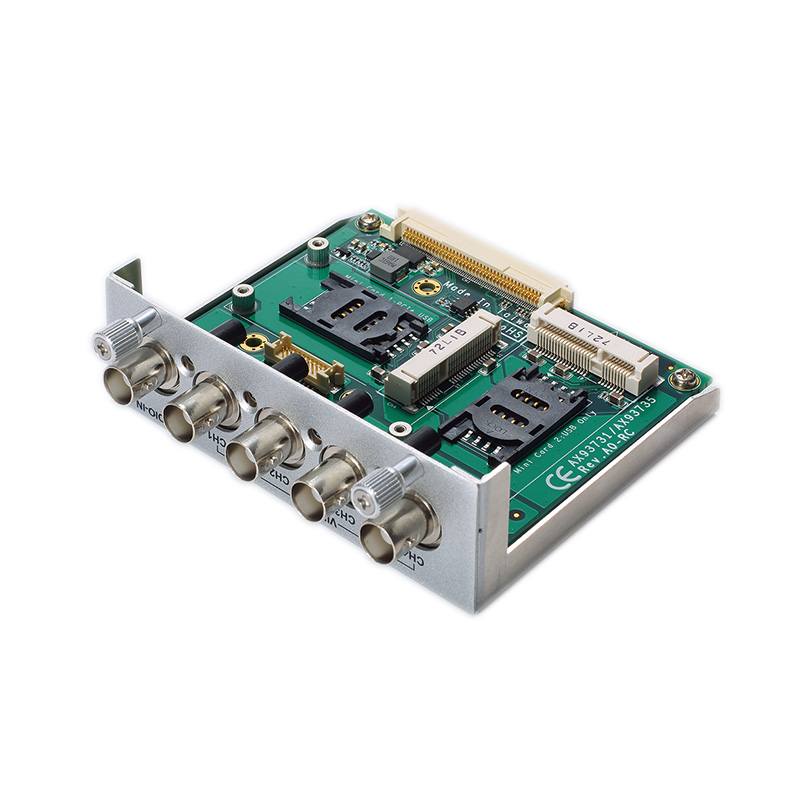

  • VAM708 (P/N
    E277708101)
  • VAM900 (P/N-E277900100)
    2 x Full-size Rev.1.2 PCI Express Mini Card slot (2 x USB with SIM socket)
    1 x Half-size Rev.1.2 PCI Express Mini Card slot ( PCIe)
    1 x Terminal block 4-wire isolated RS-232/422/485 COM (isolation Voltage
  • Anti-vibration Kit (P/N-8816N5008A0E)
    For in-vehicle/rolling stock which improves HDD stability in NVR applications
  • E29R318100
    ACC318-501-203(LTE NL668-EAU)
  • E39P118113
    EIO118-EAU-001 20C
  • E39P118114
    EIO118-JP-001 20C
  • 509000001500
    PWS FSP120-AAAN3 (9NA1206647) FSP 120W (wire type for TVDC/TMDC series)
  • 509000002200
    PWS 9NA0908344 FSP 90W (with M12 connector for MRDC series)
  • 590000065800
    CBL SW_to_HS4P 300 mm
  • 594B8120B30E
    DC IN CABLE M12 FEMALE 5P 180 cm w/o ACC
  • 59412042700E
    LAN Cable M12(D) 4P / RJ-45 8P L=180 cm
  • 594N3202730E
    LAN Cable M12-A MALE 8P TO RJ-45
  • 594B8152710E
    LAN Cable M12-XCODE/RJ-45PLUG CAT6 180 cm
  • 599000001100
    P Cord YP12/YC12_CY-U0032 YUNG_LI 1830 mm
  • 59906000010E
    Power Cord YP-12/YC-12 (Japan)
  • 59903000000E
    Power Cord YP-22/YC-12 (Europe)
  • 59904010000E
    Power Cord/UK YP-61A/YC-12 L=1830 mm

Download

Drivers

Date Description Version Download File
2024/03/20 06.VAM module driver VA1.2
2019/09/02 02.graphics VA1.1
2019/09/02 05.Reltek _Audio_X64_R279 VA1.1
2019/09/02 01.chipset VA1.1
2019/09/02 04.Intel(R)_ME VA1.1
2019/09/02 03_Intel Ethernet Driver VA1.1

Software

Manual

Date Description Version Download File
2025/03/11 tBOX500-510-FL User's Manual VA5 VA5

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2022/09/27 FCC Verification
2022/09/27 UKCA Declaration of Conformity
2022/09/27 CE-Conformity Declaration
2022/09/27 CE LVD Verification
2019/05/03 IEC60945 Certificate
2019/01/11 CE LVD Verification
2018/11/23 EN50155 Certificate
