Status : Available

4/2-Port 1GbE Fiber Bypass Module with Intel® I350AM2/AM4 Ethernet Controller

Controller	Intel® I350AM2/AM4
Speed/Connector	2 x 1 GbE SFP (I350AM2) 4 x 1 GbE SFP (I350AM4)
Interface	PCIe 2.0 x4 golden finger
LAN Bypass	Optional (refer to ordering information)
Jumbo Frames	Yes
Virtualization	VMDq, SR-IOV
Acceleration	N/A
Watchdog Timer	10% to 90% relative humidity, non-condensing
Available Models	NA363R, NA590,NA592,NA593, NA721, NA860, NA861, NA870, NA873, and NA875
Operation Temperature	0°C to +60°C (+32°F to +140°F)
Humidity	10% to 90% relative humidity, non-condensing
Dimensions	78.9 x 183.8 x 42.8 mm (3.11" x 7.24" x 1.69")

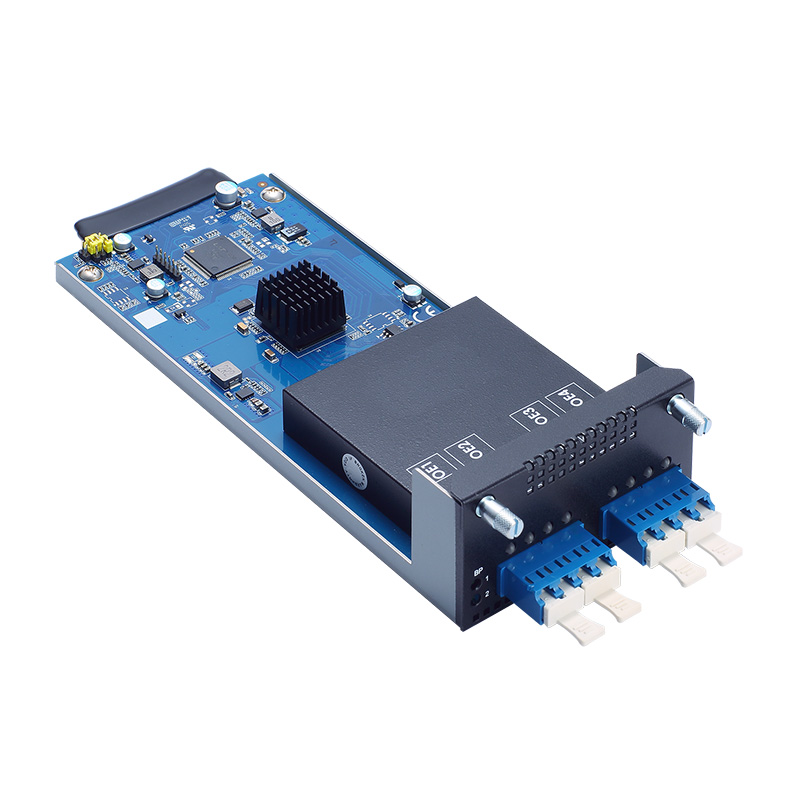

MIO135-4FIL-MM 1G with 2 LBP (P/N-E39Q135100)
4-ports 1GbE fiber bypass NIC module with tray

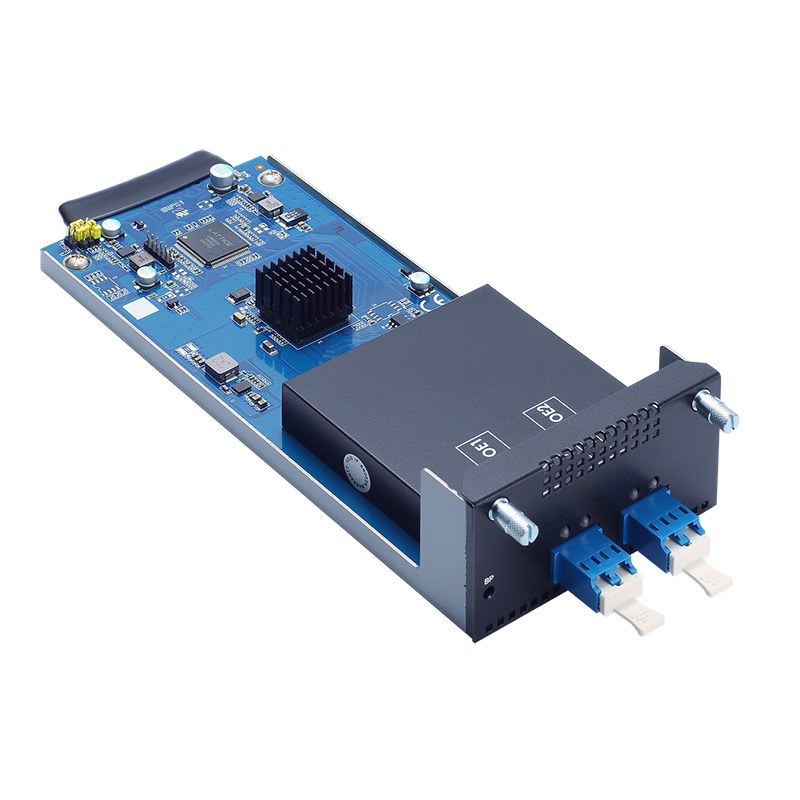

MIO135-2FIL-MM 1G with 1 LBP (P/N-E39Q135101)
2-ports 1GbE fiber bypass NIC module with tray
