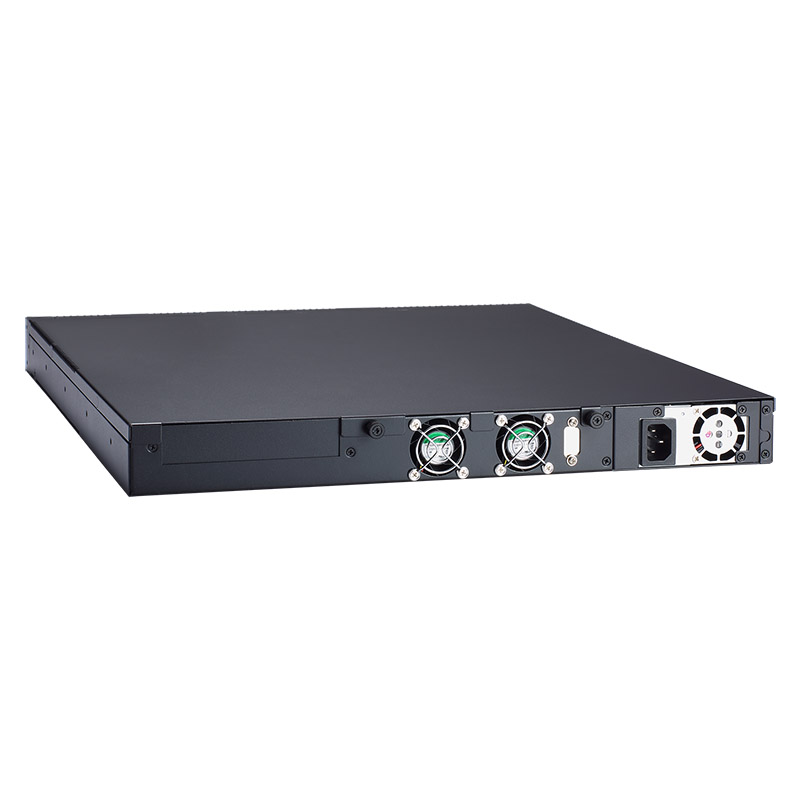

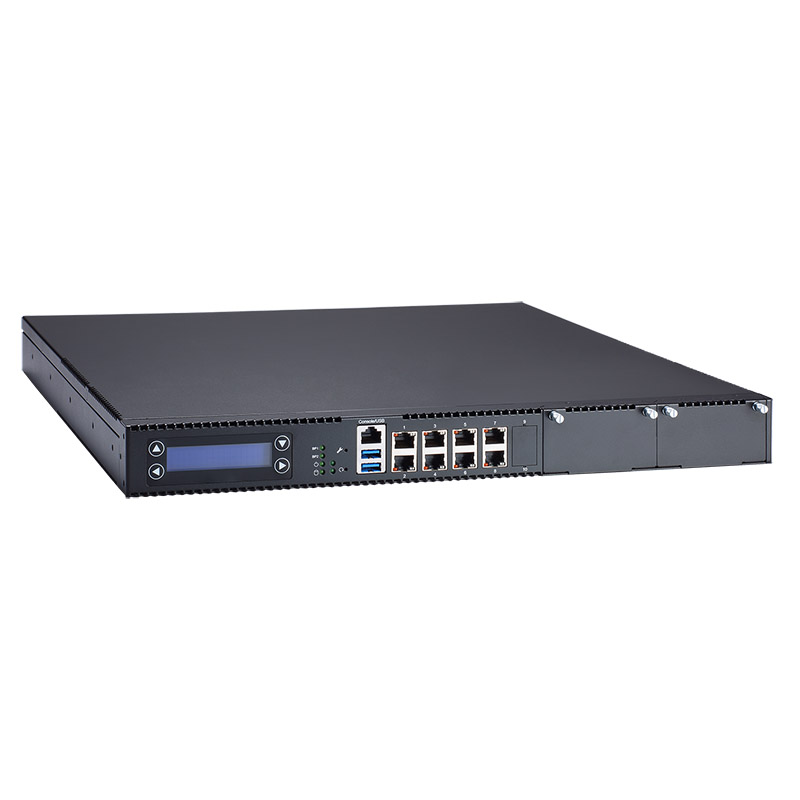

NA590

Status : Available

1U Rackmount Network Appliance Platform with LGA1151 Socket Intel® Core™/Xeon® E-2200 Processor, Intel® C246/H310 and up to 26 LAN

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
NA590
NA590
IPMI

IPMI

LAN Bypass

LAN Bypass

NIC Module

NIC Module

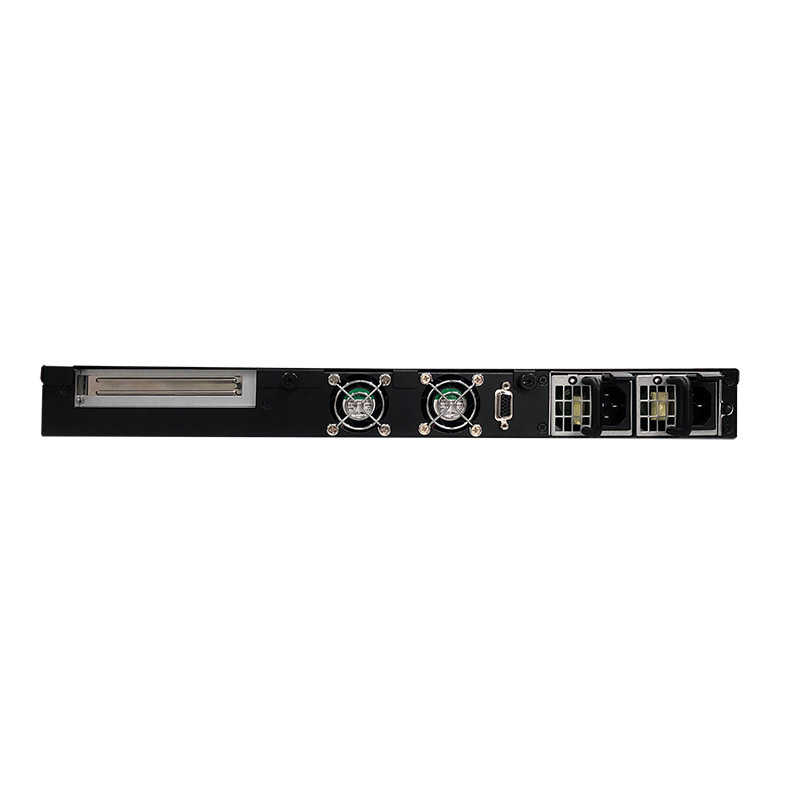

Redundant Power

Redundant Power

TPM

TPM

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • LGA1151 socket 9th/8th Intel® Core™ i7/i5/i3 & Xeon® E-2200 processor
  • 4 DDR4-2666 U-DIMM for up to 128GB of memory
  • Max. up to 26 LAN ports
  • 2 expandable LAN modules supporting 1GbE/10GbE/25GbE/40GbE/Fiber/Copper/Bypass
  • Supports 1U redundant power supply for optional
  • Supports IPMI for optional
  • Suitable for network security, cloud computing and data center applications

Specifications

Form Factor
  • 1U rackmount
CPU
  • LGA1151 socket 9th/8th Intel® Core™ i7/i5/i3 & Xeon® E-2200 processor (Coffee Lake/Coffee Lake refresh)
Chipset
  • Intel® C246/H310
System Memory
  • C246: 4 x DDR4-2666 U-DIMM, up to 128GB non-buffer non-ECC/ECC memory
  • H310: 2 x DDR4-2666 U-DIMM, up to 64GB non-buffer non-ECC memory
BIOS
  • AMI
Ethernet
  • C246:
  • 8 x GbE RJ45 (Intel® i210)
  • 10 x GbE RJ-45 (by project)
  • 2 x LAN module (optional), max. up to 26 LANs
  • H310:
  • 6 x GbE RJ-45 (Intel® i210)
  • 1 x LAN module (optional), max. up to 14 LANs
LAN Bypass
  • LAN Bypass function through latch relay (two pairs)
LAN Module
  • C246: 2 x LAN module (optional), max. up to 26 LANs
  • H310: 1 x LAN module (optional), max. up to 14 LANs
Storage
  • 2 x 2.5" SATA HDD
  • 1 x Full-size mSATA
  • 1 x M.2 Key M 2242/2280 slot (PCIe x4) through AX98621 I/O card (C246 optional)
  • 1 x 3.5" SATA HDD (optional for 300W single power supply)
Expansion
  • 1 x PCIe x8 (Intel® C246 only) through AX96708 riser card (optional)
I/O Interface
  • 1 x Console (RJ-type)
  • 2 x USB 3.0
  • 8 x RJ-45
  • 1 x VGA (optional)
Power Supply
  • 300W single power supply
  • 400W 1U redundant power supply (by project)
LCM Module
  • Yes
Watchdog Timer
  • 255 stepping for system reset
  • 8 stepping for LAN Bypass
Operating Temperature
  • 0°C to +45°C (+32°F to +113°F)
Dimensions
(H x W x D)
  • 44 x 430 x 450 mm (1.73" x 16.93" x 17.7")
Weight (net/gross)
  • 6 kg (13.2 lb)/10 kg (22 lb)
OS
  • Linux
Certifications
  • CE/FCC Class A
Others
  • Onboard BMC AST2500, IPMI 2.0 for optional
  • Onboard TPM 2.0

Ordering Information

  • NA590-R6GI-H310-US 9th w/o IPMI (P/N-E26E590109)
    1U rackmount appliance with LGA1151 socket Intel® Core™ processor, 6 GbE LAN, 2-pair LAN bypass and 1 expandable LAN module (optional)
  • NA590-R8GI-C246-US 9th w/o IPMI (P/N-E26E590108)
    1U rackmount appliance with LGA1151 socket Intel® Core™/Xeon® E-2200 processor, 8 GbE LAN, 2-pair LAN bypass and 2 expandable LAN modules (optional)
  • 5916E552000E
    DB9F-RJ-45 1.8M console cable for Cisco
