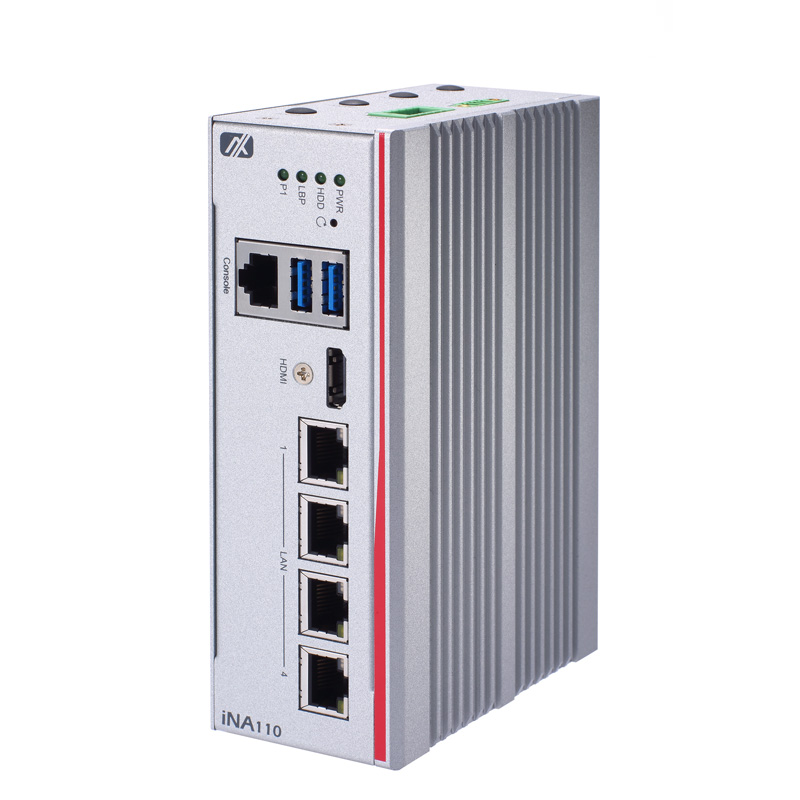

iNA110

Status : Available

DIN-Rail Cybersecurity Gateway with Intel Atom® x5-3930/E3940 Processor and 4 LAN with LAN Bypass

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
iNA110
iNA110
iNA110
iNA110
  • Features
  • Specifications
  • Ordering Information
  • Download
  • FAQ

Features

  • Cost-effective fanless design
  • Intel Atom® x5-E3930/E3940 processor (Apollo Lake)
  • 4 GbE RJ-45 (Intel® I210-IT) with LAN Bypass
  • Wide operating temperature range from -40°C to +70°C
  • 9 to 36 VDC, typical 12-24V power input with OVP, UVP, OCP, RPP
  • Supports TPM 2.0
  • Ideal for ICS cybersecurity and critical infrastructure protection
Power-Efficient CPU
Power-Efficient

Intel Atom® x5-E3930/E3940

Rugged Design
Reliable Design

Operating temperature -40°C to +70°C
9–36 VDC input

4 isolated LAN ports
Networking Topologies

4 isolated LAN ports
1-pair LAN Bypass

Compact, Energy-Efficient, and Cost-Effective

The iNA110 is a compact cybersecurity gateway, measuring just 51 mm (W) × 110 mm (D) × 155 mm (H), making it ideal for space-constrained environments. Powered by the Intel Atom® x5-E3930/E3940 processor, the iNA110 boasts a TDP lower than 10 W, ensuring low power consumption and high energy efficiency. Its fanless design and affordable pricing make it a perfect choice for cost-sensitive applications.



Rugged & Reliable Design

For demanding rugged environments, this fanless industrial cybersecurity platform provides a wide operating temperature range of -40°C to +70°C and IP40 protection. The wide-range 9–36 VDC power input features a lockable terminal block connector and OVP, UVP, OCP, and RPP protections to enhance reliability.

TPM 2.0 and Hardware Monitoring

To ensure critical information security, the iNA110 features onboard TPM 2.0 and a watchdog timer, adding layers of security.

TPM 2.0 and Hardware Monitoring

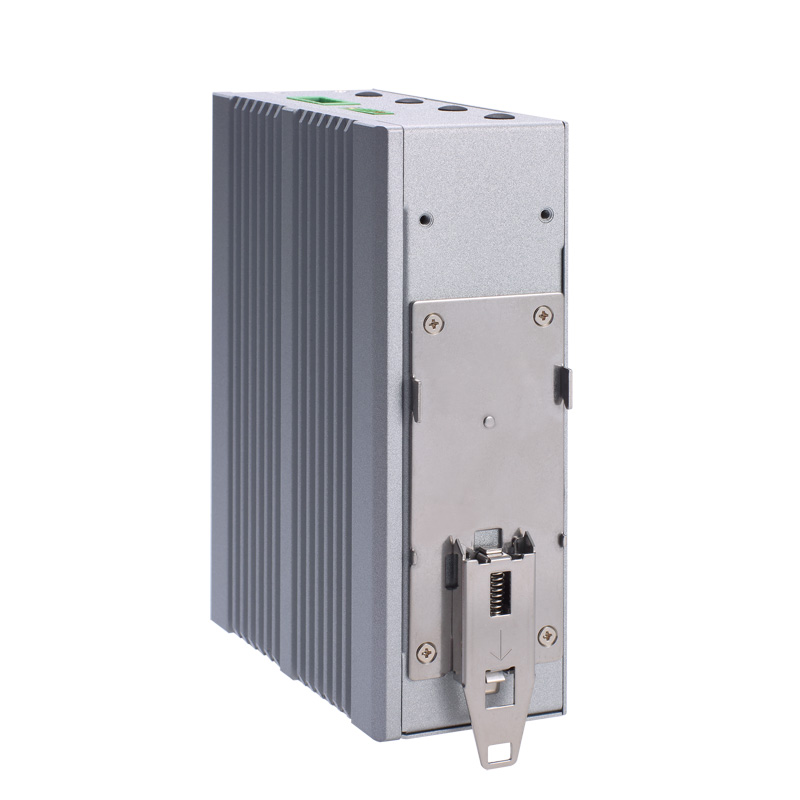

DIN-Rail for Easy Installation

The iNA110 features DIN-Rail mounting, allowing for easy installation. Additionally, its compact size ensures it fits seamlessly into space-limited environments.

DIN-Rail Installation

Rich I/O Interfaces

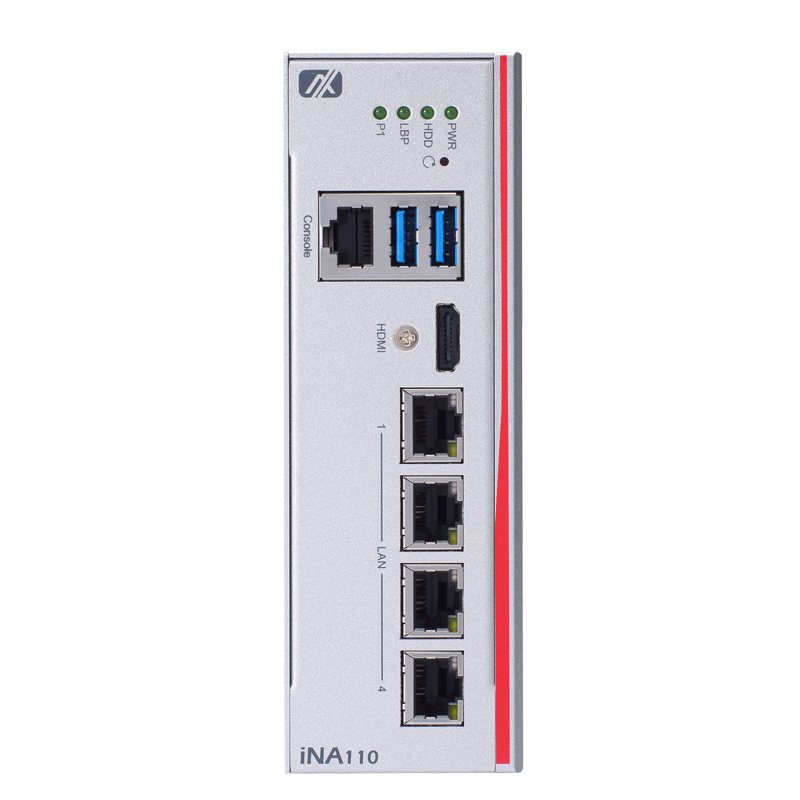

Front View

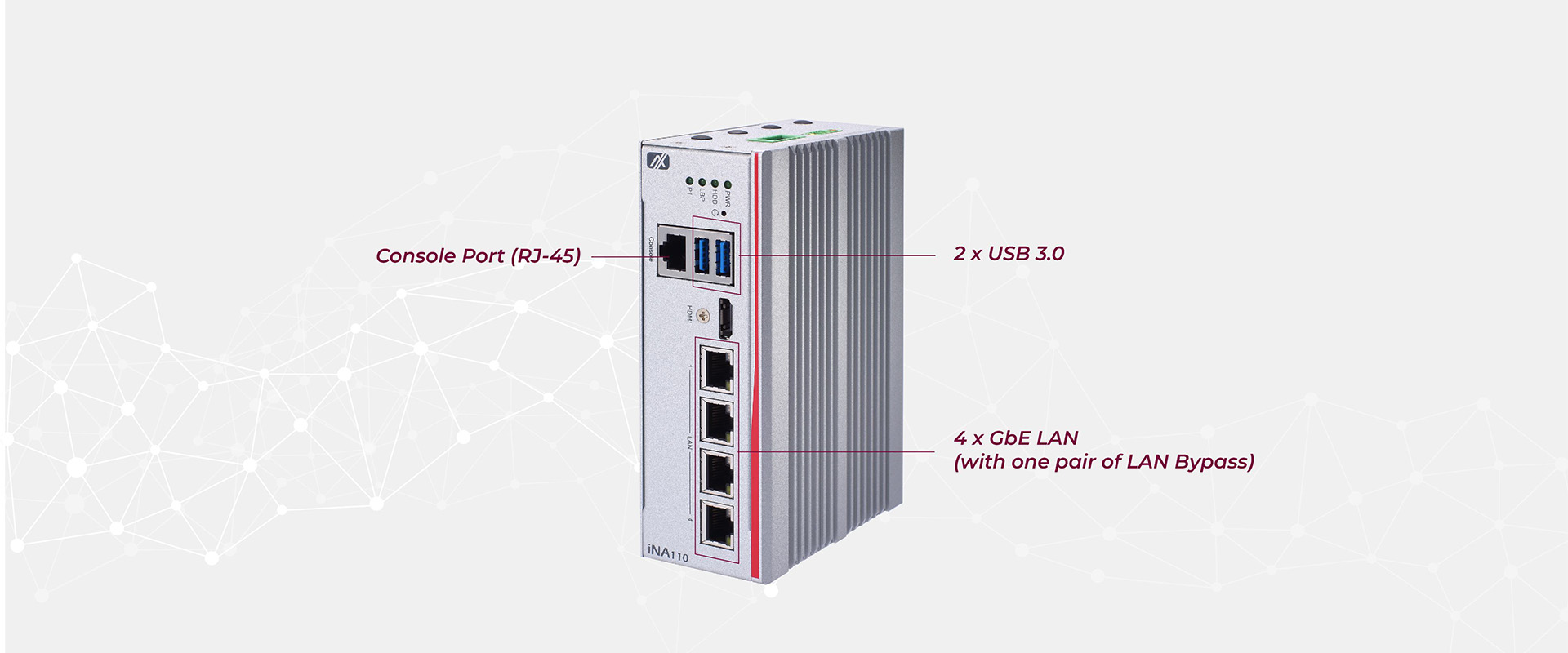

iNA110 Front I/O

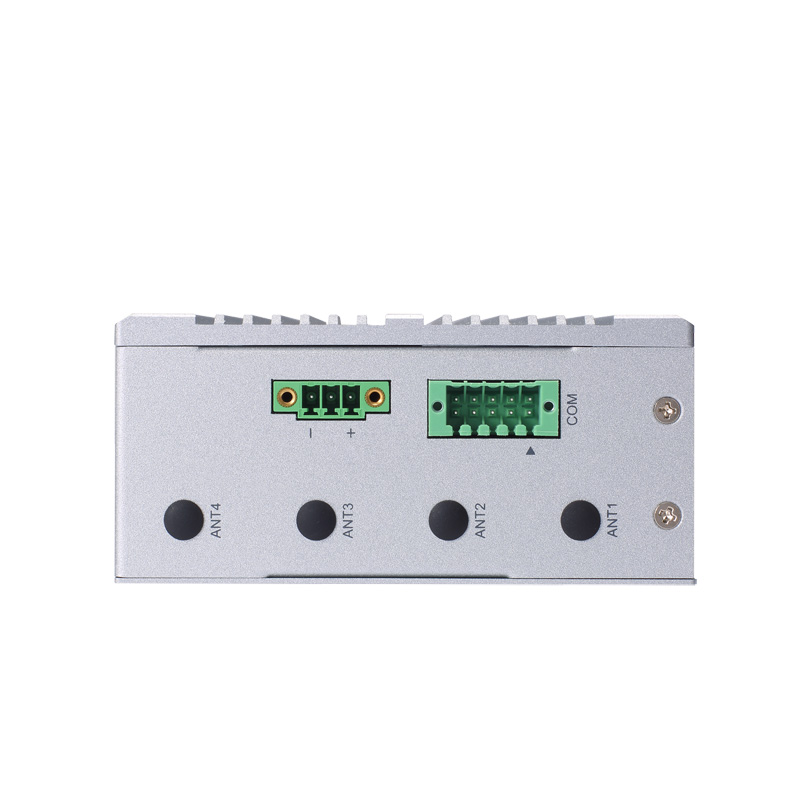

Top View

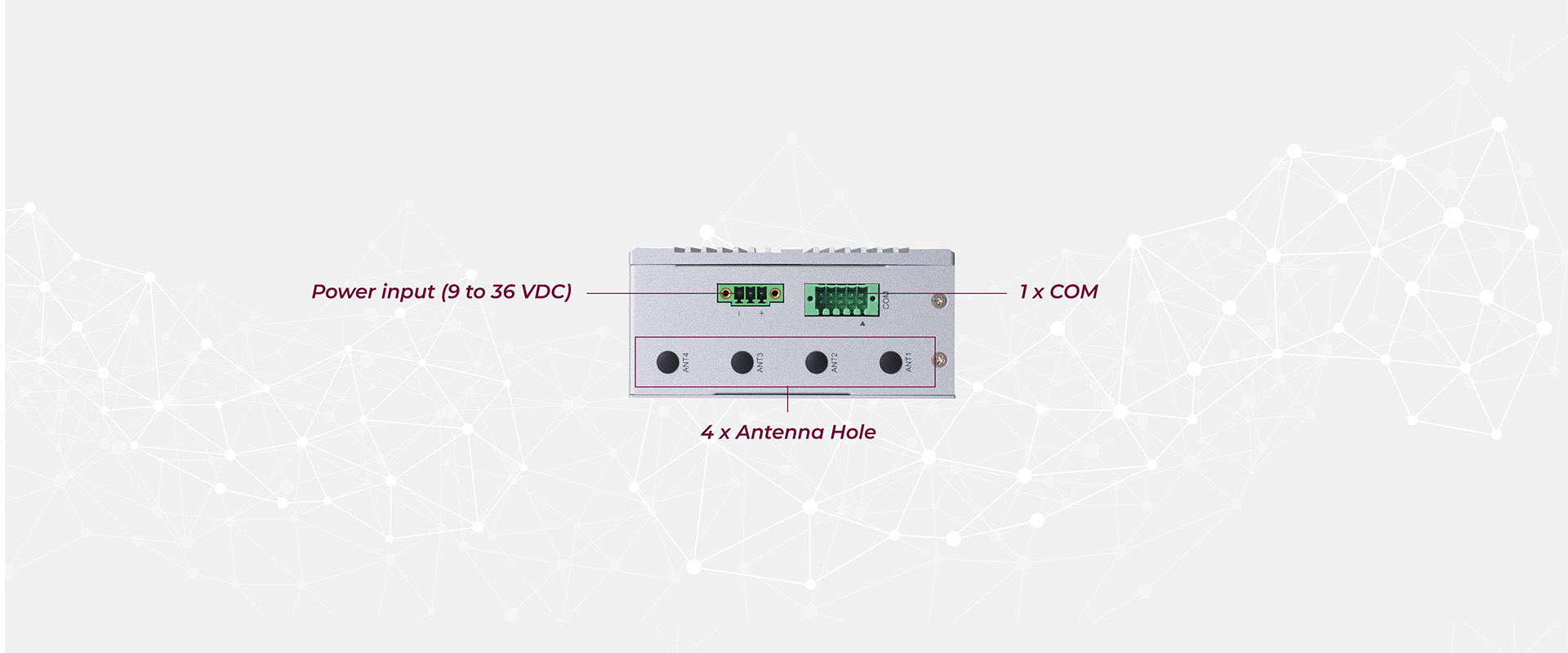

iNA110 Top I/O

Specifications

Form Factor
  • DIN-rail, wall mount (optional)
CPU
  • Intel Atom® x5-E3930/E3940 processor (Apollo Lake)
Chipset
  • SoC integrated
System Memory
  • 1 x DDR3L-1600 SO-DIMM, up to 8GB non-ECC memory
BIOS
  • AMI
Ethernet
  • 4 x GbE RJ-45 (Intel® I210-IT) with 1 pair of LAN Bypass
Storage
  • 1 x 2.5" SATA 3.0 SSD
  • 1 x Half-size mSATA (occupied 1 x PCI Express Mini Card slot)
Expansion
  • 1 x Half-size PCIe Mini Card slot with SATA/USB signal
  • 1 x Full-size PCIe Mini Card slot with USB signal (with 1 x SIM slot)
I/O Interface
  • 1 x HDMI
  • 2 x USB 3.0
  • 1 x Console port (RJ-45)
  • 4 x Copper LAN port
  • 1 x COM port (RS-232/422/485) with terminal block
  • 1 x Power input connector
  • 1 x Tact switch for H/W reset
  • 4 x Antenna hole
Power Supply
  • 1 x Terminal block, 9 to 36 VDC (typical 12/24V)
Others
  • TPM 2.0
Watchdog Timer
  • 255 stepping for system reset
Dimensions
(W x D x H)
  • 51 x 110 x 155 mm (2.01" x 4.33" x 6.10")
Operating Temperature
  • -40°C to +70°C (-40°F to +158°F)
Weight (net/gross)
  • 0.97 kg/1.18 kg
OS
  • Linux, Windows® 10
Certifications
  • CE (Class A), FCC (Class A)

Ordering Information

  • iNA110-E3940-A (P/N-E27B110100)
    DIN-rail cybersecurity gateway with Intel Atom® x5-E3940 processor and 4 GbE LAN
  • iNA110-E3930-A (P/N-E27B110101)
    DIN-rail cybersecurity gateway with Intel Atom® x5-E3930 processor and 4 GbE LAN
  • 2.5" SATA SSD or HDD
  • DDR3L SO-DIMM
  • mSATA
  • Wall mount kits
  • Wi-Fi Module
  • 3G/LTE Module
  • 12V, 36W adapter
  • Power Cord
