AX61410

Status : Available

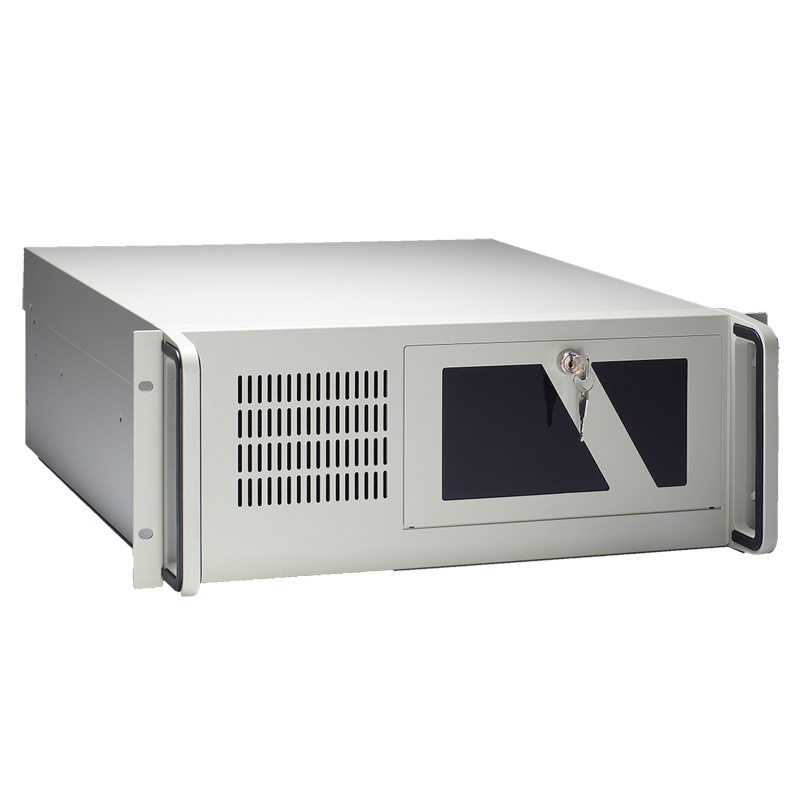

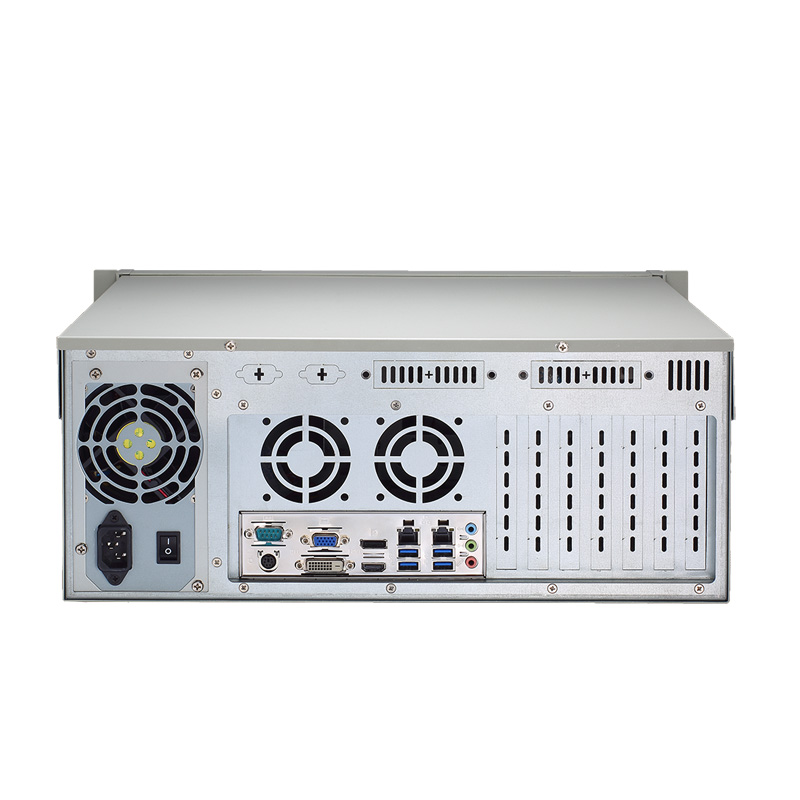

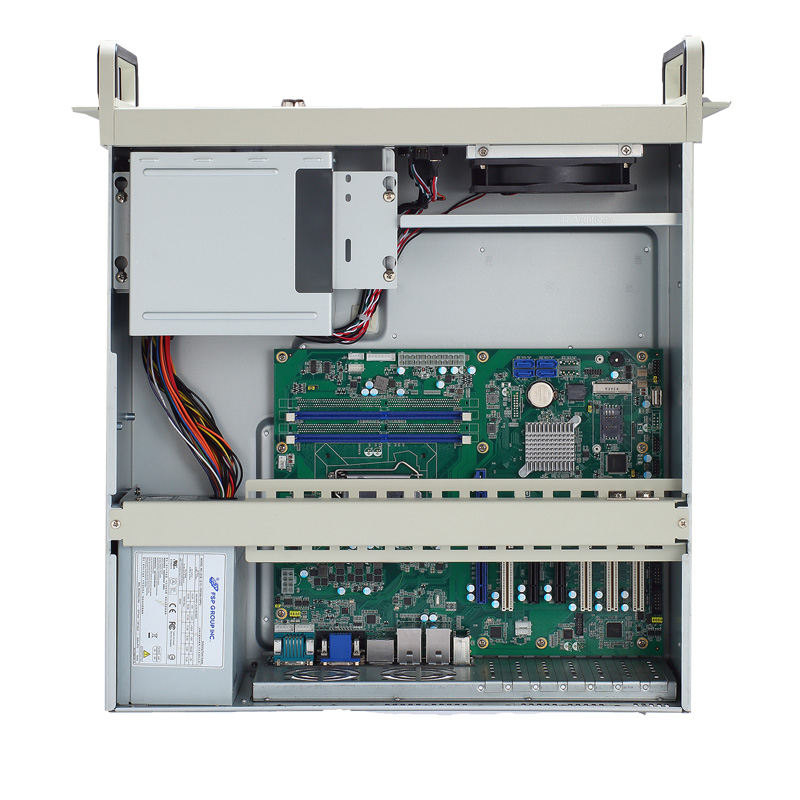

4U Rackmount Chassis for Full-size SBC & ATX/Micro-ATX Motherboard

Features

Height	4U
Expansion	14-slot backplane
Drive Bay	3 x 5.25” HDD drive bay 2 x 3.5” HDD drive bay
Cooling System	1 x 12 cm DC fan with a removable filter
System Board	TM version: ATX or Micro-ATX motherboard TB version: PICMG 1.0 & PICMG 1.3 SBCs
Backplane Options	FAB100, FAB101, FAB112, FAB113, FAB114, FAB118, FAB119, FAB121,ATX6022/13L, ATX6022/14G, ATX6022/14GP7
I/O Interface	2 x USB (default) 2 x USB (optional)

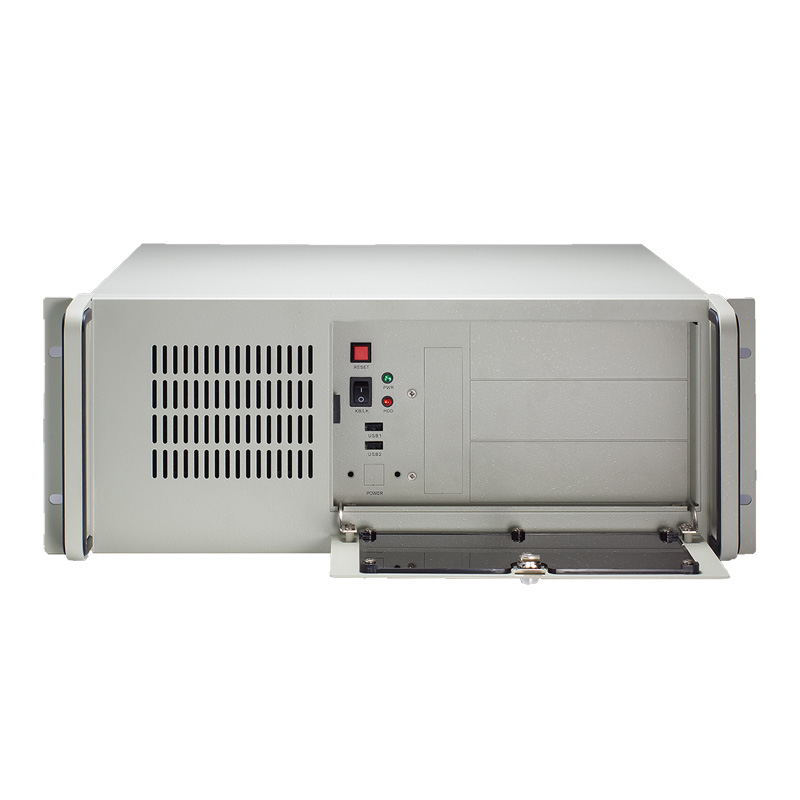

Front Panel Indicators	1 x Power 1 x HDD
Front Panel Controls	1 x Power on/off 1 x System reset
Power	ATX or redundant PSU
Operating Temperature	0°C to +40°C (+32°F to +104°F)
Dimensions (W x D x H)	479.3±1.0mm x 447.85±1.0mm x 177±1.0mm (18.87" x 18.63" x 6.97")
Weight (net/gross)	18 kg (39.68 lb)/19.5 kg (43 lb)
Certifications	CE

AX61410TM (P/N-E261410100)
4U 7-slot black rackmount chassis for ATX/Micro-ATX motherboard w/o PSU
AX61410WM (P/N-E261410101)
4U 7-slot beige rackmount chassis for ATX/Micro-ATX motherboard w/o PSU
AX61410TB (P/N-E261410102)
4U 14-slot black rackmount chassis for full-size SBC w/o PSU
AX61410WB (P/N-E261410103)
4U 14-slot beige rackmount chassis for full-size SBC w/o PSU
Backplane options
FAB100, FAB101, FAB112, FAB113, FAB114, FAB118, FAB119, FAB121, ATX6022/13L, ATX6022/14G, ATX6022/14GP7
Motherboard options

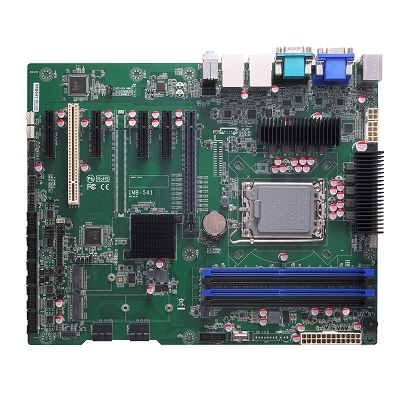

IMB500/501/502, IMB520(R)/521(R), IMB523(R)/524(R)/525(R), IMB530, IMB540, IMB541, IMB700, MMB501
50904B24010E
ATX 400W FSP-400-70PFL (SK)
50916A06000E
ATX 600W SS-600ES2
50914B09620E
ATX AC_AUTO 400W-HRP MRW-6400P (RC)
50761222000E
LGA1151/1155/1156 CPU cooler
72061560000E
3.5" to 5.25" HDD bracket (Need to buy a pair)
593836A0030E
Power Cable SATAx2 L=150mm(RC)
594G5208010E
SATA3 Cable 180D w/B.sleeve L50cm
594G5208000E
SATA3 Cable 180D w/lock&B.sleeve L50cm
59380402010E
COM PORT Cable w/bracket P=2.54mm L=300m
