IMB541

Status : Available

ATX Motherboard with LGA1700 Socket 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® Processor, Intel® Q670E, USB 3.2 Gen1x1, SATA 3.0, GbE and 2.5GbE LAN, VGA, DVI-D, and HDMI

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
IMB541
IMB541
IMB541
  • Features
  • Specifications
  • Ordering Information
  • Download
  • FAQ

Features

  • LGA1700 socket 14th/13th/12th gen Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® processor
  • Four 288-pin DDR4-3200 non-ECC Long-DIMM, up to 128GB
  • Supports triple-view with VGA, DVI-D, and HDMI interfaces
  • Supports M.2 Key M 2280 and Key E 2230
  • 6 USB 3.2 Gen1x1 and 2 USB 3.2 Gen1x1 (internal)
  • TPM 2.0 supported (optional)
Powerful Yet Energy-Efficient
High-performance CPU

14th/13th/12th gen Intel® Core™

Rich I/O
Rich I/O

15 x USB, 6 x COM, 2 x LAN, 4 x SATA

High-Density Expansion
High-Density Expansion

1 PCIe x16, 4 PCIe x4, 1 PCIe



Powerful Computing Performance

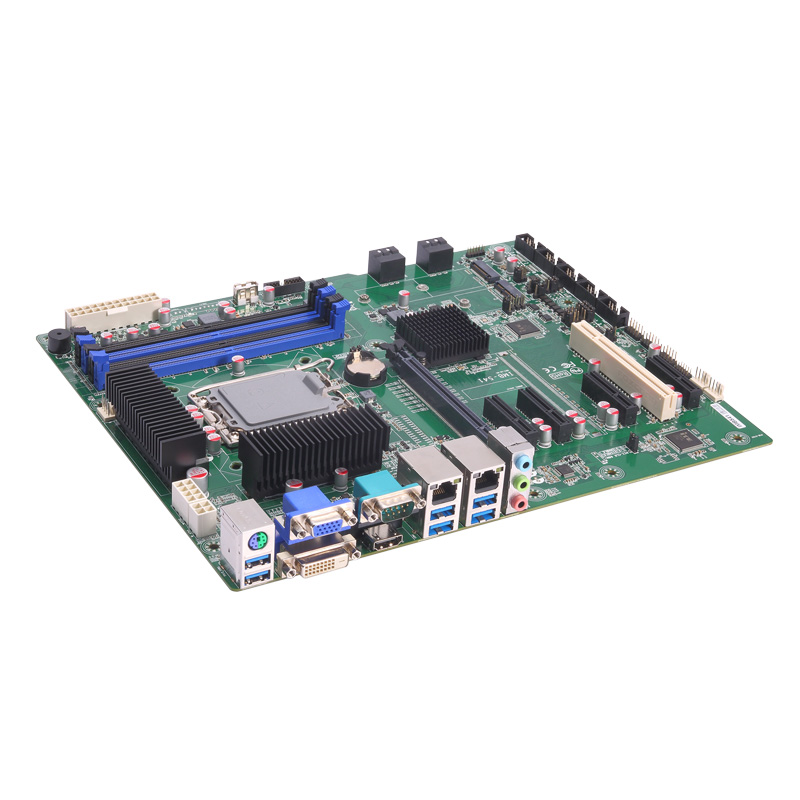

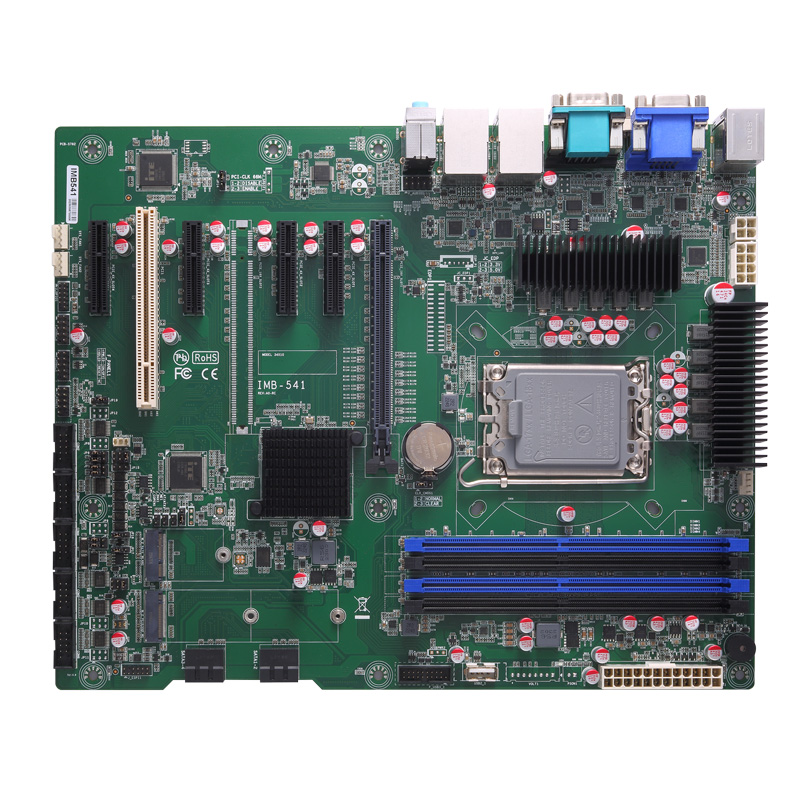

The IMB541 is an industrial ATX motherboard with Intel® Q670E chipset featuring the LGA1700 socket for the 12th Gen Intel® Core™ i9/i7/i5/i3, Intel® Pentium® or Intel® Celeron® processor (code name: Alder Lake-S). Designed to be future-proof, the IMB541 will soon support the latest 13th and 14th Gen Intel® Core™ processors as well.



High-Capacity Storage

The IMB541 features four 288-pin DDR4-3200 non-ECC Long-DIMM slots with a memory capacity of 128GB. It also incorporates four SATA-600 ports with RAID 0/1/5/10 functionality for enhanced storage capabilities. In addition, it comes with one M.2 Key M 2280 for SATA storage.



5 x PCIe Slots Catering to Edge Computing Applications

The IMB541 ATX motherboard is equipped with six PCIe slots, including one PCIe 4.0 x16 slot, four PCIe 3.0 x4 slots, and one PCIe slot, catering to GPU, AI acceleration, frame grabber, and motion control card configurations.



TPM 2.0 & Hardware Monitoring

TPM 2.0 is available to ensure critical information security. More functions include hardware monitoring for CPU/ system temperature, voltage detection, and smart fan control.

Wireless Connectivity

Triple View Capability

The IMB541 facilitates versatile display with VGA, HDMI, and DVI-D ports, supporting triple-view display.

Optional Fan Kit

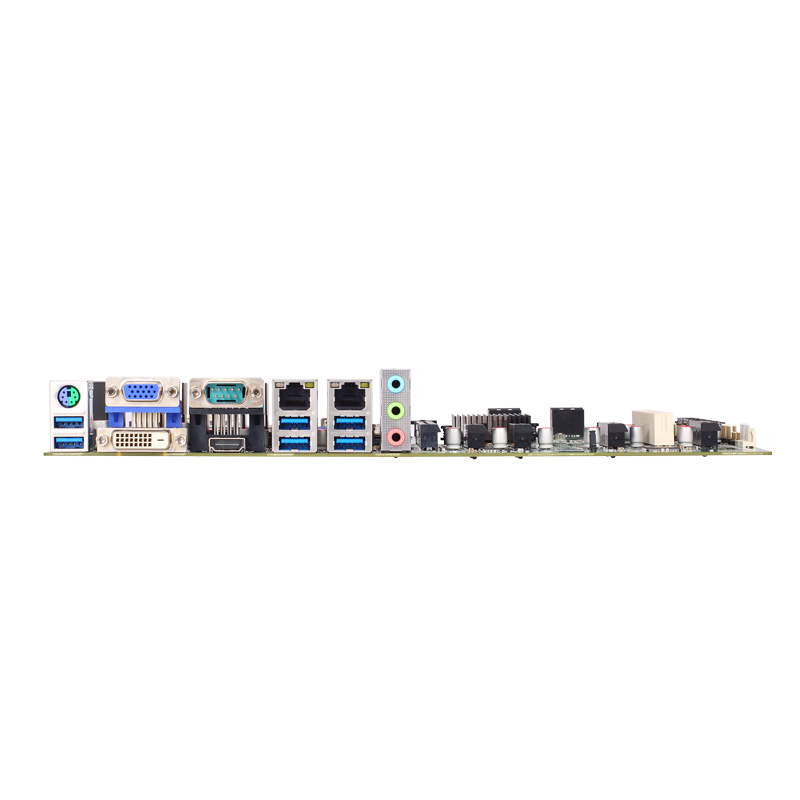

Rich I/O Interfaces

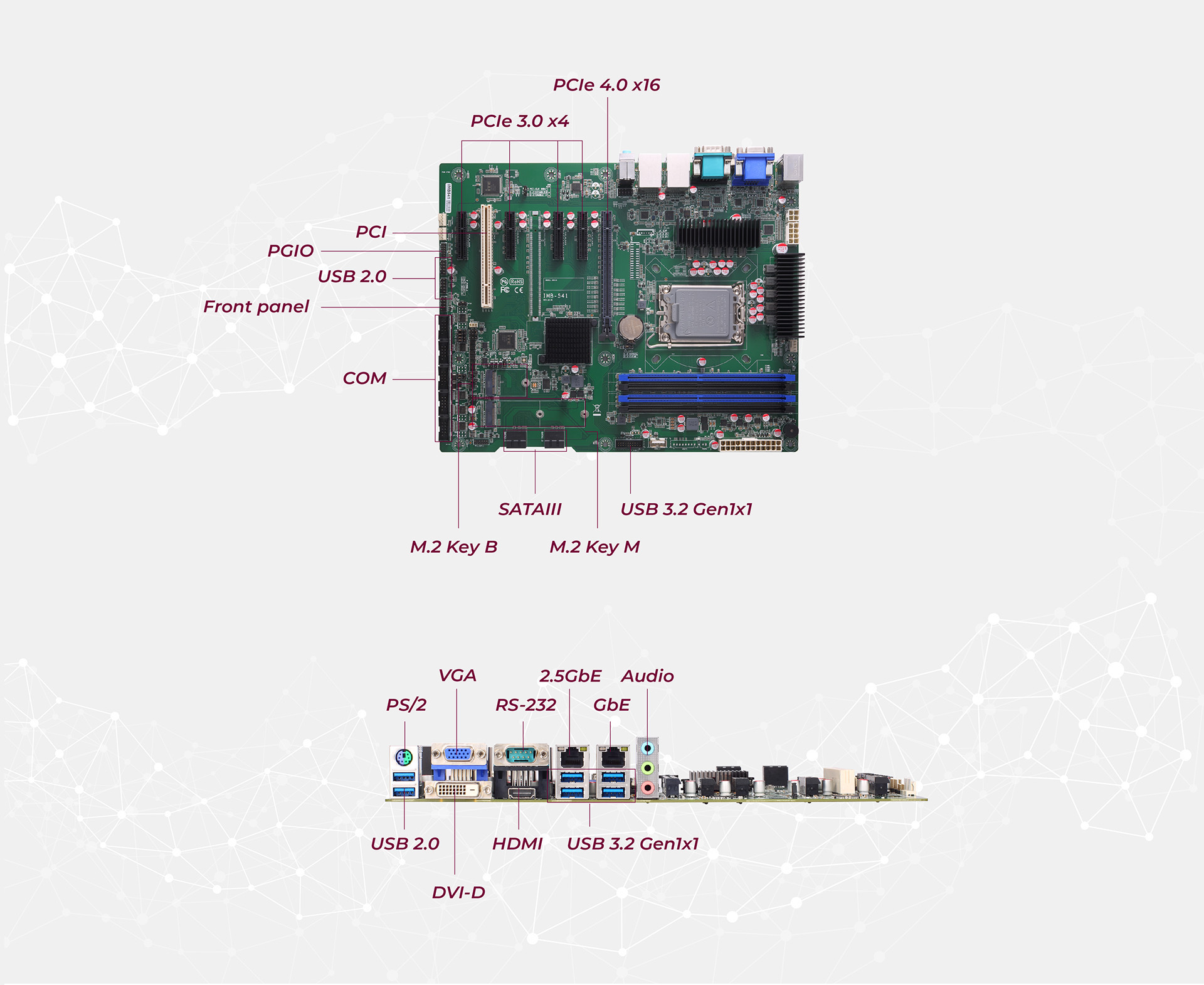

IMB541 I/O

Specifications

CPU
  • LGA1700 socket 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® processor (up to 125W)
Chipset
  • Intel® Q670E
System Memory
  • 4 x 288-pin DDR4-3200 non-ECC Long-DIMM, up to 128GB
BIOS
  • AMI
COM
  • 1 x RS-232 (rear I/O)
  • 3 x RS-232 (internal box header)
  • 1 x RS-232/422/485 (internal box header)
  • 1 x RS-232/485 (internal box header)
USB
  • 6 x USB 3.2 Gen1x1 (5Gbps, rear I/O)
  • 2 x USB 3.2 Gen1x1 (5Gbps, internal box header)
  • 4 x USB 2.0 (internal pin header)
  • 1 x USB 2.0 (internal 180D Type-A)
Ethernet
  • 1 x 10/100/1000/2500 Mbps (Intel® I225-V)
  • 1 x 10/100/1000 Mbps (Intel® I219-V)
Display
  • 1 x VGA
  • 1 x HDMI 1.4b
  • 1 x DVI-D
Digital I/O
  • 8-channel programmable
Audio
  • MIC-in/Line-in/Line-out
Storage
  • 4 x SATA-600 with RAID 0/1/5/10
  • M.2 Key M 2280 in support of PCIe x4 via CPU
Expansion
  • 1 x PCIe Gen4 x16 slot
  • 4 x Open-ended PCIe x4 slot (Gen4 signal by PCH, slot 2 supports Gen3 only)
  • 1 x M.2 Key E 2230 (supports PCIe x1 and USB 2.0)
  • 1 x 32-bit PCI slot, default clock is 33 MHz
Others
  • 1 x PS/2 keyboard (rear I/O)
Battery
  • Lithium 3 V/ 220 mAH
TPM
  • Not included by default; supports Intel® PTT as default
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Hardware Monitoring
  • Yes
Operating Temperature
  • 0°C to +60°C (+32°F to +140°F)
Relative Humidity
  • 10% to 95% relative humidity, non-condensing
Dimensions
  • 305 x 244 mm
Board Thickness
  • 1.6 mm
Certifications
  • CE

Ordering Information

  • IMB541-Q670E-BP (P/N-E38F541100)
    ATX motherboard with LGA1700 socket 14th/13th/12th gen Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® processor, Intel® Q670E, USB 3.2 Gen1x1, SATA 3.0, GbE and 2.5GbE LAN, VGA, DVI-D, and HDMI (bulk packaging)
  • IMB541-Q670E-SP (P/N-E38F541101)
    ATX motherboard with LGA1700 socket 14th/13th/12th gen Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® processor, Intel® Q670E, USB 3.2 Gen1x1, SATA 3.0, GbE and 2.5GbE LAN, VGA, DVI-D, and HDMI (single packaging)
  • 5938A808010E
    2 x USB 2.0 cable with bracket, P=2.54 mm, L=190 mm
  • 5938A808020E
    2 x USB 2.0 cable with bracket, P=2.54 mm, L=400 mm
  • 5948C122800E
    2 x USB 3.2 Gen1 cable with bracket, L=400 mm
  • 594G5208000E
    SATA III signal cable, L=500 mm with locking latch
  • 594G5208010E
    SATA III signal cable, L=500 mm without locking latch
  • 59380402010E
    1 x COM port cable with bracket, P=2.54 mm, L=300 mm
  • 59380703000E
    2 x COM port cable with bracket, P=2.54 mm, L=300 mm
  • 711000002500
    CPU cooler for 2U, 4U, and wall mount chassis with smart fan
