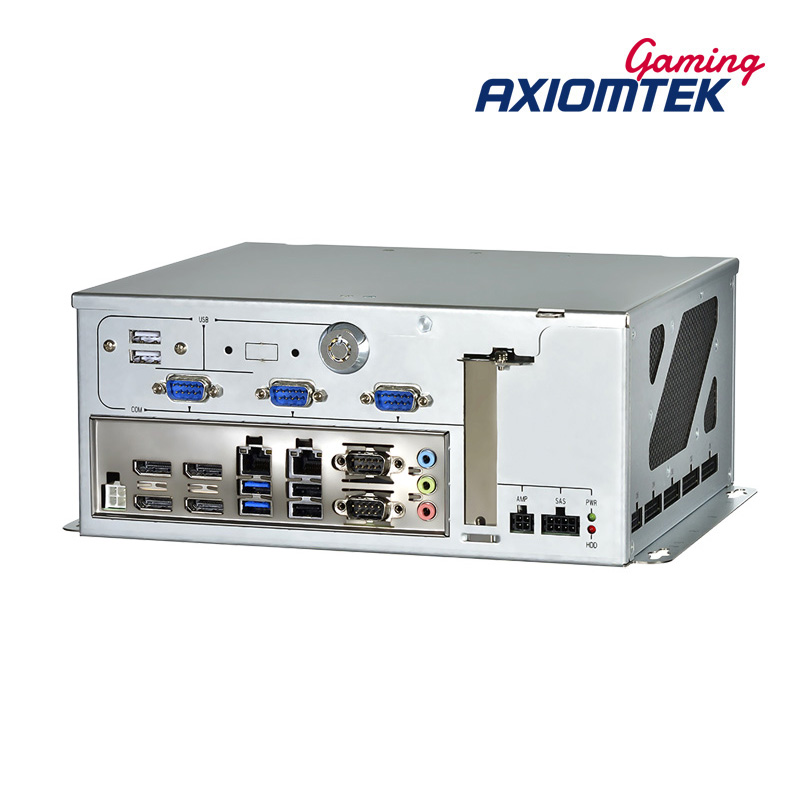

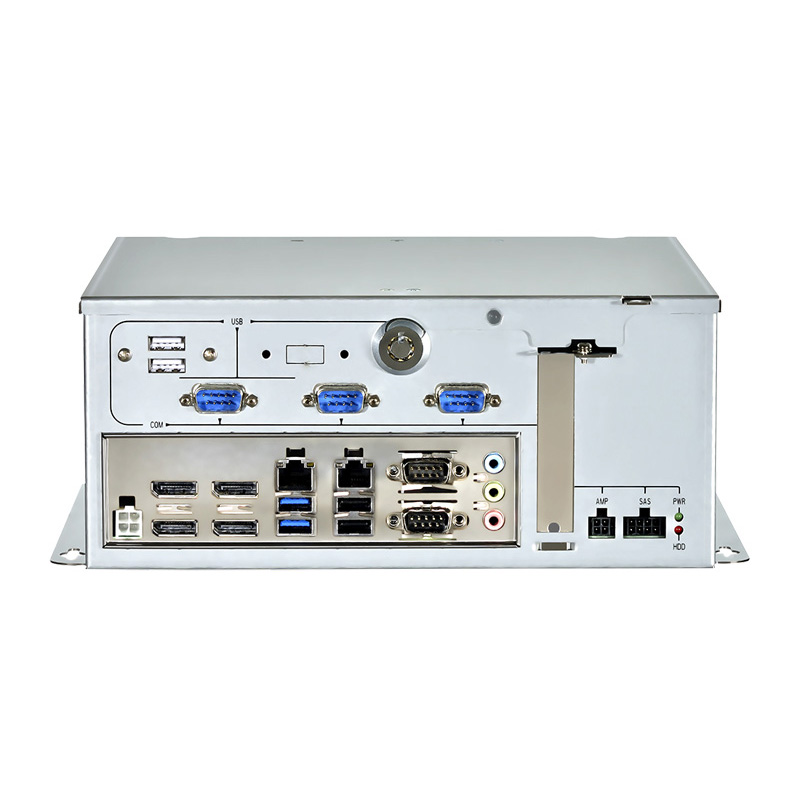

dBOX310-830

Status : Available

Gaming Platform with 8/9th Gen Intel® Core™

Datasheet
Datasheet (PDF)
Get a Quote
Get a Quote
dBOX310-830
dBOX310-830
  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • High-end All-In-One Intel® gaming platform
  • Supports PCIe graphics card
  • Lifetime long-term supply
  • GLI verified Trustedoot and TrustedData

Specifications

CPU
  • LGA1151 8/9th Gen Intel® Core™ i7/i5/i3, Intel® Pentium® processors Gold/ Celeron®
Chipset
  • Intel® H310
System Memory
  • 2 x DDR4 SO-DIMM up to 2400/2666 MHz, max up to 64 GB
BIOS
  • AMI-uEFI BIOS
Watchdog timer
  • 1 sec to 255 min
USB
  • 4 x USB 3.0
  • 2 x USB 2.0
Serial Interface
  • 2 x RS-232 DB9 (1 x RS-422/485 configurable)
  • 3 x RS-232 (1 x ID003, 2 x ccTalk configurable)
  • 1 x SAS (hardware 9-bit supported)
Ethernet
  • 2 x GbE LAN
Audio
  • HD audio 5.1 channels Line-out
  • Stereo 6 W + 6 W audio amplified output
Gaming I/O
  • Intrusion Detection:
  • 8 x intrusion detection (2 x internal, 6 x external)
  • Operates with and without AC Power
  • Logs date/time of the last 200 events
  • Digital Input:
  • 32 x protected input
  • 4 x DIP switch
  • Digital Output:
  • 29 x 500 mA/30V OC output (8 x meter configurable)
  • 3 x 3A/30V OC output
  • NVRAM:
  • 4 MB (2 or 8 MB optional)
  • TrustedData, hardware bank mirroring, and CRC
Display
  • H310 supports 2 x DP++ port
  • With 4096 x 2160 resolution per display output
Expansion
  • 1 x PCIe X16 slot
  • 1 x Full-size Mini-PCIe socket (PCIe X1 & USB signal)
Storage
  • 3 x SATAIII ports support SATADOM with 7-pin power
  • 2 x CFast card ( Via SATA to CFast adapter )
Security
  • Onboard TPM 2.0
  • Axiomtek TrustedBoot for BIOS security boot
Power Input
  • DC +12V Input, ± 5%
Dimensions
  • 240 mm (W) x 210 mm (D) x 105 mm (H)
Operating Temperature
  • 0°C to 40°C (32°F to 104°F)
Humidity
  • 10% to 90%, non-condensing
OS
  • Windows® 10 Enterprise & IoT Enterprise, 64-bit
Software
  • SAS 6.02 COM port driver provided (via Gaming I/O module)

Ordering Information

  • dBOX310-830
    Gaming system with 8th/9th Gen Intel® Core™, H310 PCH, 2 x DP++, 2 x GLAN, 5 x COM, 6 x USB, 12V DC-in
