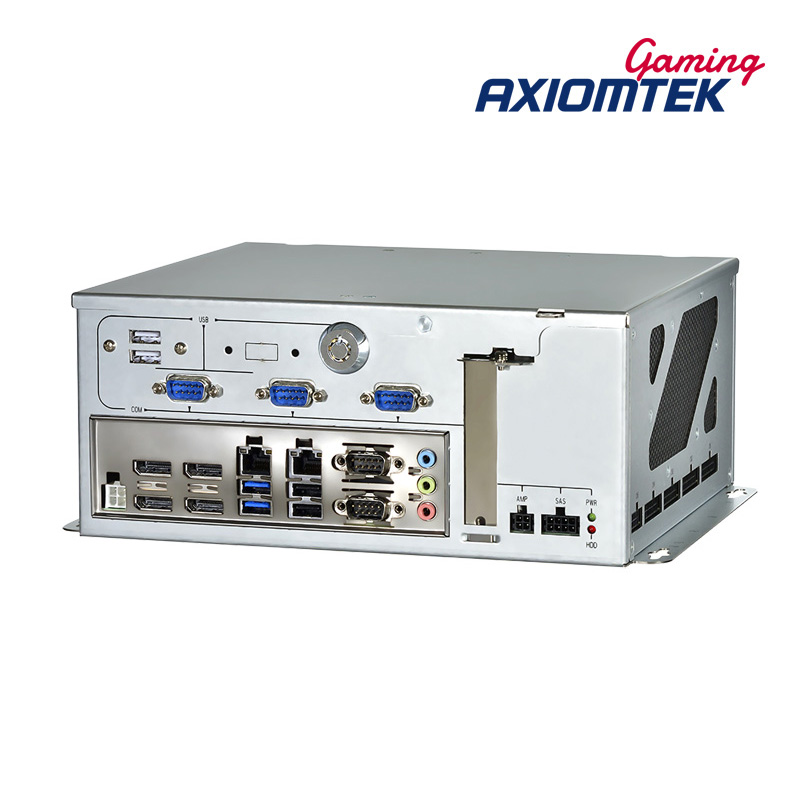

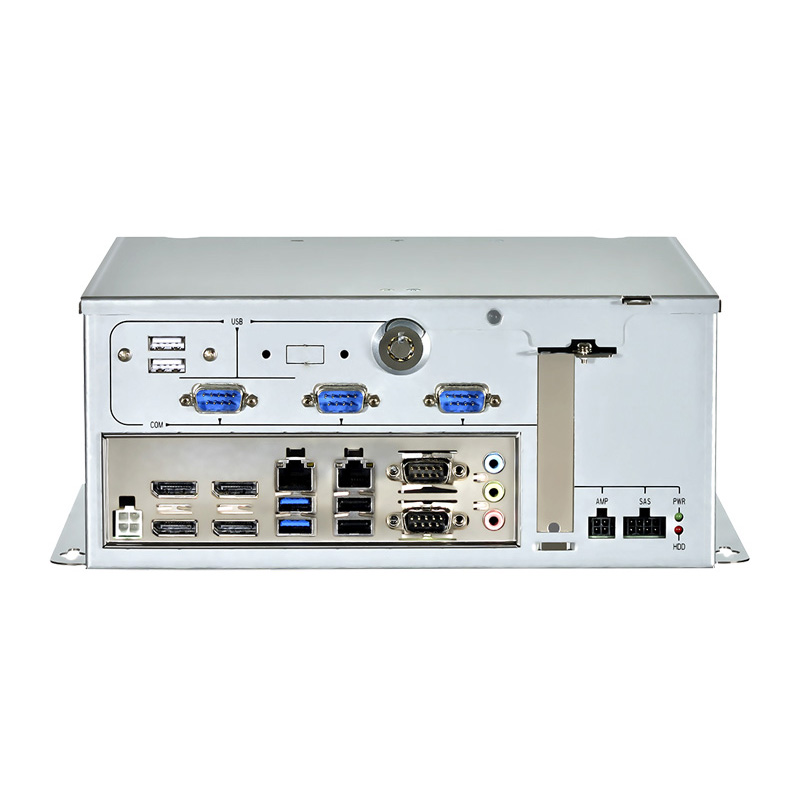

dBOX310-140

Status : Available

Gaming Platform with AMD Ryzen™ Embedded V1000 APU

Datasheet
Datasheet (PDF)
Get a Quote
Get a Quote
dBOX310-140
dBOX310-140
  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • High-end All-In-One AMD gaming platform
  • Supports PCIe graphics card
  • Lifetime long-term supply
  • GLI verified Trustedoot and TrustedData

Specifications

CPU
  • AMD RyzenTM Embedded V1807 APU
Chipset
  • SoC integrated
System Memory
  • 2 x DDR4 SO-DIMM up to 3200 MHz, max. up to 32 GB
BIOS
  • AMI-uEFI
  • TrustedBoot, secure hash, and public key algorithm validation
Watchdog timer
  • 1 sec to 255 min
USB
  • 3 x USB 3.0 (1 x internal)
  • 4 x USB 2.0
Serial Interface
  • 2 x RS-232 DB9 (1 x RS-422/485 configurable)
  • 3 x RS-232 (1 x ID003, 2 x ccTalk configurable)
  • 1 x SAS (hardware 9-bit supported)
Ethernet
  • 2 x GbE LAN
Audio
  • HD audio 5.1 channels Line-out
  • Stereo 6 W + 6 W audio amplified output
Display
  • 4 x DP++, up to 4 indepent displays with 4096 x 2160 resolution per display output
Gaming I/O
  • Intrusion Detection:
  • 8 x intrusion detection (2 x internal, 6 x external)
  • Operates with and without AC Power
  • Logs date/time of the last 200 events
  • Digital Input:
  • 32 x protected input
  • 4 x DIP switch
  • Digital Output:
  • 29 x 500 mA/30V OC output (8 x meter configurable)
  • 3 x 3A/30V OC output
  • NVRAM:
  • 4 MB (2 or 8 MB optional)
  • TrustedData, hardware bank mirroring, and CRC
Expansion
  • 1 x PCIe x16 slot
  • 1 x Mini-PCIe (supports Low-Profile card / PCIe x8 signal only)
Storage
  • 2 x SATAIII ports support SATADOM with 7-pin power/
  • 1 x SATAIII + 1 x CFast socket (BOM optional)
  • 2 x CFast card ( Via SATA to CFast adapter )
Security
  • TPM engine
  • RSA2048 and AES256 hybrid encryption
Power Input
  • DC +12V
Dimensions
  • 240 mm (W) x 210 mm (D) x 105 mm (H)
Operating Temperature
  • 0°C to 40°C (32°F to 104°F)
Humidity
  • 10% to 90%, non-condensing
OS
  • Windows® 10 IoT Enterprise, Linux
Software
  • Windows/Linux sample code and demo program provided
  • SAS 6.02 COM port driver provided

Ordering Information

  • dBOX310-140-1807
    AMD RyzenTM Embedded V1807APU, 4 x DP++, 5 x COM, 7 x USB, 2 x GLAN, Audio, Mini-PCIe, DC 12 V input
