ICO310

Status : Available

Robust DIN-Rail Fanless Embedded System with Intel® Celeron® Processor N3160, 2 COM, 4 USB, 2 GbE LAN (1 PoE PD), DIO and RTC

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote

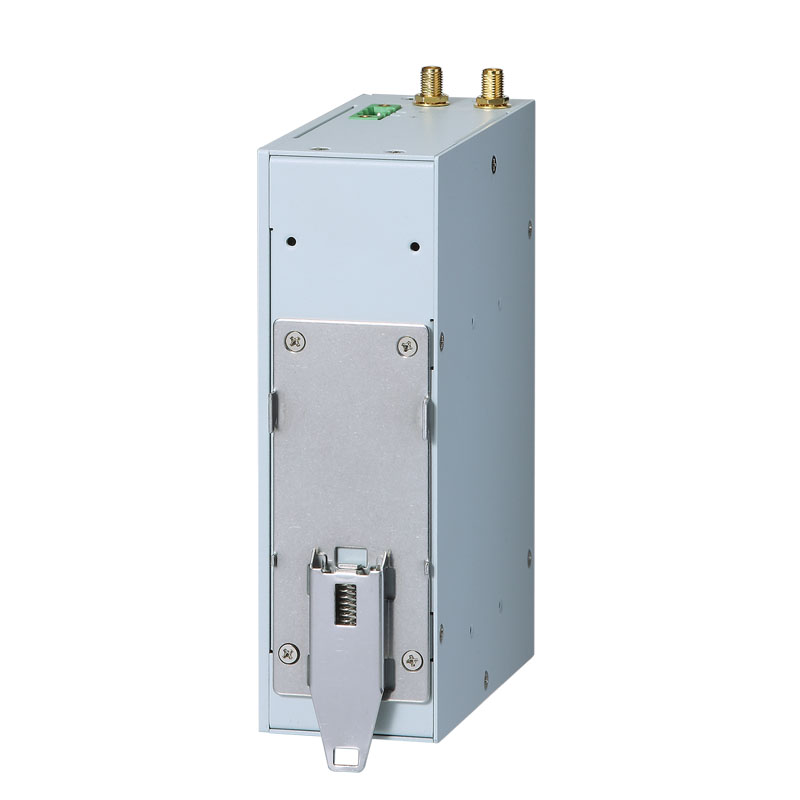

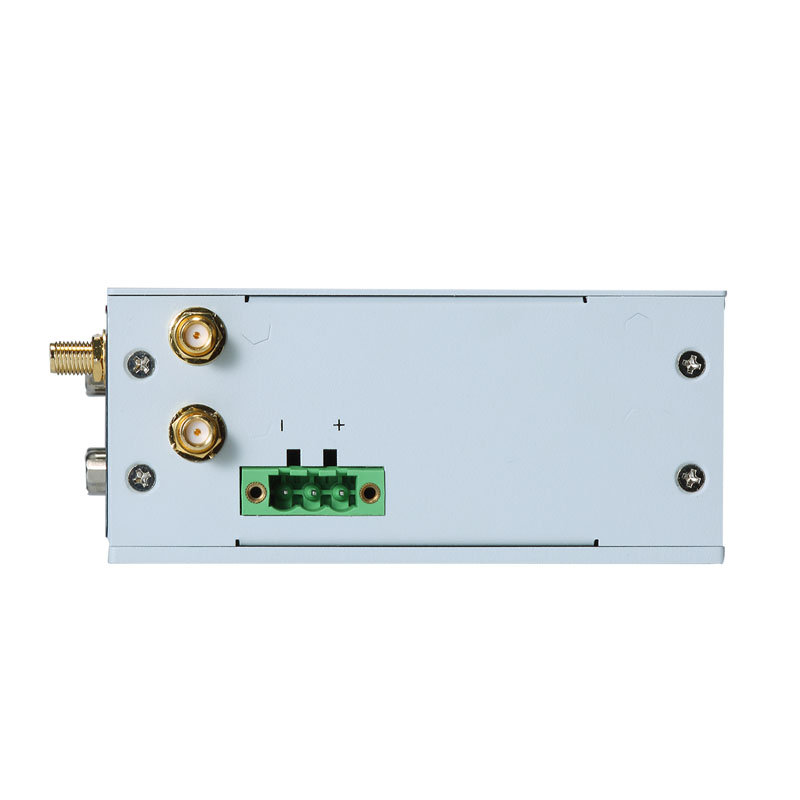

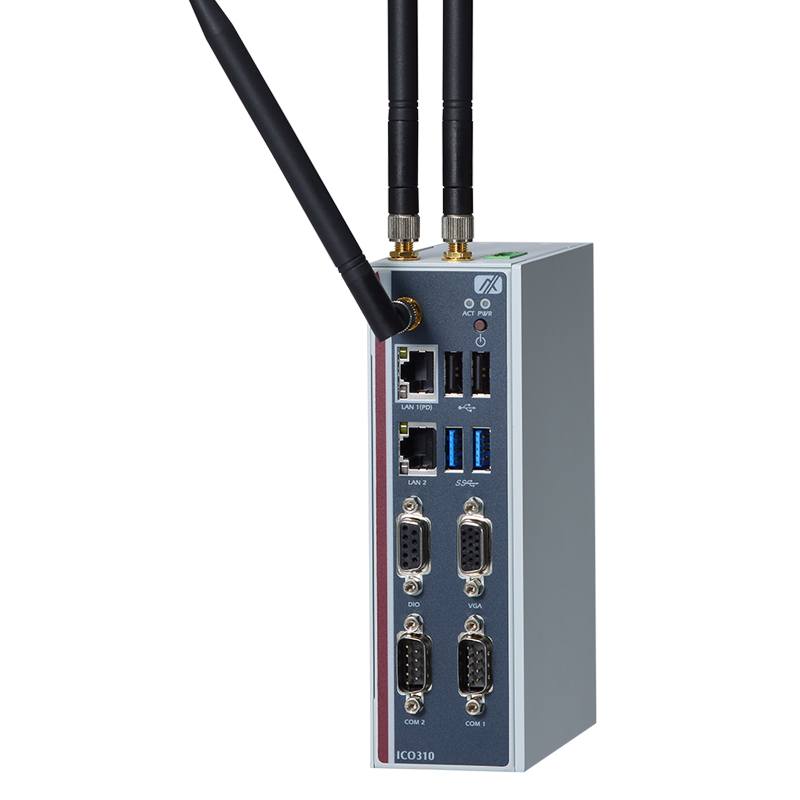

ICO310
ICO310
ICO310
Axiomtek EAPI

Axiomtek EAPI

Fanless

Fanless

IP40 Rating

IP40 Rating

Low Power

Low Power

Wide Temperature

Wide Temperature

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Cost-effective with fanless and cableless design
  • Intel® Celeron® processor N3160 (1.6 GHz/4-core)
  • 2 RS-232/422/485 ports
  • 4 USB ports
  • 2 isolated 10/100/1000 Mbps Ethernet ports
  • 1 PoE PD compliant with IEEE 802.3at standard through LAN 1
  • 1 DIO port
  • 2 PCI Express Mini Card slots (3G/GPRS & Wi-Fi)
  • 1 mSATA & SATA SSD (or HDD)
  • 12 to 24 VDC wide range power input
  • eAPI intelligent remote monitoring software for IIoT

Specifications

CPU
  • Intel® Celeron® processor N3160 (1.6 GHz/4-core)
Chipset
  • SoC integrated
System Memory
  • 1 x DDR3L-1600 SO-DIMM, up to 8GB
COM
  • 2 x RS-232/422/485
USB
  • 2 x USB 3.0
  • 2 x USB 2.0
Ethernet
  • 2 x 10/100/1000 Mbps Ethernet (Intel® I210-IT)
  • 1 x PoE PD compliant with IEEE 802.3at standard through LAN 1 (ICO310-N3160-PD-DC)
PoE
  • N/A
CANbus
  • N/A
Analog Input
  • N/A
Digital I/O
  • 1 x DIO (DB9 8-bit programming connector)
Display
  • 1 x VGA
Expansion
  • 1 x Full-size PCI Express Mini Card slot
  • 1 x Full-size PCI Express Mini Card slot with mSATA
  • 1 x SIM card socket
  • 3 x Antenna
Storage
  • 1 x mSATA
  • 1 x SATA SSD (or HDD)
Others
  • N/A
Power
  • Power input range: 12 to 24 VDC
  • Power input rating: 12 to 24 VDC, 2.09 to 1.09A
  • Power protection: DC version, OVP, reverse protection
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Construction
  • Extruded aluminum and heavy-duty steel, IP40
Operating Temperature
  • -20°C to +60°C (-4°F to +140°F)
Relative Humidity
  • 10% to 95%, non-condensing
Vibration
  • 2 Gms (5 to 500Hz, amplitude 0.35 mm; operation/storage/transport)
Dimensions
(W x D x H)
  • 48 x 110 x 155 mm (1.88" x 4.33" x 6.1")
Weight (net/gross)
  • 1.0 kg (2.2 lb)/1.50 kg (3.3 lb)
Certifications
  • CE, FCC
EOS Support
  • Windows® 10 IoT, Linux
Software Support
  • Axiomtek EAPI
Mounting
  • DIN-rail
  • Wall Mounting

Ordering Information

  • ICO310-N3160-PB-DC (P/N-E22C310104)
    Robust DIN-rail fanless embedded system with Intel® Celeron® processor N3160 (1.6GHz/QC), 2 COM, 2 LAN, and DIO (-20°C to +60°C with power button)
  • ICO310-N3160-PB-PD-DC (P/N-E22C310105)
    Robust DIN-rail fanless embedded system with Intel®Celeron® processor N3160 (1.6GHz/QC), 2 COM, 2 LAN, PoE PD, and DIO (-20°C to +60°C with power button)

Download

Drivers

Date Description Version Download File
2016/09/29 Windows 10 driver package VA1.0
2016/09/29 Windows 8.1 driver package VA1.0

Software

Date Description Version Download File
2016/05/20 ICO310 Linux sample code VA1.0

Manual

Date Description Version Download File
2016/09/02 user's manual VA2.0

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2022/09/27 CE LVD Verification
2022/09/27 UKCA Declaration of Conformity
2022/09/27 FCC Verification
2022/09/27 CE-Conformity Declaration
2022/09/27 CE EMC Verification

You Might Also Like

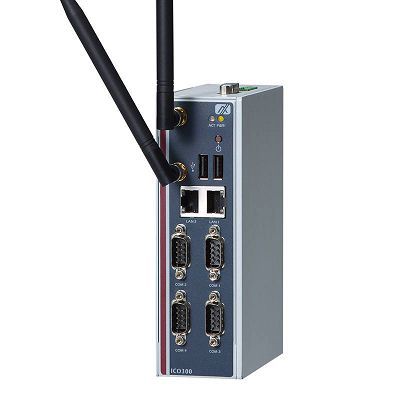

Picture of ICO300
