ICO300

Status : Available

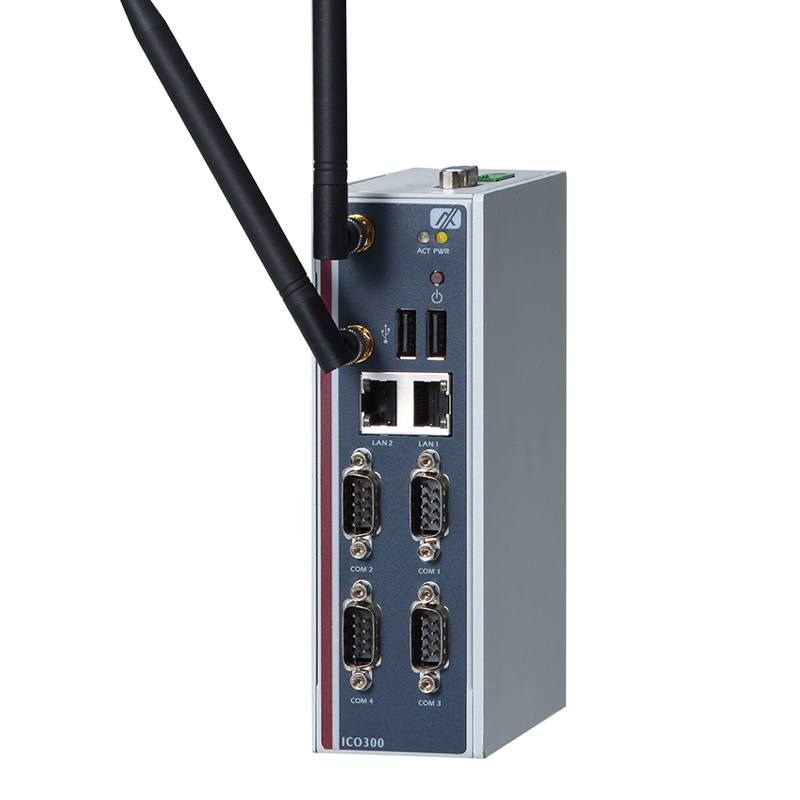

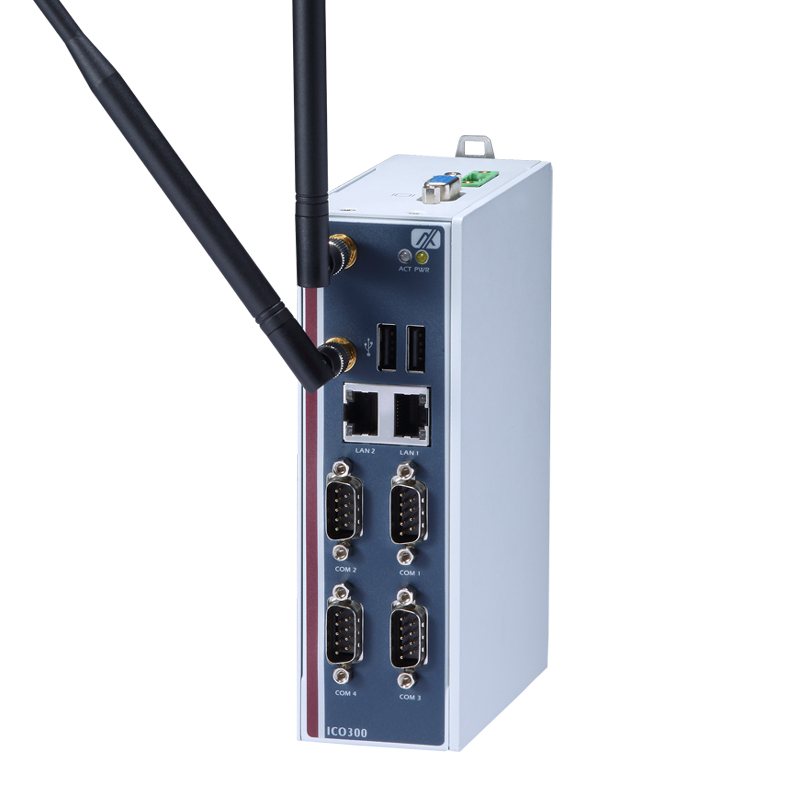

Robust DIN-Rail Fanless Embedded System with Intel Atom® Processor E3815/E3827, 4 COM, 2 LAN, DIO, and RTC

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
ICO300
ICO300
ICO300
Axiomtek EAPI

Axiomtek EAPI

Fanless

Fanless

IP40 Rating

IP40 Rating

Low Power

Low Power

Wide Temperature

Wide Temperature

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Cost-effective with fanless and cableless design
  • Intel Atom® processor E3815 or E3827
  • 4 RS-232/422/485 ports
  • 2 isolated 10/100/1000 Mbps Ethernet ports
  • 1 DIO port
  • 1 PCI Express Mini Card slot (3G/GPRS or Wi-Fi)
  • 1 mSATA and SATA SSD (or HDD)
  • 12 to 24 VDC wide range power input
  • Supports Windows® 10 IoT solution

Specifications

CPU
  • Intel® Atom™ Processor E3815 (1.46GHz) or E3827 (1.75GHz)
Chipset
  • SoC integrated
System Memory
  • 1 x DDR3L-1333/1600 SO-DIMM, up to 8GB
COM
  • 4 x RS-232/422/485
USB
  • 2 x USB 2.0
Ethernet
  • 2 x 10/100/1000 Mbps Ethernet (Intel® I210-IT)
PoE
  • N/A
CANbus
  • N/A
Analog Input
  • N/A
Digital I/O
  • 1 x DI/DO (8-bit programmable, DB9 female connector)
  • Voltage is 5V TTL-level
  • ESD protection corresponds to IEC 6100-4-2 (± 8KV (air); ± 4kV (contact)
  • Programming:
  • I/O sink current is 10mA (max.)
  • Input/output can be programmed
Display

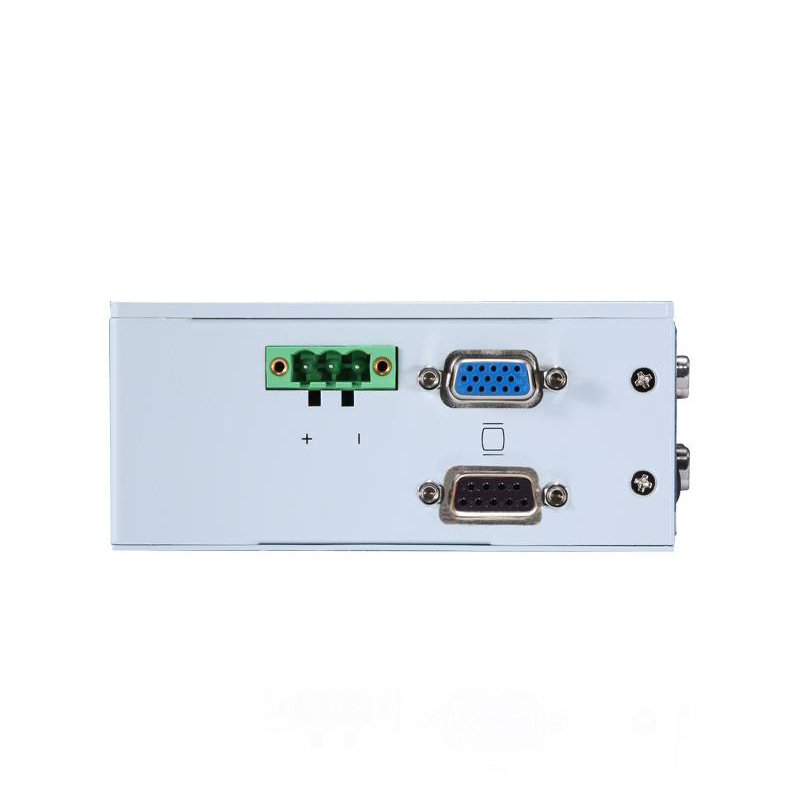

  • 1 x VGA
Expansion
  • 1 x Full-size PCI Express Mini Card slot
  • 1 x SIM card socket
Storage
  • 1 x CompactFlash™ (or mSATA)
  • 1 x SATA SSD (or HDD)
Others
  • RTC Battery function
  • 2 x Antenna
Power
  • 12 to 24 VDC, 1.21 to 0.66A (ICO300-E3815)
  • 12 to 24 VDC, 1.42 to 0.74A (ICO300-E3827)
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Construction
  • Extruded aluminum and heavy-duty steel, IP40
Operating Temperature
  • -20°C to +70°C (-4°F to +158°F)
Relative Humidity
  • 10% to 95% relative humidity, non-condensing
Vibration
  • 2 Gms (5 to 500Hz, amplitude 0.35 mm; operation/storage/transport)
Dimensions
(W x D x H)
  • 48 x 110 x 155 mm (1.88" x 4.33" x 6.10")
Weight (net/gross)
  • 1.0 kg (2.2 lb)/1.50 kg (3.3 lb)
Certifications
  • CE, FCC, UL
EOS Support
  • Windows® 7 Embedded
  • Windows® 8 Embedded
  • Windows® 10 IoT core pro
  • Linux support package
Software Support
  • N/A
Mounting

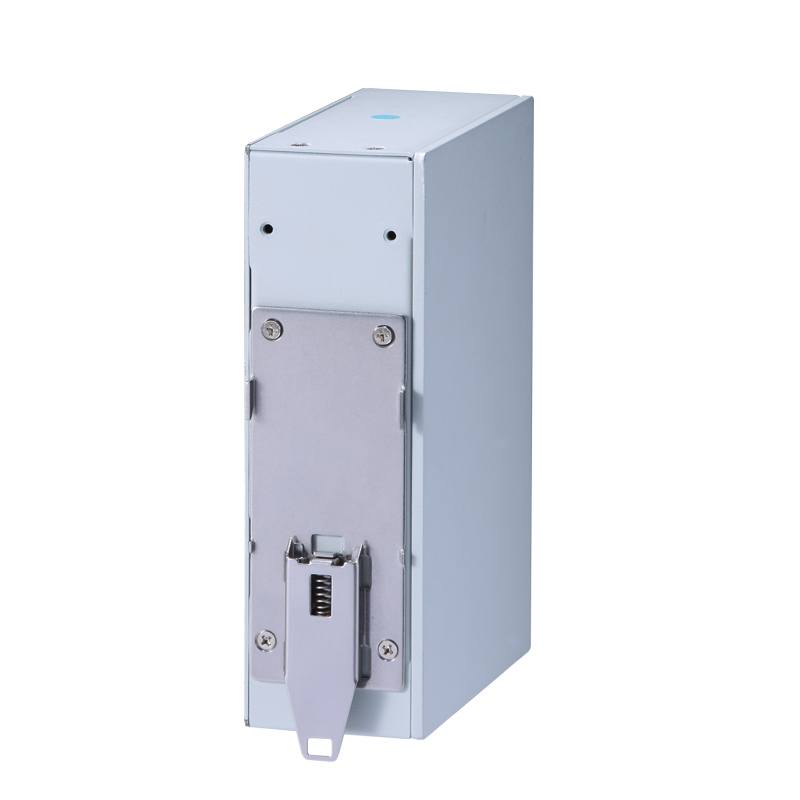

  • DIN-rail
  • Wall Mounting

Ordering Information

  • ICO300-E3815-B (P/N-E22C300165)
    Robust DIN-rail fanless embedded system with Intel Atom® processor E3815 1.46 GHz, 4 COM, and DIO (-20°C to +70°C)
  • ICO300-E3827-B (P/N-E22C300164)
    Robust DIN-rail fanless embedded system with Intel Atom® processor E3827 1.75 GHz, 4 COM, and DIO (-20°C to +70°C)

Download

Drivers

Date Description Version Download File
2017/08/14 Win10_Driver_MBI VA1.2
2017/08/14 Win10_Driver_TXE VA1.2
2017/08/14 Win10_Driver_Ethernet VA1.2
2017/08/14 Win10_Driver_Graphic VA1.2
2017/08/14 Win10_Driver_Chipset VA1.2
2017/08/14 Win8_Driver_Graphic VA1.2
2017/08/14 Win8_Driver_MBI VA1.2
2017/08/14 Win8_Driver_TXE VA1.2
2017/08/14 Win8_Driver_Ethernet VA1.2
2017/08/14 Win8_Driver_Chipset VA1.2
2017/08/14 Win7_Driver_MBI VA1.2
2017/08/14 Win7_Driver_TXE VA1.2
2017/08/14 Win7_Driver_Graphic VA1.2
2017/08/14 Win7_Driver_Ethernet VA1.2
2017/08/14 Win7_Driver_Chipset VA1.2

Software

Date Description Version Download File
2019/01/31 Sample code for Linux and windows V1.3
2016/08/09 3G module (UC20) source code in Ubuntu for ICO300 VA1.0

Manual

Date Description Version Download File
2023/01/11 ICO300 User's Manual VA7
2015/12/09 How to connect to Internet with 3G Module (UC20G) in WINCE V1.0
2015/06/15 How to use 3G module (UC20) in Ubuntu for ICO300 VA1.0

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2023/10/06 UL Certificate
2023/01/17 CB Certificate
2022/07/27 FCC Verification
2022/07/27 UKCA Declaration of Conformity
2022/07/27 CE EMC Verification
2022/07/27 CE-Conformity Declaration
2017/06/30 CE LVD Verification
