GOT3217WL-845-PCT

Status : Available

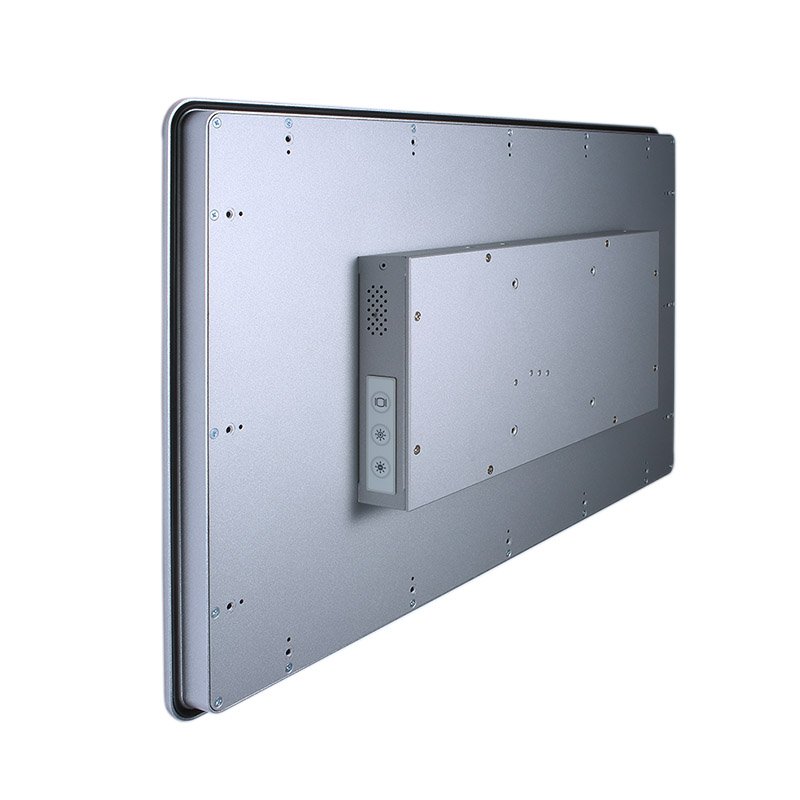

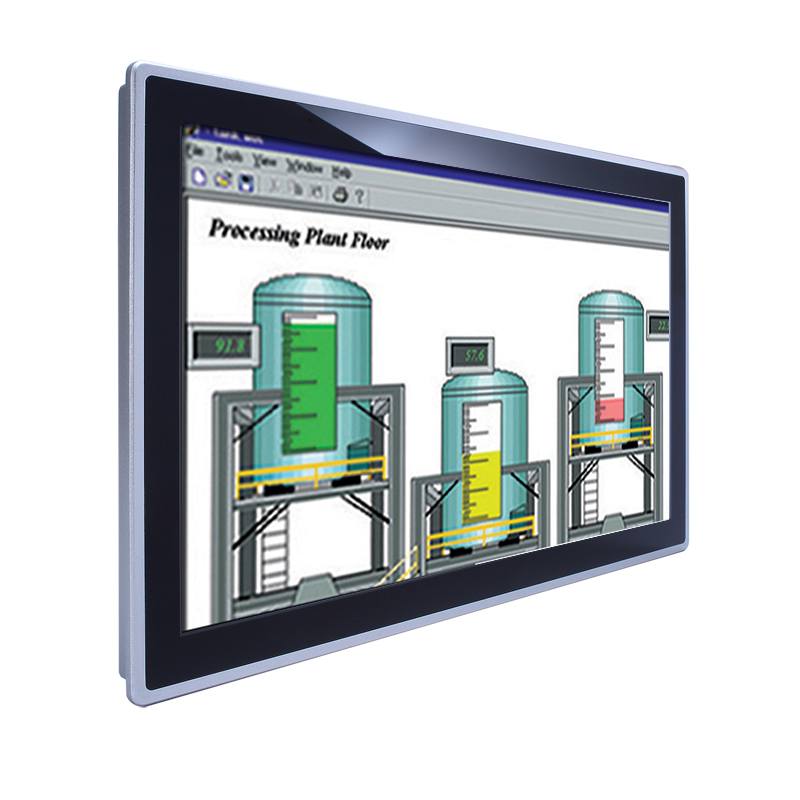

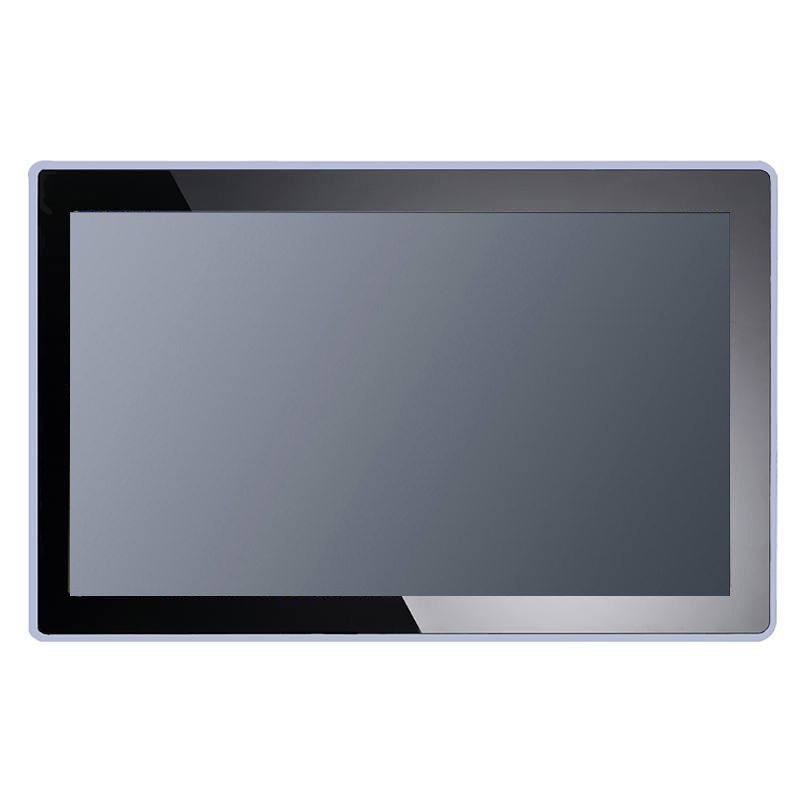

21.5" FHD TFT Multi-touch Panel Computer with Intel® Pentium® Processor N3710

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
GOT3217WL-845-PCT
GOT3217WL-845-PCT
GOT3217WL-845-PCT
GOT3217WL-845-PCT
Dual-View

Dual-View

Fanless

Fanless

IP65 Rating

IP65 Rating

Low Power

Low Power

Wide Temperature

Wide Temperature

  • Features
  • Specifications
  • Ordering Information
  • Download
  • FAQ

Features

  • 21.5" FHD 10-point multi-touch projected capacitive widescreen
  • Fanless design with Intel® Pentium® processor N3710
  • 2.5" SATA HDD and mSATA
  • 3G, WLAN module and antennas (optional)
  • 2 GbE LANs, 2 USB 3.0, 2 USB 2.0 and 2 COM
  • IP65-rated aluminum front bezel
  • Supports panel mount and optional VESA arm/desktop stand/wall mount
  • Adjustable RS-232/422/485 setting via BIOS

Specifications

LCD Panel
  • 21.5" FHD TFT LCD
  • 250 nits
  • 1920 x 1080
CPU
  • Intel® Pentium® processor N3710 1.6 GHz (Braswell)
Chipset
  • SoC integrated
System Memory
  • 1 x 204-pin DDR3L-1600 SO-DIMM, up to 8GB
BIOS
  • AMI
COM
  • 1 x RS-232
  • 1 x RS-232/422/485
USB
  • 2 x USB 3.0
  • 2 x USB 2.0
Ethernet
  • 2 x 10/100/1000 Mbps Ethernet (Intel® I210-AT)
Display
  • N/A
Audio
  • 1 x Audio (Line-out)
Storage
  • 1 x 2.5" SATA HDD (9.5 mm height)
  • 1 x mSATA
Expansion
  • 1 x Full-size PCI Express Mini Card with mSATA
  • 1 x Full-size PCI Express Mini Card with SIM slot
Others
  • 1 x Switch for power on/off (ATX)
Touchscreen
  • 10-point projected capacitive multi-touch
Front Bezel
  • IP65 front bezel
Power Supply
  • AC version: 12 VDC 60W adapter
Power Comsumption
  • 48W
Watchdog Timer
  • 255 levels, 0 to 255 sec.
Operating Temperature
  • 0°C to +50°C (+32°F to +122°F)
Relative Humidity
  • 20% to 90% @ +40°C; non-condensing
Vibration
  • 1G, 10 - 500 Hz, random for 2.5" SATA HDD
Dimensions
(W x D x H)
  • 547.6 x 57.6 x 339 mm (21.56" x 2.27" x 13.35")
Weight (net/gross)
  • 7.6 kg (16.8 lb)/10.5 kg (23.1 lb)
Certifications
  • CE
EOS
  • Windows® 10 IoT Enterprise, Windows® 10
Mounting
  • Panel mount
  • VESA arm
  • Desktop stand
  • Wall mount

Ordering Information

  • GOT3217WL-845-PCT-J (P/N-E223217101)
    21.5" FHD TFT fanless touch panel computer with Intel® Pentium® N3710 1.6 GHz quad-core processor, 10-point projected capacitive multi-touch screen and AC-DC 12 VDC power adapter (screw type connector)
  • 4G LTE kit
  • Wi-Fi kit
  • E29R131114
    Wall mount kit
  • 50966224010E
    Adaptor 24V/120W, wire only, FSP120-AAAN3 (for DC model)

Download

Drivers

Date Description Version Download File
2017/09/13 GOT3217WL-845-PCT_Win 10 driver VA1.0
2017/09/13 GOT3217WL-845-PCT_Win 7 driver VA1.0

Software

Manual

Date Description Version Download File
2019/02/11 GOT3217WL-845-PCT User Manual VA2

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2023/01/04 UKCA Declaration of Conformity
2023/01/04 FCC Verification
2023/01/04 CE-Conformity Declaration
2023/01/04 CE EMC Verification
2020/02/15 CE LVD Verification
