GOT317B-ADL-TRD

Status : Available

17" SXGA Fanless Touch Panel Computer with LGA1700 Socket 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3 or Pentium® Processor

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
GOT317B-ADL-TRD
GOT317B-ADL-TRD
GOT317B-ADL-TRD
GOT317B-ADL-TRD
GOT317B-ADL-TRD
  • Features
  • Specifications
  • Ordering Information
  • Download
  • FAQ

Features

  • 17” SXGA LCD with 350 nits of brightness
  • 5-wire resistive touch
  • Supports one 2.5” SATA HDD/SSD
  • Flat front panel touch screen with rugged IP65 front bezel
  • Fanless design
  • Supports WLAN module and antenna (optional)
  • Supports 4 USB and 2 COM ports
  • TPM 2.0 onboard
  • Swappable HDD tray
  • Supports panel mount, VESA mount, desktop stand, and wall mount
5-Wire Resistive Touch Screen Display
5-wire resistive touch
350 Nits Sun-Readable LCD Brightness
350 nits of brightness

Outstanding Power Control

The GOT317B-ADL-TRD supports a wide 10 V to 36 V DC power input with power ignition on/off delays. This professional feature effectively prevents power instability, enables the equipment to start up and operate safely, and safeguards vital components against sudden voltage spikes.

Fanless & IP65-Rating

Enhance industrial operations with the rugged reliability of the GOT317B-ADL-TRD. Featuring an IP65-rated water- and dust-resistant front bezel, it allows easy screen cleaning and dependable performance in harsh environments. This makes it an ideal solution for factory automation, self-service kiosks, and warehouse operations where durability and consistent uptime are essential.



Wide Operating Temperature

The GOT317B-ADL-TRD operates reliably across a wide temperature range of -10 °C to 50 °C, allowing it to withstand harsh and fluctuating environments. Its robust design ensures consistent performance, making it a dependable choice for industries where operational reliability is critical.

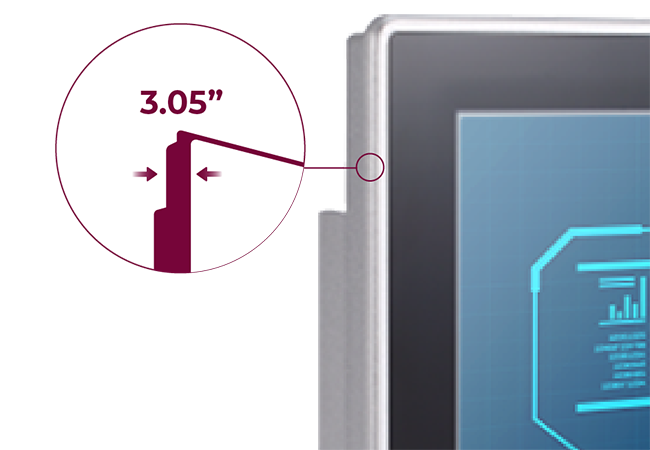

Narrow Bezel and Slim Design

The rugged GOT317B-ADL-TRD features a slim, space-saving design and an IP65-rated water/dust-proof front bezel, making it ideal for heavy-duty industrial and factory automation applications.

GOT317B-ADL-TRD Narrow Bezel and Slim Industrial Design

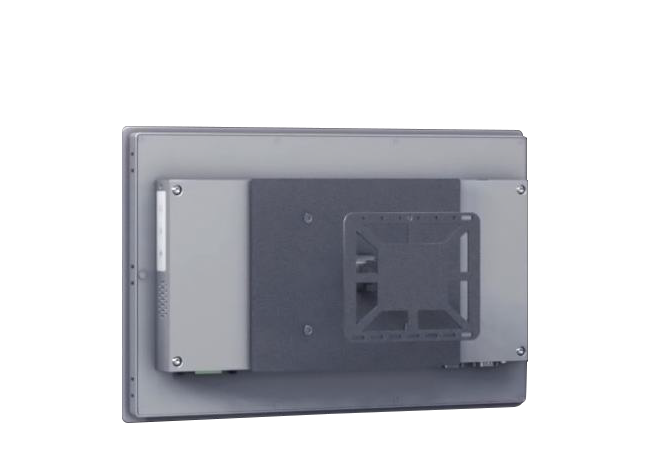

Various Mounting Options

The GOT317B-ADL-TRD offers versatile mounting options—wall mount, VESA mount, and desktop stand—allowing users to select the setup that best fits their application.

GOT317B-ADL-TRD Flexible Mounting Solutions

TPM 2.0

The GOT317B-ADL-TRD supports TPM 2.0, enhancing cybersecurity and helping businesses and facilities strengthen protection against potential cyberattacks.



Rich Expansion

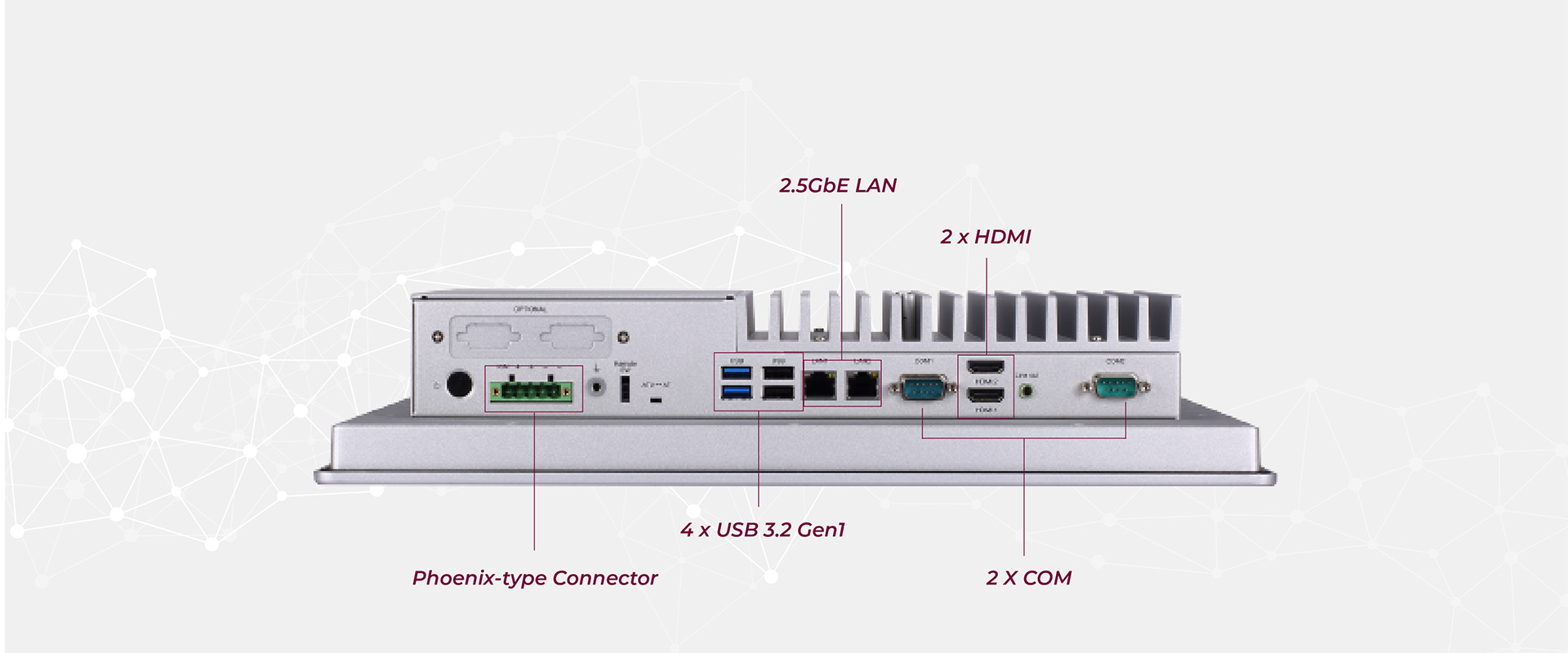

Front View
GOT317B-ADL-TRD Heavy-Duty Panel PC Front View

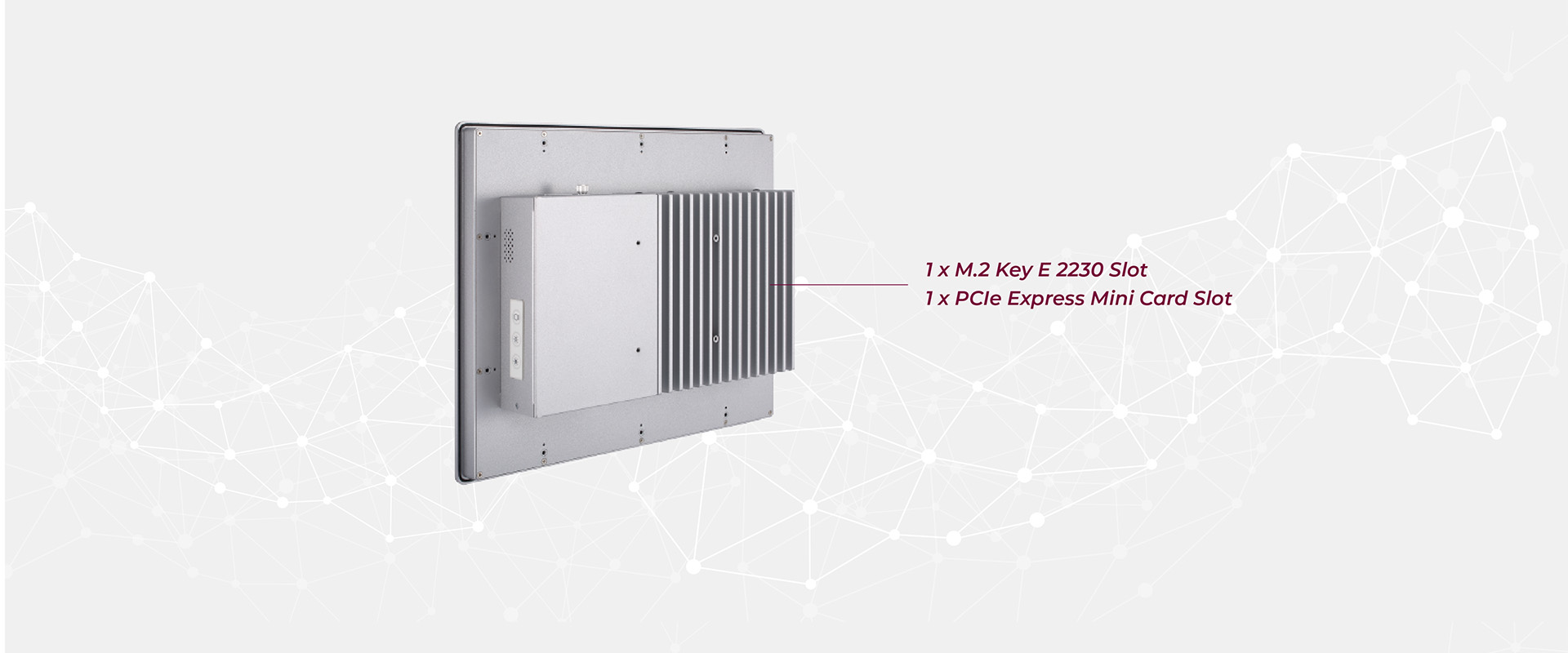

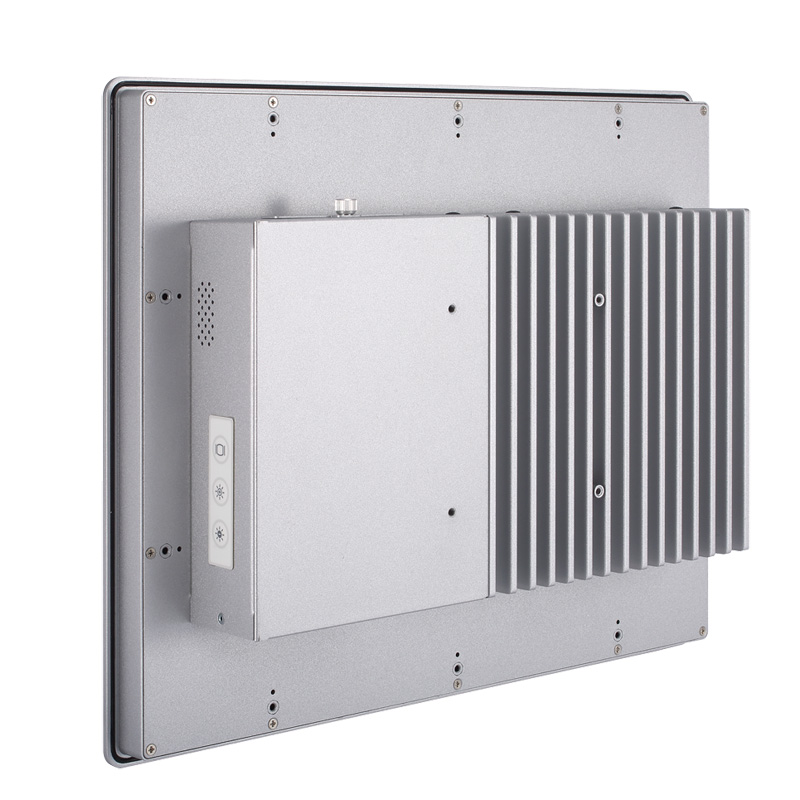

Rear View
GOT317B-ADL-TRD Rich I/O Interfaces Rear View

Specifications

LCD Panel
  • 17" SXGA TFT LCD
  • 350 nits
  • 1280 x 1024 pixels
CPU
  • LGA1700 socket 14th/13th/12th gen Intel® Core™ i9/i7/i5/i3 or Pentium® processor (up to 35W)
Chipset
  • Intel® H610
System Memory
  • 1 x 260-pin DDR4 3200MHz SO-DIMM, up to 32GB
BIOS
  • AMI
COM
  • 1 x 9-pin D-sub Male RS-232/422/485
  • 1 x RS-232 via cable
USB
  • 2 x USB 3.2 Gen1 (Type A)
  • 2 x USB 2.0 (Type A)
Ethernet
  • 1 x RJ-45 for 10/100/1000Mbps (Intel® I219-V)
  • 1 x RJ-45 for 10/100/1000/2500Mbps (Intel® I225-V)
Display
  • 2 x HDMI 1.4b
Audio
  • 1 x Line out
Storage
  • 1 x 2.5” SATA HDD(WT)/SSD (7mm and 9.5mm height, removable)
Expansion
  • 1 x M.2 Key E type 2230 with PCIe x1 and USB 2.0
  • 1 x PCI Express Mini Card (USB+PCIe signal)
  • 1 x Flexible I/O window with support for COM3, COM4, and DIO (on-board optional)
Others
  • TPM 2.0
  • 1 x Phoenix-type connector for DC power input
  • 1 x Switch for power on/off
  • 1 x Remote power switch
  • 1 x Grounding hole
Touchscreen
  • 5-wire Resistive Touch Screen
Front Bezel
  • IP65 front bezel
Power Supply
  • 10 to 36V DC-in (typical 12/24VDC) via terminal block
Power Comsumption
  • 120W
Watchdog Timer
  • 255 levels, 0 to 255 sec.
Operating Temperature
  • -10°C to 50°C (35W CPU/SSD)
Relative Humidity
  • 10% to 95% @ +40°C; non-condensing
Vibration
  • 1G / 5 - 500Hz / operation (SSD, random)
Dimensions
(W x D x H)
  • 398 x 77.5 x 330.4 mm (15.67" x 3.05" x 13")
Weight (net/gross)
  • 7.36 kg (16.22 Ib)/11 kg (24.25 Ib)
Certifications
  • CE Class A, IEC/EN 61000-6-4, and IEC/EN 61000-6-2
  • FCC 47 CFR Part 15 Subpart B (Class A)
  • UKCA
  • RoHS standard
EOS
  • Win10, Win10 IoT, Win11, Win11 IoT, Linux
Mounting
  • Panel mount
  • VESA mount
  • Desktop stand
  • Wall mount

Ordering Information

  • GOT317B-ADL-TRD (P/N-E22B317B00)
    17" SXGA TFT fanless touch panel computer with LGA1700 socket 14th/13th/12th gen Intel® Core™ i9/i7/i5/i3 or Pentium® processor (up to 35W), 5-wire resistive touch screen, and 10 to 36 VDC terminal block with small Phoenix connector
  • 4G LTE kit
  • Wi-Fi kit
  • 594K6220210E
    Remote power cable, L= 720 mm
  • E29R131114
    Wall mount kit
  • 50906A24000E
    Adapter 24V230W FSP230-AAAN3 WIRE FSP
  • 509000001500
    Adapter 24V120W FSP120-AAAN3 WIRE FSP
  • E29R131102
    GOT3177T Panel mount kit (E)
  • E392902103
    AX92902 + AX93287 full-size PCI Express Mini module with Gigabit LAN
  • E392903102
    AX92903 full-size PCI Express Mini module with CAN Bus
  • E392906101
    AX92906 full-size PCI Express Mini module with COM
  • E392918103
    AX92918 full-size PCI Express Mini module with 2 Gigabit LAN

Download

Drivers

Date Description Version Download File
2024/03/06 PenMount Windows Universal Driver VA1.0
2024/03/06 LAN VA1.0
2024/03/06 Audio VA1.0
2024/03/06 Serial IO VA1.0
2024/03/06 Graphics VA1.0
2024/03/06 ME VA1.0
2024/03/06 Chipset VA1.0

Software

Date Description Version Download File
2026/05/14 PSU tool VA1.1
2024/11/01 OSD AP VA1.0

Manual

Date Description Version Download File
2024/03/06 User's manual VA2

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2024/04/29 UKCA Declaration of Conformity
2024/04/29 FCC Verification
2024/04/29 CE EMC Verification
2024/04/29 CE-Conformity Declaration
