GOT315B-ADL-WCD

Status : Available

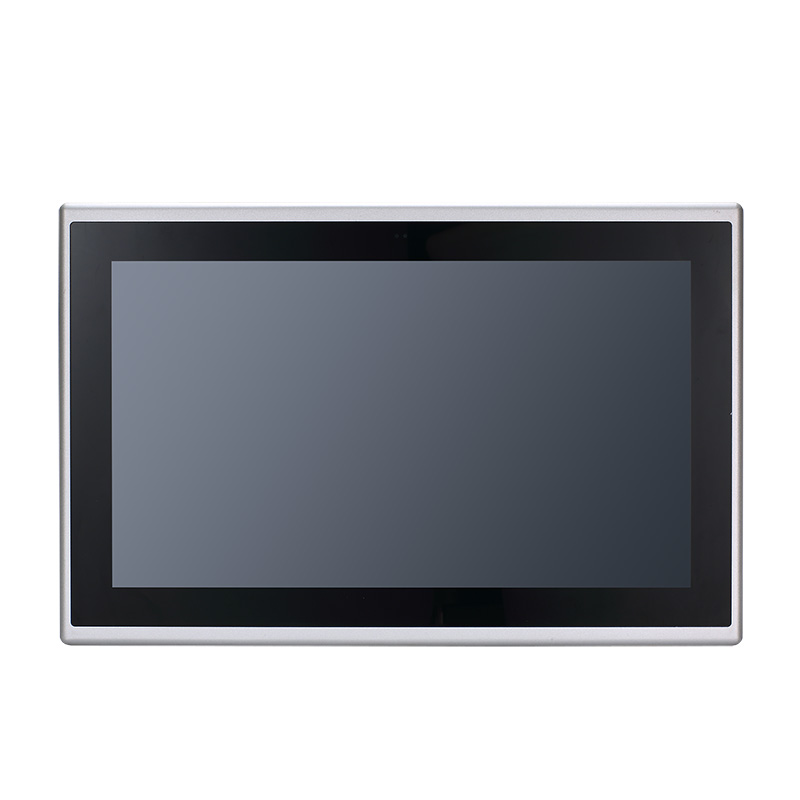

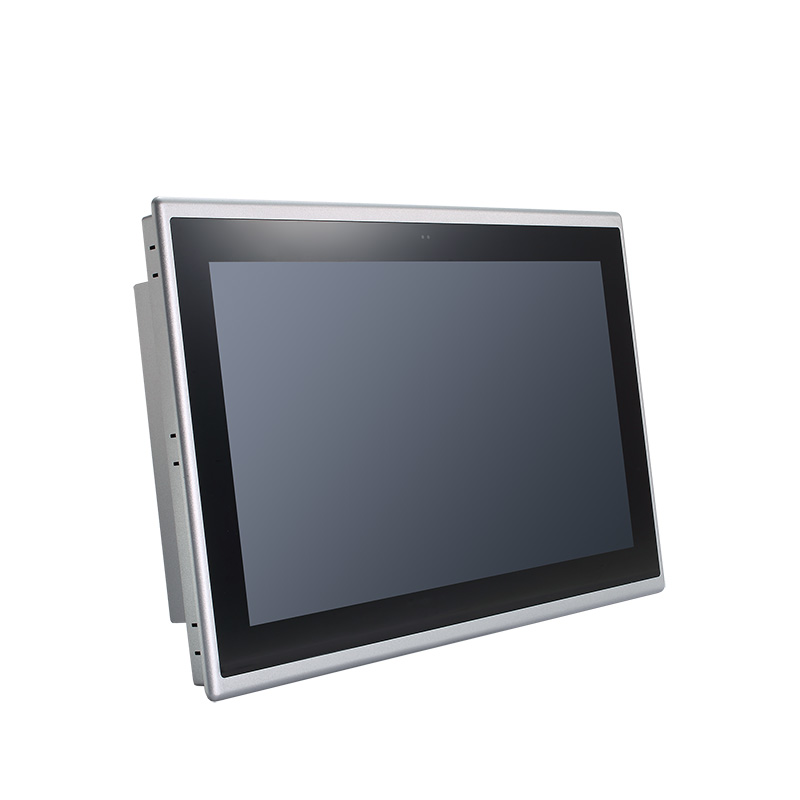

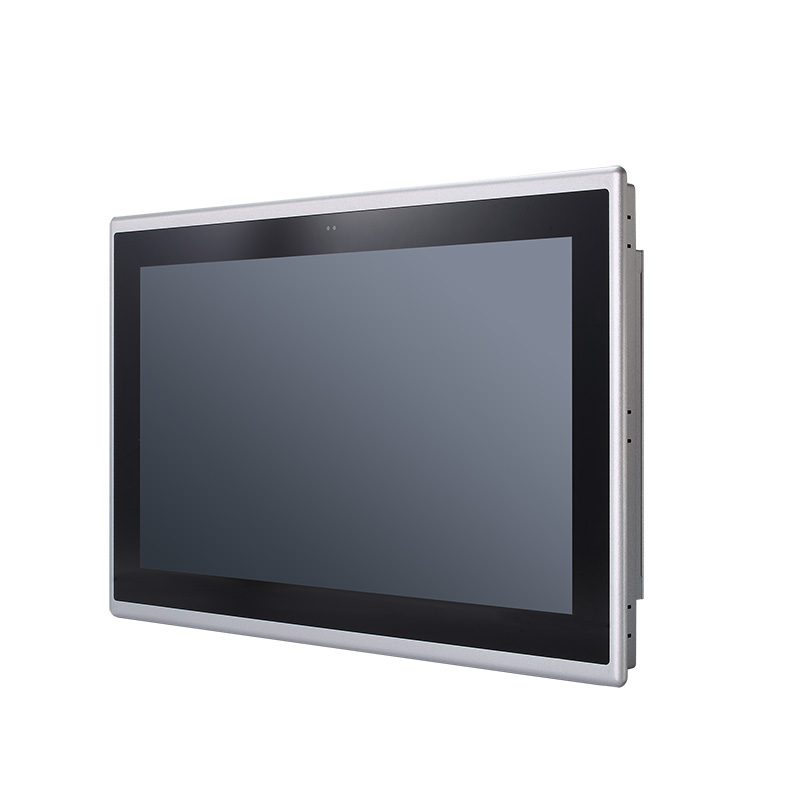

15.6" FHD Fanless Touch Panel Computer with LGA1700 Socket 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3 or Pentium® Processor

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
GOT315B-ADL-WCD
GOT315B-ADL-WCD
GOT315B-ADL-WCD
GOT315B-ADL-WCD
GOT315B-ADL-WCD
Fanless

Fanless

IP65 Rating

IP65 Rating

PCAP

PCAP

Wide Temperature

Wide Temperature

  • Features
  • Specifications
  • Ordering Information
  • Download
  • FAQ

Features

  • 15.6" FHD LCD with 450 nits of brightness
  • Projected capacitive touch
  • Supports one 2.5” SATA HDD/SSD
  • Flat front panel touch screen with rugged IP65 front bezel

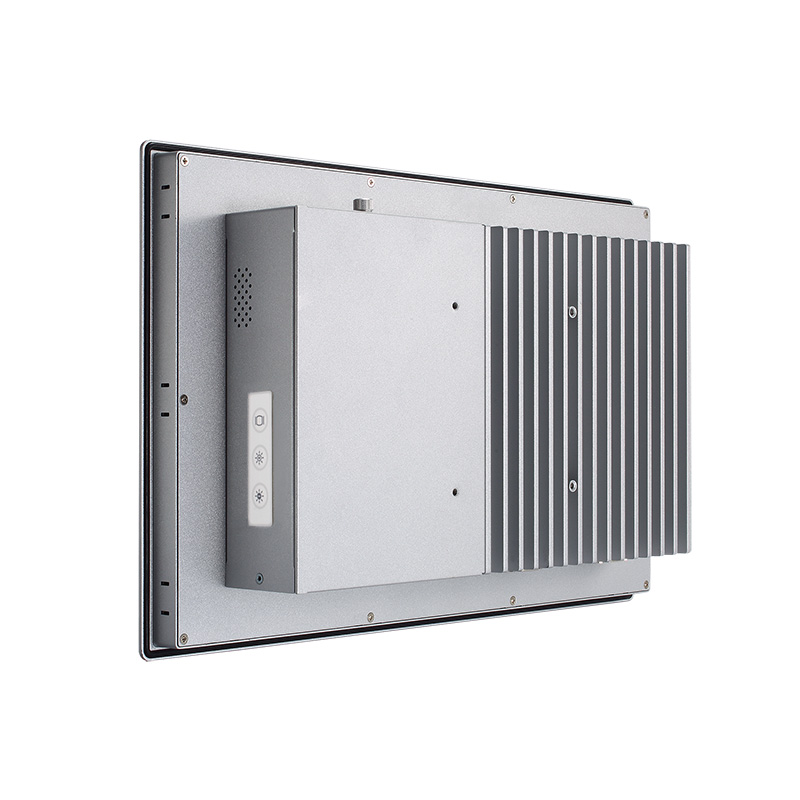

  • Fanless design
  • Supports WLAN module and antenna (optional)
  • Supports 4 USB and 2 COM ports
  • TPM 2.0 onboard
  • Swappable HDD tray
  • Supports panel mount, VESA mount, desktop stand, and wall mount

Specifications

LCD Panel
  • 15.6" FHD TFT LCD
  • 450 nits
  • 1920 x 1080 pixels
CPU
  • LGA1700 socket 14th/13th/12th gen Intel® Core™ i9/i7/i5/i3 or Pentium® processor (up to 35W)
Chipset
  • Intel® H610
System Memory
  • 1 x 260-pin DDR4 3200MHz SO-DIMM, up to 32GB
BIOS
  • AMI

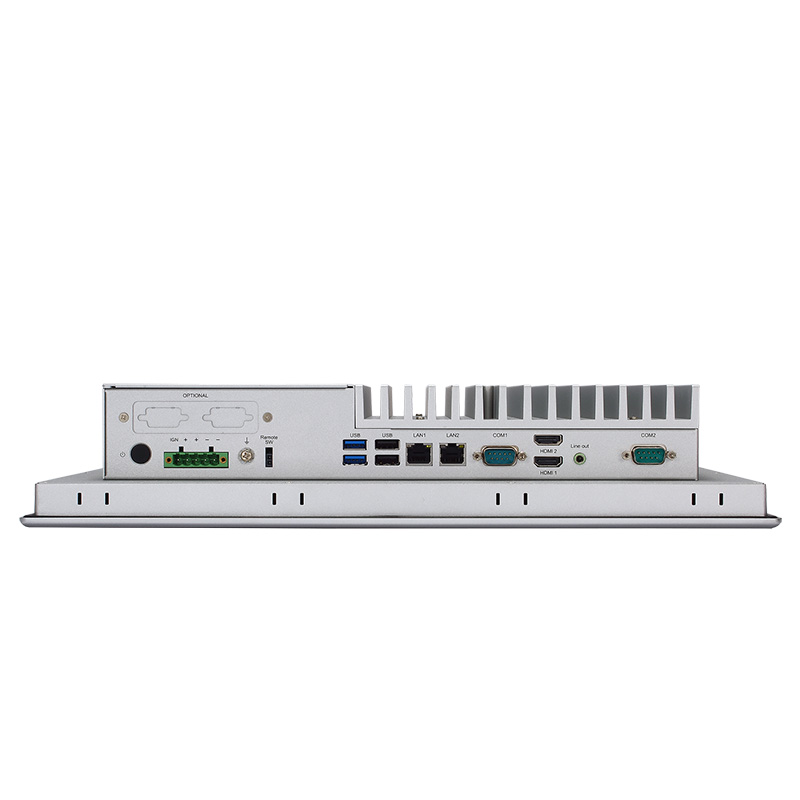

COM
  • 1 x 9-pin D-sub Male RS-232/422/485
  • 1 x RS-232 via cable
USB
  • 2 x USB 3.2 Gen1 (Type A)
  • 2 x USB 2.0 (Type A)
Ethernet
  • 1 x RJ-45 for 10/100/1000Mbps (Intel® I219-V)
  • 1 x RJ-45 for 10/100/1000/2500Mbps (Intel® I225-V)
Display
  • 2 x HDMI 1.4b
Audio
  • 1 x Line-out
Storage
  • 1 x 2.5” SATA HDD(WT)/SSD (7mm and 9.5mm height, removable)
Expansion
  • 1 x M.2 Key E 2230 with PCIe x1 and USB 2.0
  • 1 x PCI Express Mini Card (USB+PCIe signal+nano SIM slot “LTE”)
  • 1 x Flexible I/O window, supporting COM3, COM4, and DIO (on-board optional)
Others
  • 1 x Phoenix-type connector for DC power input
  • 1 x Switch for power on/off (ATX)
  • 1 x Remote power switch
  • 1 x Grounding hole
  • TPM 2.0
Touchscreen
  • Projected capacitive touch
Front Bezel
  • IP65 front bezel
Power Supply
  • 10 to 36V DC-in (typical 12/24VDC) via terminal block
Power Comsumption
  • 102W
Watchdog Timer
  • 255 levels, 0 to 255 sec.
Operating Temperature
  • -10°C to +50°C (35W CPU/SSD)
Relative Humidity
  • 10% to 95% @ +40°C; non-condensing
Vibration
  • 1G/5 to 500Hz/operation (SSD, random)
Dimensions
(W x D x H)
  • 409.2 x 76.8 x 265.2 mm (16.11" x 3.02" x 10.44")
Weight (net/gross)
  • 6.612 Kg (14.58 Ib)/8.652 kg (19.07 Ib)
Certifications
  • CE Class A, IEC/EN 61000-6-4, and IEC/EN 61000-6-2
  • FCC 47 CFR Part 15 Subpart B (Class A)
  • UKCA
  • RoHS standard
EOS
  • Win10, Win10 IoT, Win11, Win11 IoT, Linux
Mounting
  • Panel mount
  • VESA mount
  • Desktop stand
  • Wall mount

Ordering Information

  • GOT315B-ADL-WCD (P/N-E22B315B00)
    15.6" FHD TFT fanless touch panel computer with LGA1700 socket 14th/13th/12th gen Intel® Core™ i9/i7/i5/i3 or Pentium® processor (up to 35W), projected capacitive touch screen, and 10 to 36V terminal block with small Phoenix connector
  • 4G LTE kit
  • Wi-Fi kit
  • 594K6220210E
    Remote power cable, L= 720 mm
  • E29R131114
    Wall mount kit
  • 50906A24000E
    Adapter 24V230W FSP230-AAAN3 WIRE FSP
  • E29R131112
    GOT315A Panel mount kit + bag (E)
  • E392902103
    AX92902 + AX93287 full-size PCI Express Mini module with Gigabit LAN
  • E392903102
    AX92903 full-size PCI Express Mini module with CAN Bus
  • E392906101
    AX92906 full-size PCI Express Mini module with COM
  • E392918103
    AX92918 full-size PCI Express Mini module with 2 Gigabit LAN

Download

Drivers

Date Description Version Download File
2024/08/13 INF VA1.0
2024/08/06 Audio VA1.0
2024/08/06 Serial IO VA1.0
2024/08/06 Graphic VA1.0
2024/08/06 LAN VA1.0
2024/08/06 ME VA1.0

Software

Date Description Version Download File
2026/05/14 PSU tool VA1.1
2024/11/01 OSD dimming control utility VA1.0

Manual

Date Description Version Download File
2024/08/06 User's manual VA1

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2024/04/29 UKCA Declaration of Conformity
2024/04/29 CE-Conformity Declaration
2024/04/29 FCC Verification
2024/04/29 CE EMC Verification
