GOT312A-ELK-TCD

Status : Available

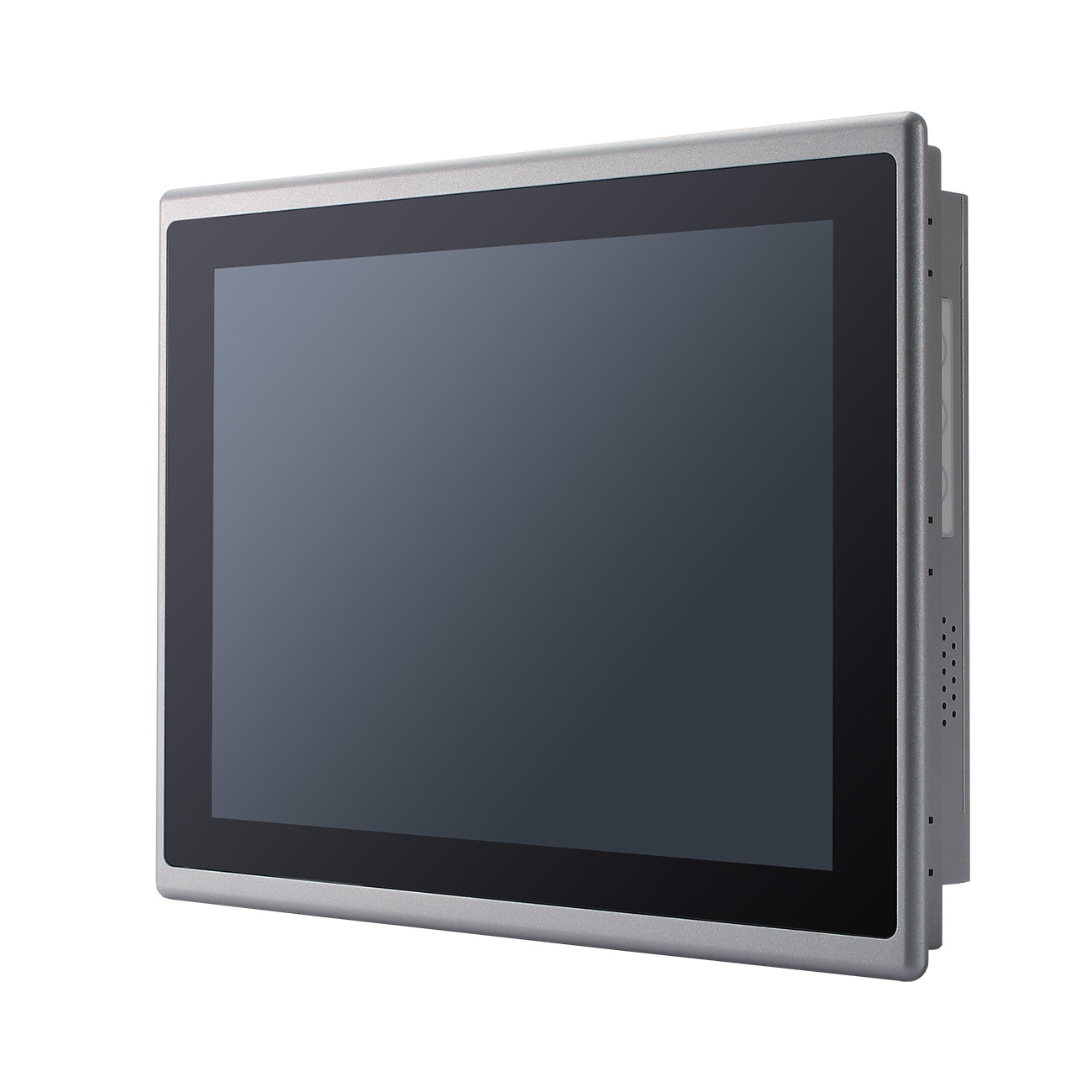

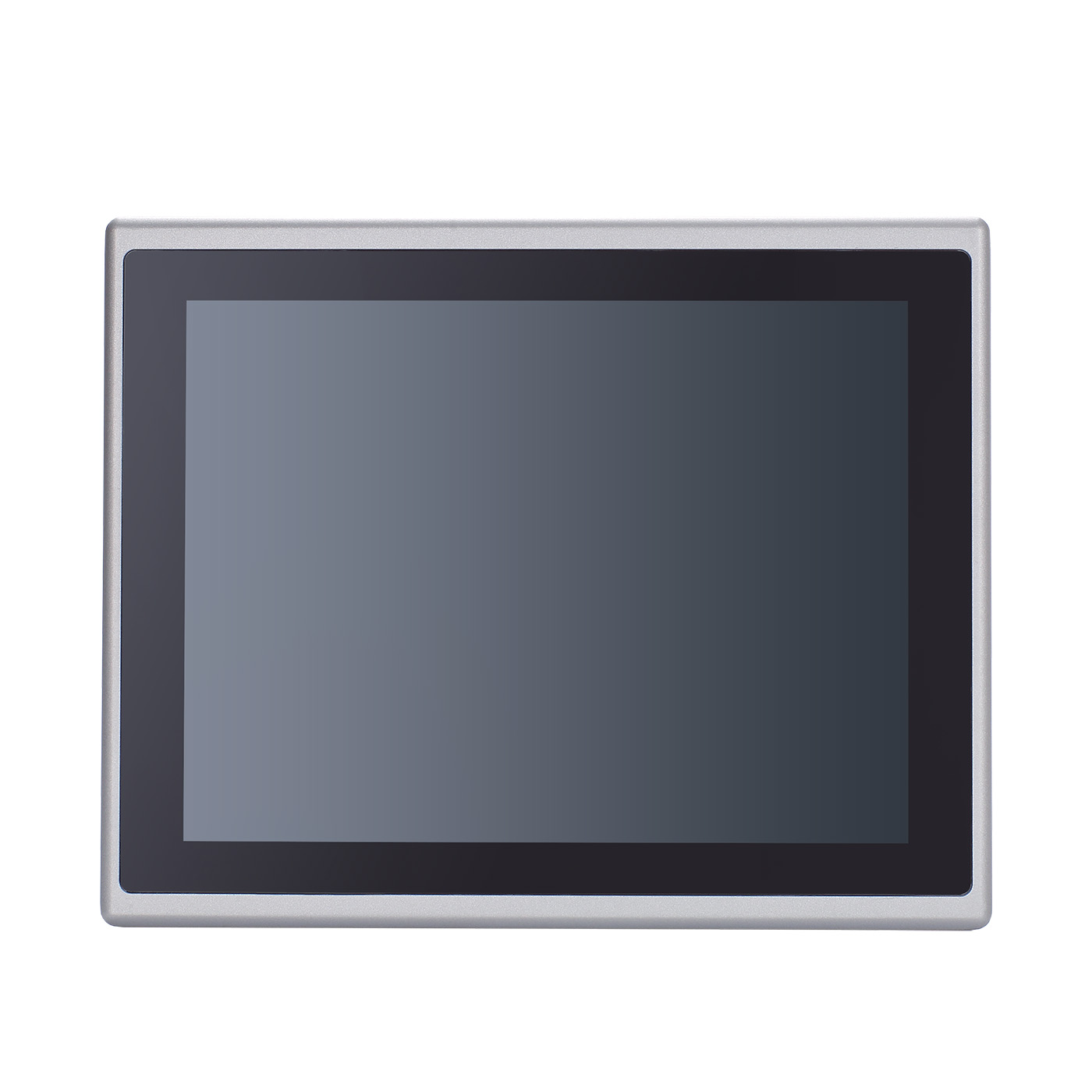

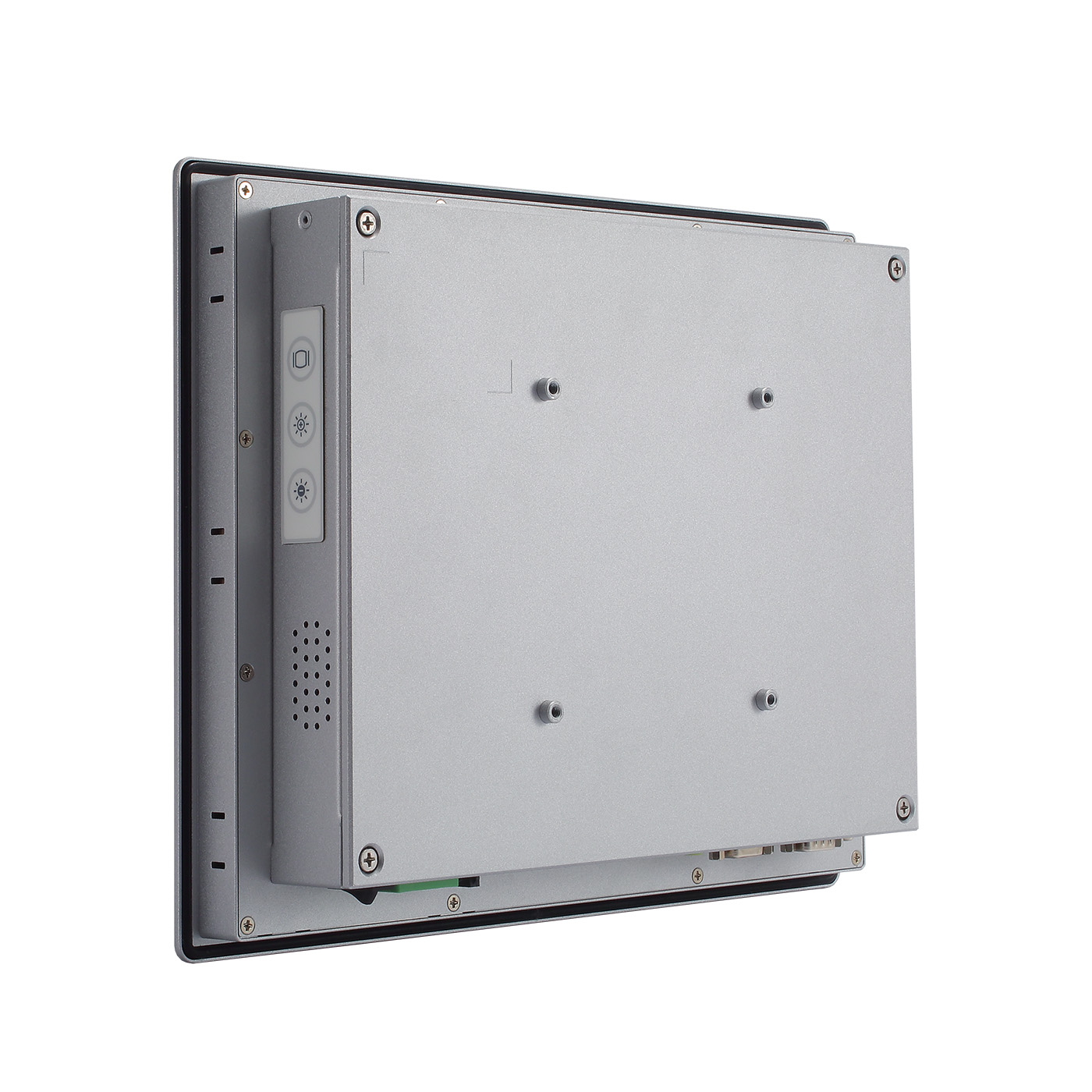

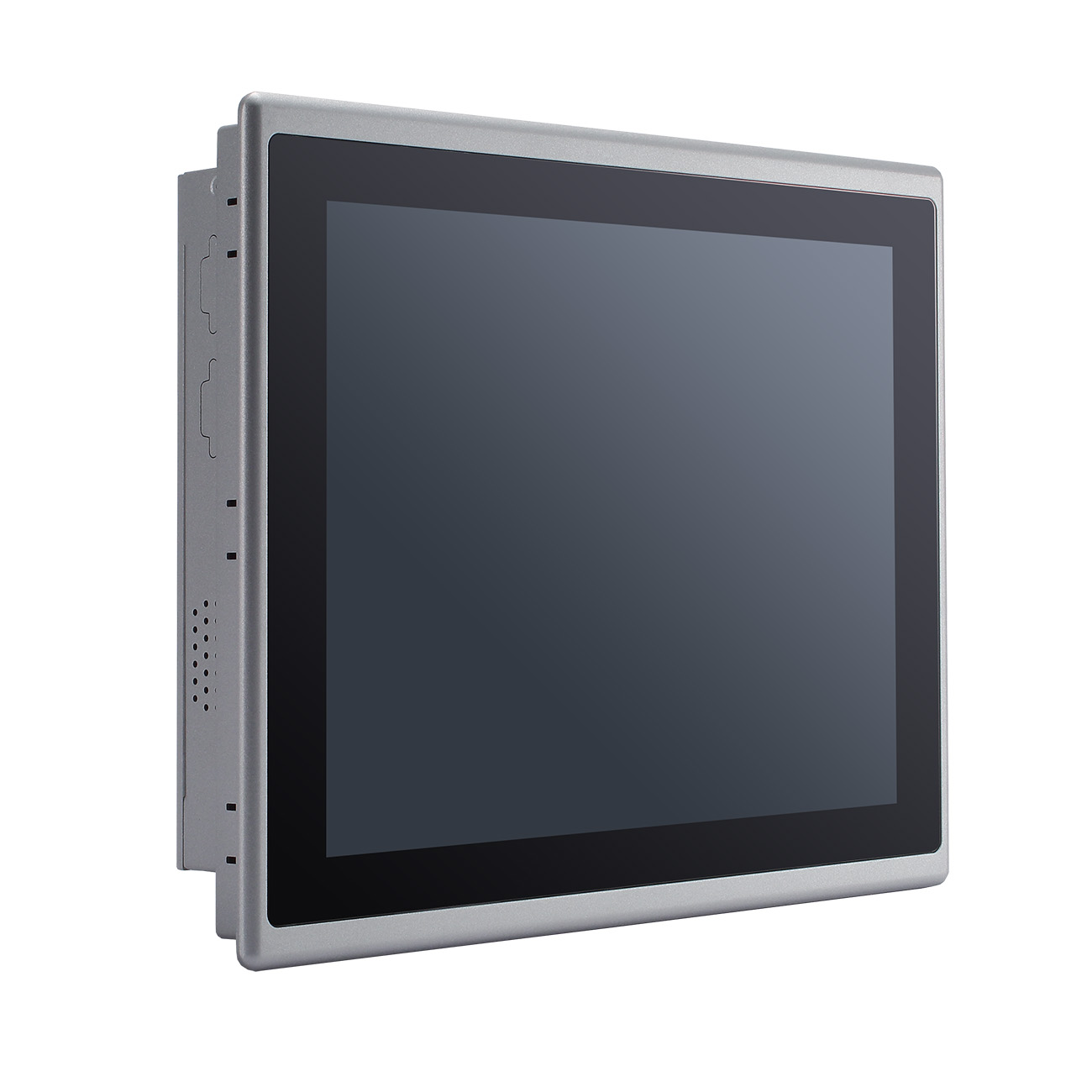

12.1" XGA Fanless Touch Panel Computer with Intel® Celeron® Processor J6412

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
GOT312A-ELK-TCD
GOT312A-ELK-TCD
GOT312A-ELK-TCD
GOT312A-ELK-TCD
GOT312A-ELK-TCD
Fanless

Fanless

IP65 Rating

IP65 Rating

PCAP

PCAP

TPM

TPM

Triple-View

Triple-View

  • Features
  • Specifications
  • Ordering Information
  • Download
  • FAQ

Features

  • 12.1" XGA projected capacitive multi-touch widescreen
  • Fanless design with Intel® Celeron® processor J6412

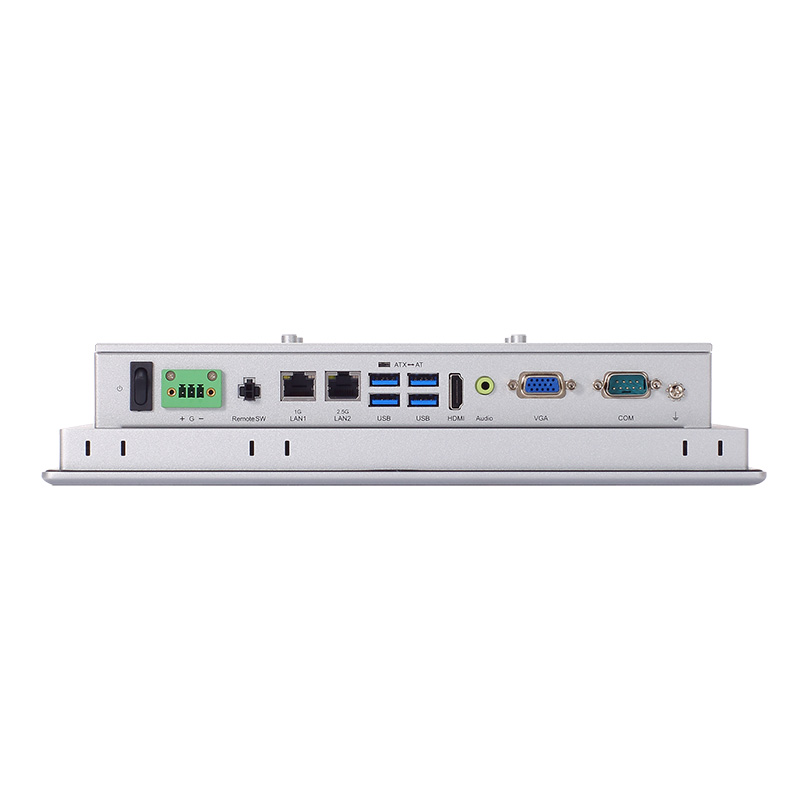

  • 2 LAN, 4 USB, HDMI, VGA, and COM (RS-232/422/485)
  • IP65-rated aluminum front bezel
  • Supports WLAN module and antenna (optional)
  • Operating temperature: -10°C to +50°C
  • Supports wall mount, panel mount, VESA mount, and desktop stand

Specifications

LCD Panel
  • 12.1" XGA TFT LCD
  • 500 nits
  • 1024 x 768 pixels
CPU
  • Intel® Celeron® processor J6412 (10W TDP)
Chipset
  • SoC integrated
System Memory
  • 1 x 260-pin DDR4 2133/2400/2666/3200 SO-DIMM, up to 32GB
BIOS
  • AMI
COM
  • 1 x RS-232/422/485
  • 2 x DB-9 half-cuts for RS-232 (optional)
USB
  • 4 x USB 3.2 Gen2 (10 Gbps)
Ethernet
  • 1 x RJ-45 2.5Gb Base-T Ethernet (Intel® I226-LM with TSN)
  • 1 x RJ-45 1Gb Base-T Ethernet (Intel® I210-AT)
Display
  • 1 x HDMI (4K 60Hz YCbCr420)
  • 1 x VGA
Audio
  • 1 x Line-in/out
Storage
  • 1 x mSATA
  • 1 x 2.5” SATA SSD (7 mm or 9.5 mm height; removable)
Expansion
  • 1 x Full-size PCI-Express Mini Card slot (PCIe/SATA + USB)
  • 1 x M.2 Key E 2230 (for Wi-Fi)
Others
  • dTPM 2.0
  • 1 x Switch for power on/off (ATX)
  • 1 x Remote power switch
  • 1 x AT/ATX switch (DC type only)
  • 1 x Grounding hole (DC version)
Touchscreen
  • Projected capacitive multi-touch
Front Bezel
  • IP65 front bezel
Power Supply
  • 9 to 36VDC
  • 1 x Terminal block
Power Comsumption
  • 60.3W (Maximum)
Watchdog Timer
  • 255 levels, 0 to 255 sec.
Operating Temperature
  • -10°C to 50°C (+14°F to +122°F)
Relative Humidity
  • 20% to 90% @ +40°C; non-condensing
Vibration
  • 1G, 5 to 500Hz, random for 2.5" SATA SSD
Dimensions
(W x D x H)
  • 304.3 x 59.4 x 244.4 mm (11.98" x 2.3" x 9.62")
Weight (net/gross)
  • 3.154 kg (6.95 lb)/5.476 kg (12.07 lb)
Certifications
  • CE, EN 61000-6-2, EN 61000-6-4, and FCC Class A
EOS
  • Win10, Win10 IoT, Win11, Win11 IoT, Linux
Mounting
  • Panel mount
  • VESA mount
  • Desktop stand
  • Wall mount

Ordering Information

  • GOT312A-ELK-TCD (P/N-E22B312A00)
    12.1" XGA TFT fanless touch panel computer with Intel® Celeron® processor J6412, projected capacitive multi-touch screen, and 9 to 36 VDC terminal block with small Phoenix connector
  • 4G LTE kit
  • Wi-Fi kit
  • RFID kit
  • Barcode scanner kit
  • E29R131114
    Wall mount kit
  • 509000001500
    AC to DC adapter 24V 120W wire type
  • E29R131112
    Panel mount kit

Download

Drivers

Date Description Version Download File
2024/08/12 ME VA1.0
2024/08/12 Serial IO VA1.0
2024/08/12 HD Audio VA1.0
2024/08/12 LAN VA1.0
2024/08/12 Graphic VA1.0
2024/08/12 Chipset VA1.0

Software

Manual

Date Description Version Download File
2024/08/12 User's manual VA1.0

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2024/08/05 UKCA Declaration of Conformity
2024/08/05 CE-Conformity Declaration
2024/08/05 FCC Verification
2024/08/05 CE EMC Verification

Frequently Asked Questions

You Might Also Like

Picture of GOT321A-ELK-WCD

GOT321A-ELK-WCD

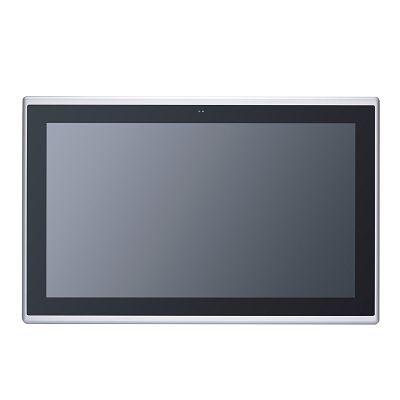

Picture of GOT318A-ELK-WCD
