GOT315A-ELK-WCD

Status : Available

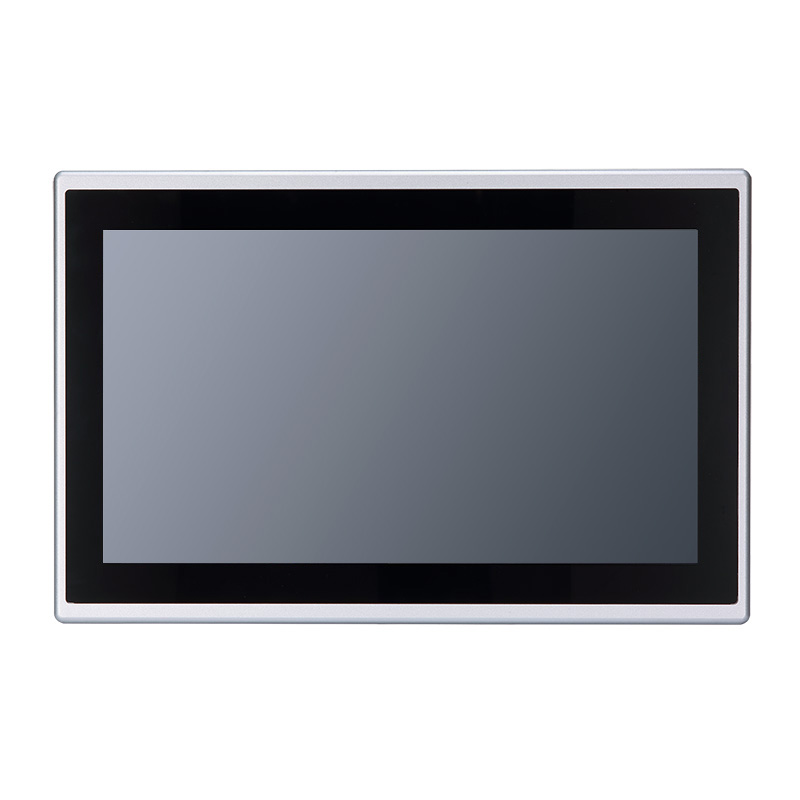

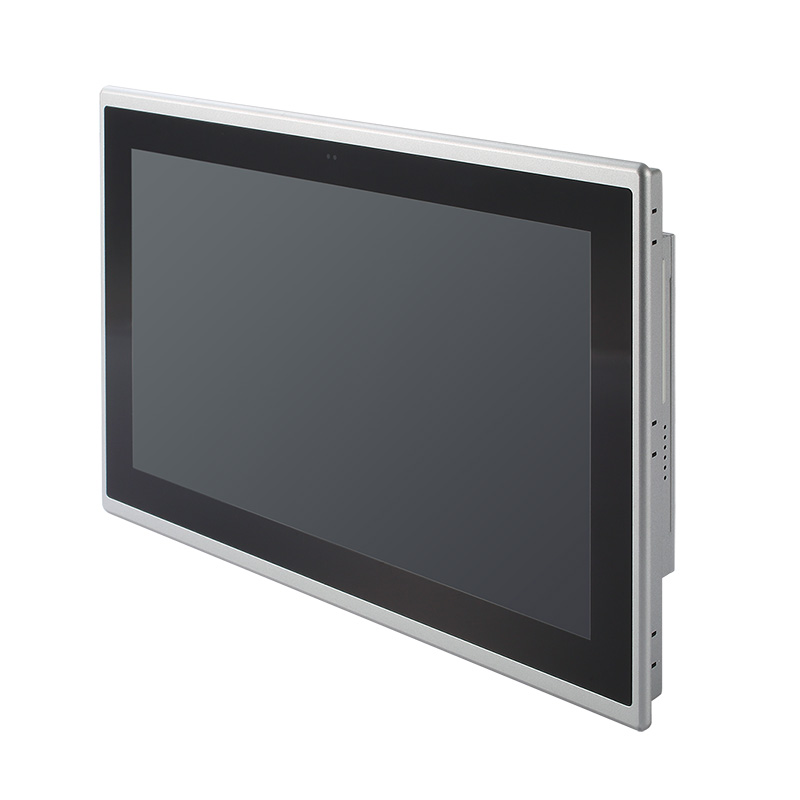

15.6" WXGA TFT Multi-touch Panel Computer with Intel® Celeron® Processor J6412

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
GOT315A-ELK-WCD
GOT315A-ELK-WCD
GOT315A-ELK-WCD
GOT315A-ELK-WCD
GOT315A-ELK-WCD
GOT315A-ELK-WCD
  • Features
  • Specifications
  • Ordering Information
  • Download
  • FAQ

Features

  • 15.6" WXGA projected capacitive multi-touch widescreen
  • Fanless design with Intel® Celeron® processor J6412
  • Supports WLAN module and antenna (optional)
  • 2.5" SATA SSD

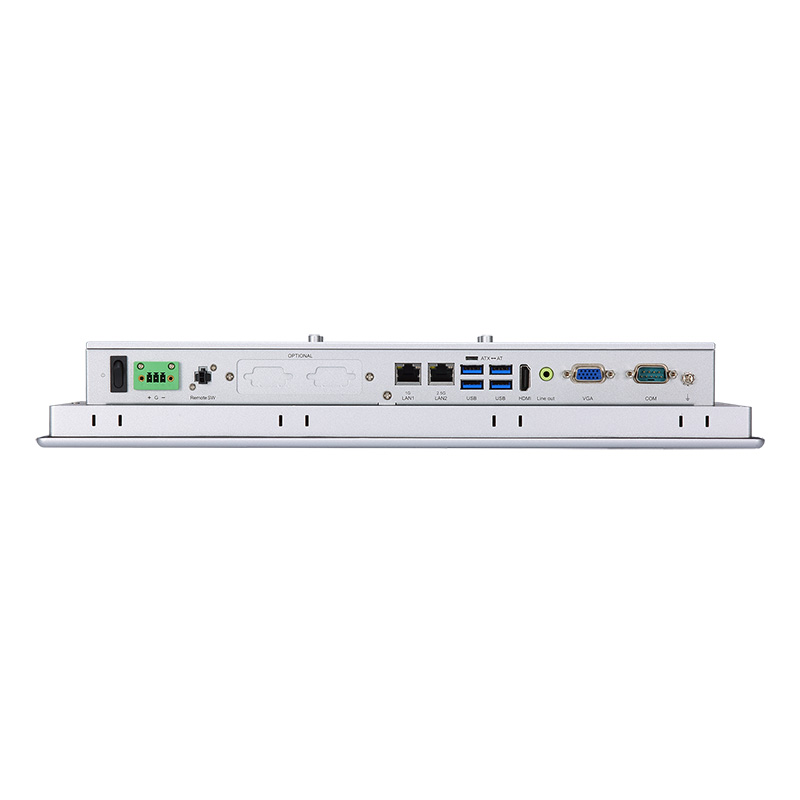

  • 2 LAN, 4 USB, 1+2 COM, 1 HDMI, and 1 VGA
  • IP65-rated aluminum front bezel
  • Supports panel mount, VESA mount, desktop stand, and wall mount
Smooth User Interaction
Smooth User Interaction

Projected capacitive multi-touch

Rugged Design
Rugged Design

-10 °C to +50 °C operating temperature
1 Grms vibration endurance

Wide Input Power Range
Wide Input Power Range

9 to 36 VDC



Power Efficient and Rich Expansions

The GOT315A-ELK-WCD is powered by the low-power Intel® Celeron® processor J6412 (codename: Elkhart Lake) and comes with multiple I/O combinations and a flexible I/O module slot, enabling it to provide complete solutions for a wide range of applications across various industries.

Touch Panel with Robust and Slim Design

The GOT315A-ELK-WCD features an IP65-rated aluminum front narrow bezel, providing dust and spill resistance for use in wet and dusty environments such as factory automation and outdoor kiosks. It also supports a wide operating temperature range of -10 °C to +50 °C and a 9 to 36 VDC power input with power-on/off delay functionality. Its slim design enables seamless integration and installation for any application.

PCAP Screen

The 15.6-inch GOT315A-ELK-WCD features a WXGA TFT LCD with projected capacitive multi-touch and 400 nits of brightness, allowing users to easily enter data, rotate images, drag and drop files, and zoom using two or more fingers.

PCAP Screen

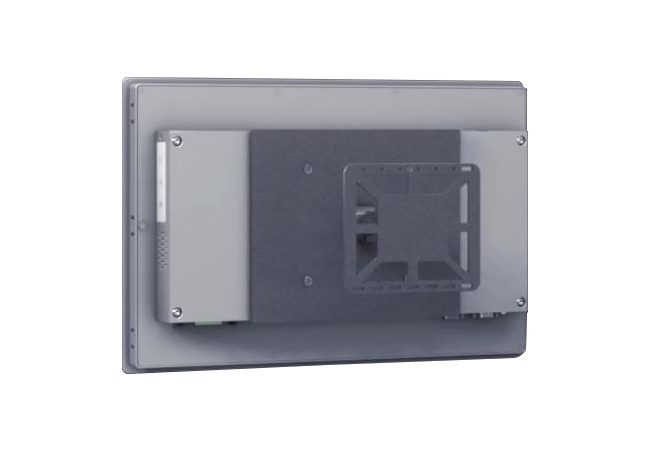

Various Mounting Options

Various mounting options, such as panel mount, VESA mount, desktop stand, and wall mount, are available to meet a variety of application needs.

Mounting Options

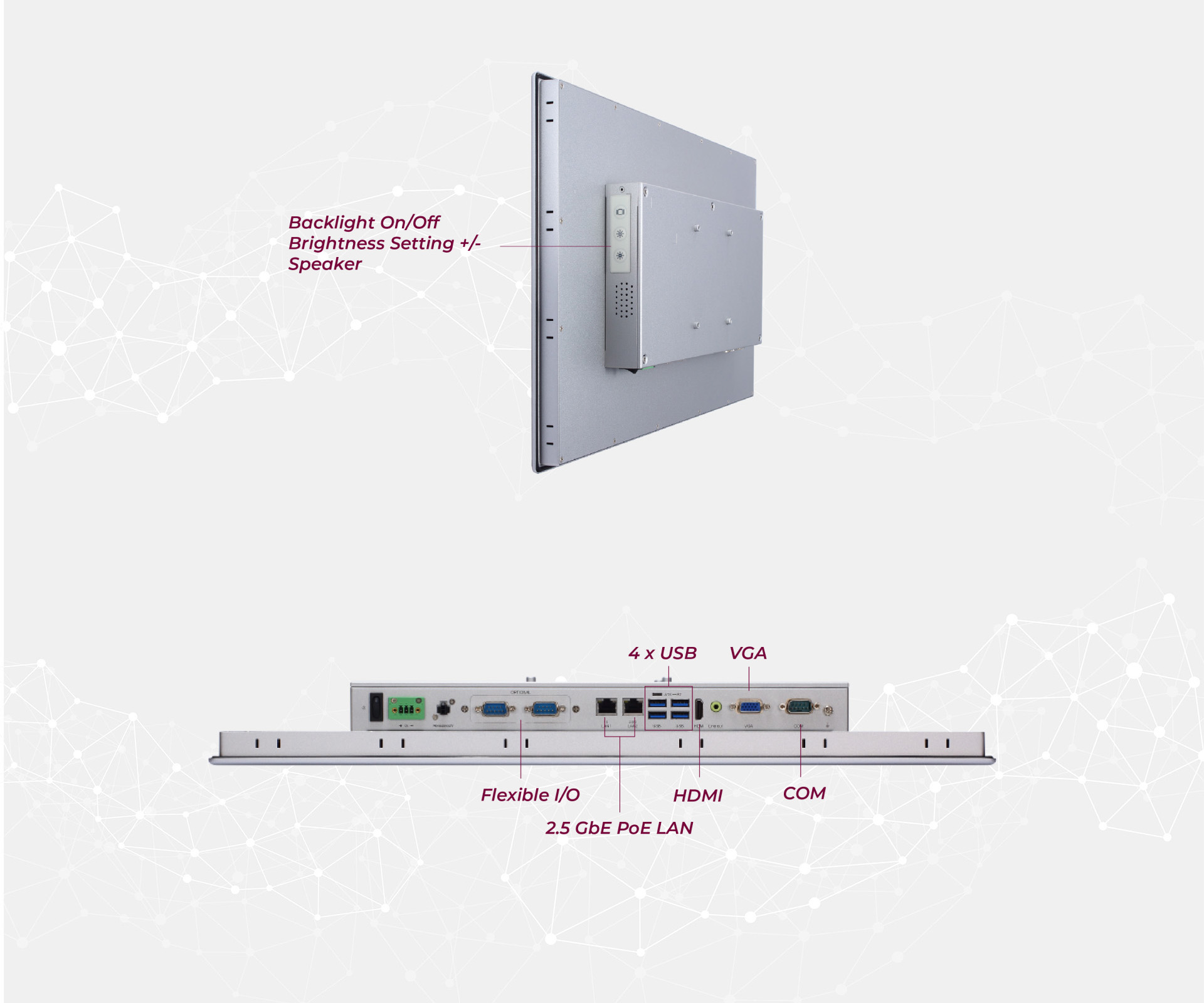

Rich I/O Interfaces

GOT315A-ELK-WCD Rich I/O Interfaces

Specifications

LCD Panel
  • 15.6" WXGA TFT LCD
  • 400 nits
  • 1366 x 768 pixels
CPU
  • Intel® Celeron® processor J6412 (TDP 10W) (Elkhart Lake)
Chipset
  • SoC integrated
System Memory
  • 1 x 260-pin DDR4 2133/2400/2666/3200 SO-DIMM, up to 32GB
BIOS
  • AMI
COM
  • 1 x RS-232/422/485
USB
  • 4 x USB 3.2 Gen2 (10 Gbps)
Ethernet
  • 1 x RJ-45 2.5Gb Base-T Ethernet (Intel® I226-LM with TSN)
  • 1 x RJ-45 1Gb Base-T Ethernet (Intel® I210-AT)
Display
  • 1 x HDMI (4K60Hz YCbCr420)
  • 1 x VGA
Audio
  • 1 x Line-in/out
Storage
  • 1 x mSATA
  • 1 x 2.5” SATA SSD (7 mm or 9.5 mm height; removable)
Expansion
  • 1 x Full-size PCI-Express Mini Card slot (PCIe/SATA + USB)
  • 1 x M.2 Key E 2230 (for Wi-Fi)
  • 1 x Flexible I/O (default 2 x RS-232)
Others
  • dTPM 2.0
  • 1 x Flexible I/O (default 2 x RS-232)
  • 1 x Switch for power on/off (ATX)
  • 1 x Remote power switch
  • 1 x AT/ATX switch (DC type only)
  • 1 x Grounding hole (DC version)
Touchscreen
  • Projected capacitive multi-touch
Front Bezel
  • IP65 front bezel
Power Supply
  • 9 to 36VDC
  • 1 x Terminal block
Power Comsumption
  • 60.3W (Maximum)
Watchdog Timer
  • 255 levels, 0 to 255 sec.
Operating Temperature
  • -10°C to 50°C (+14°F to +122°F)
Relative Humidity
  • 20% to 90% @ +40°C; non-condensing
Vibration
  • 1G, 5 to 500Hz, random for 2.5" SATA SSD
Dimensions
(W x D x H)
  • 409.18 x 59.4 x 265.18 mm (16.1" x 2.3" x 10.4")
Weight (net/gross)
  • 5.07 kg (11.17 lb)/ 7.11 kg (15.66 lb)
Certifications
  • CE, EN 61000-6-2, EN 61000-6-4, and FCC Class A
EOS
  • Windows® 10 IoT, Windows® 11 IoT
Mounting
  • Wall mount kit
  • Panel mount kit

Ordering Information

  • GOT315A-ELK-WCD (P/N-E22B315A00)
    15.6" WXGA TFT fanless touch panel computer with Intel® Celeron® processor J6412, projected capacitive multi-touch screen, and 9 to 36 VDC terminal block with small Phoenix connector
  • 4G LTE kit
  • Wi-Fi kit
  • RFID kit
  • Barcode scanner kit
  • E29R131114
    Wall mount kit
  • 509000001500
    AC to DC adapter 24V 120W wire type
  • E29R131112
    Panel mount kit
  • E392902103
    AX92902 full-size PCI Express Mini Module with Gigabit LAN
  • E392903102
    AX92903 full-size PCI Express Mini Module with CAN Bus
  • E392906101
    AX92906 full-size PCI Express Mini Module with 2 COM

Download

Drivers

Date Description Version Download File
2023/03/10 4. Audio VA1.0
2023/03/10 5. ME VA1.0
2023/03/10 6. Serial IO VA1.0
2023/03/10 3. LAN VA1.0
2023/03/10 2. Graphic VA1.0
2023/03/10 1. Chipset VA1.0

Software

Manual

Date Description Version Download File
2023/04/07 User's manual VA1.0

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2023/11/06 UKCA Declaration of Conformity
2023/11/06 CE-Conformity Declaration
2023/11/06 FCC Verification
2023/11/06 CE EMC Verification
