GOT5840T-834

Status : Available

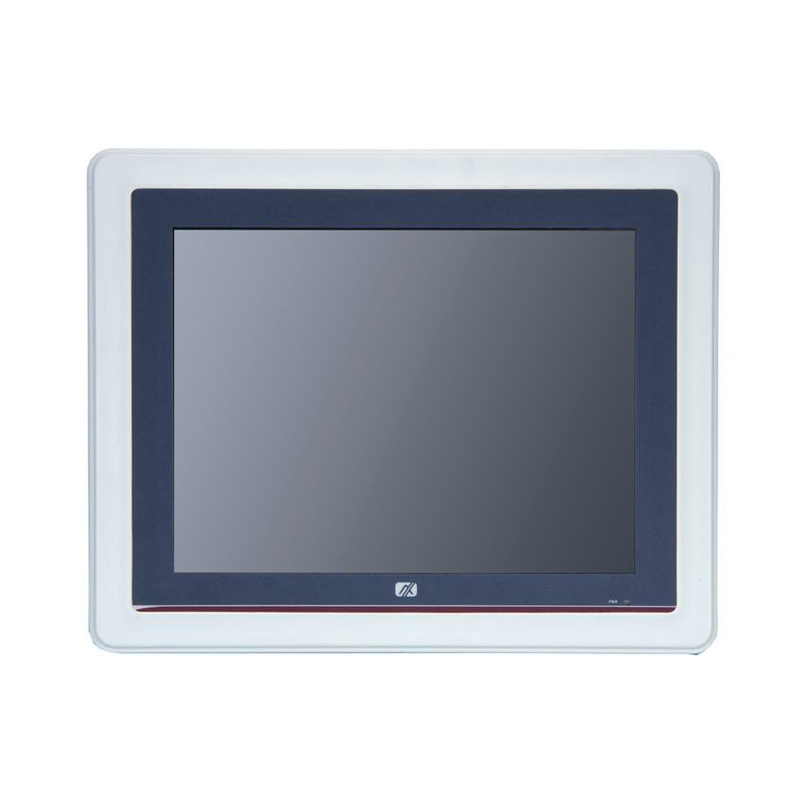

8.4" SVGA TFT Fanless Touch Panel Computer with Intel® Celeron® Processor J1900

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
GOT5840T-834
GOT5840T-834
Fanless

Fanless

IP65 Rating

IP65 Rating

Low Power

Low Power

Wide Power Input

Wide Power Input

Wide Temperature

Wide Temperature

  • Features
  • Specifications
  • Ordering Information
  • Download
  • FAQ

Features

  • 8.4" SVGA TFT LCD display with LED backlight
  • Fanless cooling system with Intel® Celeron® processor J1900
  • Ultra slim and super light design
  • WLAN module and internal antenna
  • PCI Express Mini Card slots for easy expansion
  • 2 GbE LAN, 2 USB and, 2 COM
  • Supports panel mount/wall mount/VESA arm
  • Plastic and IP65-rated front bezel

Specifications

LCD Panel
  • 8.4" SVGA TFT LCD
  • 350 nits
  • 800 x 600 pixels
CPU
  • Intel® Celeron® processor J1900
Chipset
  • SoC integrated
System Memory
  • 1 x 204-pin SO-DIMM DDR3L-1333, up to 8 GB
BIOS
  • AMI
COM
  • 2 x RS-232/422/485 (default RS-232)
USB
  • 2 x USB 3.0
Ethernet
  • 2 x 10/100/1000 Mbps (Intel® i210-IT)
Display
  • N/A
Audio
  • 1 x Audio (Line-out)
Storage
  • 1 x CFas™ or mSATA
Expansion
  • 1 x Full-size PCI Express Mini Card slot with mSATA
  • 1 x Full-size PCI Express Mini Card slot with SIM
Others
  • Built-in WLAN antenna
Touchscreen
  • Resistive type
Front Bezel
  • IP65, NEMA 4 rugged protection, plastic front bezel
Power Supply
  • 9 to 36 VDC
Power Comsumption
  • 25W
Watchdog Timer
  • 255 levels, 0 to 255 sec
Operating Temperature
  • 0°C to +50°C (+32°F to+122°F) (with W.T. DRAM/HDD in airflow condition)
  • 0°C to +45°C (+32°F to+113°F) (with W.T. DRAM)
Relative Humidity
  • 20% to 90% @ +40°C; non-condensing
Shock/Vibration
  • 2G, 5 to 500 Hz, random for CFast™
Dimensions
(W x D x H)
  • 250.7 x 45.8 x 204.7 mm (9.87" x 1.80" x 8.06")
Weight (net/gross)
  • 1.3 kg (2.87 lb)/ 2.25 kg (4.96 lb)
Certifications
  • CE
EOS
  • Windows® 10 IoT Enterprise, Windows® 10, Windows® 8.1, WE8S, Windows® 7, WES 7
Mounting
  • Panel mount
  • Wall mount
  • VESA arm
  • Desktop stand

Ordering Information

  • GOT5840T-834-DC (P/N-E225840122)
    8.4" SVGA fanless touch panel computer with Intel® Celeron® processor J1900, 5-wire resistive touch screen and 9 to 36 VDC power
  • input (terminal block connector)
  • Wi-Fi + Bluetooth kit
  • E226171106
    Stand kit
  • E29R334100
    RFID kit

Download

Drivers

Date Description Version Download File
2018/12/18 Win10 driver VA1.8
2018/12/18 Win8.1 driver VA1.8
2018/12/18 Win7 driver VA1.8

Software

Manual

Date Description Version Download File
2018/12/18 GOT5840T-834 User's Manual VA1_3-11-2015 VA1

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2017/10/17 CE-Conformity Declaration
2017/07/07 CE LVD Verificate

Frequently Asked Questions

You Might Also Like

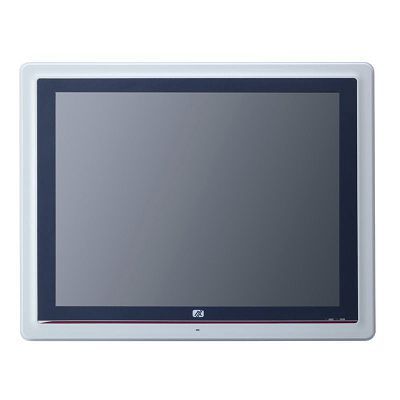

Picture of GOT5152T-834

GOT5152T-834

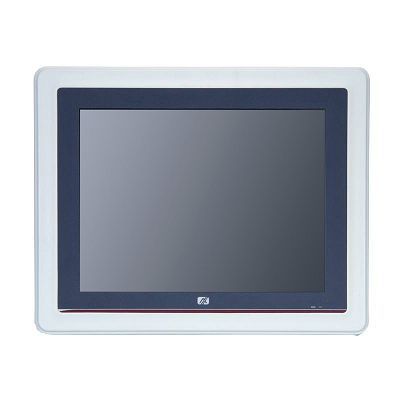

Picture of GOT5100T-834
