GOT5152T-834

Status : Available

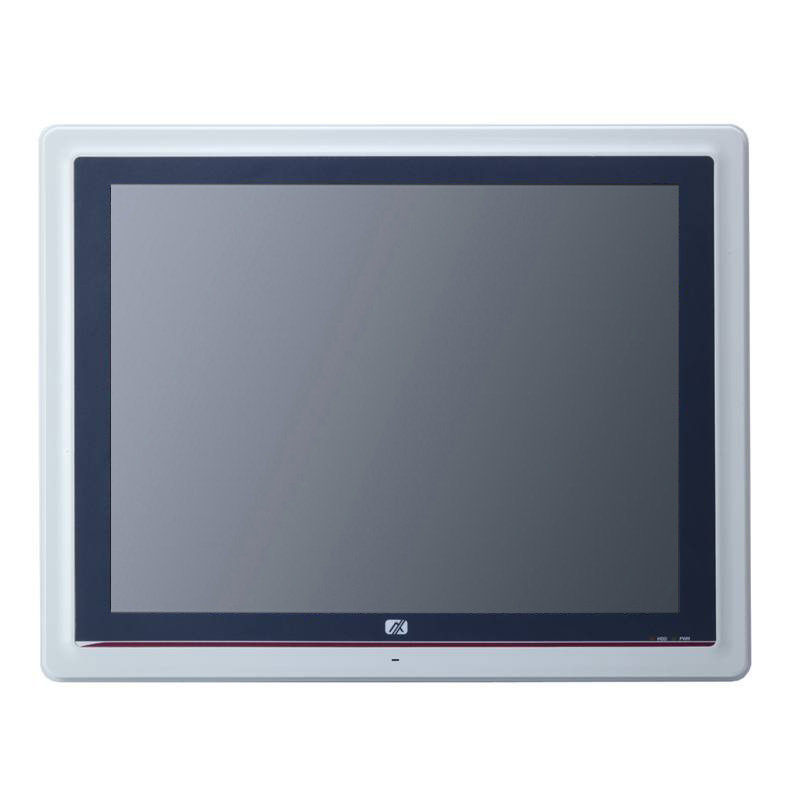

15" XGA TFT Fanless Touch Panel Computer with Intel® Celeron® Processor J1900

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
GOT5152T-834
GOT5152T-834
GOT5152T-834
Fanless

Fanless

IP65 Rating

IP65 Rating

Low Power

Low Power

Wide Power Input

Wide Power Input

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • 15" XGA TFT LCD display with LED backlight
  • Fanless cooling system with Intel® Celeron® processor J1900
  • WLAN module and internal antenna

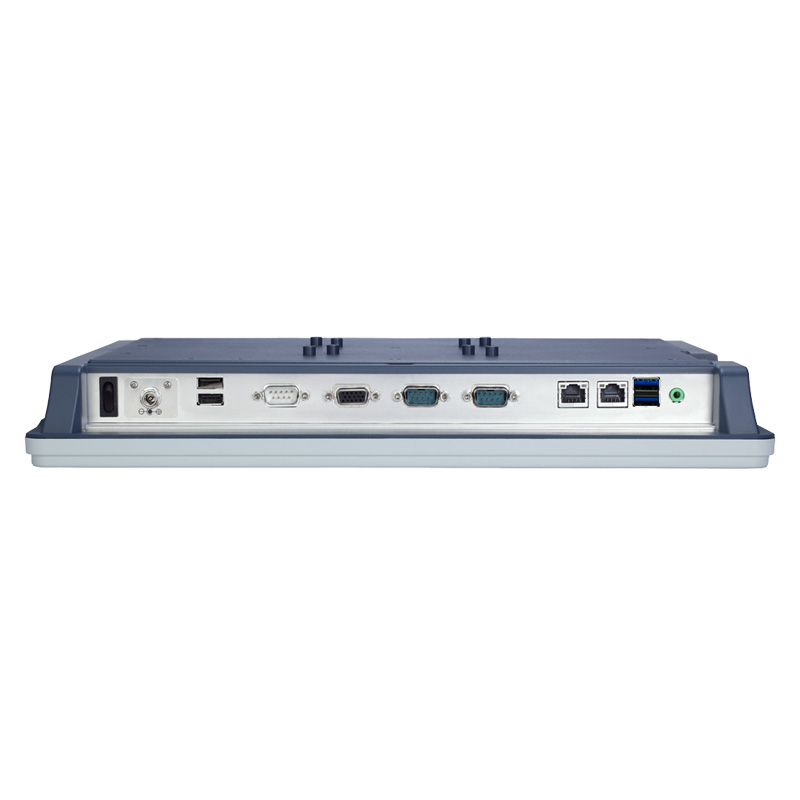

  • 2 GbE LAN, 4 USB and 3 COM
  • PCI Express Mini Card for easy expansion
  • Supports panel mount/wall mount/VESA arm
  • Supports RFID (optional)
  • Plastic and IP65-rated front bezel

Specifications

LCD Panel
  • 15" XGA TFT LCD with LED backlight
  • 420 nits
  • 1024 x 768 pixels
CPU
  • Intel® Celeron® processor J1900
Chipset
  • SoC integrated
System Memory
  • 1 x 204-pin SO-DIMM DDR3L-1333, up to 8 GB
BIOS
  • AMI
COM
  • 3 x RS-232/422/485 (default RS-232)
USB
  • 2 x USB 2.0
  • 2 x USB 3.0
Ethernet
  • 2 x 10/100/1000 Mbps (Intel® I210-IT)
Display
  • 1 x VGA
Audio
  • Line-out
Storage
  • 1 x 2.5" 7/9.5 mm SATA HDD
  • 1 x CFast™ or mSATA
Expansion
  • 1 x Full-size PCI Express Mini Card slot with mSATA
  • 1 x Full-size PCI Express Mini Card slot with SIM
Others
  • Built-in WLAN antenna
Touchscreen
  • Resistive type
Front Bezel
  • IP65, NEMA 4 rugged protection, plastic front bezel
Power Supply
  • DC version: 9 to36 VDC with over-current protection fuse
Power Comsumption
  • 36W
Watchdog Timer
  • 255 levels, 0 to 255 sec.
Operating Temperature
  • 0°C to +50°C (+32°F to+122°F) (with W.T. DRAM/HDD in airflow condition)
  • 0°C to +45°C (+32°F to+113°F) (with W.T. DRAM/HDD)
Relative Humidity
  • 20% to 90% @ +40°C; non-condensing
Shock/Vibration
  • 2G, 5 to 500 Hz, random for CFast™
Dimensions
(W x D x H)
  • 387.9 x 54.6 x 307.7mm (15.27" x 2.14" x 12.11")
Weight (net/gross)
  • 3.2 kg (7.05 lb)/ 5.1 kg (11.24 lb)
Certifications
  • CE
EOS
  • Windows® 10 IoT Enterprise, Windows® 10, Windows® 8.1, WE8S, Windows® 7, WES 7

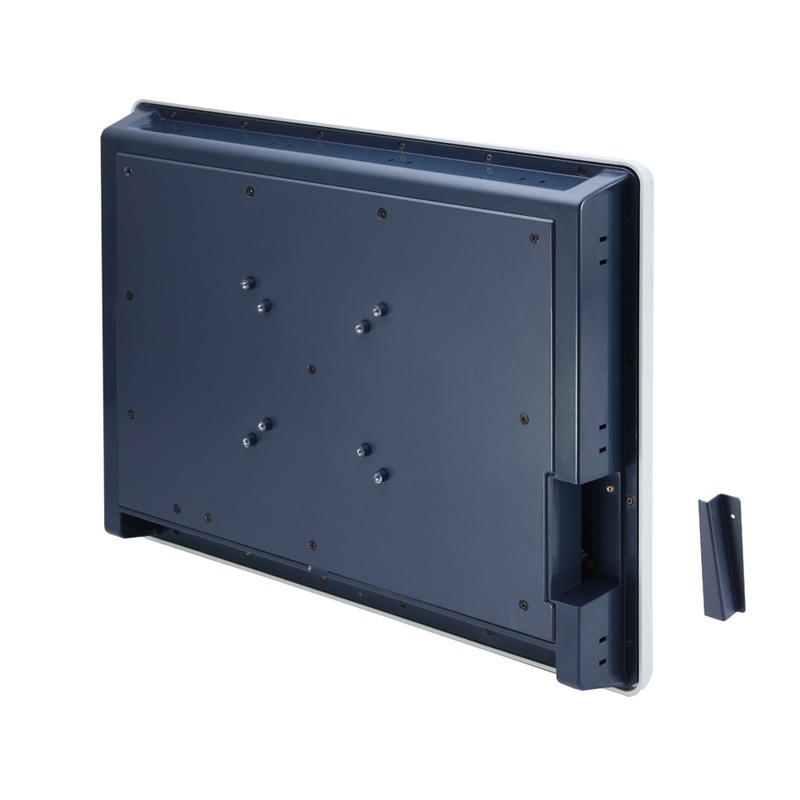

Mounting
  • Panel mount
  • Wall mount
  • VESA arm
  • Desktop stand

Ordering Information

  • GOT5152T-834-DC (P/N-E225152111)
    15" XGA fanless touch panel computer with Intel® Celeron® processor J1900, 5-wire resistive touch screen, and 9 to 36 VDC power input (terminal block connector)
  • Wi-Fi + Bluetooth kit
  • Speaker kit
  • E226171106
    Stand kit
  • E29R334100
    RFID kit

Download

Drivers

Date Description Version Download File
2018/12/18 Win10 driver VA1.8
2018/12/18 Win8.1 driver VA1.8
2018/12/18 Win7 driver VA1.8

Software

Date Description Version Download File
2017/05/19 (Option) WLAN module VA1.1

Manual

Date Description Version Download File
2018/12/18 GOT5152T-834 User's Manual VA3_08-09-2016 VA3

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2022/09/22 CE LVD Verification
2022/09/22 FCC Verification
2022/09/22 UKCA Declaration of Conformity
2022/09/22 CE EMC Verification
2022/09/22 CE-Conformity Declaration
