CAPA842

Status : Available

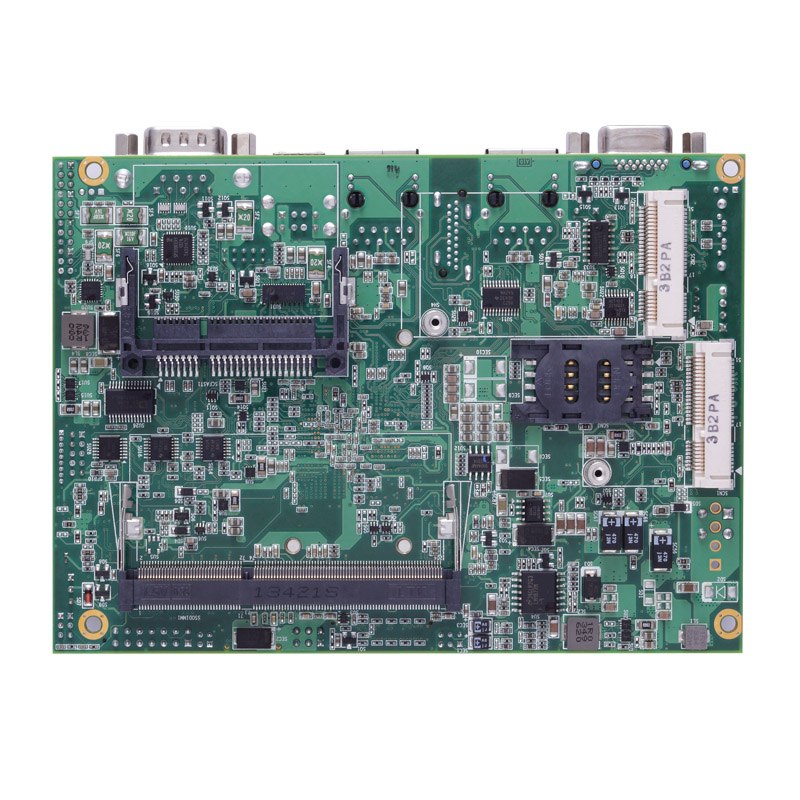

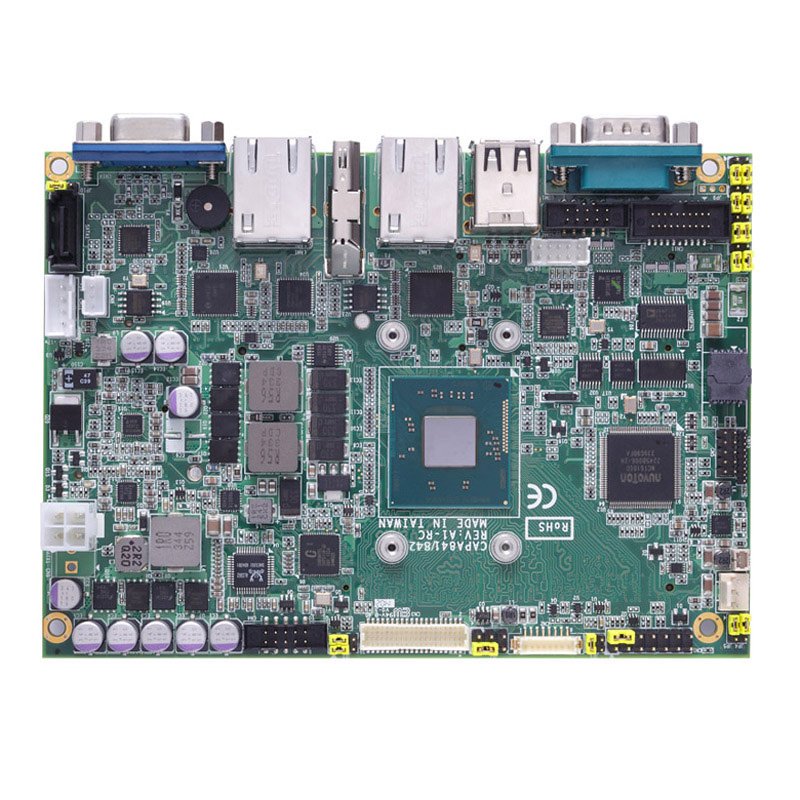

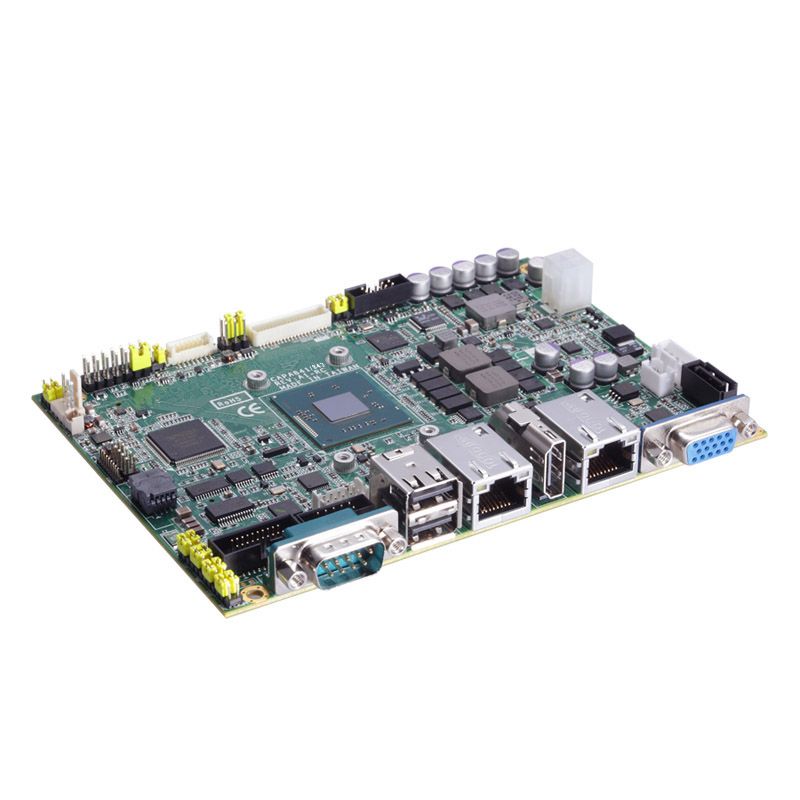

3.5" Embedded SBC with Intel® Celeron® Processor J1900/N2807, LVDS/VGA/HDMI, Dual LANs and Audio

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
CAPA842
CAPA842
CAPA842
Dual-View

Dual-View

Fanless

Fanless

Low Power

Low Power

TPM

TPM

Wide Temperature

Wide Temperature

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Intel® Celeron® processor J1900/N2807 (Bay Trail SoC)
  • 1 DDR3L-1333 SO-DIMM, up to 8GB
  • 4 USB 2.0 ports
  • 4 COM ports
  • 2 PCI Express Mini Card and 1 SIM slot
  • 2 Gigabit Ethernet ports
  • LVDS/VGA/HDMI with dual-view supported

Specifications

CPU
  • Intel® Celeron® processor J1900 quad core or N2807 dual core onboard (Bay Trail)
Chipset
  • SoC integrated
System Memory
  • 1 x 204-pin SO-DIMM DDR3L-1333, up to 8 GB
BIOS
  • AMI
COM
  • 2 x RS-232/422/485 with +5V/+12V powered
  • 2 x RS-232 with +5V/+12V powered
USB
  • 4 x USB 2.0
Ethernet
  • 2 x 10/100/1000 Mbps (Intel® I210-AT)
Display
  • 1 x VGA
  • 1 x LVDS
  • 1 x HDMI
Digital I/O
  • 8-IN/OUT
Audio
  • MIC-in/Line-in/Line-out/Speaker out
Storage
  • 1 x CFast™
  • 1 x SATA-300
Expansion
  • 1 x Full-size PCI Express Mini Card w/mSATA
  • 1 x Half-size PCI Express Mini Card
  • 1 x SIM slot
Others
  • TPM 1.2/2.0 (optional)
  • SMbus
Battery
  • Lithium 3V/220mAH
Power Input
  • 2 x 2-pin connector
  • +12V DC-in only
  • AT Auto Power On function supported
Power Requirements
  • Intel® Celeron® J1900 @ 2 GHz, 8GB DDR3L
  • Max. RMS: +12V @ 1.41A
  • Intel® Celeron® N2807 @ 1.58 GHz, 8GB DDR3L
  • Max. RMS: +12V @ 0.64A
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Hardware Monitoring
  • Yes
Operating Temperature
  • -20°C to +70°C (-4°F to +158°F)
Relative Humidity
  • 10% - 95% relative humidity, non-condensing
Dimensions
  • 146 x 104 mm
Board Thickness
  • 1.6 mm
Certifications
  • CE
Industrial Chassis
  • N/A

Ordering Information

  • CAPA842VHGGA-J1900 (P/N-E38E842102)
    3.5" Embedded SBC with Intel® Celeron® processor J1900 (2 - 2.42 GHz, 2 MB Cache, 10 W), HDMI, VGA, LVDS, 2 GbE LAN, audio and heatsink
  • CAPA842VHGGA-N2807 (P/N-E38E842100)
    3.5" Embedded SBC with Intel® Celeron® processor N2807 (1.58 - 2.16 GHz, 1 MB Cache, 4.3 W), HDMI, VGA, LVDS, 2 GbE LAN, audio and heatsink

Download

Drivers

Date Description Version Download File
2023/03/16 TXE Driver V1.6
2023/03/16 Intel(R) Sideband Fabric (Intel(R) MBI) Driver V1.6
2023/03/14 Audio Driver V1.6
2023/03/14 LAN Driver V1.6
2023/03/14 Graphic Driver V1.6
2023/03/14 Chipset Driver V1.6

Software

Manual

Date Description Version Download File
2025/02/06 User Manual VA6
2019/11/27 Quick Manual VA3

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2021/12/06 UKCA Declaration of Conformity
2021/04/14 CE-Conformity Declaration
