CAPA841

Status : Available

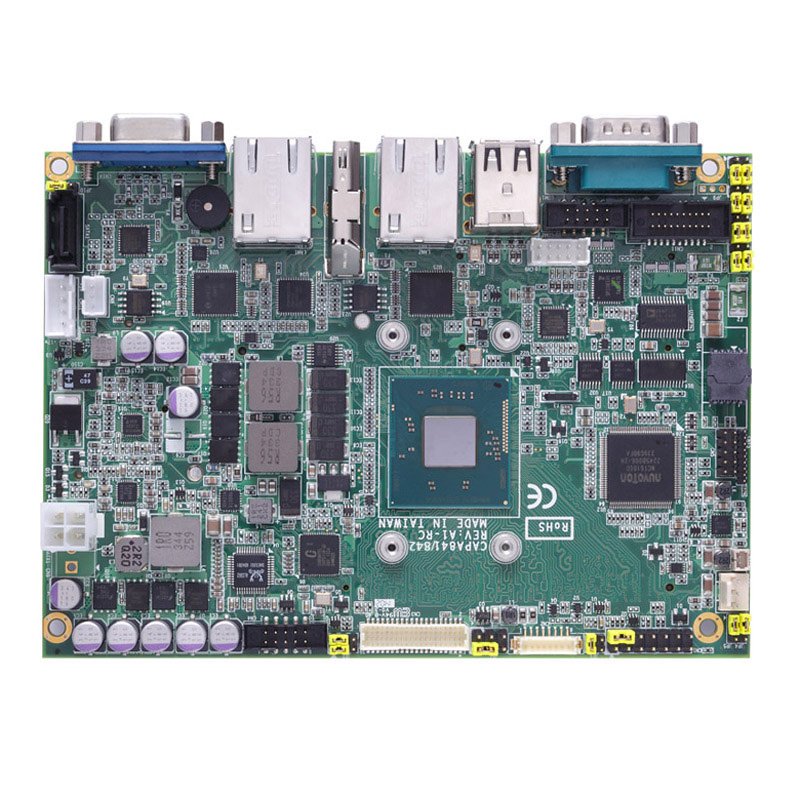

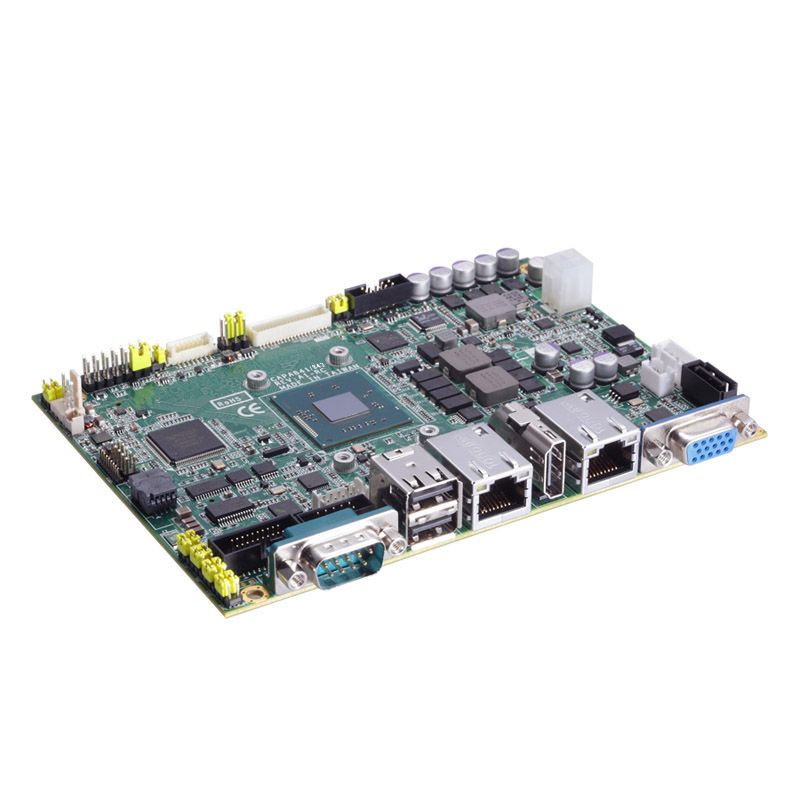

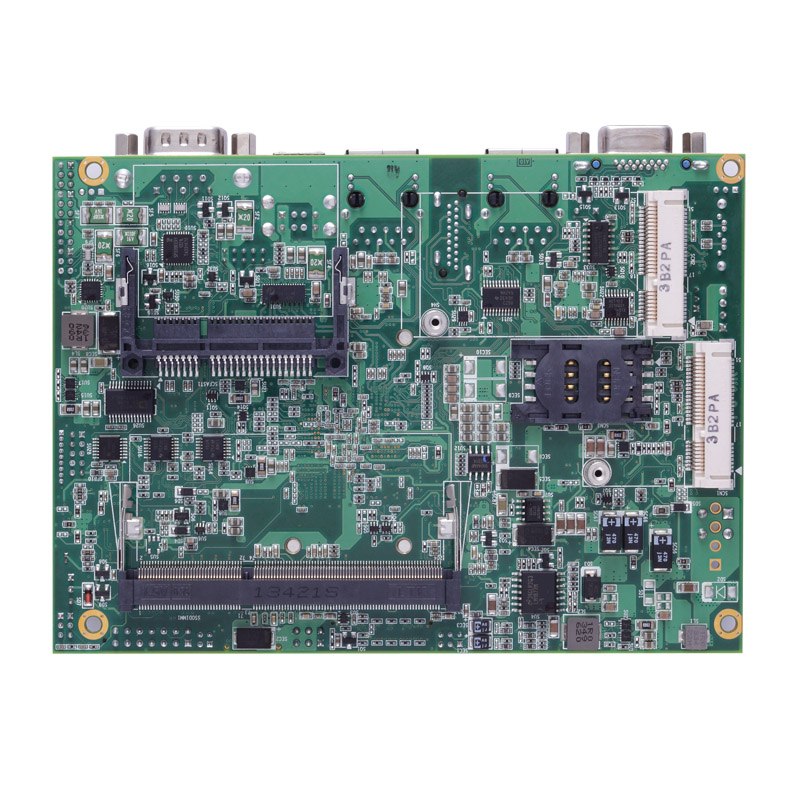

3.5" Embedded SBC with Intel® Atom™ Processor E3845/E3827, LVDS/VGA/HDMI, Dual LANs and Audio

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
CAPA841
CAPA841
CAPA841
Dual-View

Dual-View

Fanless

Fanless

Low Power

Low Power

TPM

TPM

Wide Temperature

Wide Temperature

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Intel® Atom™ processor E3845/E3827 (Bay Trail SoC)
  • 1 DDR3L-1066/1333 SO-DIMM, up to 8GB
  • 4 USB 2.0 ports
  • 4 COM ports
  • 2 PCI Express Mini Card and 1 SIM slot
  • 2 Gigabit Ethernet ports
  • LVDS/VGA/HDMI with dual-view supported

Specifications

CPU
  • Intel® Atom™ processor E3845 1.91 GHz quad core or E3827 1.75 GHz dual core onboard (Bay Trail)
Chipset
  • SoC integrated
System Memory
  • 1 x 204-pin SO-DIMM DDR3L-1066/1333, up to 8 GB
BIOS
  • AMI
COM
  • 2 x RS-232/422/485 with +5V/+12V powered
  • 2 x RS-232 with +5V/+12V powered
USB
  • 4 x USB 2.0
Ethernet
  • 2 x 10/100/1000 Mbps (Intel® i210IT)
Display
  • 1 x VGA
  • 1 x LVDS
  • 1 x HDM
Digital I/O
  • 8 channels IN/OUT programmed
Audio
  • MIC-in/Line-in/Line-out/Speaker out
Storage
  • 1 x CFast™
  • 1 x SATA-300
Expansion
  • 1 x Full-Size PCI Express Mini Card w/ mSATA
  • 1 x Half-Size PCI Express Mini Card
  • 1 x SIM slot
Others
  • ST ST33ZP24AR28PVSP with TPM 1.2 compliant or Infineon SLB9665 with TPM2.0 compliant (optional)
  • SMbus
Battery
  • Lithium 3V/220mAH
Power Input
  • 2 x 2-pin connector
  • +12V DC-in only
  • AT Auto Power On function supported
Power Requirements
  • Intel® Atom™ E3845 @ 1.91 GHz, 8 GB DDR3L
  • Max. RMS: +12V @ 1.22A
  • Intel® Atom™ E3827 @ 1.75 GHz, 8 GB DDR3L
  • Max. RMS:+12V @ 0.96A
Watchdog Timer
  • 255 levels, 1 ~ 255 sec.
Hardware Monitoring
  • Yes
Operating Temperature
  • -40°C ~ +80°C (-40°F ~ +176°F)
Relative Humidity
  • 10% ~ 95% relative humidity, non-condensing
Dimensions
  • 146 x 104 mm
Board Thickness
  • 1.6 mm
Certifications
  • CE
Industrial Chassis
  • N/A

Ordering Information

  • CAPA841VHGGA-E3845 w/ET (P/N-E38E841109)
    3.5" Embedded SBC with Intel® Atom® E3845 (1.91 GHz, 2 MB Cache, 10 W), HDMI, VGA, LVDS, 2 GbE LAN, audio and heatsink
  • CAPA841VHGGA-E3827 w/ET (P/N-E38E841110)
    3.5" Embedded SBC with Intel® Atom® E3827 (1.75 GHz, 1 MB Cache, 8 W), VGA/LVDS/HDMI, 2 GbE LAN, audio and heatsink
  • CAPA841VHGGA-E3845 w/heatspreader (P/N-E38E841127)
    3.5" Embedded SBC with Intel® Atom® E3845 (1.91 GHz, 2MB Cache, 10W), HDMI, VGA, LVDS, 2 GbE LAN, audio and heatspreader without heatsink

Download

Drivers

Date Description Version Download File
2023/03/14 Intel TXE Firmware V1.6
2023/03/14 Intel Sideband Fabric (Intel MBI) Driver V1.6
2023/03/14 Audio Driver V1.6
2023/03/14 LAN Driver V1.6
2023/03/14 Graphic Driver V1.6
2023/03/14 Chipset Driver V1.6

Software

Manual

Date Description Version Download File
2023/09/04 User Manual VA6
2019/11/27 Quick Manual VA3

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2021/12/06 UKCA Declaration of Conformity
2021/03/26 CE-Conformity Declaration
2017/08/08 CE-Conformity Declaration
