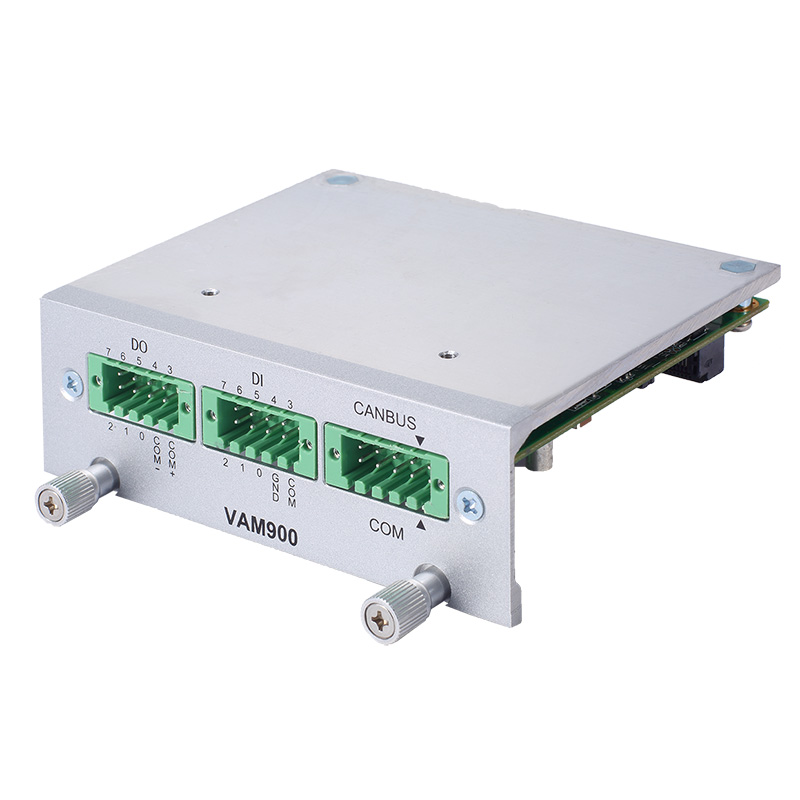

VAM900

產品階段 : 供應中

Value-added Module with COM/CAN/DIO and 3 Rev.1.2 PCI Express Mini Card Slots

產品規格表 (PDF)
產品規格表 (PDF)
立即詢價
立即詢價
VAM900
  • 產品特色
  • 產品規格
  • 訂購資訊
  • 技術文件

產品特色

  • 1 4-wire isolated RS-232/422/485, 1 isolated CANBus 2.0A/B, 1 isolated DIO 8-in/8-out
  • Swappable modular design
  • Maximize I/O flexibility
  • 2kV (COM & CANBus)/1.5 kV (DIO) isolated protection
  • Designed for tBOX500 series
  • EN 50155 certified; CE, LVD and FCC compliant

產品規格

I/O
  • 1 x Terminal block for 4-wire isolated RS-232/422/485 COM
  • 1 x Terminal block for isolated CANBus 2.0A/B (isolation voltage: 2 kV)
  • 1 x Terminal block for isolated DIO 8-in/8-out
Expansion
  • 2 x Full-size Rev. 1.2 PCI Express Mini Card slot (USB with SIM socket)
  • 1 x Half-size Rev. 1.2 PCI Express Mini Card slot (PCIe)
Isolation Voltage
  • COM & CANBus: 2 kV
  • DIO: 1.5 kV
Operating Temperature
  • -40°C to +70°C (-40°F to +158°F) with the tBOX500 series & wide operating temperature peripheral
Vibration
  • 3 Grms with the tBOX500 series (5 to 500Hz, X/Y/Z direction; random, operating)
Certifications
  • EN 50155 certified; CE, LVD and FCC compliant

訂購資訊

  • VAM900 (P/N-E277900100)
    Value-added module with COM/CAN/DIO and 3 Rev.1.2 PCI Express Mini Card slots and designed for the tBOX500 series

技術文件

Drivers

日期 說明 版本 下載檔案
2020/06/15 Driver VA1.1

Software

Manual

日期 說明 版本 下載檔案
2021/06/21 VAM900 Quick Manual VA1_03-11-2019 VA1
