The UST510-52B-FL is a fanless, E-Mark certified in-vehicle embedded system designed for mission-critical automotive applications such as NVR systems, onboard security surveillance, fleet monitoring, vehicle control, and passenger infotainment.
It supports LGA1151 Intel® Xeon®, 9th/8th Gen Core™ i7/i5/i3, Pentium®, or Celeron® processors with up to 65W TDP, powered by the Intel® C246 chipset from Intel Corporation, providing robust performance for real-time monitoring, AI computing, and advanced in-vehicle applications.

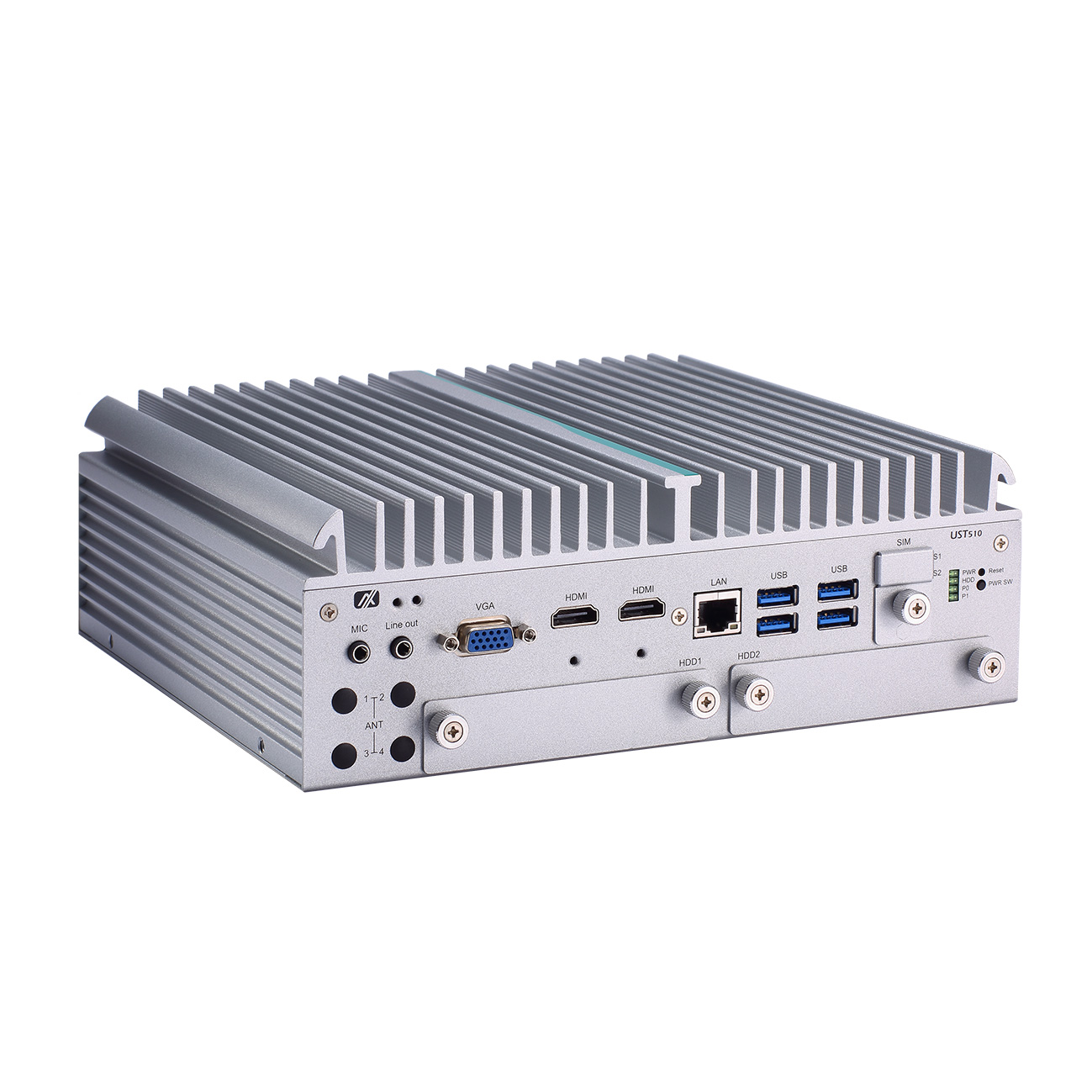

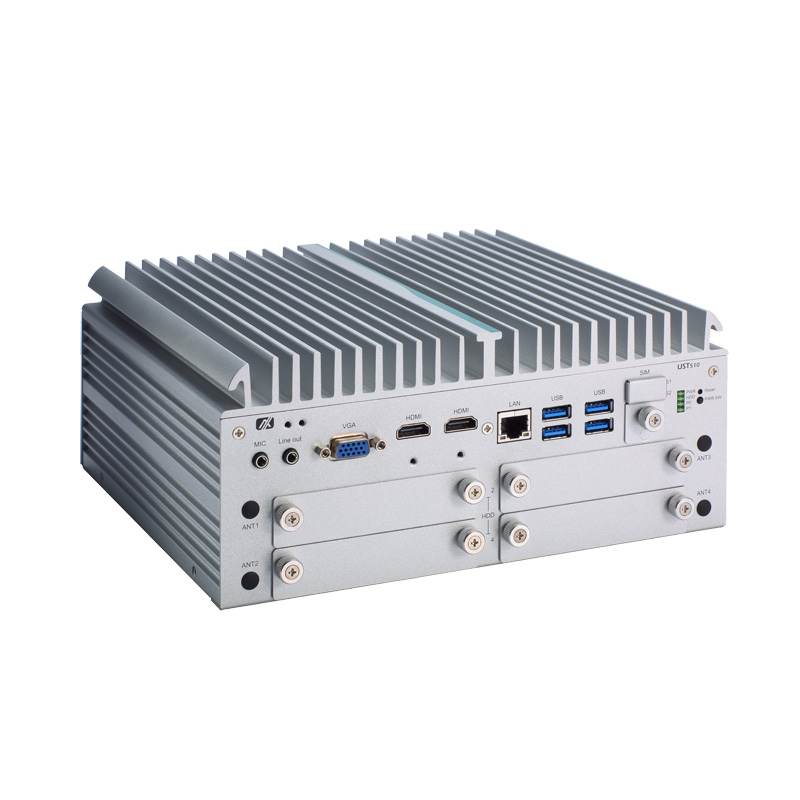

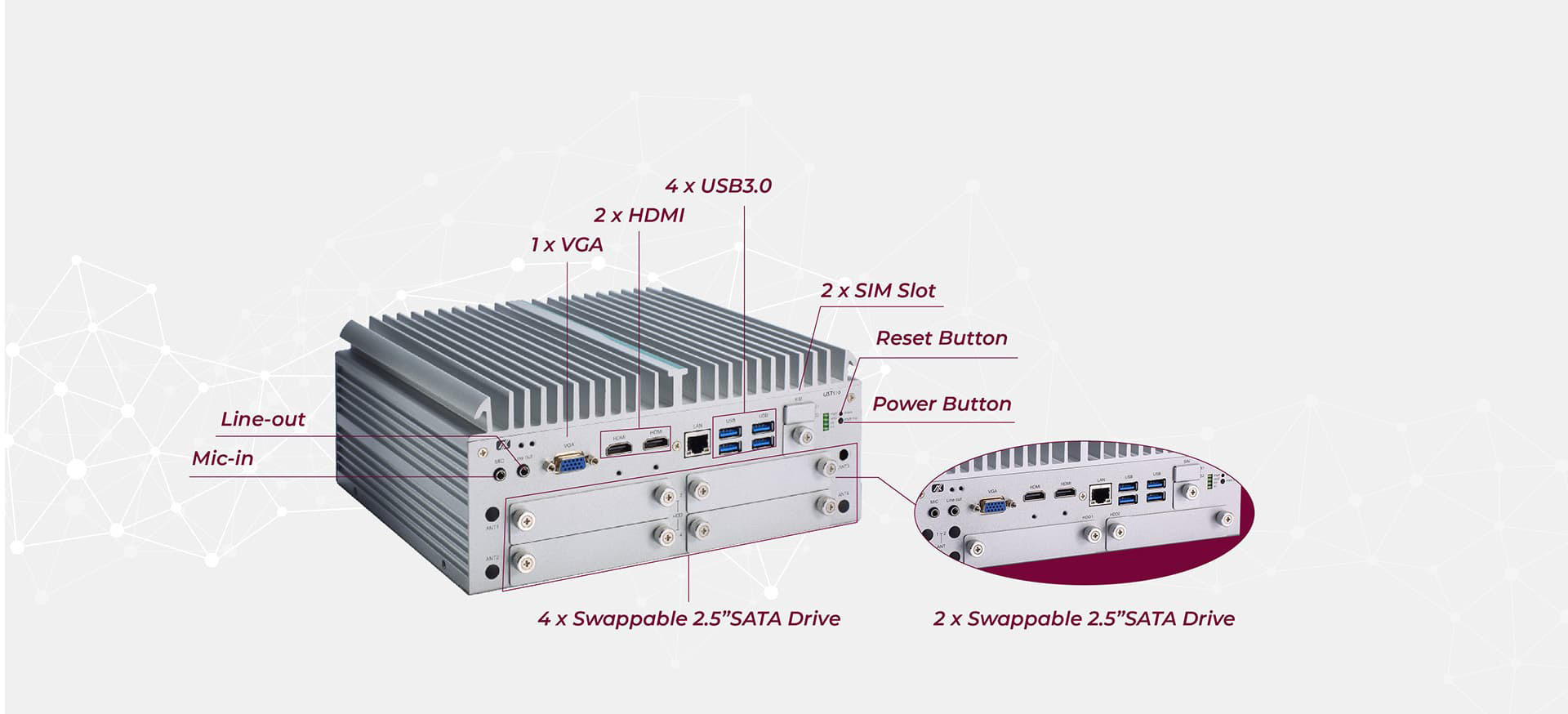

The system supports up to four swappable 2.5-inch SATA drives with Intel® RAID 0/1/5/10, two mSATA drives, and TPM 2.0, ensuring fast, fault-tolerant, and secure data management in critical automotive environments.
Equipped with Smart Ignition, it protects vehicle batteries, prevents OS crashes, and enables safe power on/off sequences. The system supports 12/24 VDC automotive power and a 9–36 VDC general power input, making it adaptable for diverse vehicle deployments.

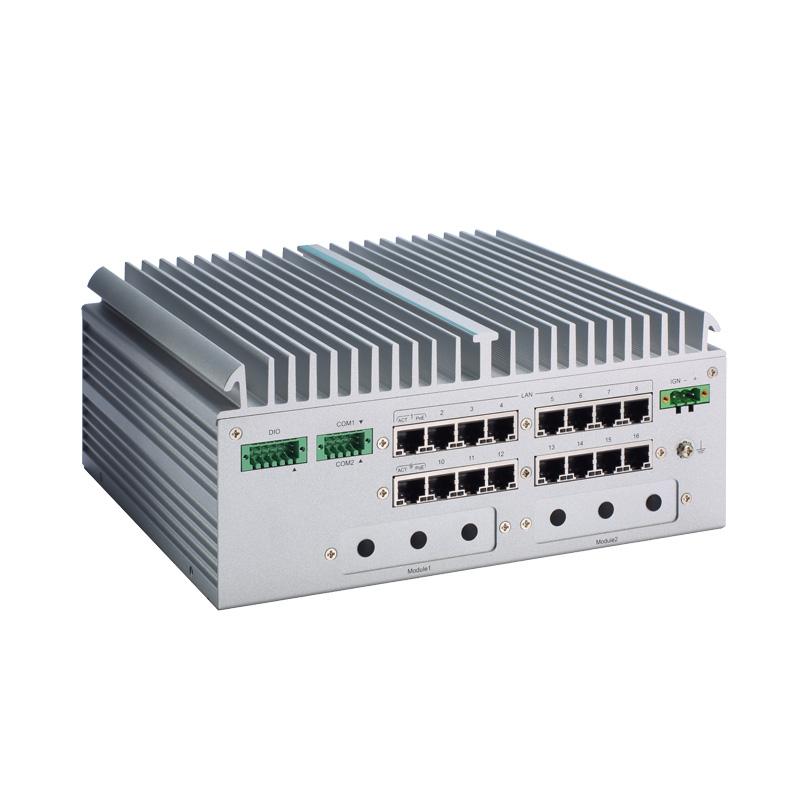

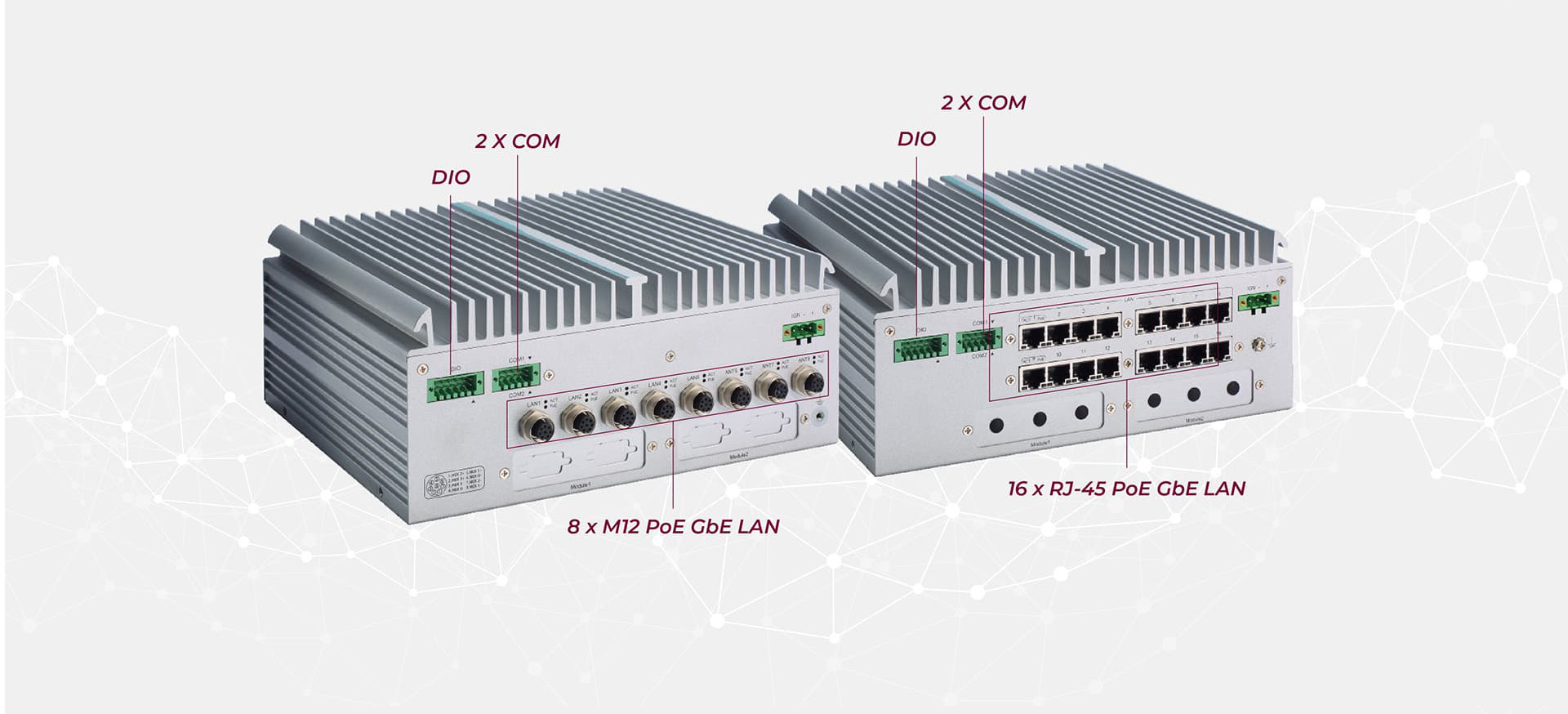

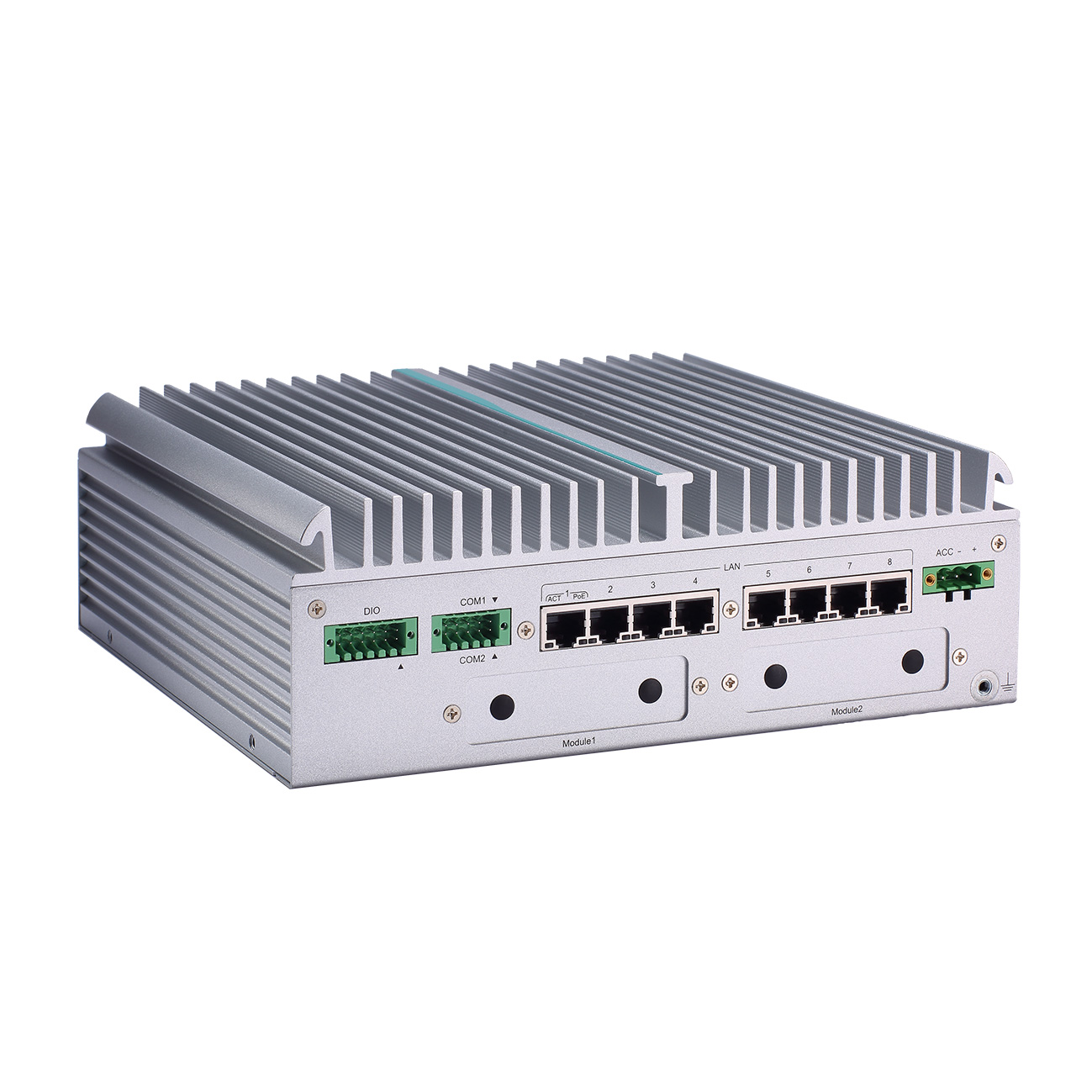

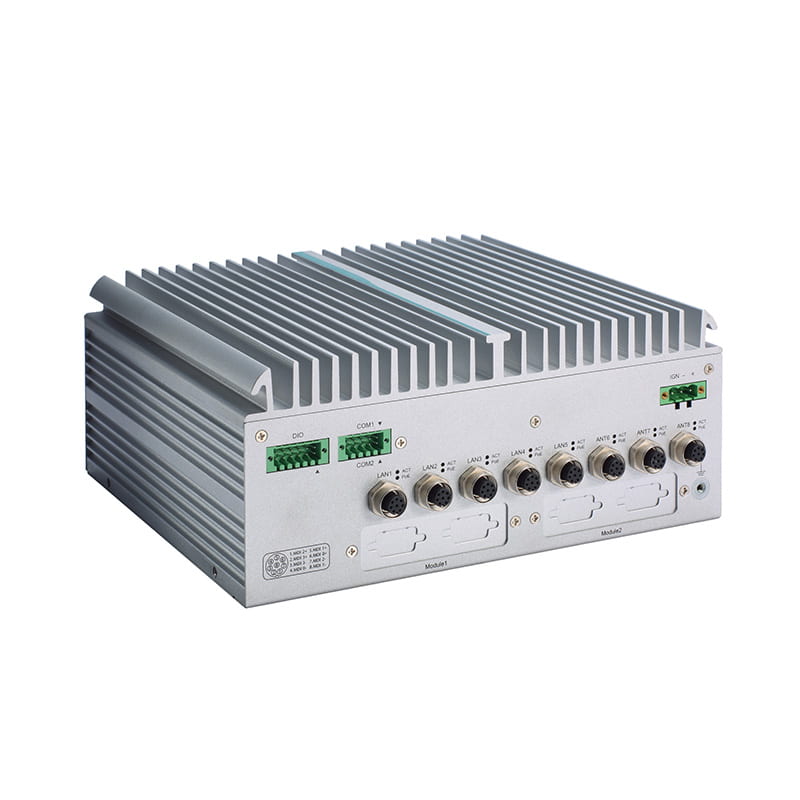

The UST510-52B-FL provides extensive connectivity and expansion options, including 8 or 16 GbE PoE ports with M12 or RJ-45 connectors, standard RJ-45 LAN ports, M.2 Key E and Key B slots for Wi-Fi, Bluetooth, and 4G LTE, dual PCIe Mini Card slots for storage or wireless modules, flexible I/O windows for CAN Bus, LAN, DIO, or audio expansion, and a full range of USB, HDMI, VGA, RS-232/422/485, DIO, and antenna interfaces for cameras, sensors, and peripheral devices.
Yes, it is designed for harsh in-vehicle environments, operating from -40°C to +70°C, and can withstand vibration up to 3 Grms, ensuring reliability in transportation, fleet, and mobile security applications.
It supports Windows® 11, Windows® 10, and Linux, providing flexibility for diverse software ecosystems and in-vehicle application development.
The UST510-52B-FL combines CE, FCC, and E-Mark certifications, a fanless, maintenance-free design, swappable drive bays, dual/quad PoE options for cameras and sensors, and flexible I/O windows, enabling fast deployment, easy upgrades, and customized expansion for modern in-vehicle systems.
