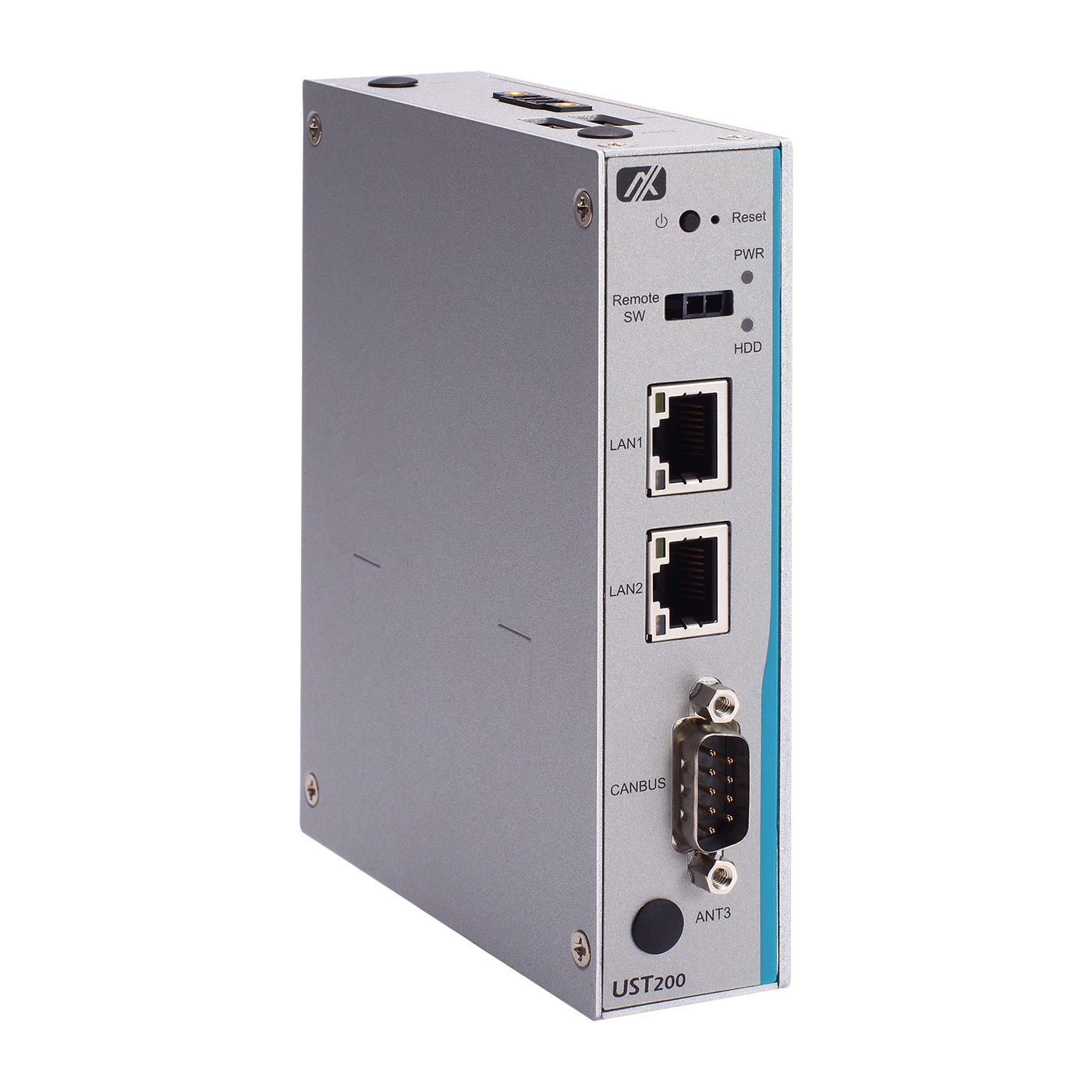

UST200-83H-FL

產品階段 : 供應中

Robust and Compact DIN-rail Fanless Embedded System with Intel Atom® x5-E3930 Processor for In-Vehicle Gateway Applications

E-Mark

CE, FCC and E-mark certified
Intel Atom® x5-E3930 processor (Apollo Lake-I)
Extreme cost-effective with fanless and cableless design
Wide operating temperature range from -40°C to +70°C
Supports typical 12 and 24V DC in-vehicle power input
Smart Ignition for power on/off schedule, vehicle battery protection and different power mode
Supports COM, CAN, USB, and GbE LAN

CPU	Intel® Atom® x5-E3930 2C @1.3 GHz, TDP: 6.5W
Chipset	SoC integrated
System Memory	1 x DDR3L-1600 SO-DIMM, up to 8GB
BIOS	AMI
COM	1 x DB9 Serial console or RS-232/422/485
USB	2 x USB 2.0
Ethernet	2 x RJ-45 10/100/1000 Mbps Ethernet (Intel® I210-AT)
PoE	N/A
Display	1 x VGA (up to 1920 x 1200 @60Hz) (HDMI optional)
CANbus	1 x DB9 CANBus 2.0 A/B

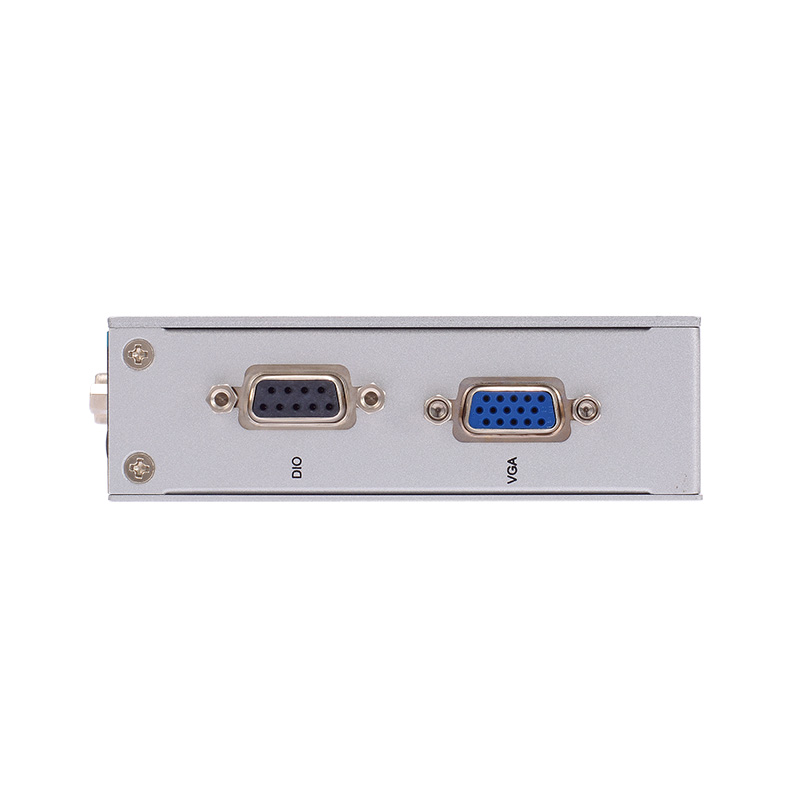

Digital I/O	1 x DB9 8-bit programmable DIO
Audio	N/A
Storage	1 x Half-sized mSATA (occupied 1 x PCI Express Mini Card slot)
Expansion	1 x Full-size Rev. 1.2 PCI Express Mini Card slot (USB/PCIe with SIM socket) 1 x Half-size Rev. 1.2 PCI Express Mini Card slot (mSATA/USB/PCIe)
Others	3 x Antenna opening 1 x Power button 1 x Remote switch

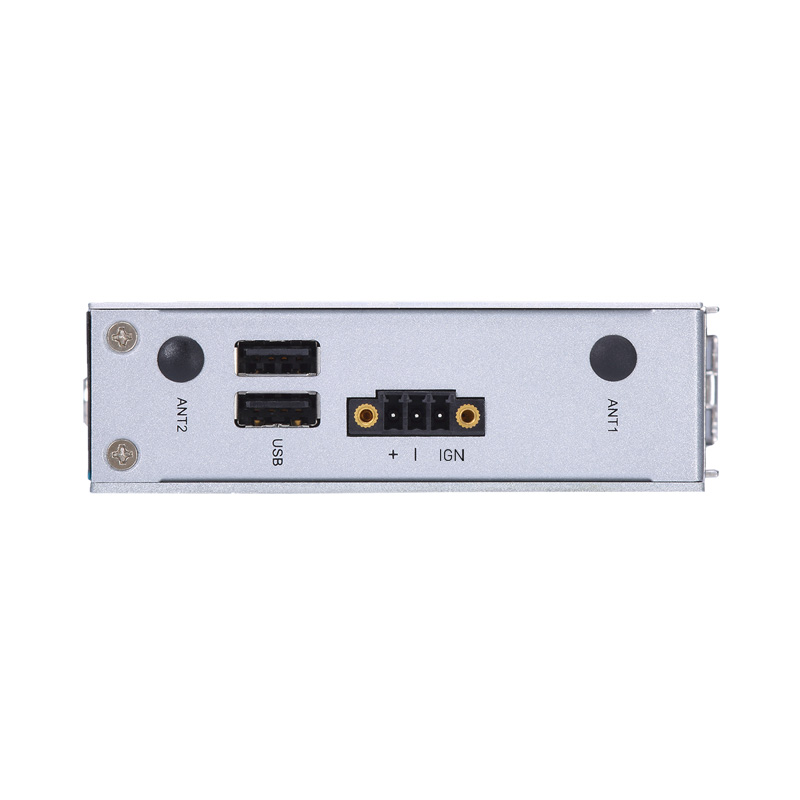

Power Supply	1 x Terminal block, 12 and 24V DC with smart ignition
Watchdog Timer	255 levels, 1 to 255 sec.
Construction	Extruded aluminum and heavy-duty steel, IP20
Operating Temperature	-40°C to +70°C (-40°F to +158°F) with W.T. peripheral
Relative Humidity	0% to 95%, non-condensing
Vibration	3 Grms with mSATA (5 to 500Hz, X/Y/Z direction; random, operating) MIL-STD-810G, Method 514.6C-VI Category 4 compliant
Shock	N/A
Dimensions<br>(W x D x H)	31 x 100.4 x 125 mm (1.22" x 3.93" x 4.92")
Weight (net/gross)	0.3 kg (0.67 lb)/0.45 kg (0.99 lb)
Certifications	CE (Class A), FCC (Class A), E-Mark (E24) certified
EOS Support	Windows® 10 64-bit, Linux
Software Support	N/A

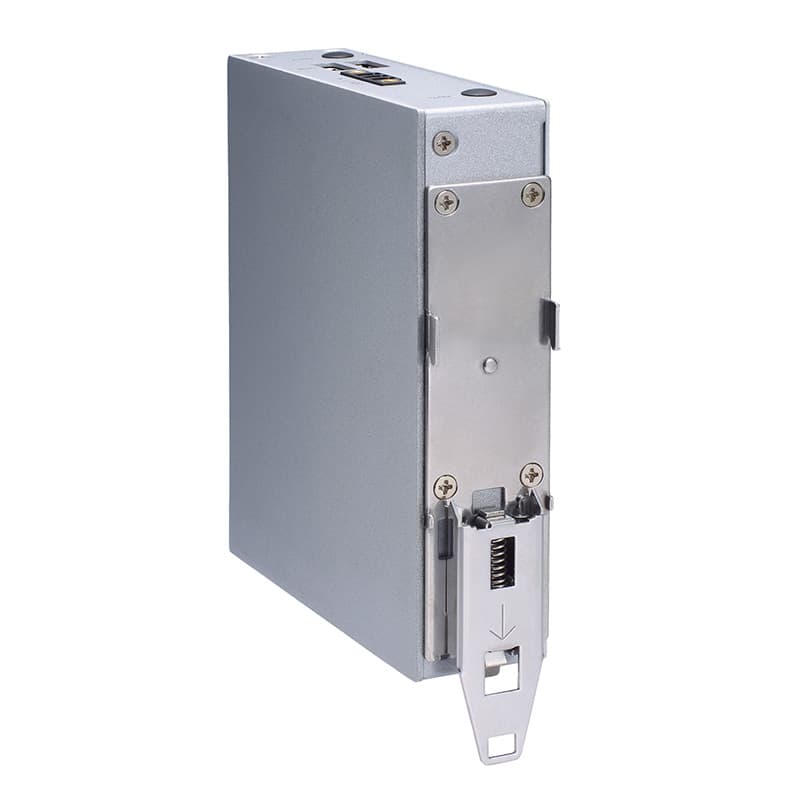

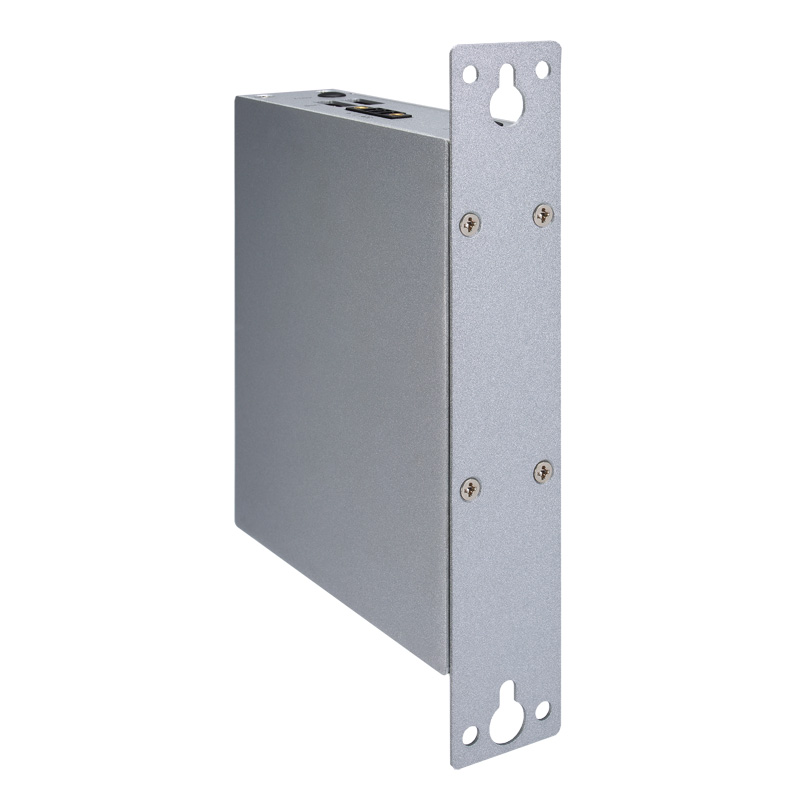

Mounting	Wall mount, DIN-rail

UST200-83H-FL-E3930-CAN-TVDC (P/N-E274200100)
Fanless embedded system with Intel Atom® x5-E3930 processor, 1 CAN, 2 LAN, 2 USB and 1 DIO, operating temperature from -40 to 70°C, TPM 2.0 supported, and Smart Ignition
UST200-83H-FL-E3930-COM-TVDC
Fanless embedded system with Intel Atom® x5-E3930 processor, 1 COM, 2 LAN, 2 USB and 1 DIO, operating temperature from -40 to 70°C, TPM 2.0 supported, and Smart Ignition
E29R318103
ACC318-501-201 (LTE NL668-EAU)
E29R318108
ACC318-541-30F (LTE NL668-EAU with GPS antennas)
509000001500
PWS FSP120-AAAN3 (9NA1206647) FSP 120W
599000001100
Power cord YP12/YC12_CY-U0032 YUNG_LI 1830mm
59906000010E
Power cord YP-12/YC-12 (Japan)
59903000000E
Power cord YP-22/YC-12 (Europe)
59905000000E
Power cord YP-35/YC-12 (Australia)
59904010000E
Power cord/UK YP-61A/YC-12 L=1830mm
