| CPU |
- Intel Atom® E3845 4C @1.91 GHz, TDP: 10W
- Intel Atom® E3827 2C @1.75 GHz, TDP: 8W
|
| Chipset |
|
| System Memory |
- DDR3L-1333, 4GB memory onboard
|
| BIOS |
|
| COM |

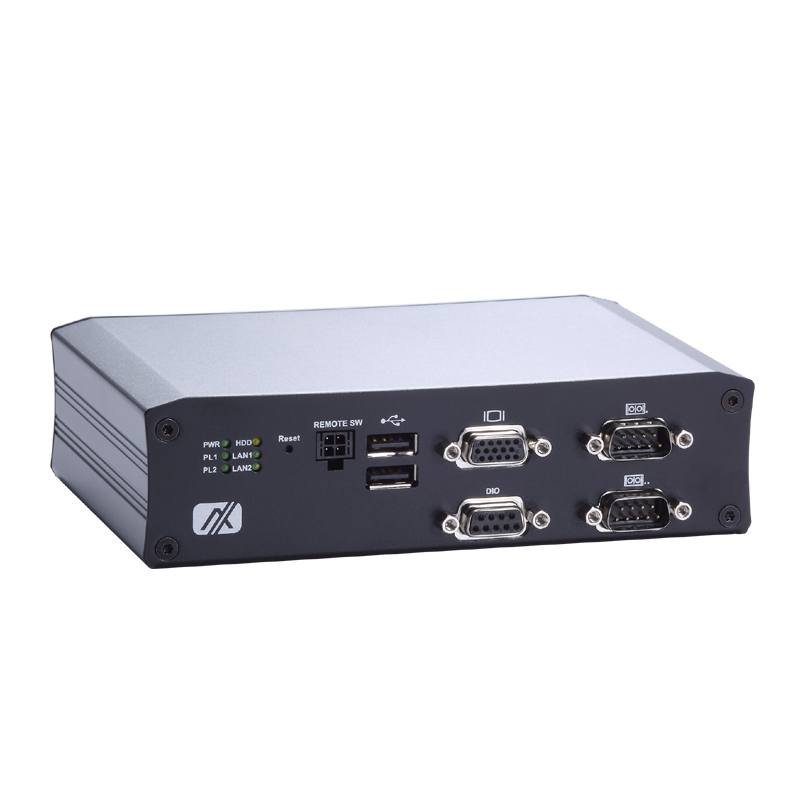

- 2 x DB9 serial console or RS-232/422/485
|
| USB |
|
| PoE |
|
| Ethernet |

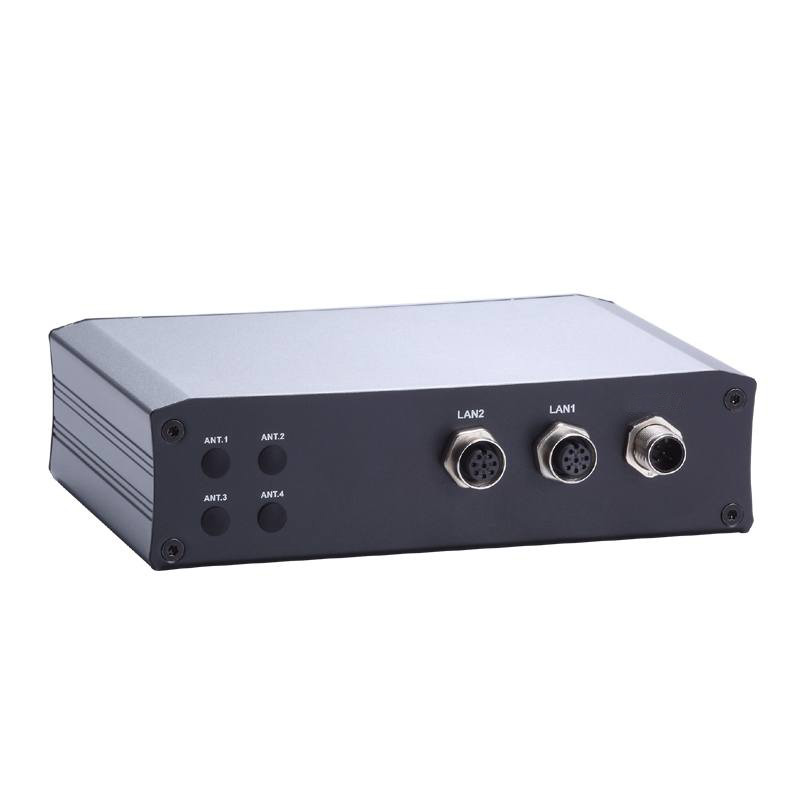

- Railway: 2 x M12 A-coded GbE LAN (Intel® I210-IT)

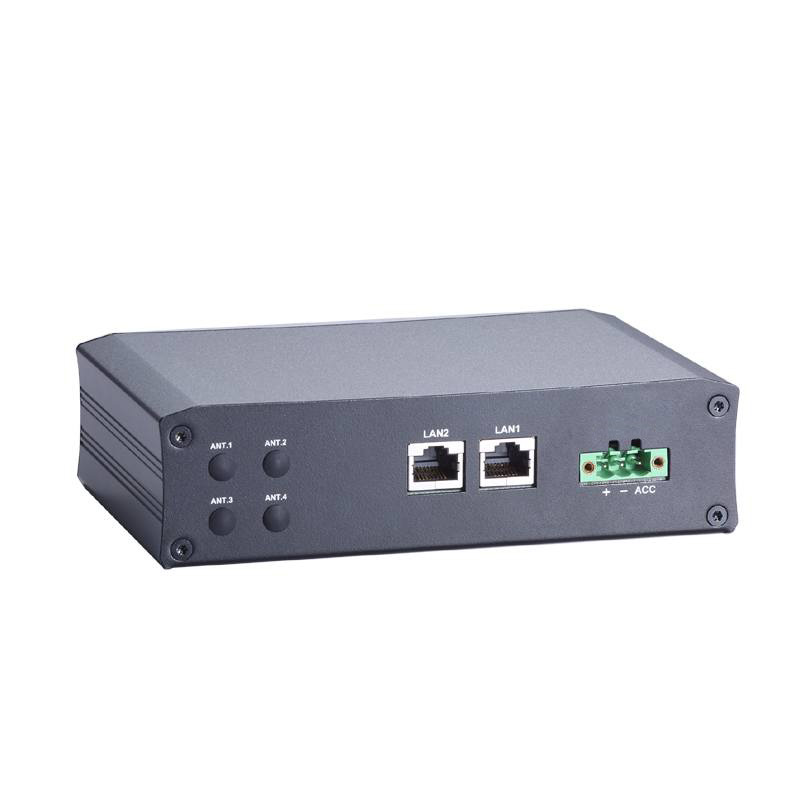

- Marine/vehicle: 2 x RJ-45 GbE LAN (Intel® I210-IT)
|
| Display |
- 1 x VGA (supports up to 1920 x 1080 @60Hz)
|
| CANbus |
|
| Digital I/O |
- 1 x DB9 8-bit programmable DIO
|
| Audio |
- 1 x Mic-in, 1 x Line-out, 1 x Line-in (optional, occupied 1 x PCIe Mini Card slot)
|
| Storage |
- 1 x Internal 2.5" SATA drive (9.5 mm height)
- 1 x mSATA (occupied 1 x PCI Express Mini Card slot)
|
| TPM |
|
| Expansion |
- 1 x Full-size Rev.1.2 PCI Express Mini Card slot (USB/PCIe with SIM socket)
- 1 x Full-size Rev.1.2 PCI Express Mini Card slot (mSATA/USB/PCIe)
|
| Others |
- 1 x Reset button
- 1 x Remote switch
- 4 x Antenna opening
|
| Power Consumption (Max.) |
|
| Power Supply |
- Railway: 1 x M12 DC-in, 9 to 36 VDC (typical: 24VDC)
- Vehicle: 1 x terminal block DC-in, (typical: 12/24 VDC) with ACC ignition
- Marine: 1 x terminal block /M12 DC-in, 9 to 36 VDC (typical: 24 VDC)
|
| Watchdog Timer |
- 255 levels, 1 to 255 sec.
|
| Construction |
- Aluminum extrusion and heavy-duty steel, IP30
|
| Operating Temperature |
- -40°C to +70°C (-40°F to +158°F) with W.T. peripheral
|
| Relative Humidity |
- 0% to 95%, non-condensing
|
| Vibration |
- 3 Grms w/ SSD (5 to 500Hz, X/Y/Z direction; random, operating)
- 1 Grms w/ HDD (5 to 500Hz, X/Y/Z direction; random, operating)
- 2 Grms w/ HDD & Anti-Vibration Kit (5 to 500Hz, X/Y/Z direction; random, operating)
- MIL-STD-810G, Method 514.6C-VI Category 4 compliant
- EN 50155 EN (IEC) 61373 category 1 class B
- DNV 2.4/IEC 60945 IEC 60068-2-6
|
| Shock |
- EN 50155: EN (IEC) 61373 category 1 class B, half-sine pulse, 5g, 30ms (longitudinal direction), 3g, 30ms (vertical/transverse direction)
- IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-30
|
| Dimensions<br>(W x D x H) |
- 164.1 x 108 x 44 mm (6.46" x 4.25” x 1.73”)
|
| Weight (net/gross) |
- 0.77 kg (1.70 lb)/2 kg (4.41 lb)
|
| Certifications |
- CE (Class A), FCC (Class A), EN 50155, EN 45545-2, E-Mark, and IEC 60945 certified
|
| EOS Support |
- Windows® 10 64-bit, Windows® 8, Windows® 7 64/32-bit, VxWorks7, Ubuntu 15.10
|
| Software Support |
- Digital I/O control and hardware monitoring
|
| Mounting |
|
