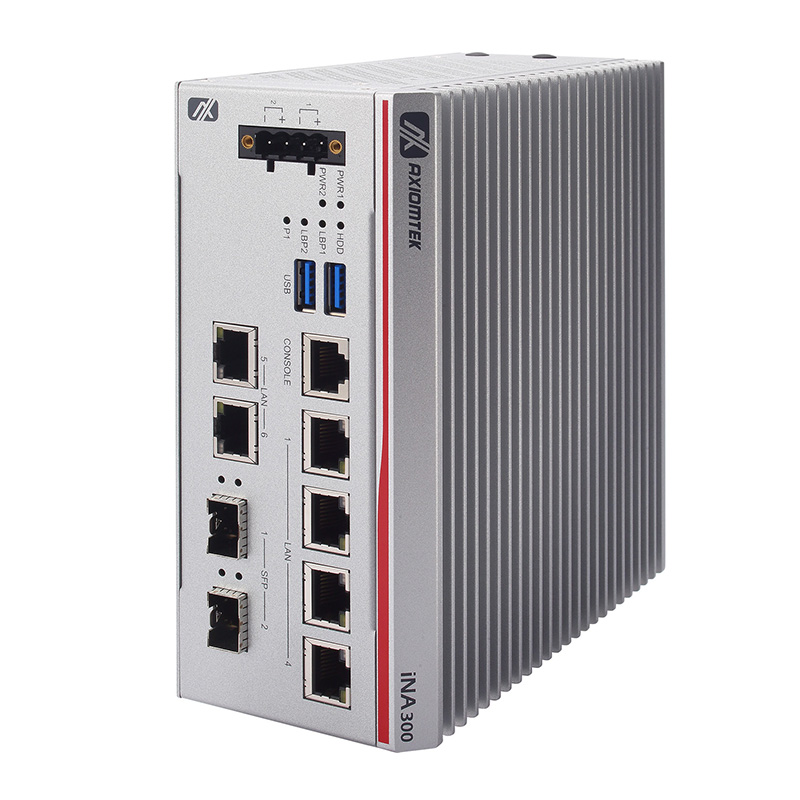

iNA300

產品階段 : 供應中

DIN-rail Cybersecurity Gateway with Intel Atom® x7433RE Processor and up to 8 LAN

Fanless

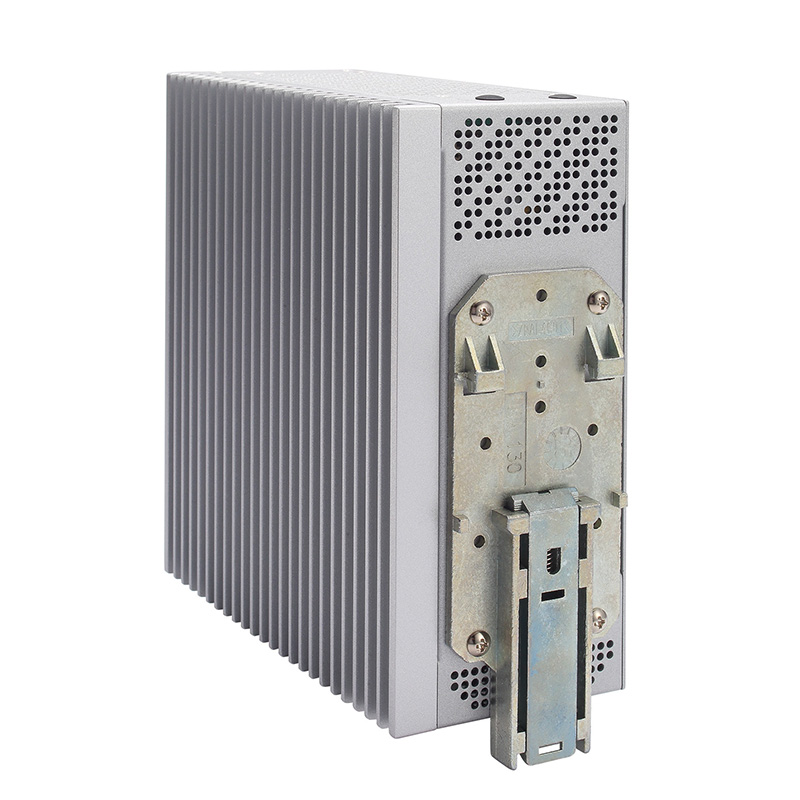

Form Factor	DIN-rail
CPU	Intel Atom® x7433RE processor (Amston Lake)
Chipset	SoC integrated
System Memory	DDR5-4800 SO-DIMM, up to 16GB
BIOS	AMI
Ethernet	6 x 2.5G (Intel® I226-IT) with 2-pairs LAN bypass 2 x 1G SFP (Intel® I210-IS)
Storage	1 x 2.5" SATA 3.0 SSD 1 x eMMC onboard (optional)
Expansion	1 x full-size PCI Express Mini Card slot with SIM slot (USB interface)

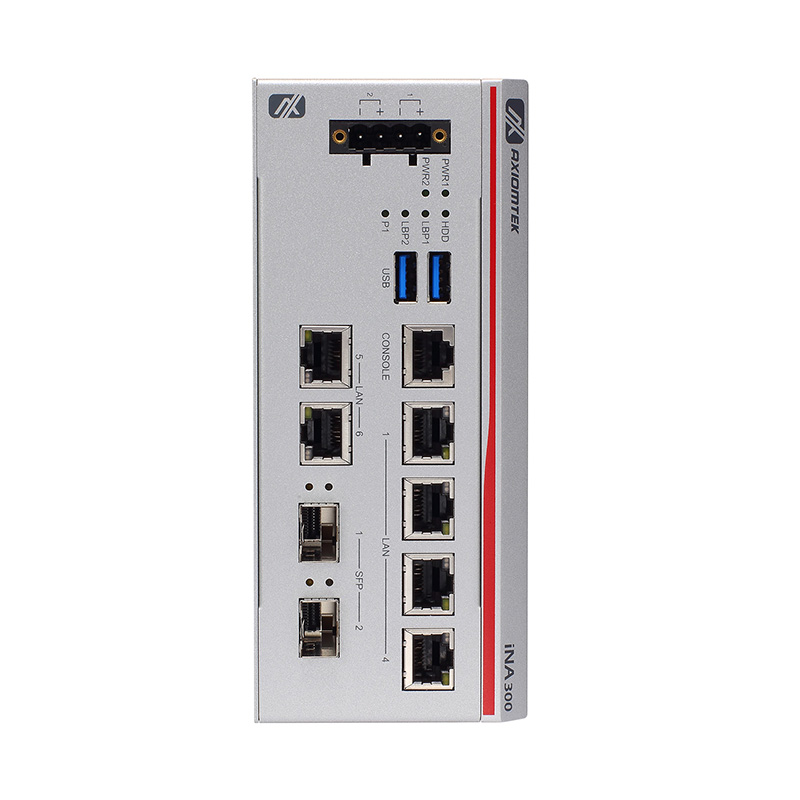

I/O Interface	1 x HDMI 2 x USB 3.2 1 x reset button (tactile switch) 2 x antenna hole 1 x power input connector 6 x copper 2 x fiber 1 x console port (RJ-45)
Power Supply	12 to 48 VDC (typical 12/24V) with terminal block for dual power input OVP, UVP, OCP, and RPP power protection design
Power Consumption (Max.)	- 37.92W (with 12 VDC) - 38.4W (with 48 VDC)
TPM	TPM 2.0
Watchdog Timer	255 stepping for system reset
Construction	Aluminum and steel, IP30
Shock	50g, 11 ms (half-sine shock pulse, operating)
Vibration	3 Grms, 5 to 500Hz, X/Y/Z direction; random, operating
Dimensions (W x D x H)	71 x 150 x 165 mm (2.8" x 5.9" x 6.5")
Operating Temperature	-40°C to +60°C (-40°F to +140°F)
Weight (net/gross)	1.58 kg (3.48 lbs)/2.15 kg (4.74 lbs)
OS	Linux, Windows® 11
Certifications	CE (Class A), FCC (Class A), UKCA, IEC 61850-3, and IEEE 1613
Software Support	AXView

iNA300-X7433-A (P/N-E27B300100)
DIN-rail cybersecurity gateway with Intel Atom® x7433RE processor and up to 8 LAN
