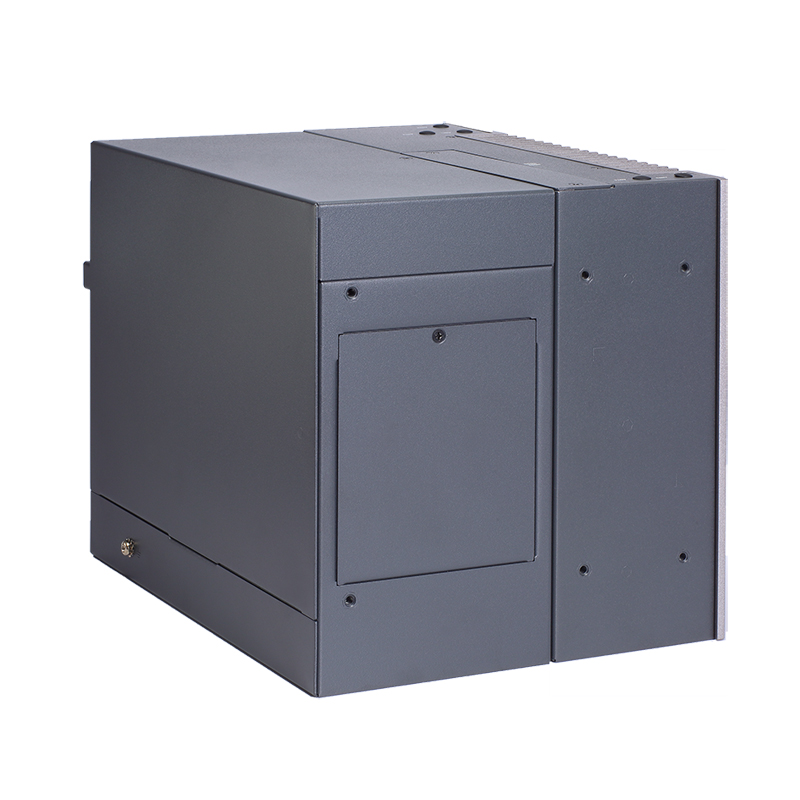

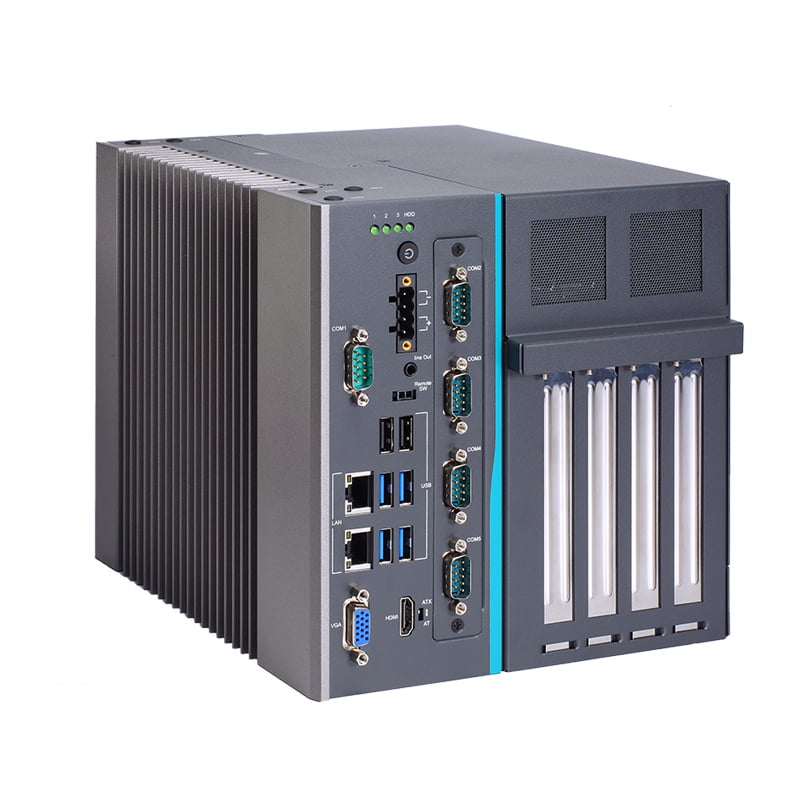

IPC964-525

產品階段 : 供應中

4-slot Industrial System with LGA1151 Socket 9th/8th Gen Intel® Core™ i7/i5/i3 or Celeron® Processor, Intel® Q370, Front-access I/O, and PCIe & PCI Slots

產品規格表 (PDF)
產品規格表 (PDF)
加入比較
加入比較
立即詢價
立即詢價
IPC964-525
IPC964-525
AI Computing

AI Computing

AMT

AMT

Dual-View

Dual-View

PCIe Expansion

PCIe Expansion

TPM

TPM

Wide Temperature

Wide Temperature

  • 產品特色
  • 產品規格
  • 訂購資訊
  • 技術文件

產品特色

  • LGA1151 socket 9th/8th Gen Intel® Core™ processor, up to 65W
  • NVIDIA® GPU card, up to 125W
  • Supports RAID 0, 1
  • Supports power-on delay function
  • Supports TPM 2.0
  • Supports Intel® AMT 12

產品規格

CPU
  • 9th/8th gen Intel® Core™ processor, up to 65W
Chipset
  • Intel® Q370
System Memory
  • 2 x DDR4-2666/2400 MT/s un-buffered SO-DIMM, up to 64GB
BIOS
  • AMI
COM
  • 1 x RS-232/422/485 (default RS-232)
  • More COM ports available from extension I/O modules
USB
  • 4 x USB 3.1 Gen2
  • 2 x USB 2.0
  • 1 x USB 2.0 (internal, 180D type A for license key, up to 30mm)
  • More USB ports available from extension I/O modules
Ethernet
  • 1 x 10/100/1000 Mbps Ethernet (Intel® I210-AT)
  • 1 x 10/100/1000 Mbps Ethernet (Intel® I219-LM)
  • More LAN ports available from extension I/O modules
Display
  • 1 x VGA
  • 1 x HDMI
Digital I/O
  • Available from extension I/O modules
Audio
  • 1 x Line-out
Storage
  • 2 x 2.5" swappable HDD/SSD (7/9.5 mm height), support RAID 0,1
  • 1 x M.2 Key M 2280 socket (PCIe Gen3 x4) for NVMe SSD
Expansion
  • 1 x Full-size PCI Express Mini Card slot (USB & PCIe interface) or 1 x M.2 Key B 3050 socket (by project request)
  • 2 x PCIe/PCI slots
  • 1 x SIM slot
  • 1 x I/O module slot
Others
  • 1 x Switch for power on/off w/LED (ATX)
  • 1 x Remote switch
  • 1 x 4-pin terminal block
  • 1 x AT/ATX selectable switch
  • TPM 2.0
  • AMT 12
Power
  • Type: ATX/AT
  • Input: 24 VDC (uMin=19V/uMax=30V)
Construction
  • Aluminum extrusion heavy-duty cold-rolled steel
Shock
  • N/A
Vibration
  • N/A
Operating Temperature
  • -10°C to +60°C (+14°F to +140°F) with Intel® 9th/8th gen Intel® Core™ and W.T. HDD/SSD
IP Rating
  • N/A
Relative Humidity
  • 10% to 90%, non-condensing
Dimensions<br>(W x H x D)
  • 188.1 x 192 x 230 mm (7.39" x 7.4" x 9.04")
Weight (net/gross)
  • 4.8 Kg (10.56 lb)/5.9 Kg (12.98 lb)
EOS Support
  • Windows® 10, Linux
Software Support
  • N/A
Certifications
  • CE (EN 61000-6-4/EN 61000-6-2)
  • FCC

訂購資訊

  • IPC964-525-Q370 w/ blank IO + AX96410 (P/N-E26G964113)
    4-slot industrial system with 9th/8th Gen Intel® Core™ processor, Intel® Q370, and 4 PCIe slots; without Axiomtek logo
  • AX93511 (P/N-E29R127101)
    4 x RS-232/422/485 module (default RS-232)
  • AX93512
    2 x RS-232/422/485 with isolated 1.5kVDC & 8-in/8-out with isolated 1.5kVDC DIO module (project-based support)
  • AX93516
    4 x RS-232/422/485 with isolated 2kVDC module (project-based support)
  • AX93519
    1 x 10/100/1000 Mbps (Intel® I210-AT) Ethernet; 2 x RS-232/422/485 & 2 x USB 3.1 (1 USB 3.1 Gen2 & 1 USB 2.0 signal) module (project-based support)
  • 1 x PCIe x16 + 3 PCIe x4 expansion kit
  • AX96411
    1 x PCIe x16 + 1 PCIe x4 + 2 PCI expansion kit (project-based support)
  • 2.5” SATA HDD/SSD
  • M.2 Key M 2280 (PCIe x4) NVMe SSD
  • DDR Memory
    DDR4-2666 MT/s non-ECC SO-DIMM, up to 64GB
  • E29R127132
    Fan module kit (internal)
  • Fan module kit
    external, project-based support
  • 5946G962000E
    Graphics card power cable ATX4P/BTX6 + 2P, L = 200mm
  • E29R127134
    Wall mount bracket kit
  • 509000001500
    Adaptor 24V/120W, wire only
  • 50906A24000E
    Adaptor 24V/230W, wire only

技術文件

Drivers

日期 說明 版本 下載檔案
2022/12/29 Intel RST Driver V1.1
2022/12/29 LAN Driver V1.1
2022/12/29 Audio Driver V1.1
2022/12/29 ME Driver V1.1
2022/12/29 Graphic Driver V1.1
2022/12/29 Chipset Driver V1.1

Software

Manual

日期 說明 版本 下載檔案
2022/11/22 User's Manual VA8

Design Guide

Technical Announcement

Certificates

日期 說明 版本 下載檔案
2023/03/03 UKCA Declaration of Conformity
2023/03/03 CE EMC Verification
2023/03/03 CE-Conformity Declaration
2021/10/27 FCC Verification

您可能也會喜歡

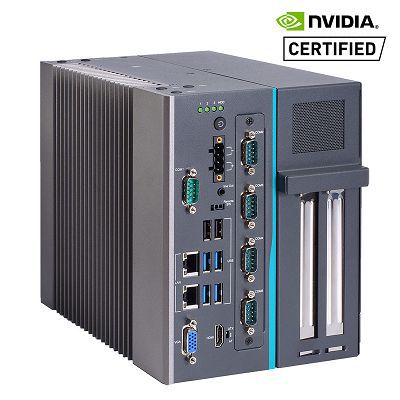

產品圖片 IPC962-525
