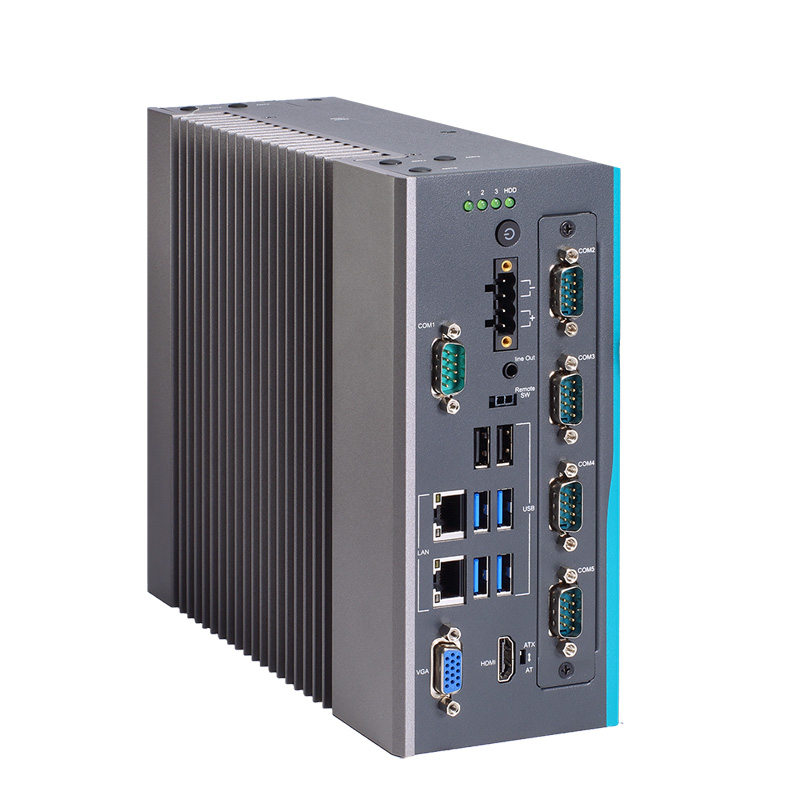

IPC960-525-FL

產品階段 : 供應中

Fanless Industrial System with LGA1151 Socket 9th/8th Gen Intel® Core™ i7/i5/i3 or Celeron® Processor, Intel® H310, and Front-access I/O

產品規格表 (PDF)
產品規格表 (PDF)
加入比較
加入比較
立即詢價
立即詢價
IPC960-525-FL
AMT

AMT

Dual-View

Dual-View

Fanless

Fanless

TPM

TPM

Wide Temperature

Wide Temperature

  • 產品特色
  • 產品規格
  • 訂購資訊
  • 技術文件

產品特色

  • LGA1151 Socket 9th/8th gen Intel® Core™ processor, up to 65W
  • M.2 Key B slot for 5G wireless connection (optional)
  • Supports RAID 0,1 (Intel® Q370)
  • Supports Power-on delay function
  • Supports TPM 2.0
  • Supports AMT (Intel® Q370)

產品規格

CPU
  • 9th/8th gen Intel® Core™ processor, up to 65W
Chipset
  • Intel® H310
System Memory
  • 2 x DDR4-2666/2400 MT/s un-buffered SO-DIMM, up to 64GB
BIOS
  • AMI
COM
  • 1 x RS-232/422/485 (default RS-232)
  • More COM ports are available from extension I/O modules
USB
  • 4 x USB 3.1 Gen1
  • 2 x USB 2.0
  • 1 x USB 2.0 (internal, 180D type A for license key, up to 30mm)
  • More USB ports are available from extension I/O modules
Ethernet
  • 1 x 10/100/1000 Mbps Ethernet (Intel® I210-AT)
  • 1 x 10/100/1000 Mbps Ethernet (Intel® I219-LM)
  • More LAN ports are available from extension I/O modules
Display
  • 1 x VGA
  • 1 x HDMI
Digital I/O
  • Available from extension I/O modules
Audio
  • 1 x Line-out
Storage
  • 2 x 2.5" swappable HDD/SSD (7/9.5 mm height)
Expansion
  • 1 x Full-size PCI Express Mini Card slot (USB interface)
Others
  • TPM 2.0
  • AMT (Intel® Q370)
Power
  • Type: ATX/AT
  • Input: 24 VDC (uMin=19V/uMax=30V)
Shock
  • N/A
Construction
  • Aluminum extrusion heavy-duty cold-rolled steel
Vibration
  • N/A
Operating Temperature
  • -10°C to +60°C (+14°F to +140°F) with 9th/8th gen Intel® Core™ and W.T. HDD/SSD
IP Rating
  • N/A
Relative Humidity
  • 10% to 90%, non-condensing
Dimensions<br>(W x H x D)
  • 83.5 x 192 x 230 mm (3.28" x 7.54" x 9.04")
Weight (net/gross)
  • 3.82 kg (8.43 lb)/4.78 kg (10.55 lb)
EOS Support
  • Windows® 10, Linux
Software Support
  • N/A
Certifications
  • CE (EN 61000-6-4/EN 61000-6-2)
  • FCC

訂購資訊

  • IPC960-525-N-DC-H310 w/ Blank IO (P/N-E26G960107 )
    Fanless industrial system with Intel® H310 and blank extension system I/O cover; without Axiomtek logo
  • AX93511 (P/N-E29R127101)
    4 x RS-232/422/485 module (default RS-232)
  • AX93512
    2 x RS-232/422/485 with isolated 1.5kVDC & 8-in/8-out with isolated 1.5kVDC DIO module (project-based support)
  • AX93516
    4 x RS-232/422/485 with isolated 2kVDC module (project-based support)
  • 2.5” SATA HDD/SSD
  • DDR memory
    DDR4-2666 MT/s non-ECC SO-DIMM, up to 64GB
  • E29R127134
    Wall mount bracket kit
  • E29R127135
    DIN-rail mounting kit (project-based support)
  • 50906D24000E
    Adaptor 24V/120W, wire only
  • 50906A24000E
    Adaptor 24V/230W, wire only

技術文件

Drivers

日期 說明 版本 下載檔案
2022/12/29 6. Intel RST Driver VA1.1
2022/12/29 5. Intel ME Driver VA1.1
2022/12/29 4. Intel LAN Driver VA1.1
2022/12/29 3. Realtek Audio Driver VA1.1
2022/12/29 2. Intel Graphic Driver VA1.1
2022/12/29 1. Intel Chipset Driver VA1.1

Software

Manual

日期 說明 版本 下載檔案
2022/11/22 User's Manual VA8
2022/04/21 中文BIOS界面说明 VA6

Design Guide

Technical Announcement

Certificates

日期 說明 版本 下載檔案
2023/03/03 UKCA Declaration of Conformity
2023/03/03 CE-Conformity Declaration
2023/03/03 CE EMC Verification
2021/10/27 FCC Verification
