eBOX800-841-FL

產品階段 : 供應中

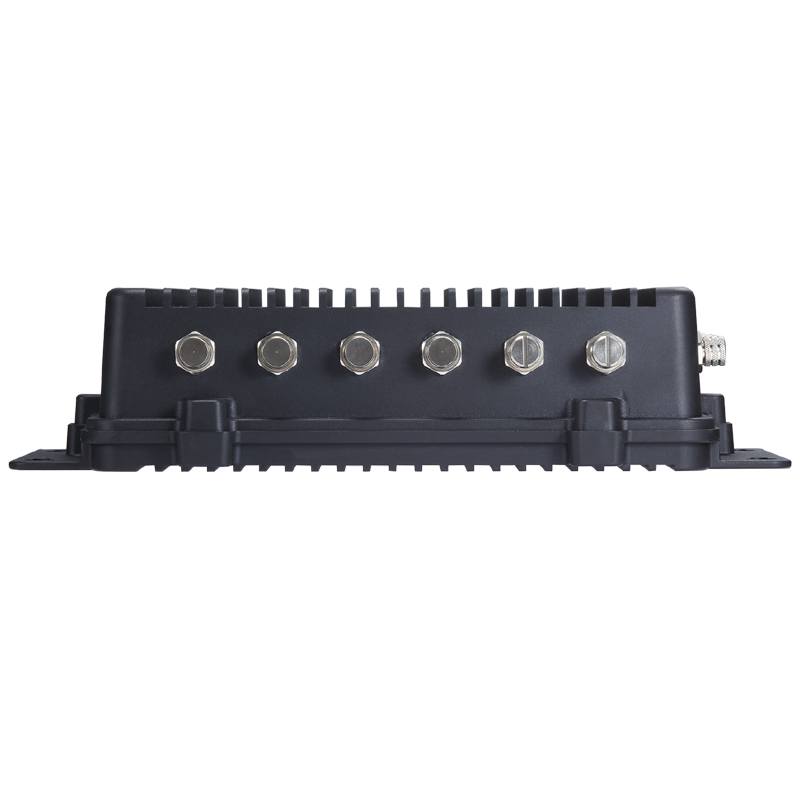

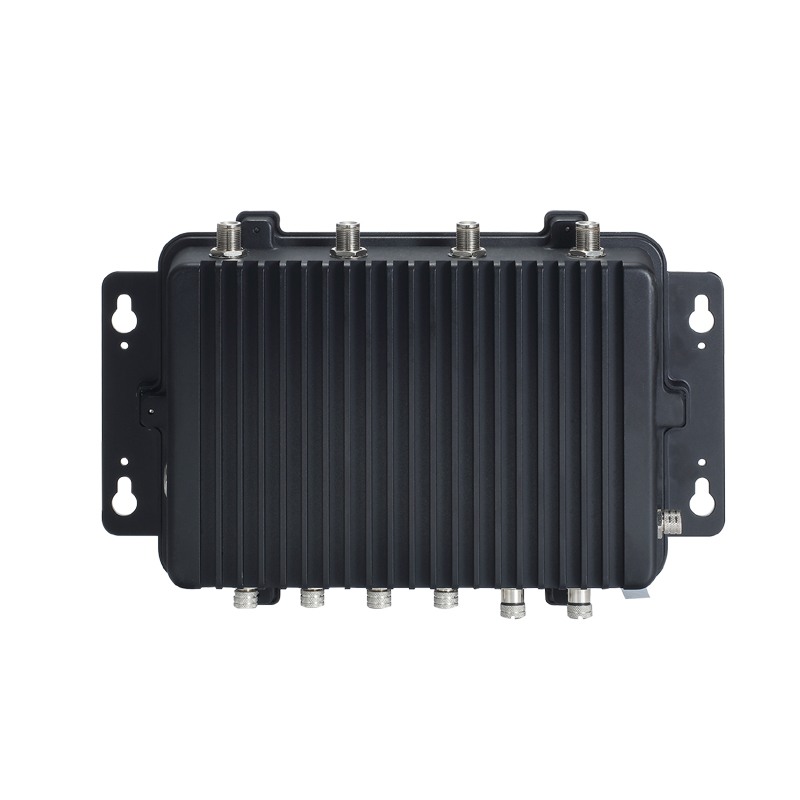

Rugged IP67-rated Fanless Embedded System with Intel® Atom® Processor E3845, VGA, 2 GbE LAN, 2 USB, 2 COM and 9 to 36 VDC

產品特色

CPU	Intel® Atom™ processor E3845 1.91 GHz
Chipset	SoC integrated
System Memory	1 x 204-pin SO-DIMM DDR3L-1066/1333, up to 8 GB
BIOS	AMI
COM	2 x RS-232/422/485 (M12)
USB	2 x USB 2.0 (M12)
Ethernet/PoE	2 x 10/100/1000 Mbps Ethernet (Intel® i210-IT, M12)
Display	1 x VGA (M12)
Digital I/O	N/A
Audio	N/A
Storage	1 x 2.5” HDD drive bay (max. up 9.5 mm height) 1 x mSATA (enabled in BIOS setting) 1 x CFast™
Expansion	1 x Full-size PCI Express Mini Card slot (USB + PCI Express signal) 1 x Half-size PCI Express Mini Card slot (USB + PCI Express signal) 1 x SIM slot

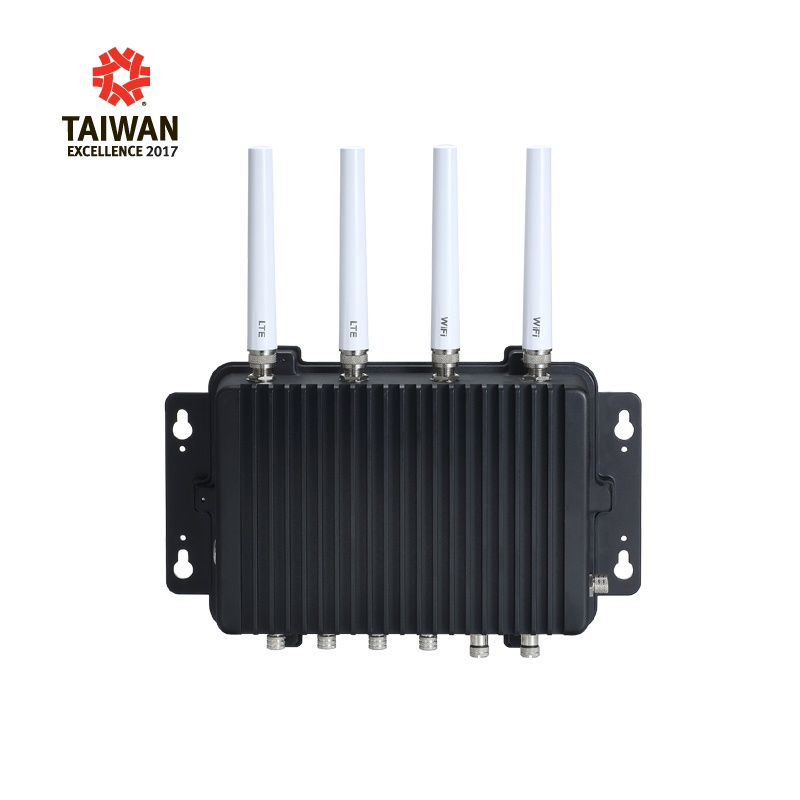

Others	1 x 9 to 36 VDC power input (M12) 1 x ATX power switch with indicator 4 x N-jack antenna opening with water proof design TPM 1.2 supported
Power	9 to 36 VDC
Watchdog Timer	255 levels, 1 to 255 sec.
Construction	Aluminum die-casting and heavy-duty steel, IP67
Operating Temperature	-30°C to +60°C (-22°F to +140°F) (with E3845, W.T. SSD/DRAM)
Relative Humidity	10% to 95% , non-condensing
Shock	N/A
Vibration	3 Grms with SSD (5 to 500Hz, X, Y, Z directions)
Dimensions (W x D x H)	210 x 366.83 x 83 mm (8.27” x 14.44” x 3.27")
Weight (net/gross)	4.31 kg (9.5 lb)/5.1 kg (11.24 lb)
Certifications	CE, FCC Class A
OS Support	Win 10 IoT, WE8S, WES7, Linux
Software Support	N/A
Mounting	Wall mount VESA mount

eBOX800-841-FL-DC (P/N-E36K800100)
Rugged IP67-rated fanless embedded system with Intel® Atom® E3845 1.91 GHz, VGA, 2 GbE LAN, 2 USB, 2 COM and 9 to 36 VDC
2.5” SATA HDD (W.T.)
80GB or above
2.5” SATA SSD (W.T.)
100GB or above
DDR3L SO-DIMM (W.T.)
2GB to 8GB
CFast™
64GB or above
mSATA
64GB or above
3G/LTE module
594B8122100E
RS-232 serial cable, 180 cm
594B8152710E
LAN cable, 180 cm
50966224010E
24V 90W M12 power adapter
