It supports 11th and 10th Gen Intel® Core™ i9/i7/i5/i3 and Celeron® processors (Comet Lake-S), delivering high-performance computing for edge and AIoT applications.
The eBOX710A features dual DDR4 SO-DIMM slots and supports up to 64GB of system memory.
It supports dual display output via HDMI and DisplayPort++, with resolutions up to 4K for high-quality visual applications.
The system provides two 2.5” SATA HDD drive bays for ample storage capacity.
It includes one PCIe x4 slot, two PCI Express Mini Card slots, and an M.2 Key B slot for 5G connectivity, along with a flexible I/O window for additional mPCIe-based modules.
The system comes with four Gigabit Ethernet ports, supporting high-speed and reliable network connectivity.

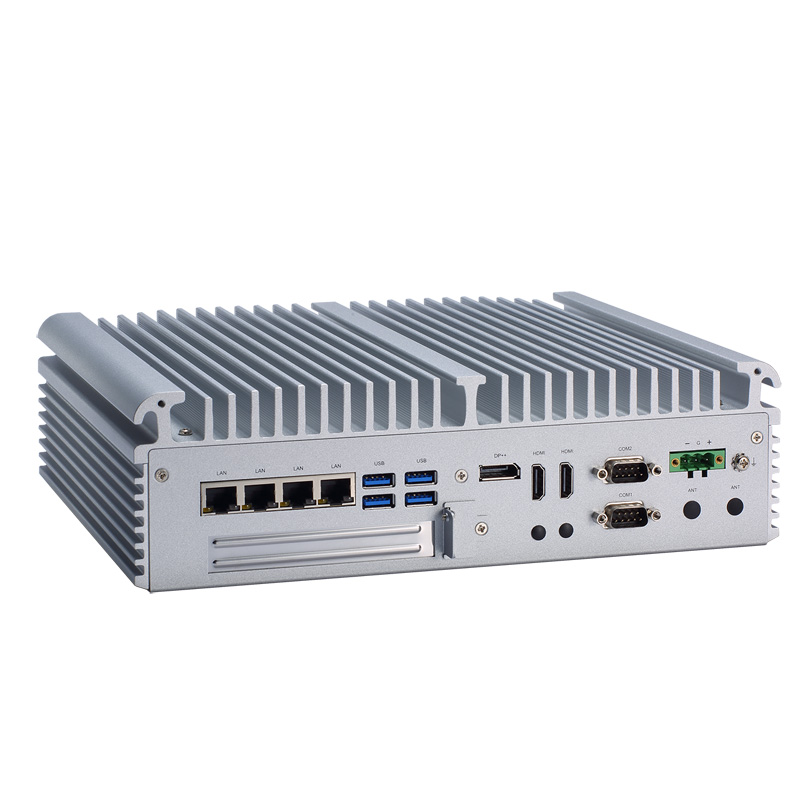

It offers a wide range of I/O, including RS-232 and RS-232/422/485 ports, USB 3.2 and USB 2.0 ports, multiple LAN ports, HDMI, and DisplayPort interfaces.
Yes, it is designed for industrial environments with an operating temperature range from -40°C to +70°C, vibration resistance up to 3G, and an IP40-rated enclosure.
It supports a wide 9 to 48 VDC power input, making it suitable for various industrial power conditions.
Yes, it supports wireless and cellular expansion, including 5G via the M.2 Key B slot and SIM card support.
The eBOX710A supports Windows 11 IoT and Linux.
Yes, it supports TPM 2.0 for enhanced hardware-based data security.
It is ideal for machine learning, deep learning, robotic control, edge computing, and various AIoT and industrial automation applications.
