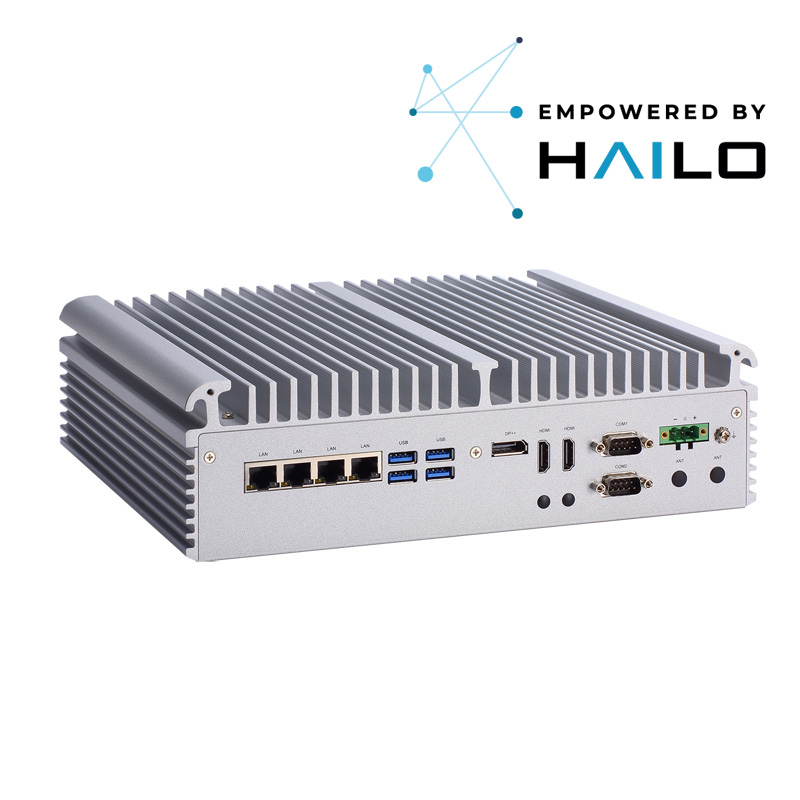

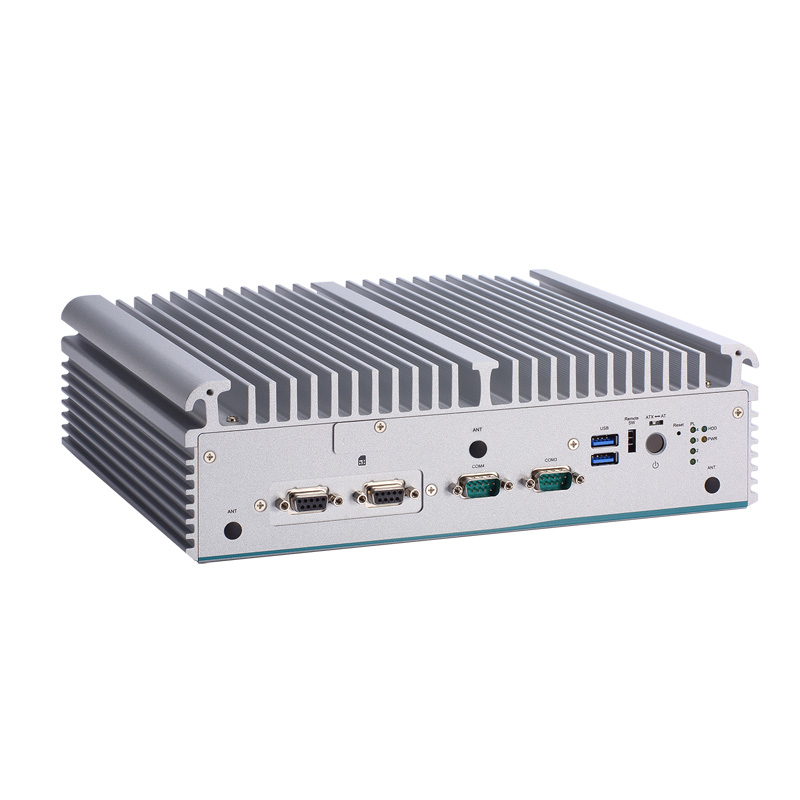

The eBOX671A supports high-performance Intel® Xeon®, 10th generation Intel® Core™ i9/i7/i5/i3, and Celeron® processors (Comet Lake-S) with the Intel® W480E chipset, delivering robust computing power for AIoT, edge computing, machine vision, deep learning, and robotic control applications.
It comes with dual 260-pin DDR4 ECC/non-ECC SO-DIMM slots supporting up to 64GB of system memory, and two 2.5-inch SATA HDD drive bays with Intel® RAID 0/1 for extensive storage. ECC memory is available with the Intel® Xeon® processor to enhance system reliability.
The eBOX671A provides rich I/O, including two lockable HDMI 1.4b, one DisplayPort 1.2++, five USB 3.2 Gen2, one USB 3.2 Gen1, four GbE LAN ports (with optional PoE support), two RS-232/422/485, two RS-232, one flexible I/O window, two 10GbE LAN (optional), two full-size PCI Express Mini Card slots, one M.2 Key B 3050 slot for 5G module, and two SIM slots for wireless connectivity.
It supports a wide DC input range from 9V to 48V, suitable for industrial power conditions.
The eBOX671A combines high-performance Intel® CPUs, optional Xeon ECC memory for reliability, GPU expansion options, rich I/O including PoE for IP cameras, and a flexible M.2/mini-card design for 5G and wireless modules. This integration enables AI inference, edge analytics, and real-time machine vision processing while reducing deployment complexity.
Its rugged IP40-rated aluminum/steel chassis, extended temperature tolerance from -40°C to +70°C, vibration endurance up to 3G, and industrial-grade design ensure reliable and stable operation in demanding environments, including smart factories, outdoor edge deployments, and AI-enabled mobile platforms.
