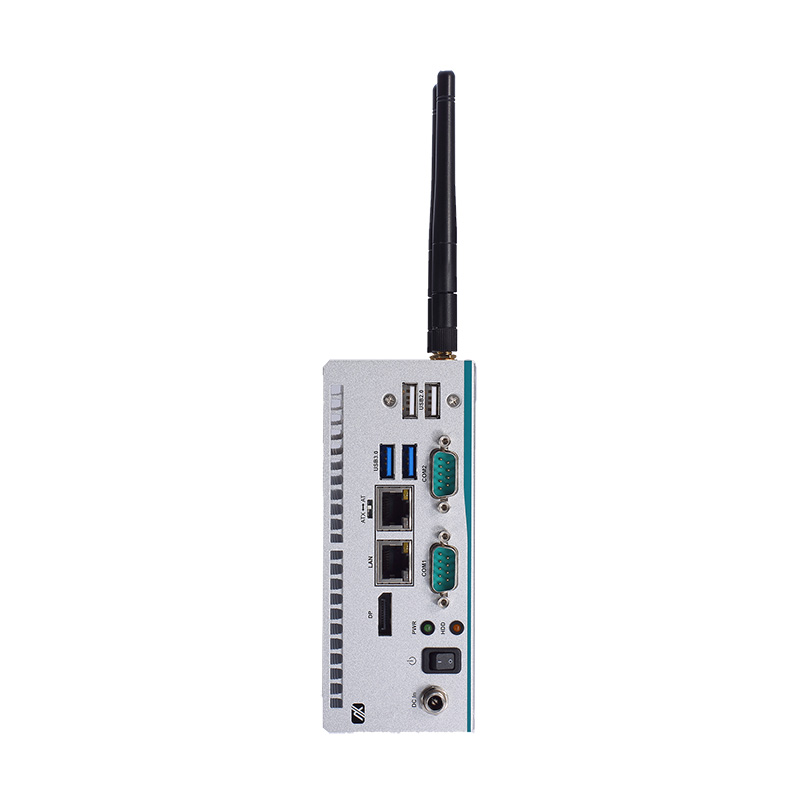

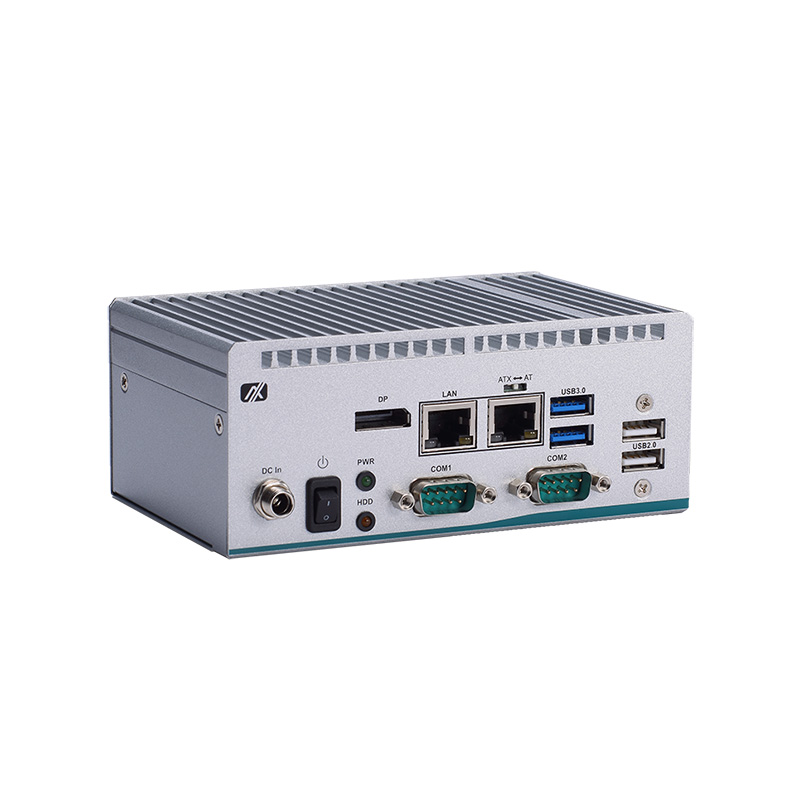

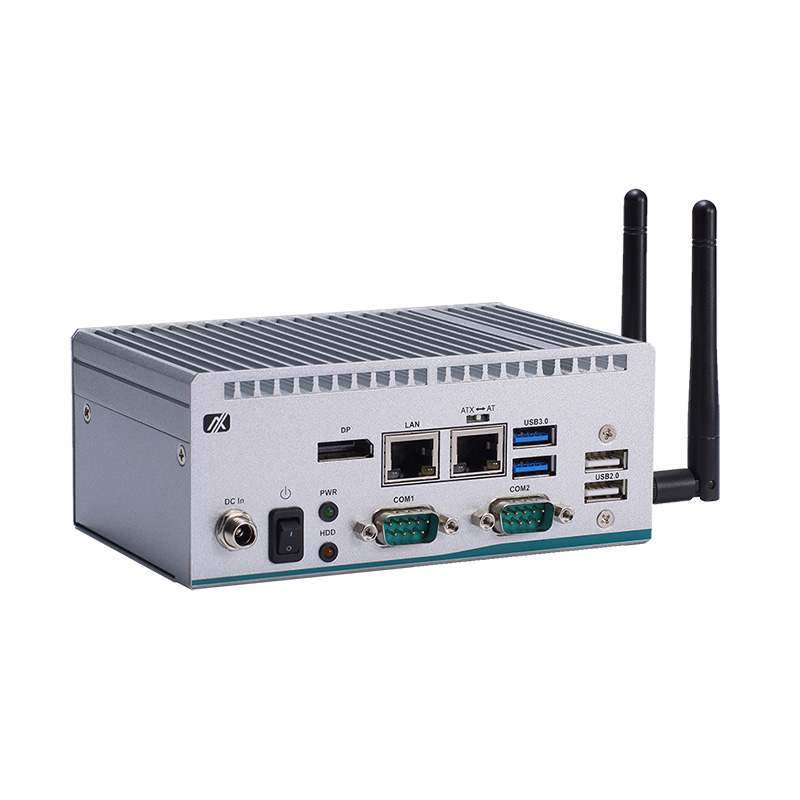

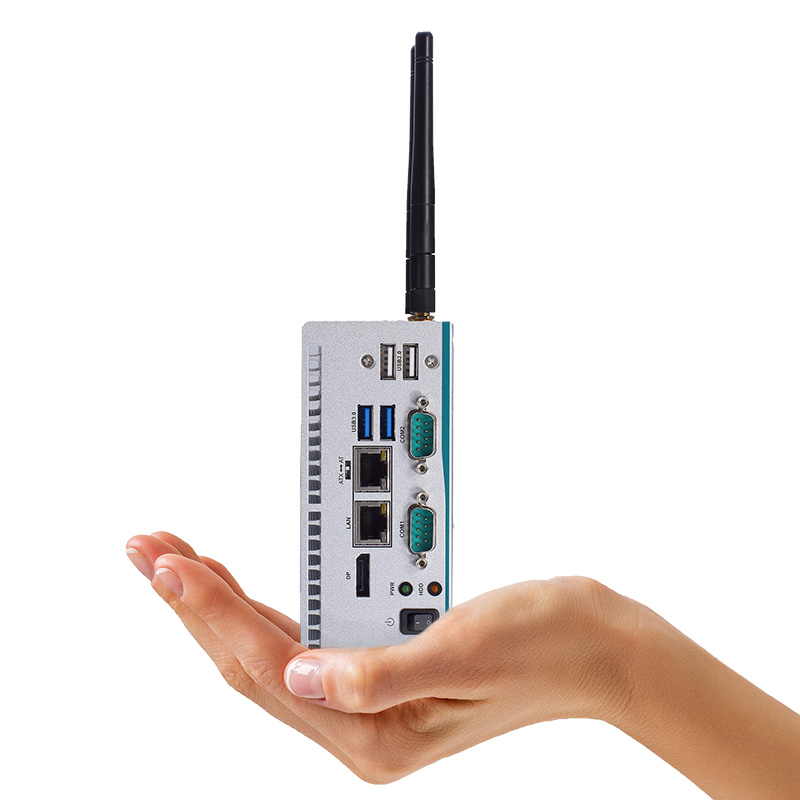

eBOX100-51R-FL

產品階段 : 供應中

Fanless Ultra Compact Embedded System with Intel® Core™ i5-7300U & Intel® Celeron® 3965U Processor, DisplayPort++, 2 COM, 4 USB and 2 GbE LAN

產品規格表 (PDF)
產品規格表 (PDF)
加入比較
加入比較
立即詢價
立即詢價
eBOX100-51R-FL
eBOX100-51R-FL
eBOX100-51R-FL
eBOX100-51R-FL
Compact

Compact

Fanless

Fanless

IEC 60945

IEC 60945

Low Power

Low Power

Wide Temperature

Wide Temperature

  • 產品特色
  • 產品規格
  • 訂購資訊
  • 技術文件

產品特色

  • Ultra compact size with high-performance
  • Intel® Core™ i5-7300U or Celeron® 3965U
  • M.2 Key E 2230 for Wi-Fi
  • M.2 Key B 2242 for storage
  • Supports Azure certified and AXView
  • Supports Intel® AMT 11
  • Multiple mounting designs: wall mount, DIN-rail, and VESA mount

產品規格

CPU
  • Intel® Core™ i5-7300U 2.6 GHz
  • Intel® Celeron® 3965U 2.2 GHz
Chipset
  • SoC integrated
System Memory
  • 1 x 260-pin DDR4-2133 SO-DIMM, up to 16GB
BIOS
  • AMI
COM
  • 2 x RS-232/422/485
USB
  • 2 x USB 3.0
  • 2 x USB 2.0
Ethernet/PoE
  • 2 x 10/100/1000 Mbps Ethernet (Intel® I219-LM, Intel® I210-AT)
Display
  • 1 x DisplayPort ++
Digital I/O
  • N/A
Audio
  • N/A
Storage
  • 1 x M.2 Key B 2242 (for SATA storage)
Expansion
  • 1 x M.2 Key E 2230 (for Wi-Fi)
Others
  • 1 x ATX power switch
  • 1 x AT/ATX quick switch
  • 1 x Screw type VDC power input connector
  • 2 x Antenna opening
Power
  • 12 VDC
Watchdog Timer
  • 65535 levels, 1 to 65536 sec.
Construction
  • Aluminum extrusion and heavy-duty steel, IP40
Operating Temperature
  • -10°C to +50°C (+14°F to +122°F) (with W.T. SSD/DRAM)
Relative Humidity
  • 10% - 90%, non-condensing
Shock
  • IEC 60068-2-27 (with SSD: 50G, half sine, 11 ms duration)
Vibration
  • IEC 60068-2-64 (with SSD: 3Grms STD, random, 5 to 500 Hz,1 hr/axis)
Dimensions (W x D x H)
  • 142 x 87 x 58 mm (5.59" x 3.42" x 2.28")
Weight (net/gross)
  • 0.6 kg (1.32 lb)/1.5 kg (3.3 lb)
Certifications
  • CE, FCC Class A, UKCA and IEC60945
OS Support
  • Win 10 IoT, Linux
Software Support
  • N/A
Mounting
  • Wall mount kit
  • Din-rail kit
  • VESA mount Kit

訂購資訊

  • eBOX100-51R-FL-DC-7300U (P/N-E36K100108)
    Fanless ultra compact embedded system with Intel® Core™ i5-7300U, DisplayPort++, 2 COM, 4 USB, and 2 GbE LAN
  • eBOX100-51R-FL-DC-3965U (P/N-E36K100107)
    Fanless ultra compact embedded system with Intel® Celeron® 3965U, DisplayPort++, 2 COM, 4 USB, and 2 GbE LAN
  • DDDR4 SO-DIMM
    8G to 16GB
  • M.2 SATA SSD
    128GB or above
  • 8816K1004A0E
    Wall mount kit
  • 8816K1008A0E
    DIN-rail kit
  • 8816K1005A0E
    VESA mount kit
  • M.2 Wi-Fi module
  • 50966124050E
    12V 60W power adapter
  • Power cord

技術文件

Drivers

日期 說明 版本 下載檔案
2019/11/11 Audio driver VA1.0
2019/11/11 ME driver VA1.0
2019/11/11 LAN driver VA1.0
2019/11/11 Graphic driver VA1.0
2019/11/11 Chipset driver VA1.0

Software

Manual

日期 說明 版本 下載檔案
2023/10/24 User Manual VA2

Design Guide

Technical Announcement

Certificates

日期 說明 版本 下載檔案
2022/06/22 UKCA Declaration of Conformity
2022/06/22 FCC Verification
2022/06/22 CE-Conformity Declaration
2022/06/22 CE EMC Verification
2020/10/19 IEC60945 Certificate
2020/07/03 CE LVD Verification
