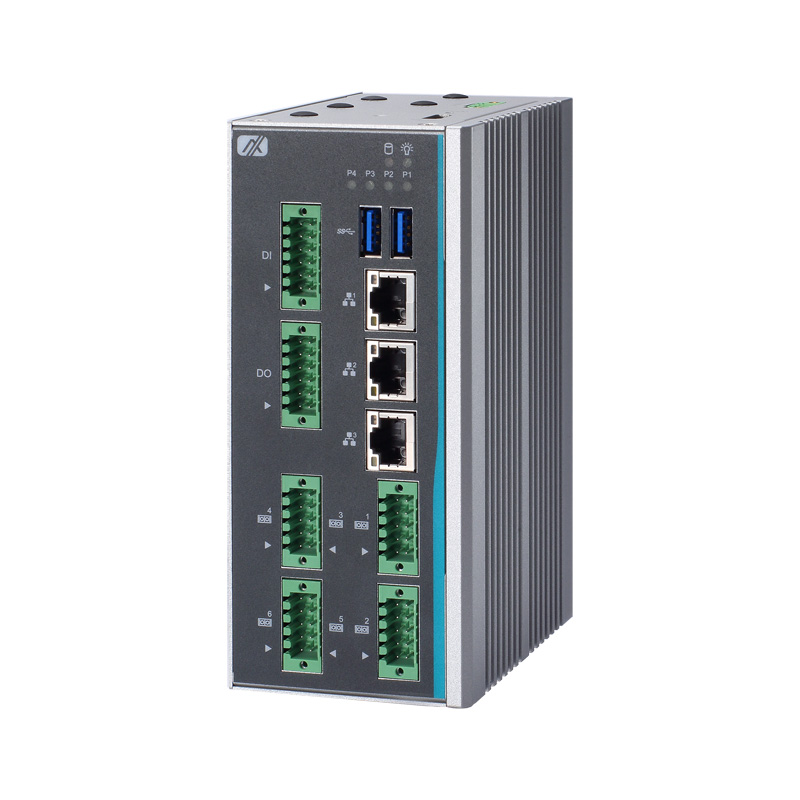

ICO300-83M

產品階段 : 供應中

ATEX/CID2 Certified DIN-rail Fanless Embedded System with Intel Atom® x5-E3930/x5-E3940 Processor, Isolated COM, LAN and Isolated DIO

產品規格表 (PDF)
產品規格表 (PDF)
加入比較
加入比較
立即詢價
立即詢價
ICO300-83M
ICO300-83M
ICO300-83M
ICO300-83M
ICO300-83M
ICO300-83M
ICO300-83M
Anti-explosion

Anti-explosion

Fanless

Fanless

TPM

TPM

Wide Power Input

Wide Power Input

Wide Temperature

Wide Temperature

  • 產品特色
  • 產品規格
  • 訂購資訊
  • 技術文件
  • 常見問題

產品特色

  • Cost-effective with fanless design
  • Intel Atom® x5-E3930/x5-E3940 processor
  • 6 isolated COM, isolated DIO (8-in/8-out), 3 GbE LAN
  • Wide operating temperature range from -40°C to +85°C
  • 9 to 36 VDC, typical 12-24V power input with OVP, UVP, OCP, RPP
  • Supports TPM 2.0
  • ATEX/Class I Division 2 (CID2) certified
  • Supports cold boot at -40°C

產品規格

CPU
  • Intel Atom® x5-E3930 processor, 1.3GHz/2C/6.5W
  • Intel Atom® x5-E3940 processor, 1.6GHz/4C/9.5W
Chipset
  • SoC integrated
System Memory
  • 1 x DDR3L-1600 SO-DIMM, up to 8GB
COM
  • 2 x Isolated RS-232/422/485 (Phoenix Type)
  • 4 x Isolated RS-232/422/485 (4-wire, Phoenix Type for full type)
USB
  • 2 x USB 3.0
Ethernet
  • 3 x RJ-45 isolated 10/100/1000 Mbps Ethernet (Intel® I210-IT)
  • Isolation voltage: 1.5 kV
PoE
  • N/A
CANbus
  • N/A
Digital I/O
  • 1 x Isolated 8-in/8-out DIO (for full type)
Analog Input
  • N/A
Display
  • 1 x HDMI (up to 1920 x 1200 @60Hz)
Expansion
  • 1 x M.2 Key B 3052: USB 3.0/PCIe (optional)
  • 1 x Full-size Rev.1.2 PCI Express Mini Card slot: USB (for LTE/Wi-Fi module)
  • 1 x Half-size Rev.1.2 PCI Express Mini Card slot: USB/mSATA (for mSATA)
  • 2 x SIM slot (1 for M.2; 1 for full-size PCI Express Mini Card)
Storage
  • 1 x mSATA (occupied 1 x PCI Express Mini Card slot)
  • 1 x Internal 2.5" SATA drive (9.5 mm height)
  • 1 x 8G eMMC onboard
Others
  • TPM 2.0

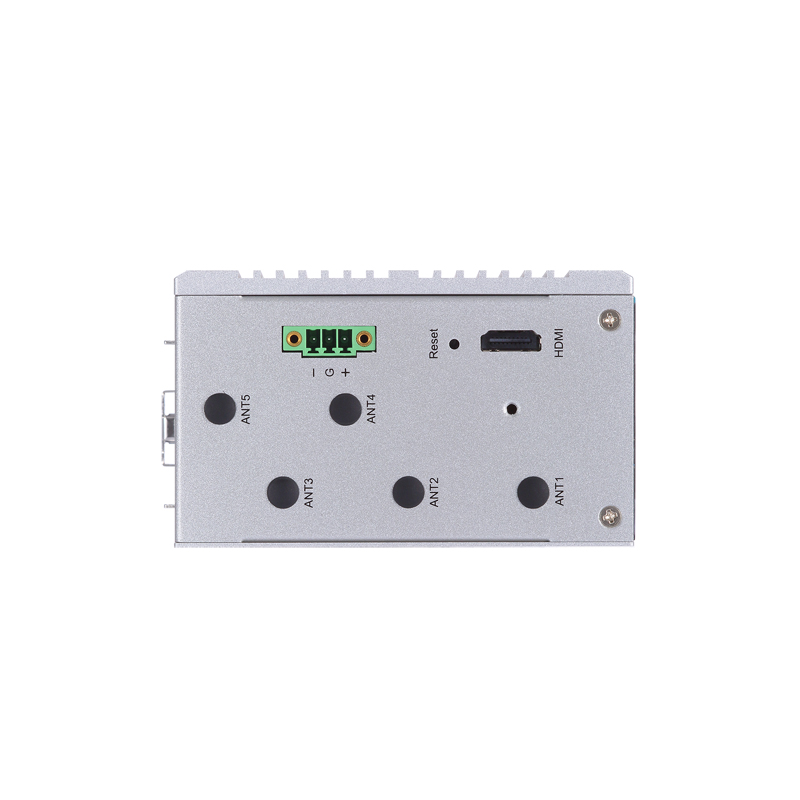

  • 5 x Antenna opening
Power

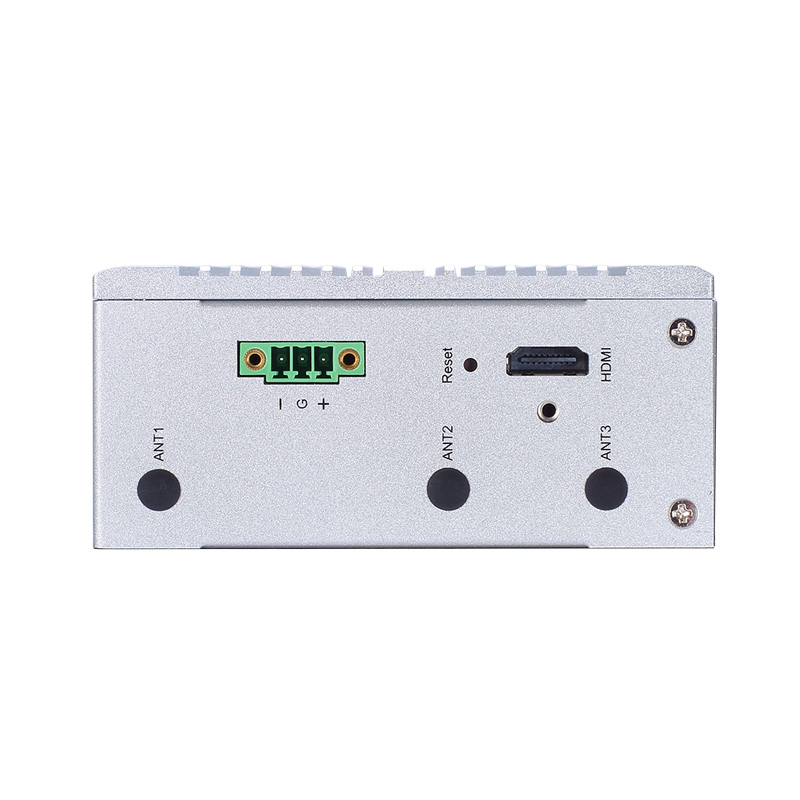

  • 1 x Terminal block, 9 to 36 VDC, typical 12/24V
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Construction
  • Extruded aluminum and heavy-duty steel, IP40
Operating Temperature
  • -40°C to +75°C (-40°F to +167°F)
  • Cold boot at -40°C
  • Supports +85°C operating temperature under condition
Relative Humidity
  • 10% to 95%
Vibration
  • 3 Gms with storage (5 to 500Hz, X/Y/Z direction; random, operating)
Dimensions<br>(W x D x H)

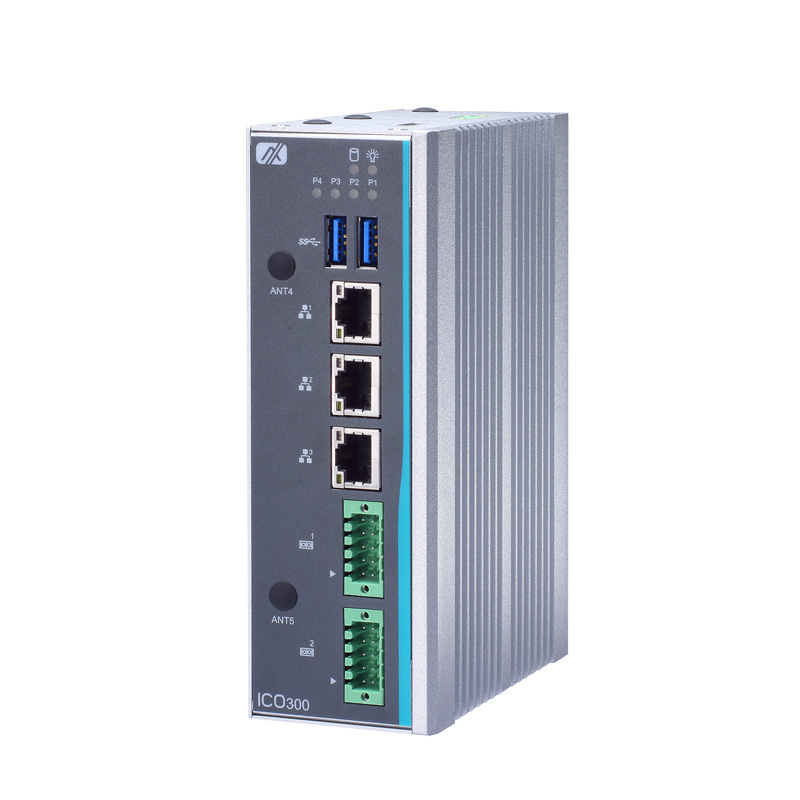

  • Slim type: 51 x 110 x 155 mm (2.0" x 4.33" x 6.1")

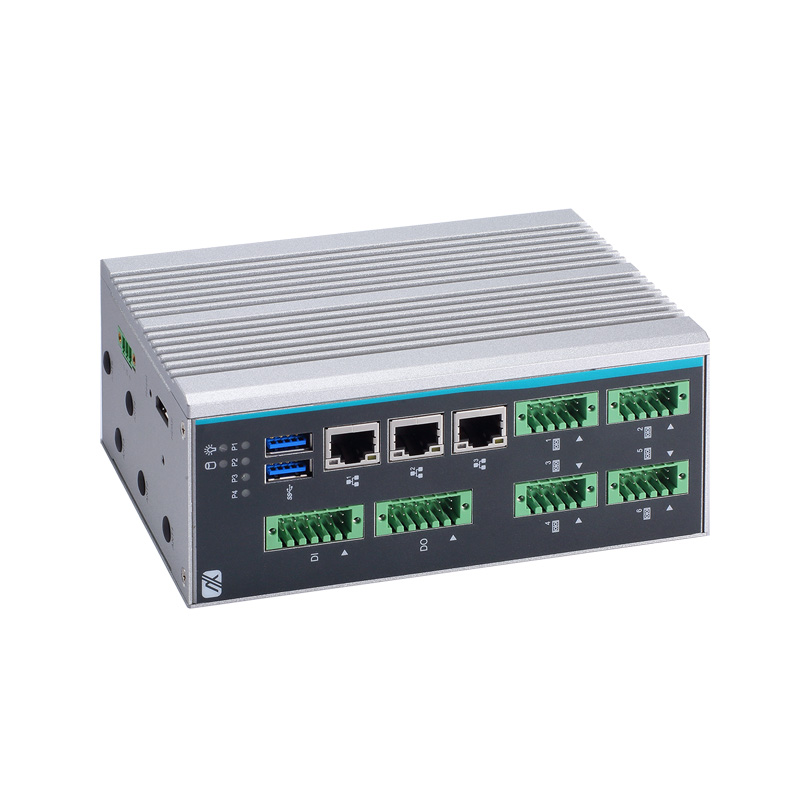

  • Full type: 66 x 110 x 155 mm (2.48" x 4.33" x 6.1")
Weight (net/gross)
  • 1.0 kg (2.2 lb)/1.50 kg (3.3 lb)
Certifications
  • CE/FCC
  • UL
  • ATEX/Class I Division 2
EOS Support
  • Windows® 10 IoT, Linux
Software Support
  • Axiomtek EAPI
Mounting

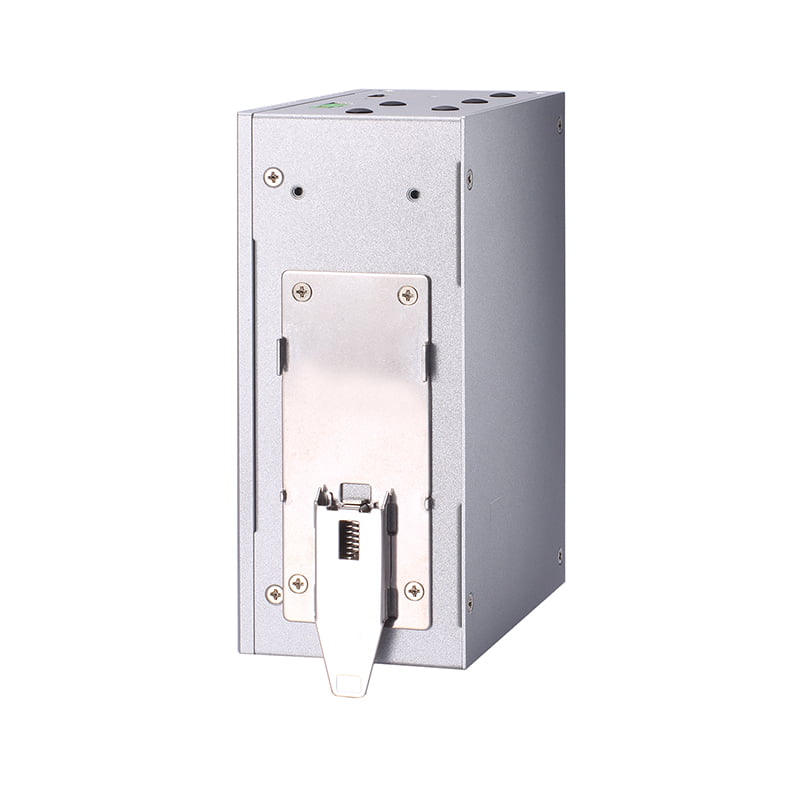

  • DIN-rail

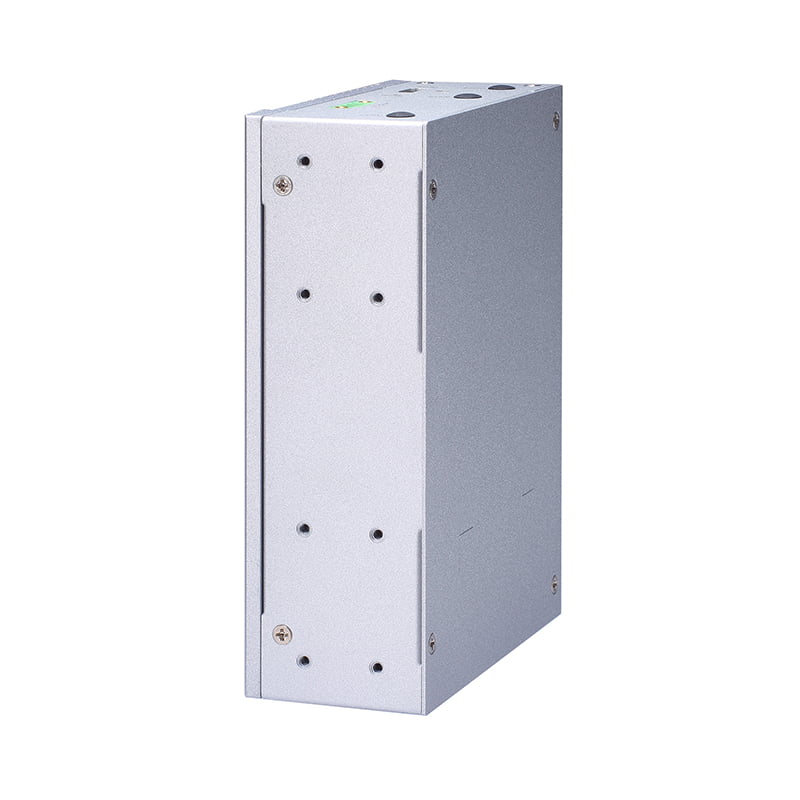

  • Wall Mounting

訂購資訊

  • ICO300-83M (P/N-E22C300154)
    ATEX/CID2 certified DIN-rail fanless embedded system with Intel Atom® x5-E3930 processor, 1 HDMI, 3 GbE LAN, 6 isolated COM, 1 isolated DIO, 2 USB, WT
  • ICO300-M3930S-A (P/N-E22C300160)
    ATEX/CID2 compliant DIN-rail fanless embedded system with Intel Atom® x5-E3930 processor, 1 HDMI, 3 GbE LAN, 2 isolated COM, 2 USB, WT
  • ICO300-M3940-A (P/N-E22C300161)
    ATEX/CID2 compliant DIN-rail fanless embedded system with Intel Atom® x5-E3940 processor, 1 HDMI, 3 GbE LAN, 6 isolated COM, 1 isolated DIO, 2 USB, WT
  • ICO300-M3940S-A (P/N-E22C300162)
    ATEX/CID2 compliant DIN-rail fanless embedded system with Intel Atom® x5-E3940 processor, 1 HDMI, 3 GbE LAN, 2 isolated COM, 2 USB, WT

技術文件

Drivers

日期 說明 版本 下載檔案
2021/10/04 06- CAN_EMUC-B202-W1161 VA1.0
2021/10/04 05- Intel TXE Firmware VA1.0
2021/10/04 03- Intel Ethernet VA1.0
2021/10/04 04- Intel Serial IO VA1.0
2021/10/04 02- Intel Graphic VA1.0
2021/10/04 01_Intel Chipset Driver - 64 Bit VA1.0

Software

Manual

日期 說明 版本 下載檔案
2022/01/07 ICO300-83M User's Manual VA1_08-26-2021 V1.0.0.0

Design Guide

Technical Announcement

Certificates

日期 說明 版本 下載檔案
2021/11/24 UL CID2 Certificate
2021/11/24 UL 62368-1 Certificate
2021/11/24 UKCA Declaration of Conformity
2021/11/24 FCC Verification
2021/11/24 CE-Conformity DeclarationA1
2021/11/24 CE EMC Verification
2021/11/24 ATEX Certificate
