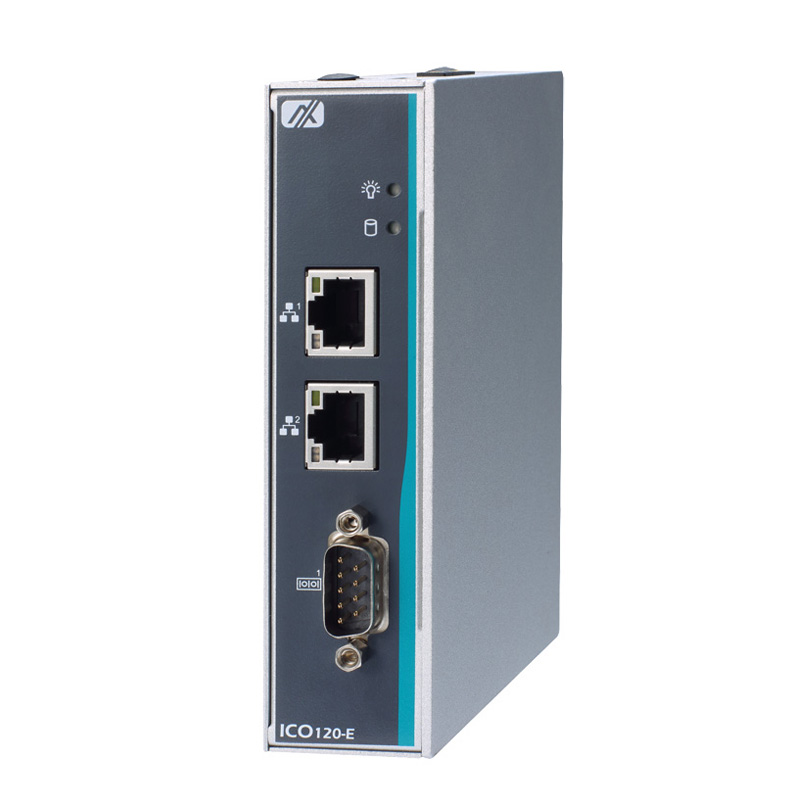

ICO120-E3350

產品階段 : 供應中

DIN-rail Fanless Embedded System with Intel® Celeron® Processor N3350, COM/CAN/DIO, 2 LAN, 2 USB, and HDMI

產品規格表 (PDF)
產品規格表 (PDF)
加入比較
加入比較
立即詢價
立即詢價
ICO120-E3350
ICO120-E3350
ICO120-E3350
ICO120-E3350
ICO120-E3350
ICO120-E3350
ICO120-E3350
ICO120-E3350
Axiomtek EAPI

Axiomtek EAPI

Fanless

Fanless

IP30 Rating

IP30 Rating

Low Power

Low Power

Wide Temperature

Wide Temperature

  • 產品特色
  • 產品規格
  • 訂購資訊
  • 技術文件

產品特色

  • Extremely cost-effective, featuring a fanless and cableless design
  • Intel® Celeron® processor N3350, featuring the reliable F1 stepping version CPU
  • Supports COM/CAN/DIO, 2 USB, and 2 GbE LAN ports
  • Wide operating temperature range from -40°C to +70°C
  • 9 to 36 VDC wide range power input (typical: 12 to 24 VDC)
  • OVP, UVP, OCP, RPP power protection design
  • eAPI for intelligent remote monitoring software integration

產品規格

CPU
  • Intel® Celeron® N3350 2C @1.1 GHz
  • TDP: 6W
Chipset
  • SoC integrated
System Memory
  • 1 x DDR3L-1600 SO-DIMM, up to 8GB
COM
  • 1 x DB9 RS-232/422/485
USB
  • 2 x USB 2.0
Ethernet
  • 2 x RJ-45 GbE LAN (Intel® I210-IT) with an isolation voltage of 1.5 kV
PoE
  • N/A
CANbus
  • 1 x CAN 2.0 A/B, 1 Mbps bitrate with SocketCAN & J1939 supported
Digital I/O
  • 1 x DIO (8-bit programmable DIO)
Analog Input
  • N/A
Display
  • 1 x HDMI
Expansion
  • 1 x Full-size Rev. 1.2 PCI Express Mini Card slot with PCIe/USB signal (with SIM socket)
  • 1 x Half-size Rev. 1.2 PCI Express Mini Card slot with mSATA/USB/PCIe signal
Storage
  • 1 x mini mSATA (occupied 1 x PCI Express Mini Card slot)
Others
  • 2 x Antenna opening
  • TPM 2.0
Power
  • 1 x Terminal block, 9 to 36 VDC (typical: 12-24 VDC)
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Construction
  • Extruded aluminum and heavy-duty steel, IP30
Operating Temperature
  • -40°C to +70°C (-40°F to +158°F) with W.T. peripheral
Relative Humidity
  • 0% to 95%
Vibration
  • 2 Gms with storage (5 to 500Hz, X/Y/Z direction; random, operating)
Dimensions<br>(W x D x H)
  • 31 x 100 x 125 mm (1.22" x 3.93" x 4.92")
  • ICO120-E3350-F: 48 x 100 x 125 mm (1.89" x 3.93" x 4.92")
Weight (net/gross)
  • 0.3 kg (0.67 lb)/0.45 kg (0.99 lb)
  • ICO120-E3350-F: 0.4 kg (0.88 lb)/0.5 kg (1.10 lb)
Certifications
  • CE (Class A), FCC (Class A), UL
  • EN 55032 (Class A), EN 55035
  • FCC part 15 B (Class A)
EOS Support
  • Windows® 10 IoT, Linux
Software Support
  • Axiomtek EAPI

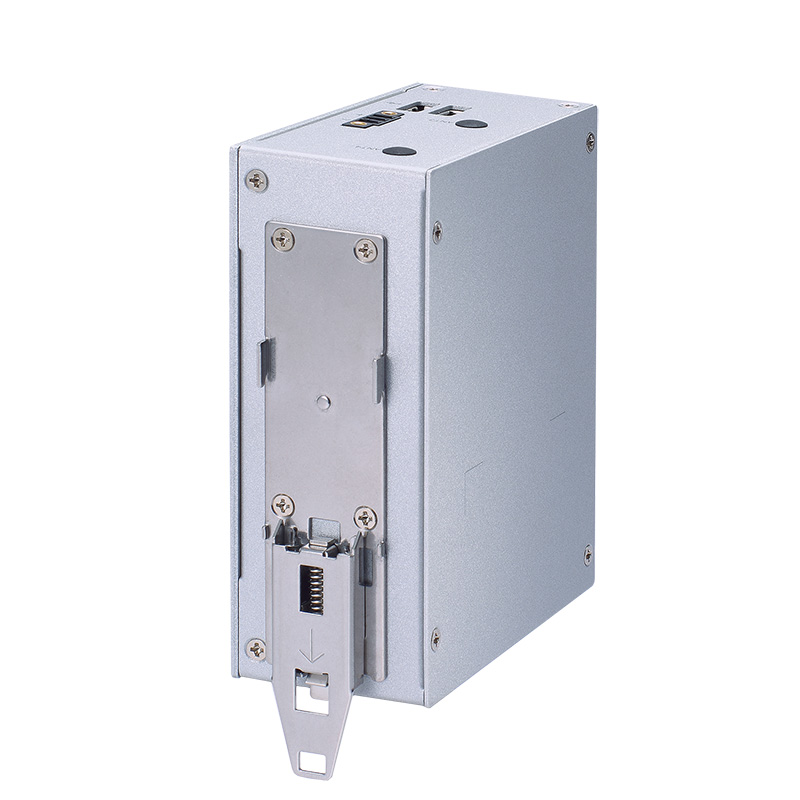

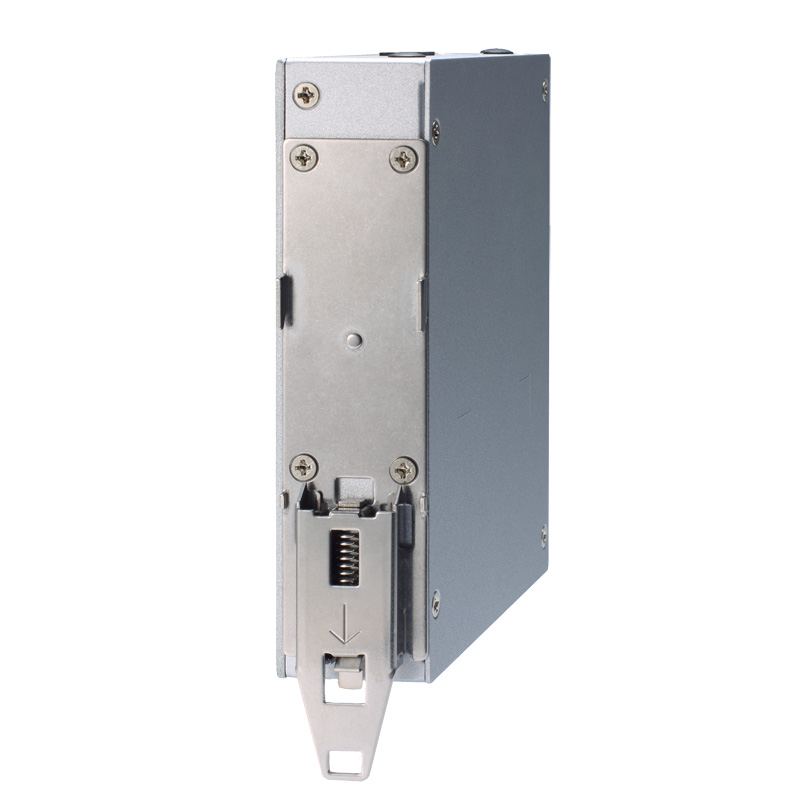

Mounting
  • DIN-rail
  • Wall Mounting

訂購資訊

  • ICO120-E3350-A (P/N-E22C120114)
    DIN-rail fanless embedded system with Intel® Celeron® processor N3350, 2 COM, 2 GbE LAN, and 2 USB
  • ICO120-E3350-B (P/N-E22C120115)
    DIN-rail fanless embedded system with Intel® Celeron® processor N3350, 1 COM, DIO, 2 GbE LAN, and 2 USB
  • ICO120-E3350-C (P/N-E22C120116)
    DIN-rail fanless embedded system with Intel® Celeron® processor N3350, 1 COM, 1 CAN, 2 GbE LAN, and 2 USB
  • ICO120-E3350-E (P/N-E22C120117)
    DIN-rail fanless embedded system with Intel® Celeron® processor N3350, 1 CAN, 1 DIO, 2 GbE LAN, and 2 USB

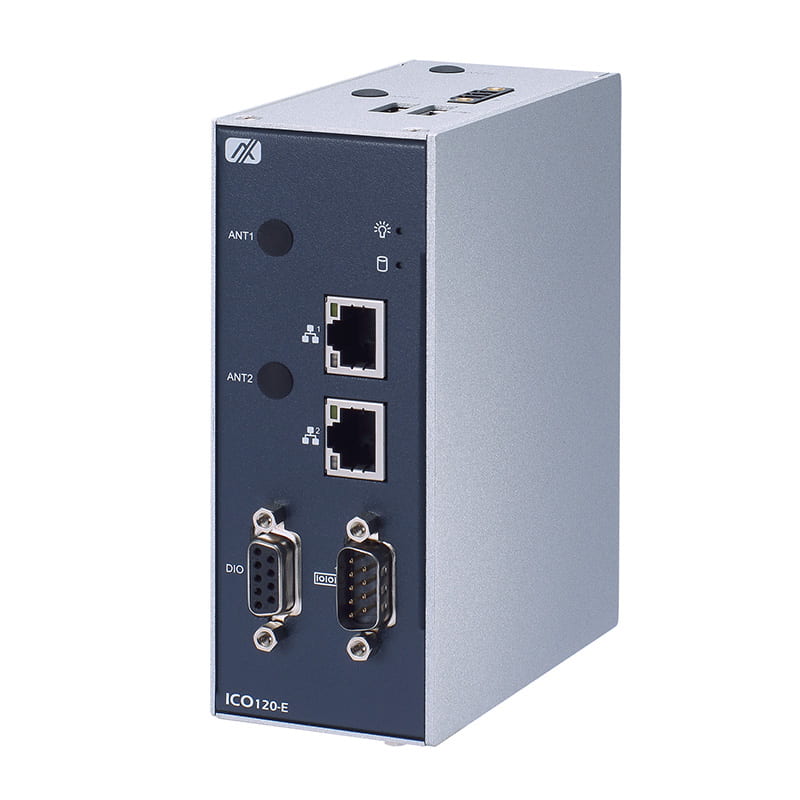

  • ICO120-E3350-F (P/N-E22C120120)
    DIN-rail fanless embedded system with Intel® Celeron® processor N3350, 2 COM, DIO, 2 GbE LAN, and 2 USB
