AIE810-ONX

產品階段 : 供應中

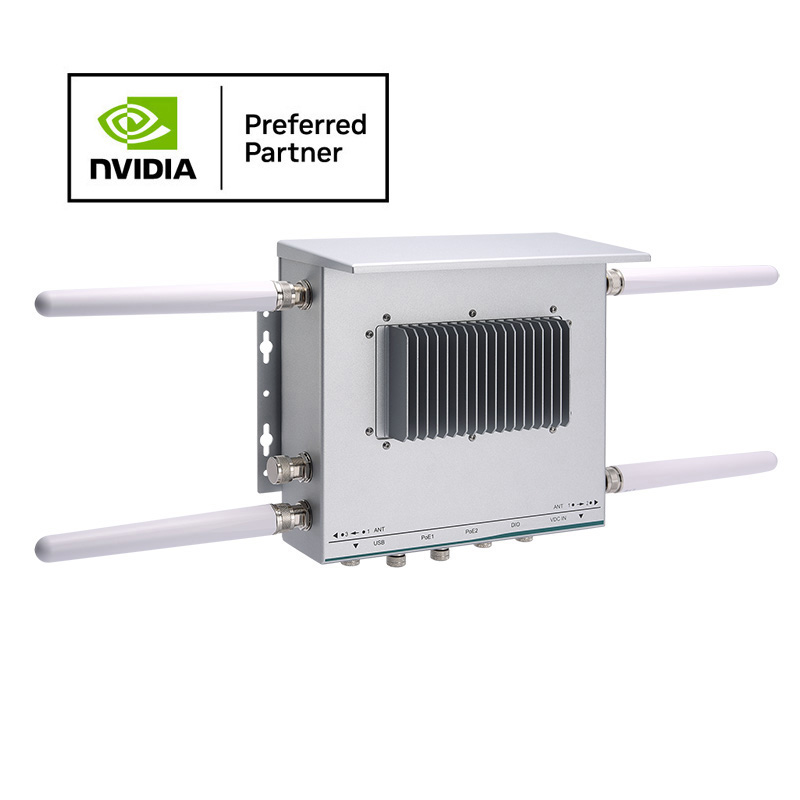

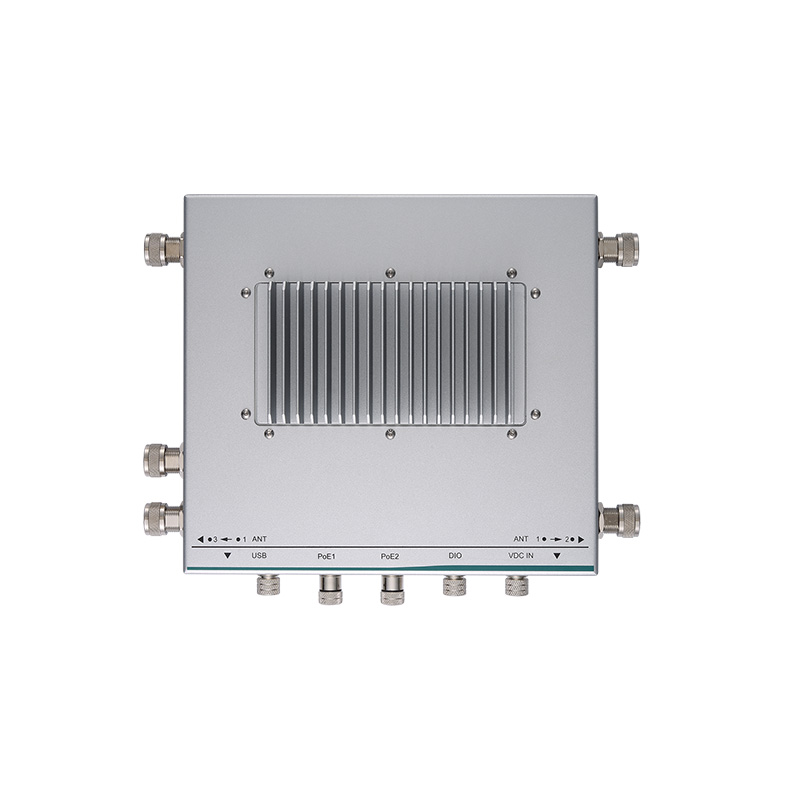

Rugged IP67-rated Fanless Edge AI System with NVIDIA® Jetson Orin™ NX, 2 PoE, 1 USB, 8-CH DIO and 9 to 36 VDC for Outdoor Edge AI Application

產品規格表 (PDF)
產品規格表 (PDF)
加入比較
加入比較
立即詢價
立即詢價
AIE810-ONX
AIE810-ONX
AIE810-ONX
AIE810-ONX
allxon

allxon

Fanless

Fanless

IP67 Rating

IP67 Rating

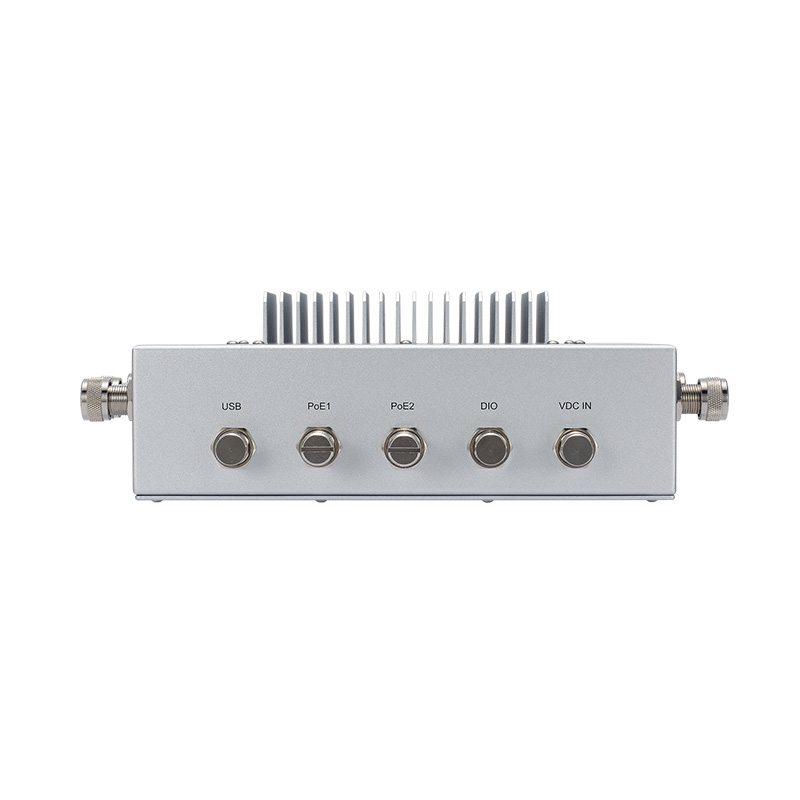

M12 Connector

M12 Connector

Wide Temperature

Wide Temperature

  • 產品特色
  • 產品規格
  • 訂購資訊
  • 技術文件
  • 常見問題

產品特色

  • IP67-rated design, specifically for outdoor environments
  • NVIDIA® Jetson Orin™ NX 16GB (157 TOPS)
  • Supports Super Mode with Jetpack 6.2 and above
  • Seamless speed: 5G, Wi-Fi 6E, and 2.5GbE combined
  • 9 to 36 VDC wide range power input
  • -25°C to +60°C operating temperature range

產品規格

AI Accelerator
  • NVIDIA® Jetson Orin™ NX 16GB (157 TOPS)
  • *Under planning: NVIDIA® Jetson Orin™ NX 8GB (117 TOPS), Jetson Orin Nano™ 8GB (67 TOPS) or Jetson Orin Nano 4GB (34 TOPS)
CPU
  • NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3
GPU
  • 1024-core NVIDIA Ampere GPU with 32 Tensor Cores
Chipset
  • N/A
System Memory
  • 16GB 128-bit LPDDR5 onboard
Serial
  • N/A
USB
  • 1 x M12 A-Code 8-pos dual USB 2.0
Ethernet/PoE
  • 2 x M12 X-Code 8-pos GbE PoE
  • PSE, IEEE 802.3at, up to 30 watts of power
GMSL
  • N/A
Display
  • N/A
GPIO
  • 1 x M12 A-Code 12-pos isolated 4-in/4-out DIO
Audio
  • N/A
Storage
  • 1 x M.2 Key M 2280 with PCIe x4 NVMe SSD slot
Expansion
  • 1 x full-size PCI Express Mini Card slot (USB + PCI Express signal) for Wi-Fi/LTE
  • 1 x M.2 Key E 2230 slot for Wi-Fi 6E
  • 1 x M.2 Key B 3042/3052 slot for 5G/LTE
  • 1 x Nano SIM slot
Others
  • 5 x N-Jack antenna opening with a waterproof design
Power Supply
  • 1 x M12 A-Code 5-pos power input
  • Input: 9 to 36 VDC (typical 12/24 VDC)
  • Inrush current: 0.69A/3.08A
Watchdog Timer
  • Built-in NVIDIA Jetson Orin NX
Construction
  • Aluminum die-casting and heavy-duty steel, IP67
Operating Temperature
  • 25W power mode: -25°C to +60°C (-13°F to +140°F)
Relative Humidity
  • 10% to 95% relative humidity, non-condensing
Vibration
  • IEC 60068-2-64 (with SSD: 3Grms STD, random, 5 to 500 Hz, 1 hr/axis)
Shock
  • IEC 60068-2-27 (with SSD: 50G, half-sine, 11 ms duration)
Dimensions (W x D x H)
  • 240 x 220 x 93.4 mm (9.44" x 8.66" x 3.67")
Weight (net/gross)
  • 4 kg (8.81 lb)/7.2 kg (15.87 lb)
Certifications
  • CE
OS Support
  • Linux Ubuntu 22.04 or later
Mounting

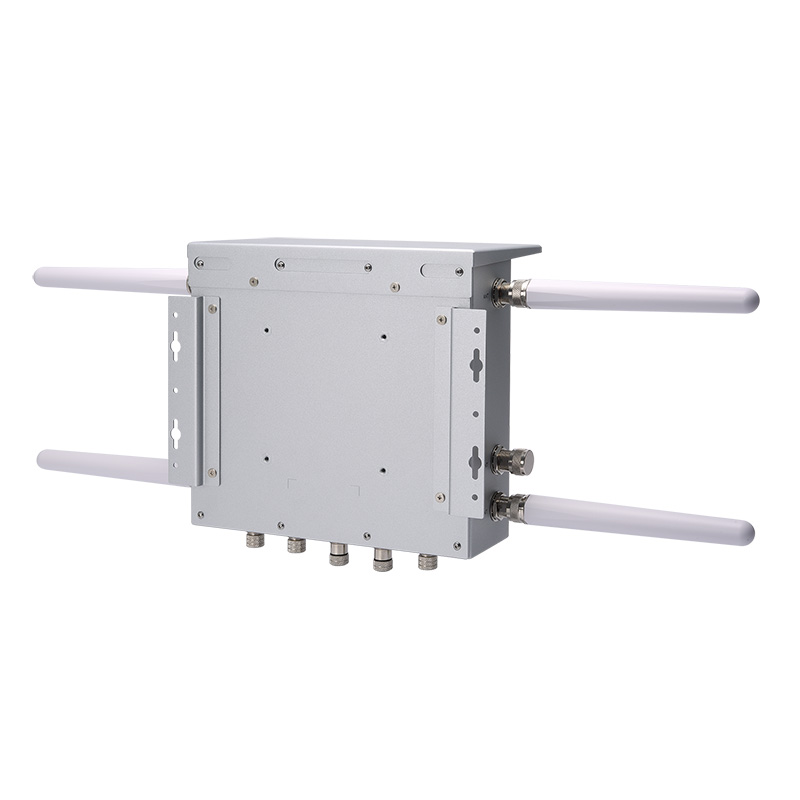

  • Wall mount kit

訂購資訊

  • AIE810-ONX-16GB
    Rugged IP67-rated fanless Edge AI system with NVIDIA® Jetson Orin™ NX, 2 PoE, 1 USB, 8CH DIO, and 9 to 36 VDC
  • E29R150104
    Wall mount kit
  • E29R150105
    Sunshade kit
  • 594B8152710E
    LAN/PoE cable, 180 cm
  • 594B8122820E
    Dual USB cable, 180 cm
  • 590000064600
    DIO cable, 200 cm
  • M.2 NVMe SSD
    128GB or above
  • LTE module kit
  • Wi-Fi module kit
  • 5G module kit
  • Power cord
  • 509000002200
    24V/90W adapter
