The AIM101 is a compact, fanless Edge AI system designed for AI inference at the edge, supporting applications such as public security monitoring, medical imaging, video analytics, smart cities, precision agriculture, industrial machine vision, and intelligent transportation systems.
The AIM101 is powered by the Intel® Twin Lake N-series processor from Intel Corporation, delivering an optimal balance of CPU performance, energy efficiency, and thermal stability for fanless edge AI deployments.
Yes. The AIM101 supports mainstream M.2 AI accelerator modules, including Axelera, DeepX, Hailo, and MemryX, delivering AI inference performance up to 214 TOPS (INT8) depending on the accelerator used.
M.2 AI accelerators provide high AI performance with significantly lower power consumption, smaller form factor, and simpler thermal design. This allows the AIM101 to achieve GPU-class inference performance while remaining compact, fanless, cost-effective, and easier to deploy at scale.

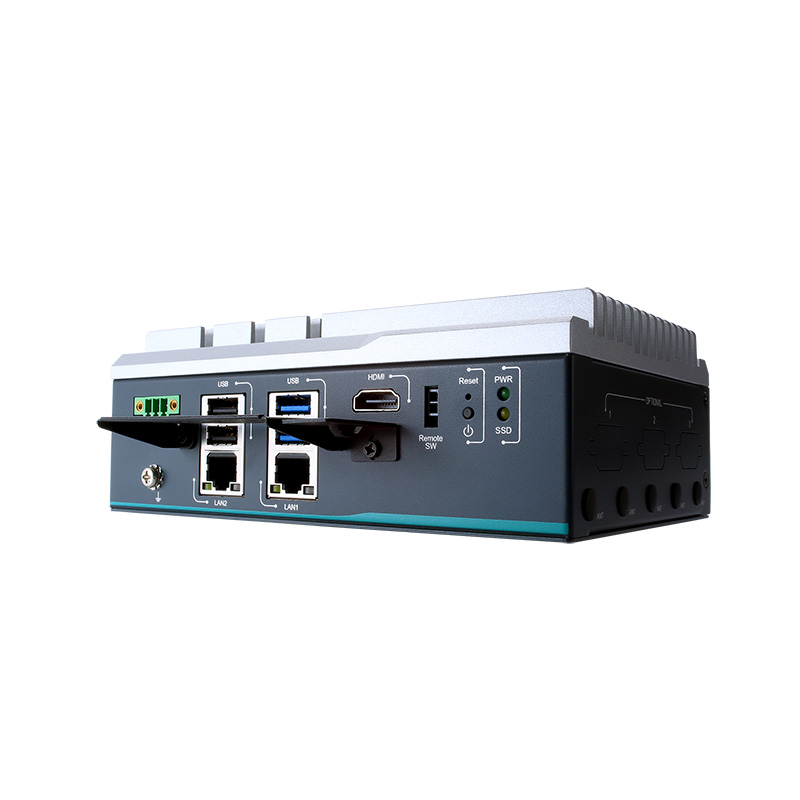

The AIM101 provides dual 2.5GbE Ethernet ports for high-bandwidth data transmission and supports Wi-Fi 6E and LTE modules for flexible wired and wireless connectivity in remote or mobile edge environments.
Yes. The AIM101 is designed for harsh edge conditions, supporting a wide operating temperature range from -40°C to +70°C, 9–36 VDC wide-range power input, and a fanless thermal design. This makes it ideal for outdoor security cabinets, roadside infrastructure, cold-chain logistics, agriculture fields, and industrial production lines.
By enabling more camera channels per system, the AIM101 reduces the total number of devices required. Its fanless design, low power consumption, and support for scalable AI accelerators help lower energy usage, cooling needs, and long-term maintenance costs, making it highly suitable for large-scale edge AI rollouts.
The AIM101 features a flexible industrial I/O design, including 8-channel TTL DIO, COM ports (RS-232/422/485), and CAN bus options, enabling seamless integration with industrial equipment, automation systems, and automotive or robotics applications.

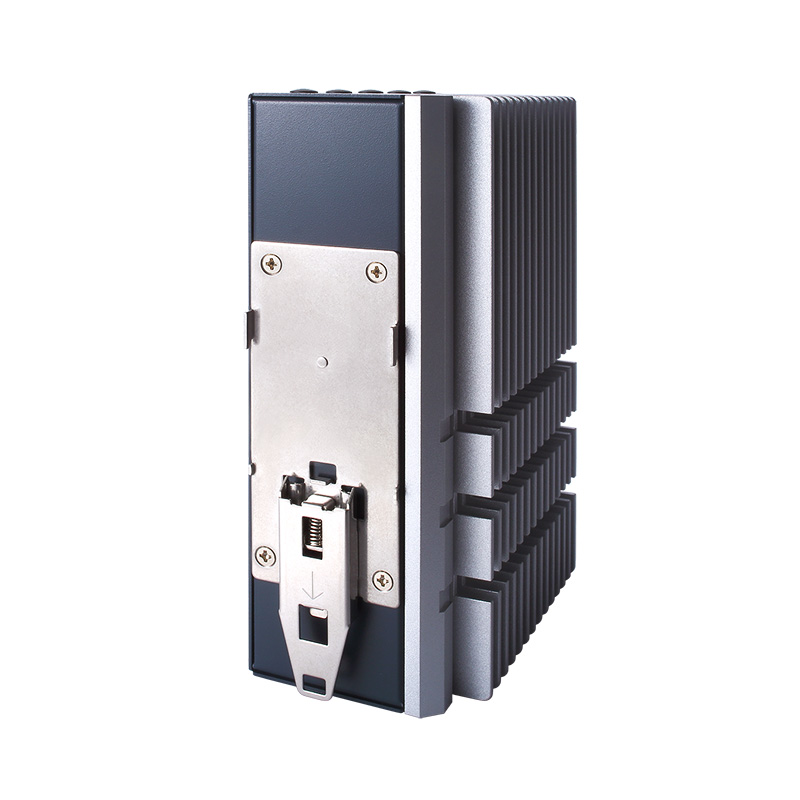

The AIM101 supports wall-mount and DIN-rail installation, allowing fast deployment in control cabinets, factory environments, smart infrastructure, and edge computing nodes. DIN-rail mounting simplifies wiring, improves space efficiency, and enhances modular scalability.
The AIM101 integrates a PCIe Gen3 x4 M.2 slot with optimized thermal engineering for AI accelerators, reducing design complexity and shortening time-to-market. This allows system integrators to deploy data-center-class AI inference performance in a compact, affordable edge platform.
By combining Intel® Twin Lake processing, flexible M.2 AI acceleration, industrial I/O, wide-temperature fanless design, and scalable connectivity, the AIM101 provides a cost-effective, low-maintenance, and highly adaptable foundation for next-generation edge AI infrastructure.
