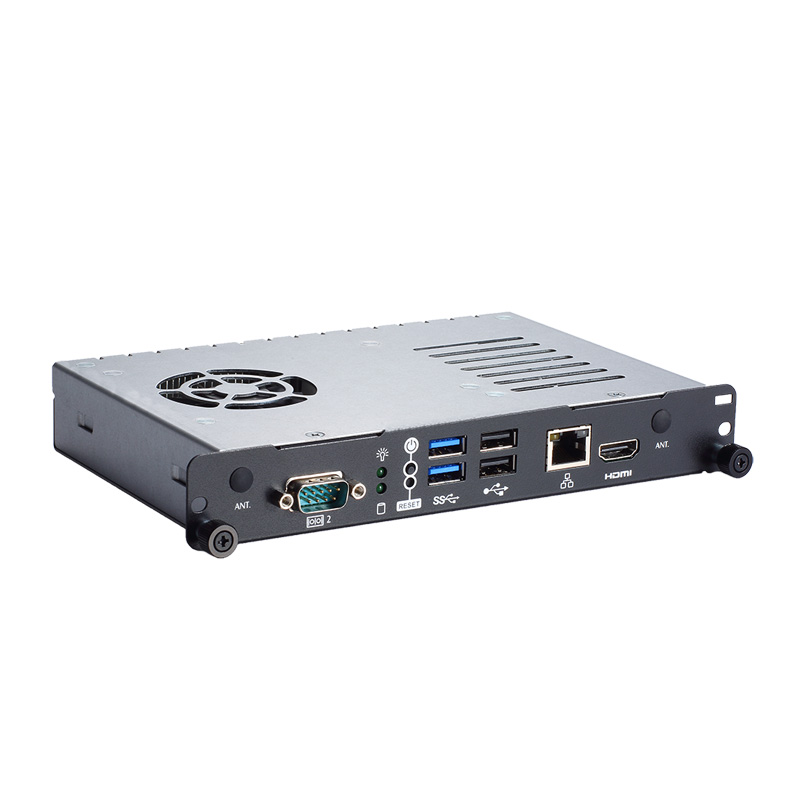

The OPS500-520-H is an OPS-compliant digital signage player designed for 4K multimedia applications. It is ideal for use in retail, transportation, education, entertainment, and interactive environments such as smart classrooms and meeting rooms.
It supports 8th generation Intel® Core™ i7/i5/i3 and Celeron® processors (Coffee Lake S) with an LGA1151 socket, allowing flexible CPU selection based on performance requirements.

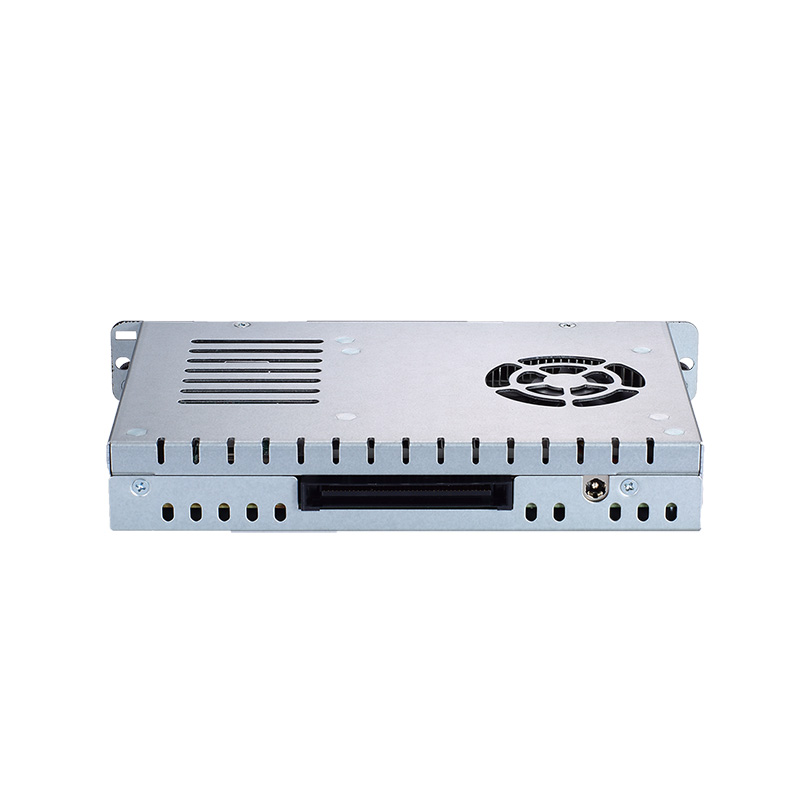

The OPS (Open Pluggable Specification) design enables a cableless connection to OPS-compliant displays via a standardized JAE TX-25A connector. This simplifies installation, maintenance, and upgrades for digital signage deployments.
The system supports HDMI output with 4K Ultra HD resolution, providing high-quality visuals for digital signage, interactive whiteboards, and multimedia content.
The OPS500-520-H supports up to 32GB of DDR4-2400 memory via two SO-DIMM slots. For storage, it includes an M.2 Key M slot supporting PCIe and SATA SSDs.
Yes, it features an M.2 Key E slot for Wi-Fi modules, enabling wireless networking for flexible deployment scenarios.

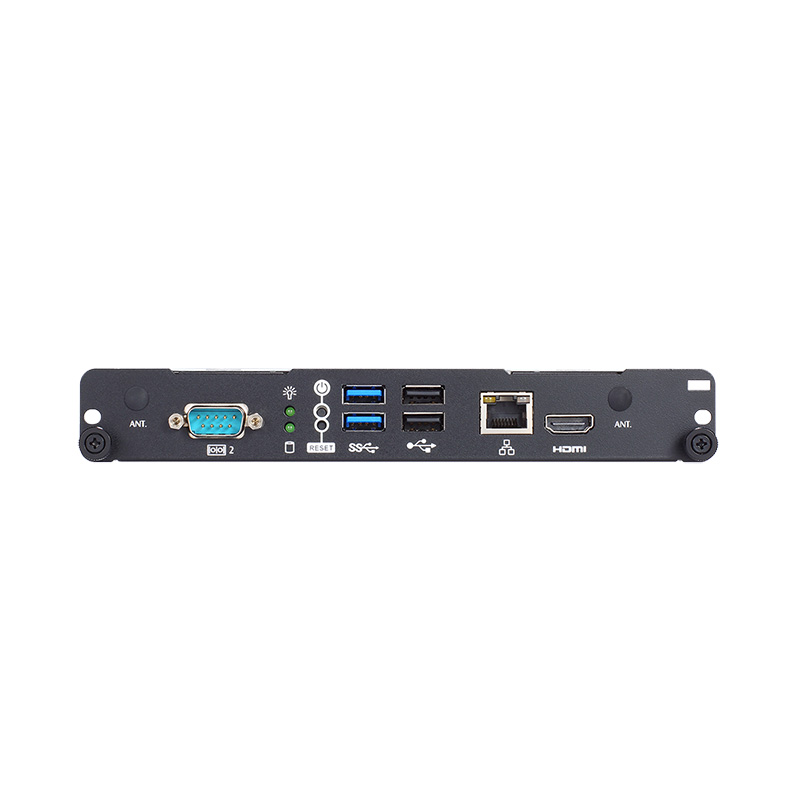

It offers multiple I/O options, including USB 3.1 Gen 1, USB 2.0, RS-232, Gigabit LAN, and HDMI. Through the OPS connector, it also supports DisplayPort, audio, and additional USB signals.
It includes TPM 2.0 support, providing hardware-based security for data protection and system integrity.
Yes, it features an ultra-low noise fan design, making it suitable for environments such as classrooms, hospitals, and conference rooms.
The OPS500-520-H supports Windows® 10 64-bit and Linux, offering flexibility for different application requirements.
