DSP801

產品階段 : 供應中

Advanced Kiosk Control System with LGA1700 Socket 13th/12th Gen Intel® Core™ Processor, 12 USB, 6 COM, HDMI/DisplayPort, 2 LAN, and 12 to 19 VDC

產品規格表 (PDF)
產品規格表 (PDF)
立即詢價
立即詢價

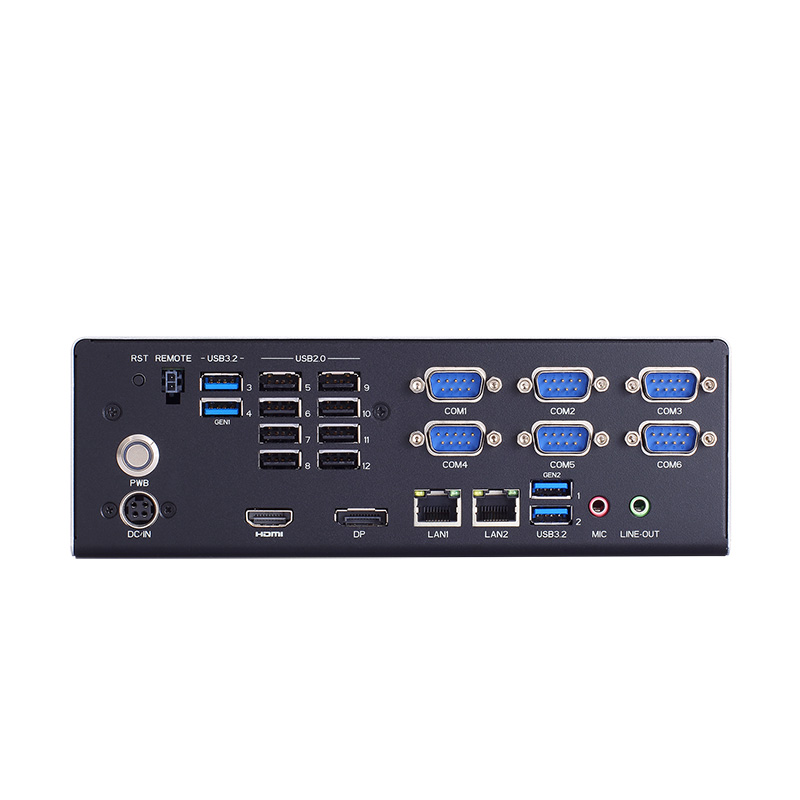

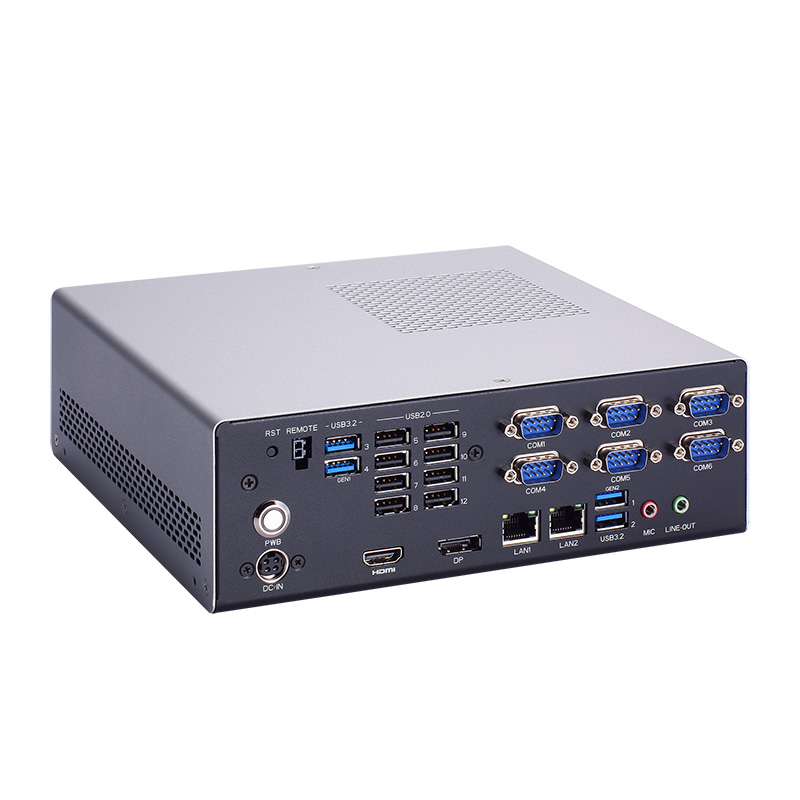

DSP801
DSP801
4K

4K

USB 3.2

USB 3.2

Wide Power Input

Wide Power Input

Wide Temperature

Wide Temperature

  • 產品特色
  • 產品規格
  • 訂購資訊
  • 技術文件
  • 常見問題

產品特色

  • LGA1700 socket 13th/12th Gen Intel® Core™ processor
  • Dual DDR4-3200 SO-DIMM, up to 64GB memory (DDR5 version will be available in Q1 2026)
  • 12 USB, 6 COM, 1 HDMI, 1 DisplayPort
  • Supports 1 M.2 Key M 2242/2280 and one 2.5" SATA drive for storage
  • Supports 1 M.2 Key E 2230 for Wi-Fi/Bluetooth
  • Supports TPM 2.0
  • Suitable applications: self-service kiosks, ticketing kiosks, self-ordering kiosks, and hospitality kiosks, etc.

產品規格

CPU
  • LGA1700 socket 13th/12th Gen Intel® Core™ i7/i5/i3 processor (max. 35W TDP)
Chipset
  • Intel® H610
System Memory
  • 2 x DDR4-3200 SO-DIMM, up to 64GB (DDR5 version will be available in Q1 2026)
Watchdog Timer
  • 255 levels, 1 to 255 sec.
COM
  • 6 x RS-232 (COM)
USB
  • 2 x USB 3.2 Gen 2
  • 2 x USB 3.2 Gen 1
  • 8 x USB 2.0
Ethernet
  • 2 x 10/100/1000 Mbps Ethernet
Display
  • 1 x HDMI 2.0, 4K display
  • 1 x DisplayPort 1.4, 4K display
Audio
  • 1 x Line-out
  • 1 x Mic-in
Storage
  • 1 x SATA 3.0 (6Gb/s)
  • 1 x M.2 Key M 2242/2280 (PCIe x4 Gen 3 interface)
Expansion
  • 1 x M.2 Key E 2230 slot for Wi-Fi (USB 2.0 + PCIe signal)
Others
  • 1 x Power switch
  • 1 x 4-pin DC-in
  • 1 x Remote power switch
  • 1 x Reset switch connector
TPM
  • TPM 2.0
Power Supply
  • 12 to 19 VDC input
Vibration Endurance
  • N/A
Operating Temperature
  • 0°C to +50°C (+32°F to +122°F)
Dimensions (W x D x H)
  • 215 x 200 x 72 mm (8.46" x 7.87" x 2.83")
Weight (net/gross)
  • 1.8 kg (3.96 Ib)/2.8 kg (6.17 Ib)
Mounting
  • By request
EOS Support
  • Win 11 IoT, Linux
Software Support
  • N/A
Certifications
  • CE, FCC class A

訂購資訊

  • DSP801
    Advanced Kiosk Control System with 12/13th Gen Intel® Core™ i7/i5/i3/Celeron® with Intel® H610 Chipset, 2 SO-DIMM, 1 M.2 SSD, 1 SATA 3.0, 1 HDMI, 1DP, 2 LAN, 12 USB, and 6 COM

技術文件

Drivers

Software

Manual

Design Guide

Technical Announcement

Certificates

日期 說明 版本 下載檔案
2026/03/24 CE EMC Verification
2026/03/24 CE-Conformity Declaration
2026/03/24 CE LVD Verification
2026/03/24 UKCA Declaration of Conformity
2026/03/24 FCC Verification
