GOT715S

產品階段 : 供應中

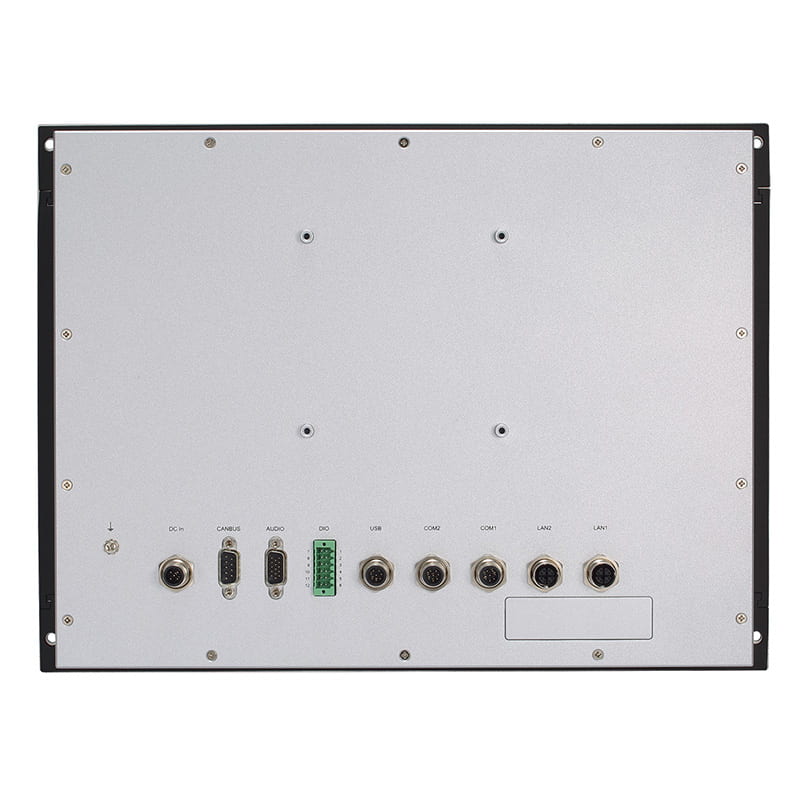

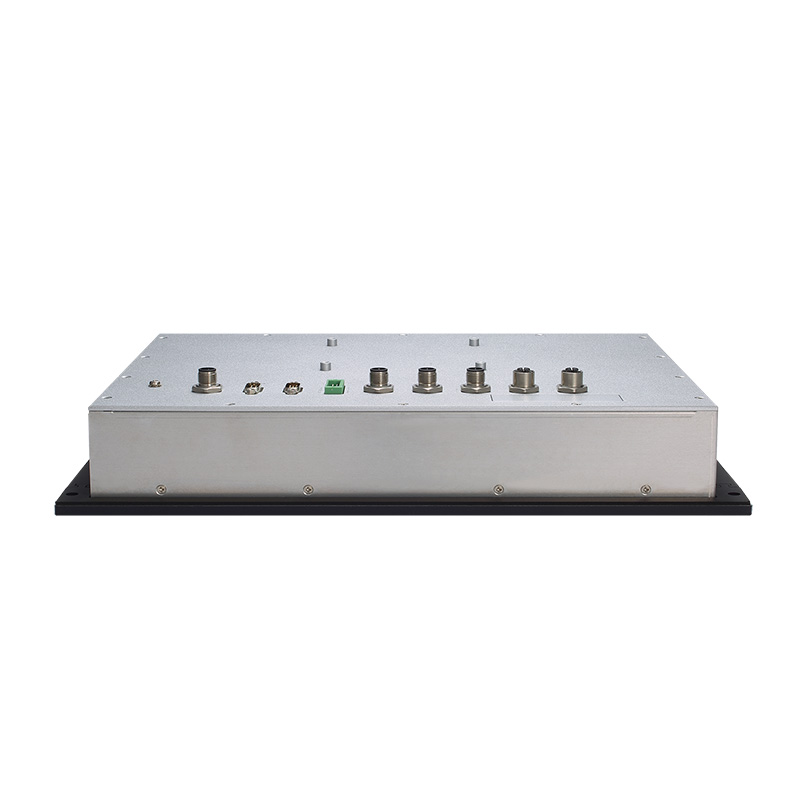

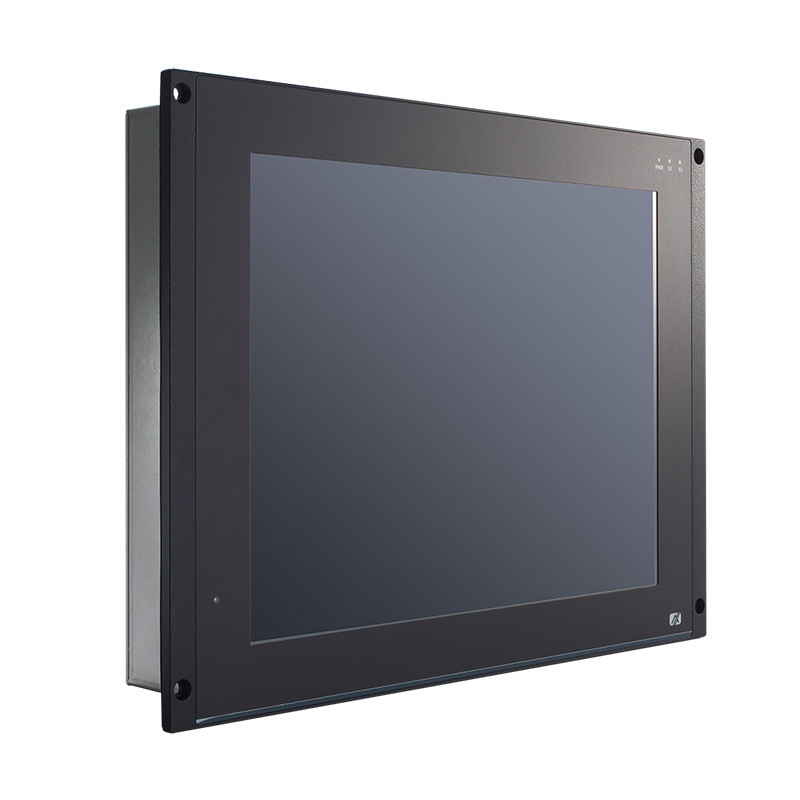

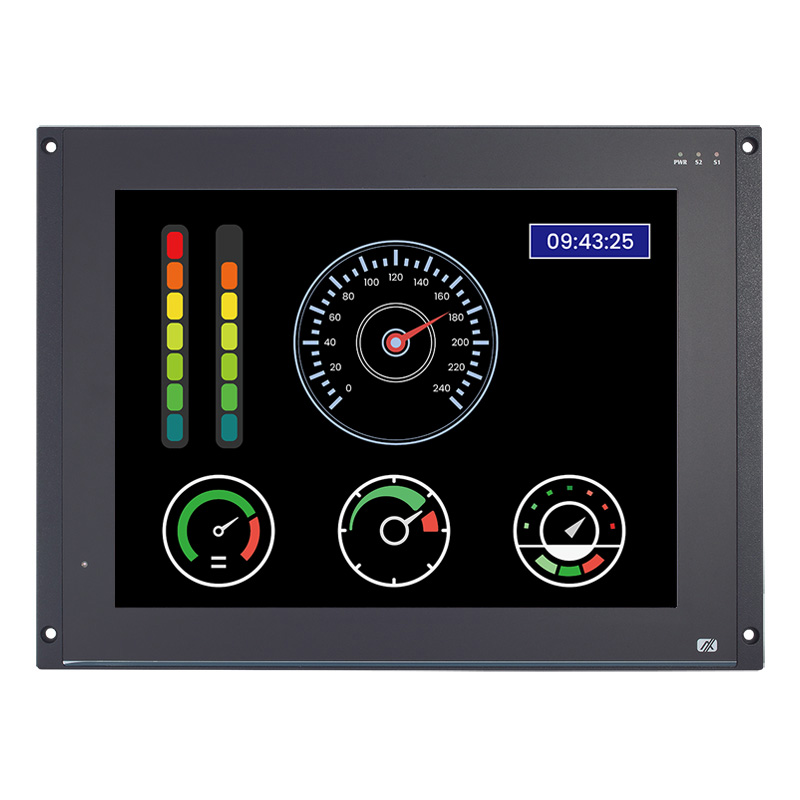

EN 50155 Compliant 15" XGA TFT LCD Railway Fanless Touchscreen Panel PC with Intel Atom® Processor E3845 1.91 GHz (-25°C to +70°C)

產品規格表 (PDF)
產品規格表 (PDF)
加入比較
加入比較
立即詢價
立即詢價
GOT715S
GOT715S
GOT715S
GOT715S
EN 50155

EN 50155

Fanless

Fanless

Low Power

Low Power

M12 Connector

M12 Connector

Wide Temperature

Wide Temperature

  • 產品特色
  • 產品規格
  • 訂購資訊
  • 技術文件
  • 常見問題

產品特色

  • Sunlight readable 15" XGA TFT LCD with 800 nits of high brightness
  • Fanless with Intel Atom® processor E3845 1.91 GHz
  • All lockable connector design
  • Auto-dimming for different environments
  • -25°C to +70°C wide temperature range
  • Typical 24 to 110 VDC wide power input range and EN 50155 Class S3 20ms power interruption protection compliant
  • EN 50155 design compliance

產品規格

LCD Panel
  • 15" TFT LCD
  • 800 nits
  • 1024 x 768 pixels
CPU
  • Intel® Atom® processor E3845 1.91 GHz (Bay Trail)
Chipset
  • SoC integrated
System Memory
  • DDR3L 4GB onboard
BIOS
  • AMI
COM
  • 2 x Isolated M12 A-coded RS-232/422/485 (isolation level 1.5kV)
USB
  • 1 x M12 A-coded USB 2.0 (2 port signal)
Ethernet
  • 2 x Isolated M12 X-coded GbE (isolation level 1.5kV)
Display
  • N/A
Audio
  • 1 x DB15 audio line-in, mic-in, speaker-out or line-out
DIO
  • 1 x Isolated terminal block DIO (6-in/2-out, isolation level 1.5kV)
Storage
  • 1 x mSATA
CANbus
  • 1 x Isolated DB9 CANbus (isolation level 1.5kV)
Expansion
  • 2 x PCI Express Mini Card slot (slot2 for mSATA use only)
Others
  • Auto-dimming for different environments
Touchscreen
  • 5-wire resistive touchscreen
Front Bezel
  • IP65-rated aluminum front bezel and IP40-rated rear protection
Power Supply
  • 1 x M12 A-coded DC-in
  • Typical 24 to 110 VDC
  • EN 50155 S3 20ms power interruption protection
Power Consumption
  • 24-110VDC@1.28-0.26A
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Operating Temperature
  • -25°C to +70°C (-13°F to +158°F)
Relative Humidity
  • 10% - 95% @ +40°C, non-condensing
Vibration
  • N/A
Dimensions (W x D x H)
  • 400 x 61.5 x 300 mm (15.75" x 2.42" x 11.81")
Weight (net/gross)
  • 4.03 kg (8.89 lb) / 6.43 kg (14.18 lb)
Certifications
  • CE/FCC Class A
  • EN 50155 compliant
OS
  • Windows® 10, Windows® 10 IoT, Windows® 7, WES 7
Mounting
  • Wall mount
  • VESA mount

訂購資訊

  • GOT715S-RA-M (P/N-E22B715S00)
    15" XGA railway fanless touch panel computer with Intel Atom® E3845, sunlight readable LCD (800 nits), 5-wire resistive touchscreen, 24 to 110 VDC power input
  • 822B7100140E
    GOT71X 3G+GPS kit
  • 8812B7100A0E
    GOT71X Wi-Fi kit
  • 594B8122820E
    M12 A-coded USB cable
  • 594B7102100E
    RS-232 cable
  • 594B7102700E
    M12 X-coded LAN cable
  • 594B7100B00E
    M12 DC-in power cable with ACC signal, length 1.8M
