GOT712A

產品階段 : 供應中

EN 50155 12.1" XGA TFT LCD Railway Fanless Touchscreen Panel PC with Intel Atom® x6425E Processor (12W) 2.0 GHz (-40°C to +70°C)

產品規格表 (PDF)
產品規格表 (PDF)
加入比較
加入比較
立即詢價
立即詢價

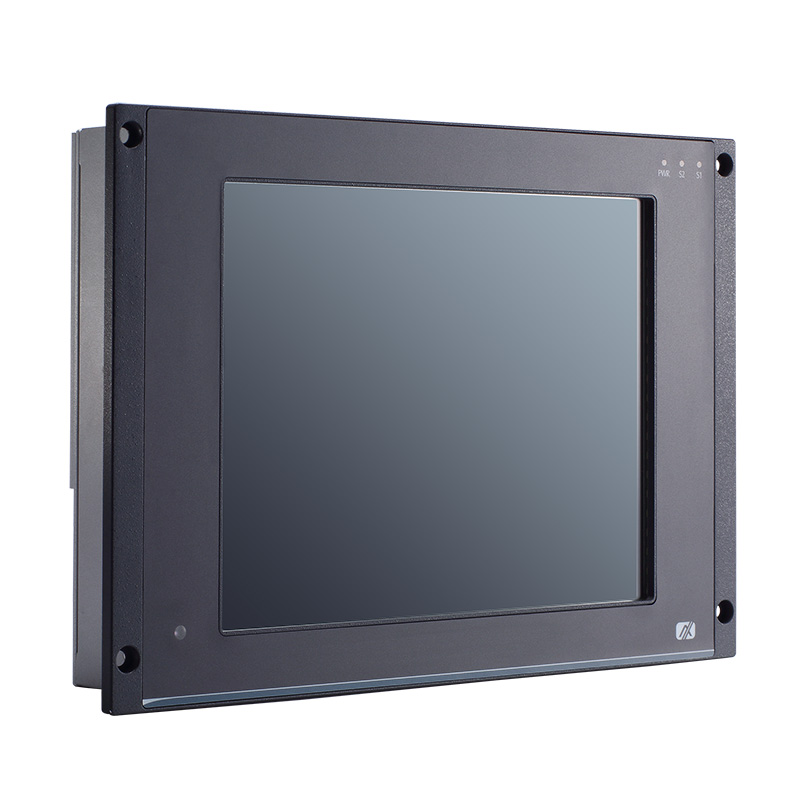

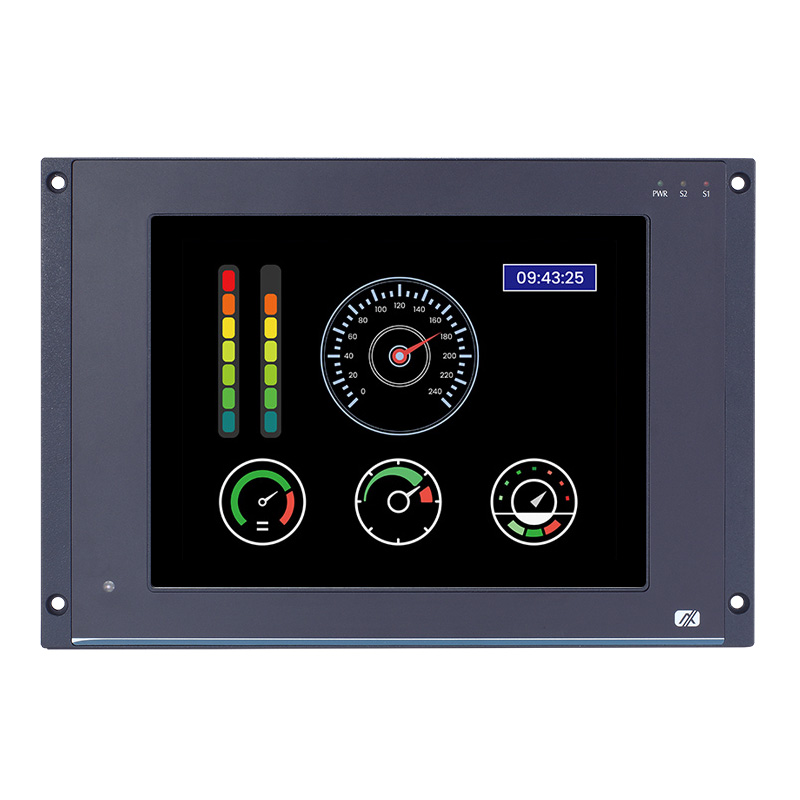

GOT712A
GOT712A
GOT712A
EN 50155

EN 50155

Fanless

Fanless

Low Power

Low Power

M12 Connector

M12 Connector

Wide Temperature

Wide Temperature

  • 產品特色
  • 產品規格
  • 訂購資訊
  • 技術文件
  • 常見問題

產品特色

  • Sunlight-readable 12.1" XGA TFT LCD
  • Intel Atom® x6425E processor, 12W (Elkart Lake)
  • M12-type lockable connectors design
  • Auto-dimming for different environments
  • Operating temperature ranges from -40°C to +70°C (EN 50155 OT4)
  • Typical 24 to 110 VDC wide power input range for all types of trains
  • EN 50155 and EN 45545-2 certified for railway applications
Market Ready
Market Ready

EN 50155
EN 45545-2

Rugged Design
Rugged Design

Operating temperature -40°C to +70°C
M12-type lockable connector

Adaptive Visibility
Adaptive Visibility

Sunlight-readable 600 nits
Auto-dimming



Railway-Certified Reliability for Onboard Deployment

The fanless GOT712A is ready for market with COC-ready EN 50155 and EN 45545-2 certifications, simplifying the validation and compliance process for customers. Its wide operating temperature range of -40°C to +70°C (EN 50155 OT4) and 24 to 110 VDC wide-range power input (EN 50155 S2) supports reliable operation across diverse global climates and voltage challenges.

Operator-Focused HMI with High Visibility

Optimized for driver cabs and onboard control panels, the GOT712A features a sunlight-readable screen with 600nits of brightness. The integrated auto-dimming light sensor enhances operator comfort while dynamically reducing unnecessary power consumption. It supports projected capacitive (PCAP) touch, with an optional keypad version available for versatile maintenance and operational needs.



Versatile I/O and Expansion to Accelerate Solution Development

Powered by the Intel Atom® x6425E processor (12WTDP), the power-efficient system features comprehensive railway interfaces. A standout feature is the flexible I/O window ready for MVB (Multi-function Vehicle Bus), designed for project-specific customization. Expansion is further supported by Mini PCIe and M.2 slots for Wi-Fi, LTE, and additional storage.

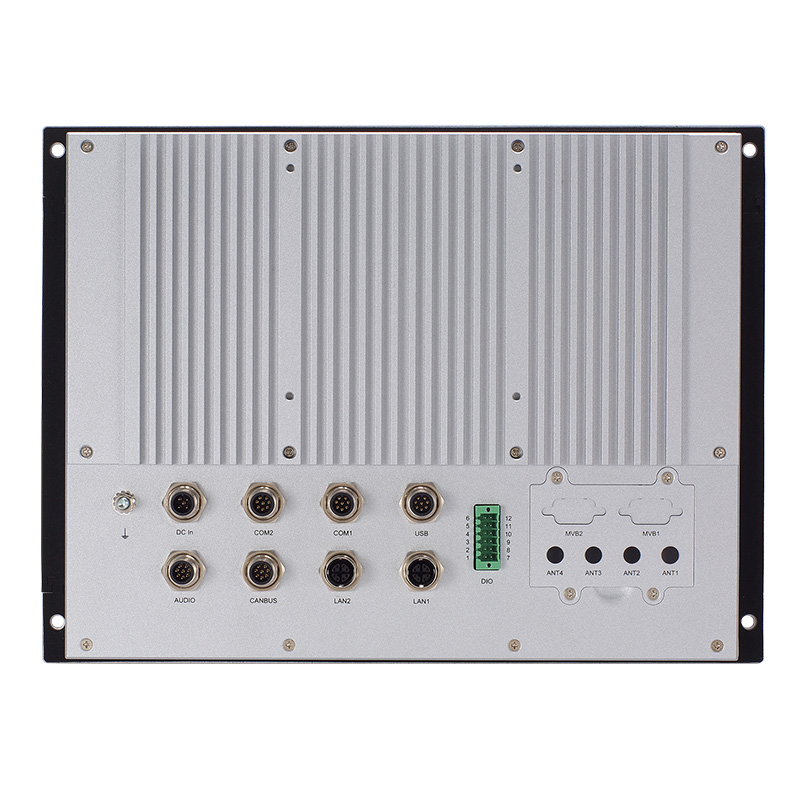

Rich I/O Interfaces

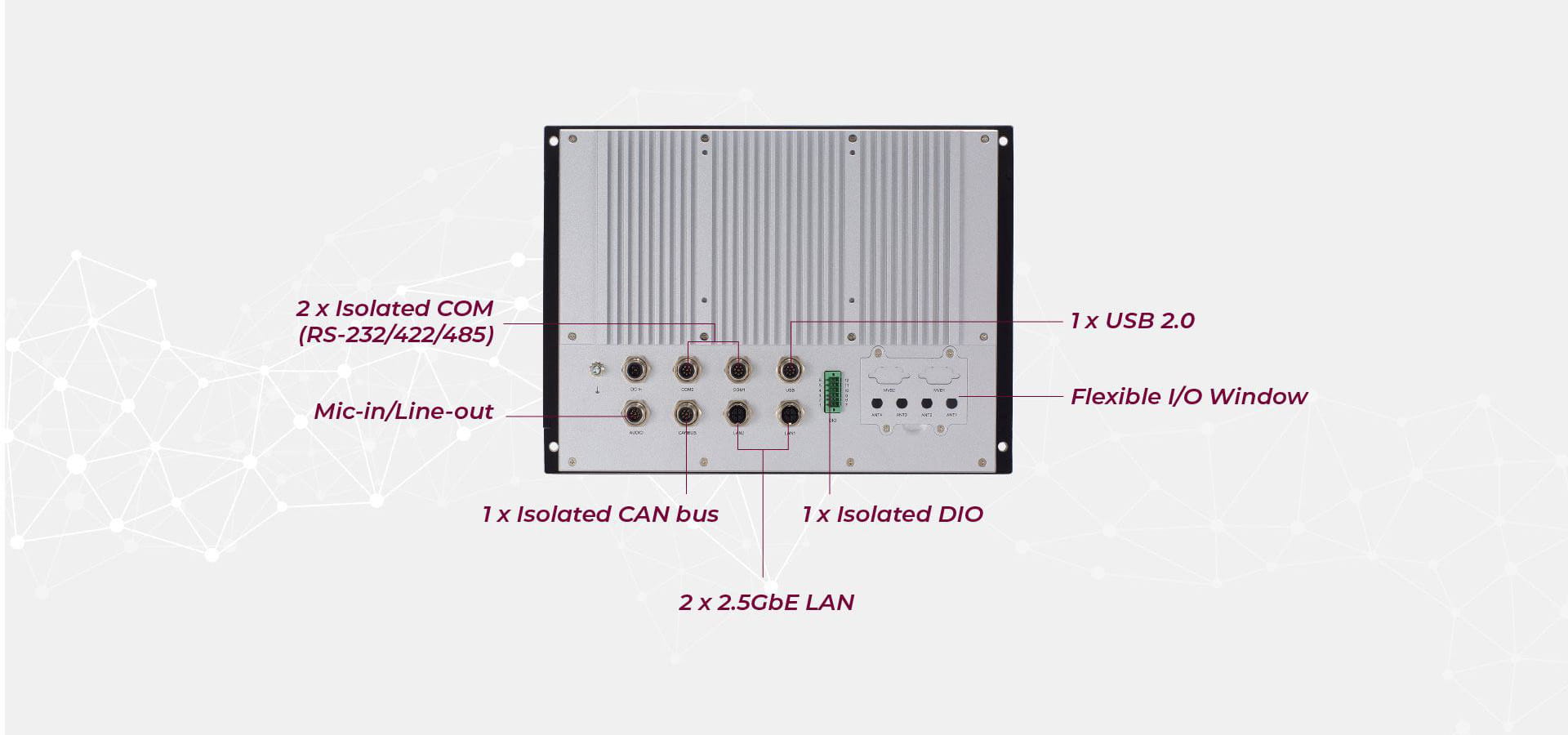

GOT712A Front I/O

產品規格

LCD Panel
  • 12.1" XGA TFT LCD
  • 600 nits
  • 1024 x 768
  • 178°/178°
CPU
  • Intel Atom® x6425E processor, 12W (Elkart Lake)
Chipset
  • SoC integrated
System Memory
  • 1 x 260-pin DDR4-3200 SO-DIMM, up to 32GB
BIOS
  • AMI
COM
  • 2 x M12 A-coded 8-pin isolated RS-232/422/485
USB
  • 1 x M12 A-coded USB 2.0 (2-port signal)
Ethernet
  • 2 x M12 X-coded 8-pin 2.5GbE LAN
Display
  • N/A
Audio
  • 1 x M12 A-coded 8-pin Mic-in/Line-out
CANbus
  • 1 x M12 A-coded 8-pin isolated CAN bus
DIO
  • 1 x terminal block isolated DIO (6-in/2-out)
Storage
  • 1 x M.2 Key B 2242 SSD
TPM
  • N/A
Expansion
  • 1 x full-size Mini Card slot (PCIe/USB/SIM)
  • 1 x full-size Mini Card slot (PCIe/USB/mSATA )
  • 1 x M.2 Key B 2242 slot (SATA)
  • 1 x M.2 Key E 2230 slot (PCIe/USB)
Others
  • MVB (optional)
Touchscreen
  • Projected capacitive touch
Front Bezel
  • IP65-rated aluminum front bezel and IP40-rated rear protection
Power Supply
  • 1 x M12 A-coded isolated DC-in
  • Typical 24 to 110 VDC EN 50155 Class S2 10ms power interruption protection
Power Consumption
  • N/A
Watchdog Timer
  • 255 levels, 1 to 255 seconds
Operating Temperature
  • -40°C to +70°C (-40°F to +158°F) (EN 50155 OT4)
Relative Humidity
  • 10% to 90% relative humidity @ +40°C, non-condensing
Shock
  • N/A
Vibration
  • N/A
Dimensions (W x D x H)
  • 330 x 55 x 245 mm (12.93" x 2.17" x 9.65")
Weight (net/gross)
  • 3.22 kg (7.09 lbs)/5.6 kg (12.34 lbs)
Certifications
  • CE/FCC Class A, EN 50155, and EN 45545-2 certified
OS
  • Windows® 11
  • Ubuntu 22.04
Mounting
  • Wall mount
  • VESA mount

訂購資訊

  • GOT712A-ELK-TC (P/N-E22B712A00)
    12.1" XGA railway fanless touchscreen panel PC with Intel Atom® x6425E, sunlight readable LCD (600 nits), projected capacitive touchscreen, 24 to 110 VDC power input, default with DDR4 8GB and M.2 SSD 128GB
  • E29R318100
    ACC318-501-203 LTE NL668-EAU kit
  • E29R301103
    ACC301-701-203 Wi-Fi 5 QCNFA364A kit
  • 594B8122820E
    M12 A-coded USB cable
  • 594B7102100E
    RS-232 cable
  • 594B7102700E
    M12 X-coded LAN cable
  • 594B7100B00E
    M12 DC-in power cable with ACC signal, length 1.8 m
  • 509000002200
    PWS 9NA0908344 FSP 90W AC to DC (24V) adapter with M12 connector
  • E39Q108103
    CANBus module with 2DB9 for flexible window expansion

技術文件

Drivers

日期 說明 版本 下載檔案
2026/03/16 6. HD Audio VA1.0
2026/03/16 7.Fintek CANBUS Driver VA1.0
2026/03/16 5.Intel® Serial IO Driver_5.123.1.1025 VA1.0
2026/03/16 4.Intel ME Driver VA1.0
2026/03/16 2.Intel Graphic Driver VA1.0
2026/03/16 3.Intel LAN Driver VA1.0
2026/03/16 1.Intel Chipset Driver VA1.0

Software

Manual

日期 說明 版本 下載檔案
2026/03/30 User's Manual VA2

Design Guide

Technical Announcement

Certificates

日期 說明 版本 下載檔案
2026/06/15 CE LVD Verification
2026/06/15 UKCA Declaration of Conformity
2026/06/15 CE-Conformity Declaration
2026/06/15 FCC Verification
2026/06/15 CE EMC Verification
2026/06/04 EN50155 Certificate

常見問題FAQ

您可能也會喜歡

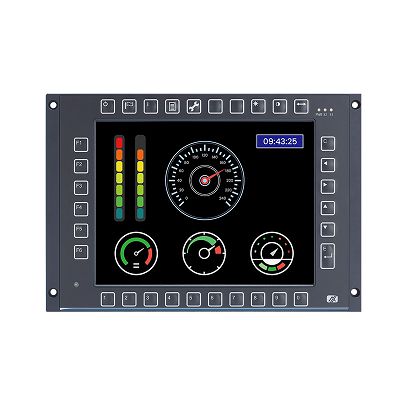

產品圖片 GOT710A

GOT710A

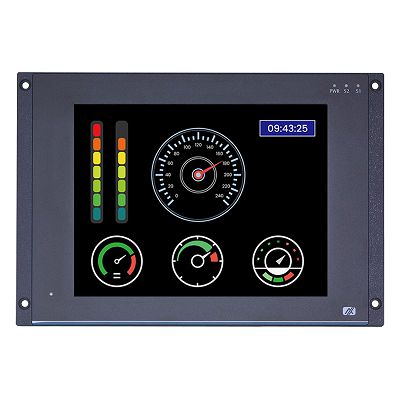

產品圖片 GOT712S
