ITC150WM

產品階段 : 供應中

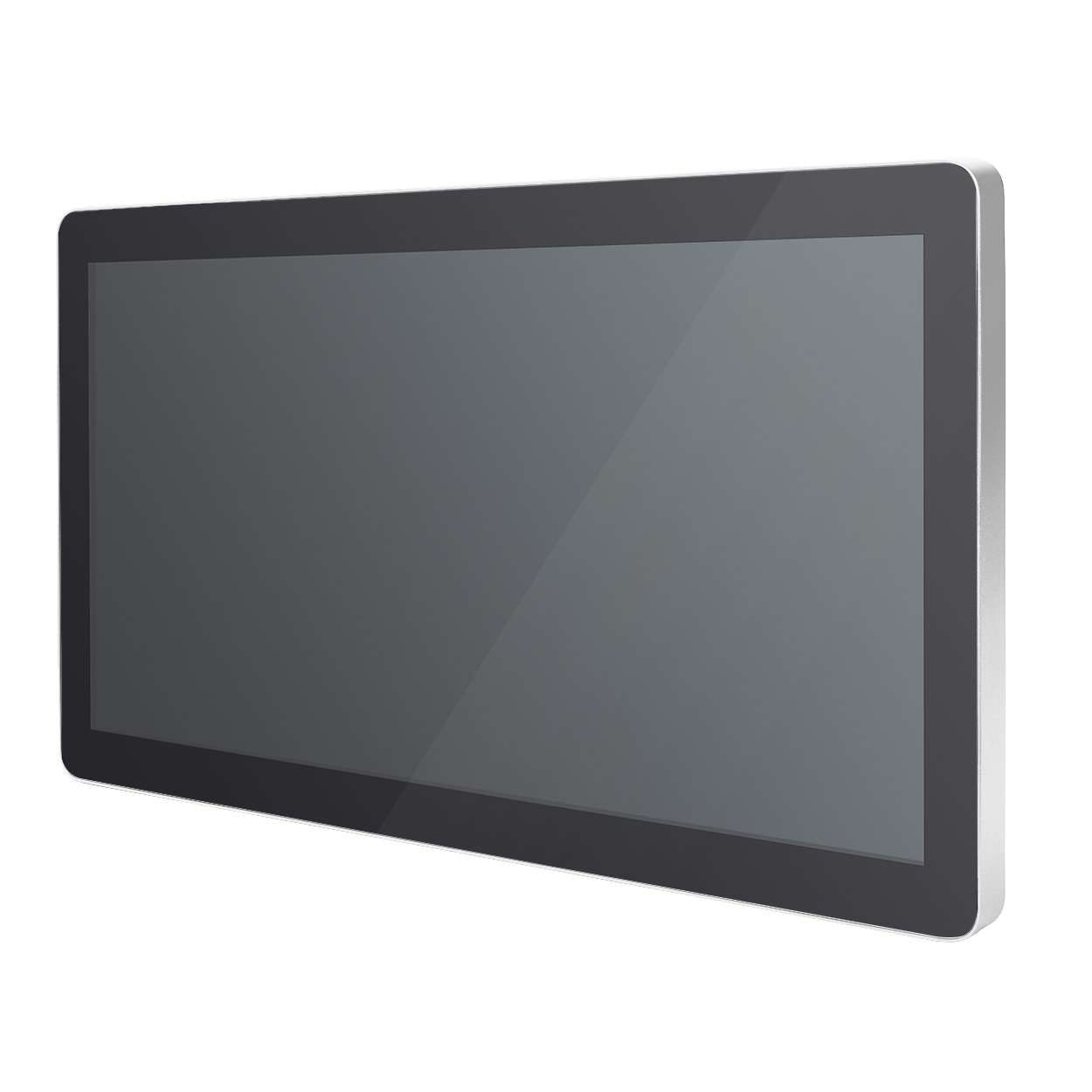

15.6" FHD TFT LCD Slim Bezel Modular Panel PC with Intel® Smart Display Module (SDM) CPU Card

產品規格表 (PDF)
產品規格表 (PDF)
加入比較
加入比較
立即詢價
立即詢價
ITC150WM
ITC150WM
ITC150WM
ITC150WM
Intel SDM

Intel SDM

PCAP

PCAP

Slim Bezel

Slim Bezel

  • 產品特色
  • 產品規格
  • 訂購資訊
  • 技術文件

產品特色

  • 15.6" full HD TFT LCD
  • 16:9 aspect ratio; 300 nits brightness
  • Slim bezel shape under 40 mm thickness
  • Projected capacity touch with 10-point touch supported
  • Swappable Intel® SDM CPU card design
  • Metal frame structure for various applications
  • Supports add-on modules and mounting kits (optional)

產品規格

LCD Panel
  • 15.6" FHD TFT LCD
  • 300 nits
  • 16:9 radio
  • 1920 x 1080 pixels
SDM Module
  • SDM300-S: Intel® SDM Small (SDM-S, 60 x 100 mm)
  • SDM500-L: Intel® SDM Large (SDM-L, 175 x 100 mm)
CPU
  • SDM300-S: Quad-core Intel® Pentium® N4200 1.1GHz processor or dual-core Intel® Celeron® N3350 1.1GHz processor
  • SDM500-L: Intel® Celeron® 4305UE 2.0GHz processor or Intel® Core™ processor (optional)
Chipset
  • SoC integrated
System Memory
  • SDM300S: Onboard LPDDR4 2400 MHz 4GB (8GB optional)
  • SDM500L: 2 x 260-pin DDR4-2400 SO-DIMM slot, up to 64GB

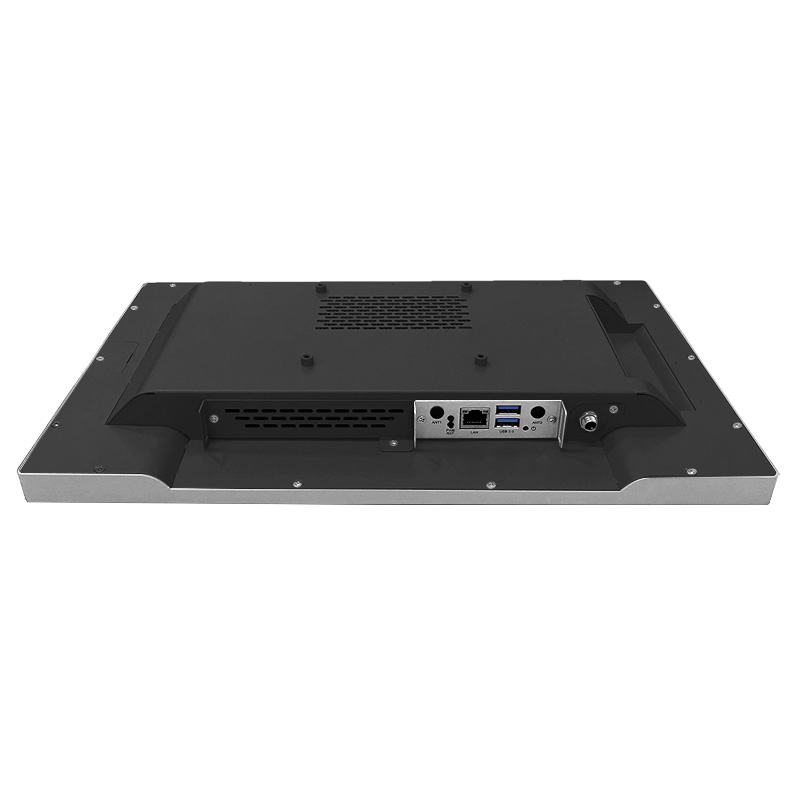

SDM-S I/O
  • 1 x GbE LAN
  • 2 x USB 3.0 Type A
  • 2 x SMA antenna reserved hole

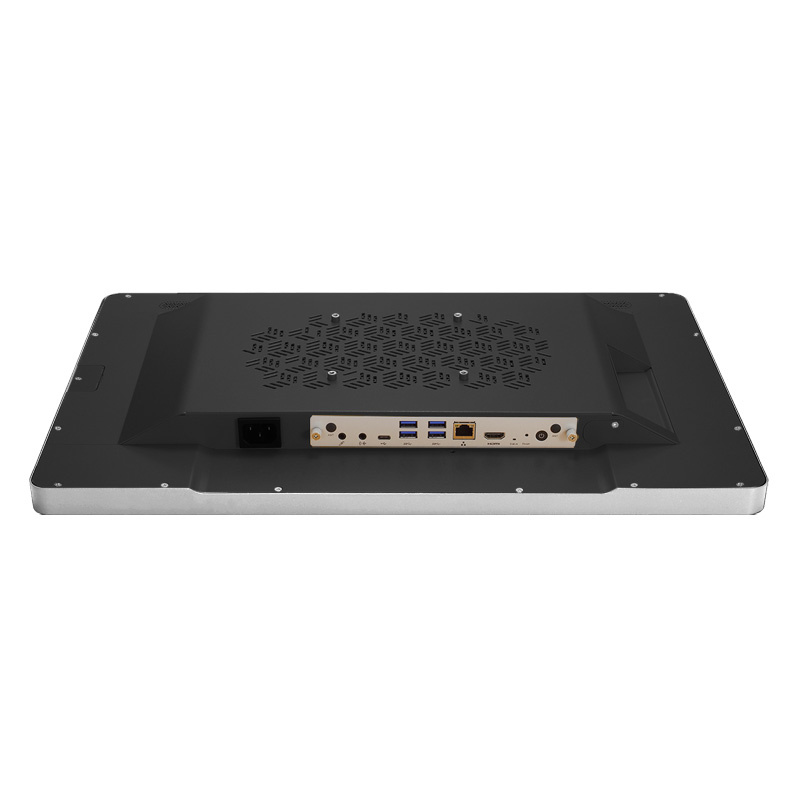

SDM-L I/O
  • 1 x Power button with LED
  • 1 x GbE LAN
  • 4 x USB 3.0 Type A
  • 1 x Audio output
  • 1 x Micphone input

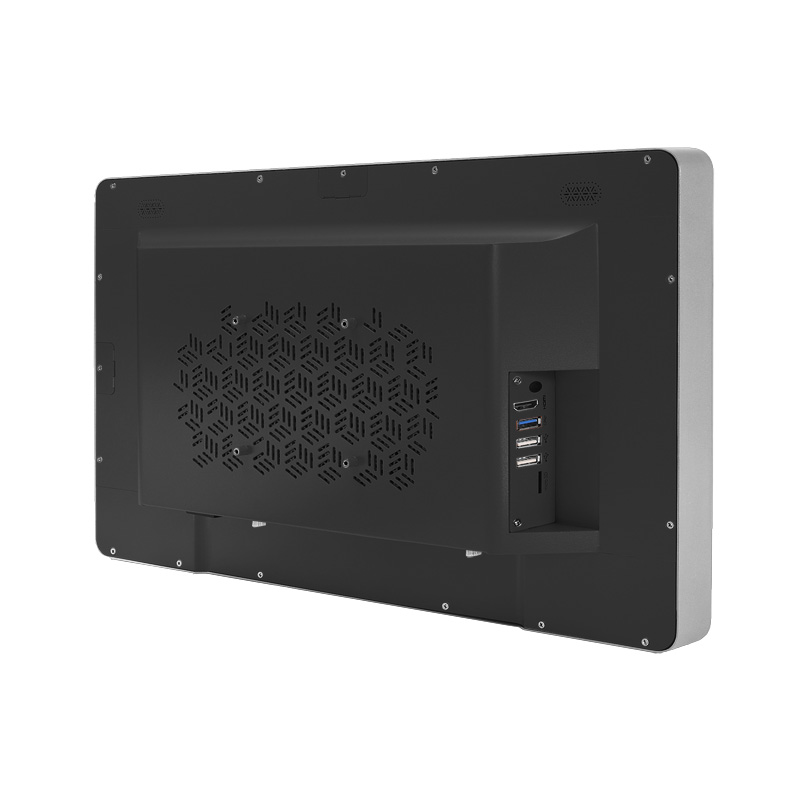

I/O
  • 1 x HDMI
  • 1 x USB 3.0 Type A
  • 2 x USB 2.0 Type A
  • 1 x microSD card slot (push-push type)
  • 2 x 12 VDC-in barrel (screw-lock type)
  • 1 x Power button with LED
Touchscreen
  • Projected capacitive multi-touch
Front Bezel
  • Metallic front bezel, IPx4 compliant
Expansion
  • SDM300-S:1 x M.2 Key E 2230 slot (for the Wi-Fi)
  • SDM500-L: 1 x M.2 Key E 2230 slot (for the Wi-Fi)
Storage
  • SDM300-S:
  • 1 x eMMC 64GB onboard
  • SDM500-L:
  • 1 x M.2 Key M 2242 slot
  • 1 x M.2 Key B 2280 slot
Others
  • 2 x S.P.L. 88dB, 1.5W, 4 ohm
Power Supply
  • 84W (12V@7A) AC to DC power adapter
Power Consumption
  • Average 45W
Dimensions
  • 386 x 40 x 241 mm (15.1” x 1.6” x 9.5”)
Weight (net/gross)
  • 3.1kg (6.9lb)/5.6kg (12.4lb)
Operating Temperature
  • 0°C to +40°C (+32°F to +104°F)
Operating Humidity
  • 20% - 90%, non-condensing
Certications
  • CE, FCC Class A

訂購資訊

  • ITC150WMSDM300S-N4200 (P/N-E22T150102)
    15.6 FHD PCAP touch slim bezel panel with SDM300S (Intel® Pentium® N4200 processor, onboard DDR4 4G, eMMC 64GB, 1 LAN, 3 USB 3.0, 2 USB 2.0, 2 speaker, and 2 DC Jack)
  • ITC150WM- SDM500L-8365UE (P/N-E22T150103)
    15.6 FHD PCAP touch slim bezel panel with SDM500L (Intel® Core™ i5 8365UE processor, 2 SO-DIMM, 2 M.2 SSD, 1 LAN, 5 USB 3.0, 2 USB 2.0, 2 speaker, 1 Mic-in, 1 Line-out, and 2 DC Jack)
  • SSD M.2 2280-B-M (SDM500L)
  • SSD M.2 2242-B (SDM500L)
  • DDR4 SO-DIMM
    4GB - 32GB (SDM500L)
  • 822T1500050E
    Mounting kit
  • 8812T1500A0E
    Wi-Fi kit
  • 59903000000E
    AC power cord EU, L=1830 mm
  • 59902000000E
    AC power cord US, L=1830 mm
  • 59909010000E
    AC power cord China, L=1830 mm
  • 59906000010E
    AC power cord Japan, L=1830 mm
  • 59905000000E
    AC power cord Australia, L=1830 mm
  • 59918000000E
    AC power cord Brazil, L=1830 mm

技術文件

Drivers

日期 說明 版本 下載檔案
2021/09/07 5. Intel_Ethernet.zip VA1.1
2021/09/07 4. Intel_TXE Firmware.zip VA1.1
2021/09/07 3. Intel_Graphics Driver.zip VA1.1
2021/09/07 2. Intel_Serial IO.zip VA1.1
2021/09/07 1. Intel_Chipset.zip VA1.1

Software

Manual

日期 說明 版本 下載檔案
2021/09/07 ITC150 User's Manual VA1_07-14-2020.pdf VA1.0

Design Guide

Technical Announcement

Certificates

日期 說明 版本 下載檔案
2021/09/02 UKCA-Conformity Declaration
2021/01/06 CE-Conformity Declaration
2021/01/06 FCC Verification
2021/01/06 CE LVD Verification
2021/01/06 CE EMC Verification
