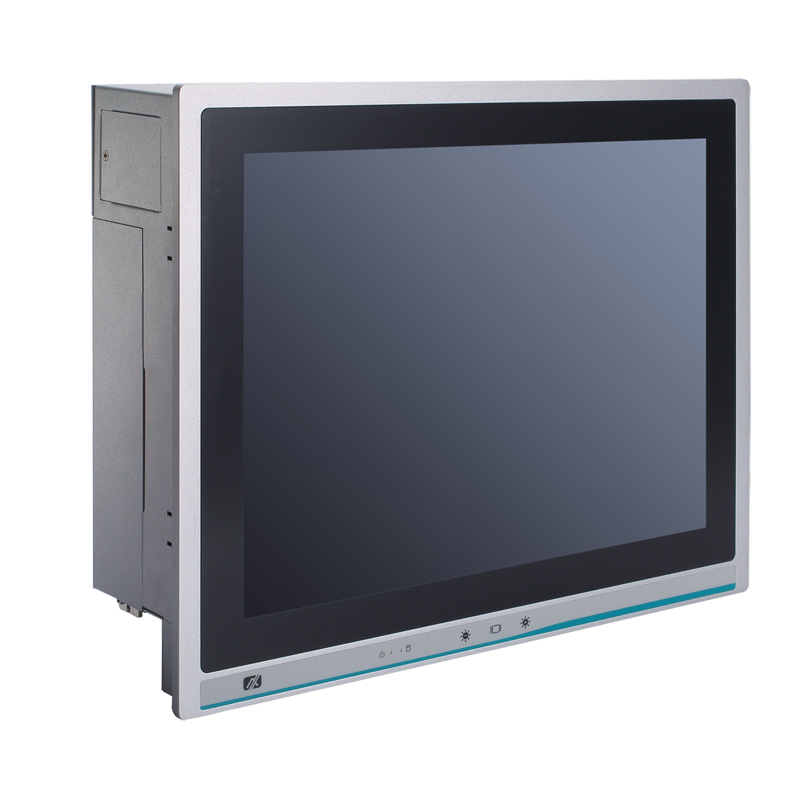

The P115-ADL-TRA is a 15-inch industrial touch panel PC designed for rugged industrial applications, including human-machine interfaces (HMI) and multimedia kiosks, providing rich connectivity and scalable performance.
It supports scalable CPU options with the LGA1700 socket, including 12th Gen Intel® Core™ i7/i5/i3 and Pentium® processors with the Intel® H610 chipset.

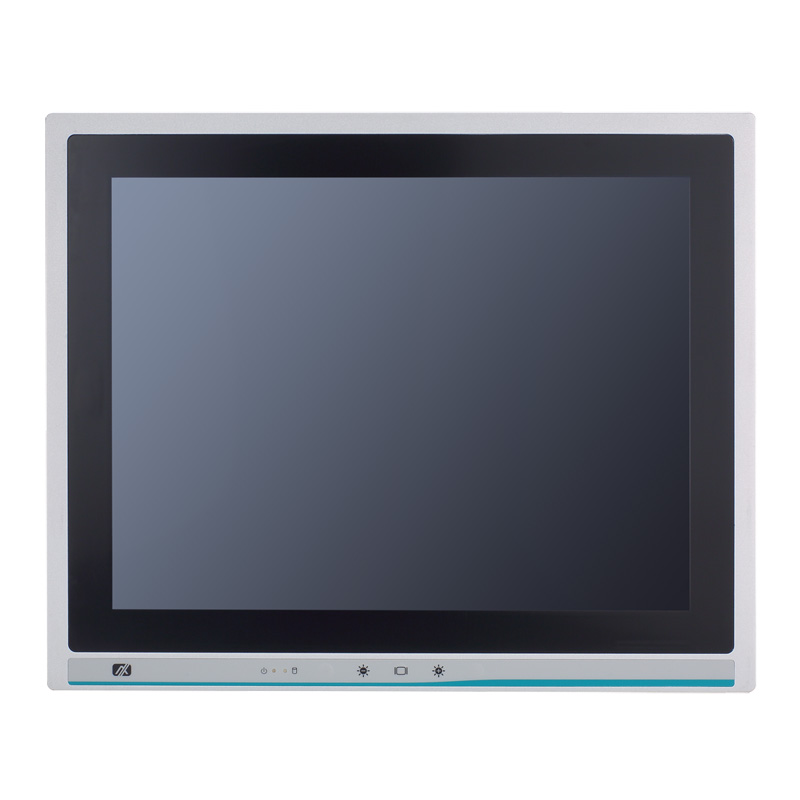

The P115-ADL-TRA has a 15-inch XGA TFT LCD with a 5-wire resistive touchscreen, 300 nits brightness, and an IP65-rated aluminum front bezel for rugged protection.
It features dual 260-pin DDR4-3200/2666/2400 SO-DIMM slots supporting up to 64GB of system memory and supports one 2.5” SATA HDD/SSD for storage.

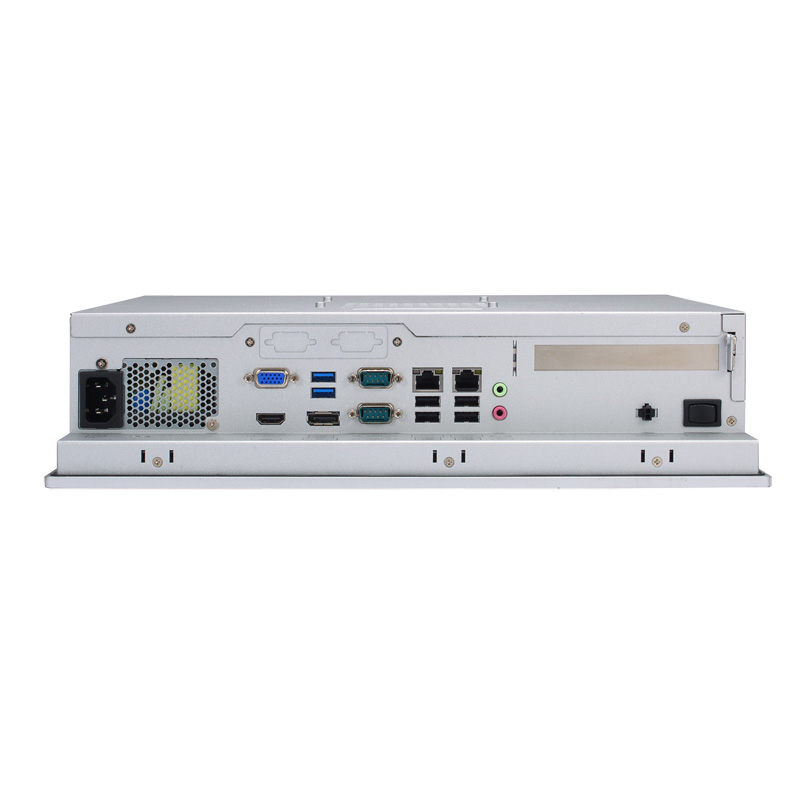

The system provides a PCIe x16 slot for add-on cards, two USB 3.2 Gen1 ports, four USB 2.0 ports, RS-232/422/485 ports, one Gigabit Ethernet port, one 2.5GbE port, VGA, HDMI, DisplayPort, audio (Mic-in/Line-out), a remote power switch, flexible I/O window, and optional WLAN module with antenna.

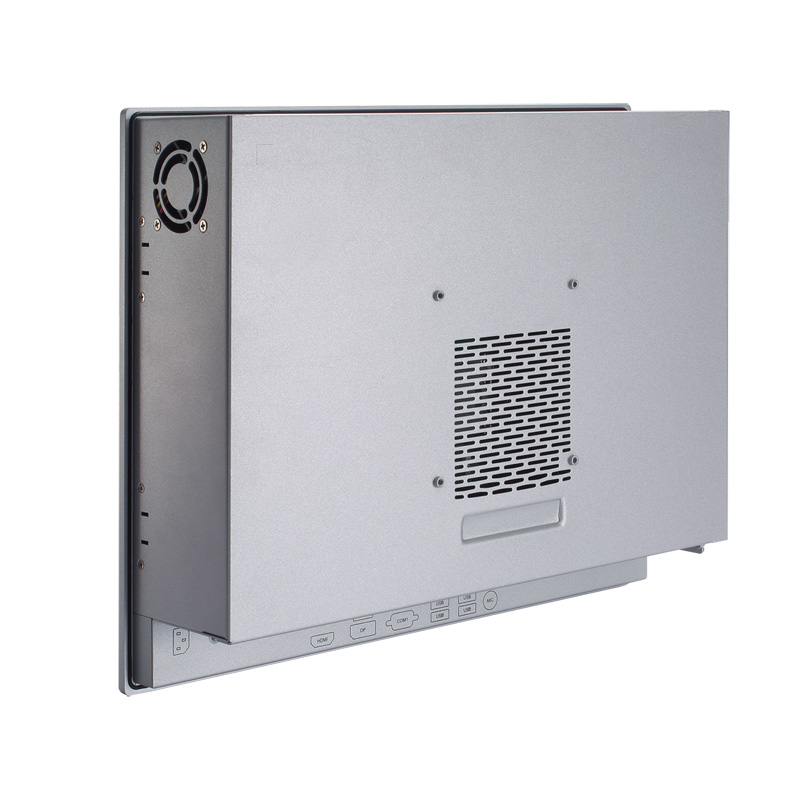

It supports panel, VESA, or wall mounting kits, providing flexibility for different industrial environments.
The system supports Windows® 11 and Windows® 11 IoT, allowing seamless integration with industrial software and HMI applications.
Advanced features include TPM 2.0 for security, optional WLAN connectivity, a PCIe x16 expansion slot, 2.5” SATA HDD/SSD support, multiple mounting options, and an operating temperature range of 0°C to +50°C.
