P624-C

產品階段 : 供應中

23.8" FHD TFT Widescreen Industrial LCD Monitor

產品規格表 (PDF)
產品規格表 (PDF)
加入比較
加入比較
立即詢價
立即詢價

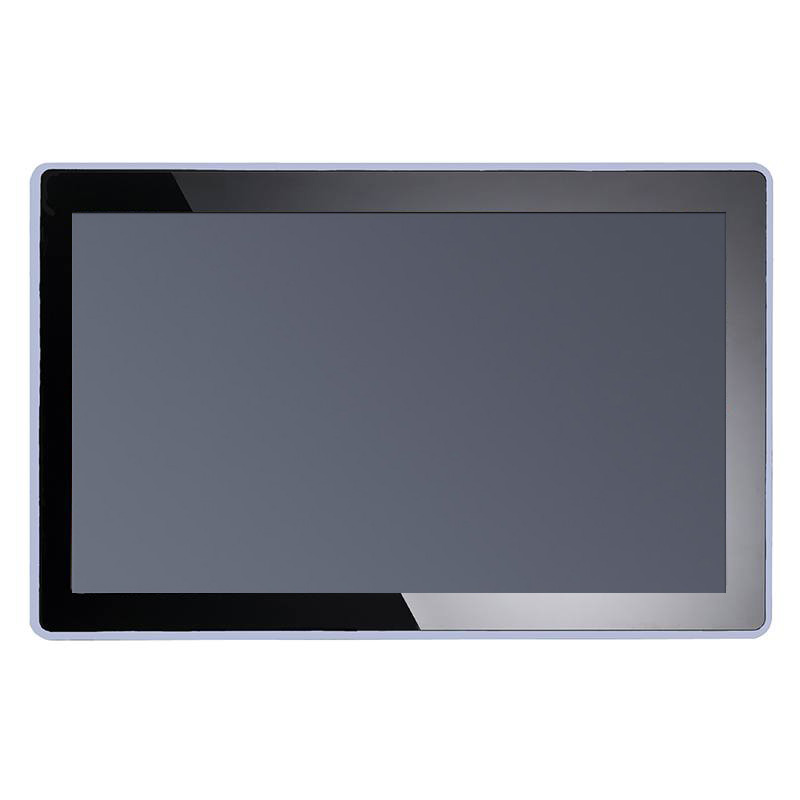

P624-C
P624-C
IP65 Rating

IP65 Rating

PCAP

PCAP

Wide Temperature

Wide Temperature

  • 產品特色
  • 產品規格
  • 訂購資訊
  • 技術文件

產品特色

  • 23.8" FHD TFT LCD with projective capacitive multi-touch
  • 450 nits of brightness
  • NEMA 4/12 (IP65) compliant flat panel monitor
  • Supports panel mount, wall mount, and VESA mount
  • 24 VDC power input
  • VGA, HDMI, and DisplayPort with multi-signal inputs

產品規格

Front Bezel
  • NEMA 4/12 (IP65)-compliant and flat front bezel
LCD Panel
  • 23.8" FHD TFT LCD
Max Colors
  • 16.7M
Active Area (mm)
  • 527.04 (H) x 296.46 (V)
Max. Resolution
  • 1920 x 1080
Backlight
  • LED
Pixel Pitch (mm)
  • 274.5 x 274.5
Backlight MTBF (hrs)
  • 50,000 hrs
Viewing Angle (H/V)
  • 178°/178°
Response Time
  • 15ms
Contrast Ratio
  • 1000 (TYP.)
LCD Brightness (cd/m²)
  • 450 nits (standard) / 1,000 nits (optional)
Display Control
  • OSD (on screen display)

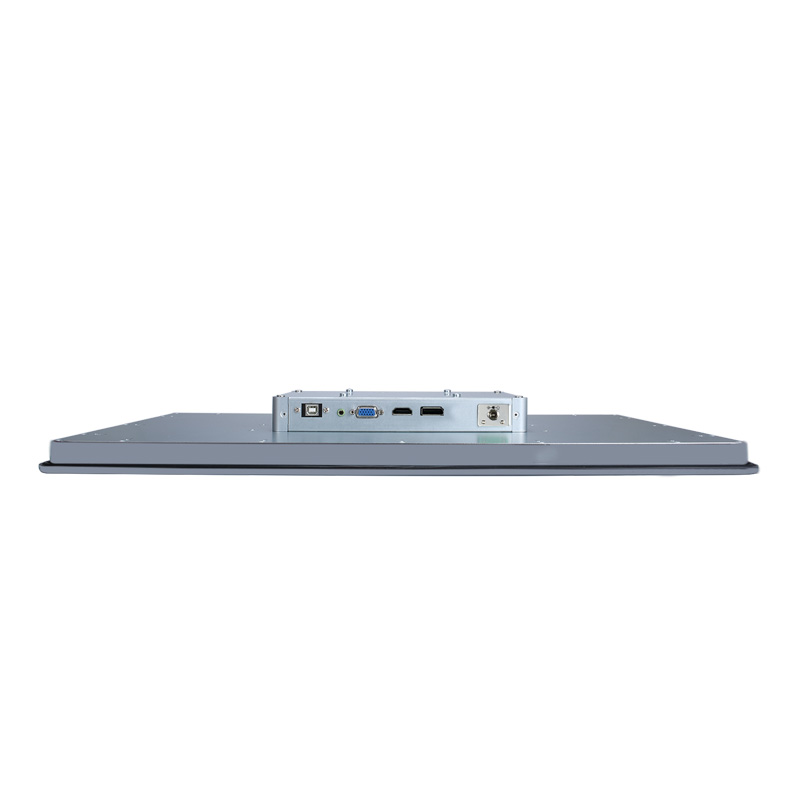

I/O Connectors
  • 1 x USB for touchscreen version
  • 1 x Audio (Line-in)
  • 1 x VGA
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x Power input with terminal block (DC version)
Audio
  • 2 x Speaker
Touchscreen
  • Projective capacitive multi-touch
Power Adapter
  • 24VDC
Power Consumption
  • 36W
Operating Temperature
  • Standard: -10°C to +50°C (+14°F to +122°F)
  • Optional: -20°C to +60°C (-4°F to +140°F)
Dimensions<br>(W x D x H)
  • 588 x 53.4 x 369.6 mm (23.15" x 2.2" x 14.55")
Weight (net/gross)
  • 7.23 kg (15.93 lb)/ 10.82 kg (23.85 lb)
Mounting
  • Panel mount
  • Wall mount
  • Desktop stand
  • VESA mount
Certifications
  • CE, EN 61000-6-2, EN 61000-6-4, and FCC Class A

訂購資訊

  • P624-C-DC (P/N-E226624101)
    23.8" industrial monitor with capacitive touch screen
  • 509000005500
    Adaptor 24V/60W, wire only
  • 599000001100
    US 1.8M power cord
  • 59904010000E
    UK 1.83M power cord
  • 59903000000E
    EU 1.83M power cord
  • 591000000500
    HDMI cable
  • 590000020900
    DisplayPort cable 2M
  • E29R131114
    Wall mount kit
  • E29R131111
    Panel mount kit set
  • E221177116
    Desktop stand

技術文件

Drivers

Software

Manual

日期 說明 版本 下載檔案
2023/11/29 User's manual VA1

Design Guide

Technical Announcement

Certificates

日期 說明 版本 下載檔案
2023/12/11 DC_UKCA Declaration of Conformity
2023/12/11 DC_FCC Verification
2023/12/11 DC_CE-Conformity Declaration
2023/12/11 DC_CE EMC Verification
