SSK724

產品階段 : 即將推出

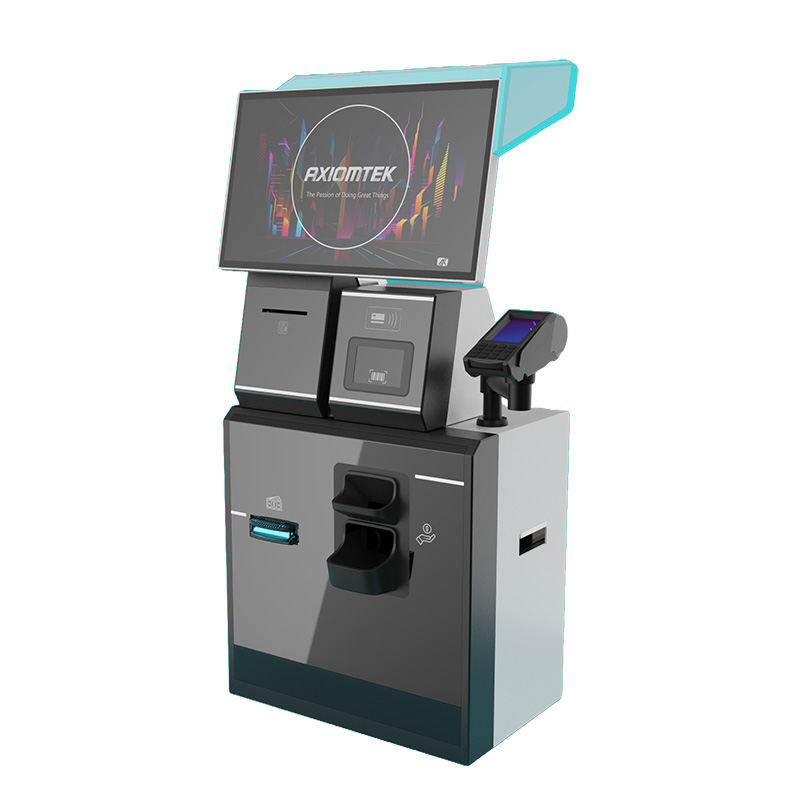

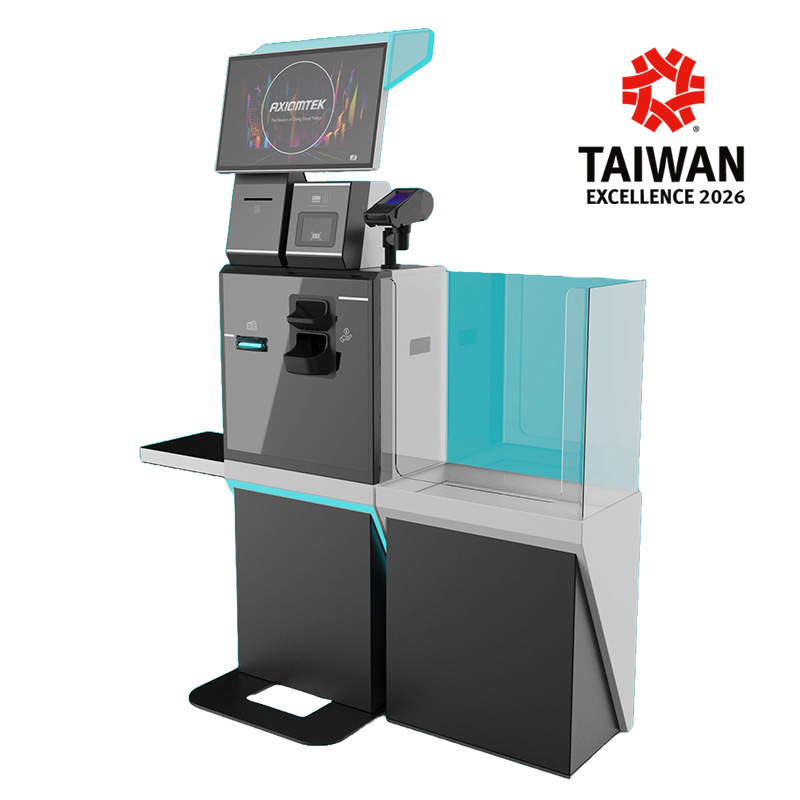

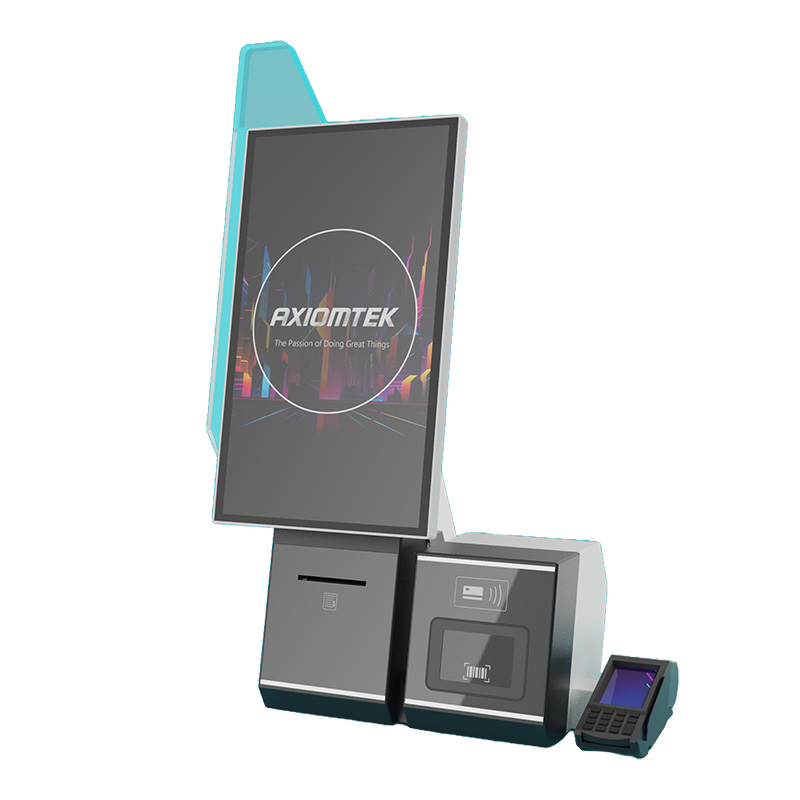

15.6"/21.5" Modular Self-Service Kiosk with Flexible Peripheral Integration and Cash/Cashless Transaction Support

產品規格表 (PDF)
產品規格表 (PDF)
立即詢價
立即詢價
SSK724
SSK724
SSK724
QR code

QR code

RFID

RFID

Thermal Tickets Printer

Thermal Tickets Printer

Touchscreen

Touchscreen

Universal Cash Module

Universal Cash Module

  • 產品特色
  • 產品規格
  • 訂購資訊
  • 技術文件

產品特色

  • 15.6" HD or 21.5" FHD touch screen in portrait or landscape orientation
  • Distinctive LED light bars
  • Flexible options for countertop or floor stand
  • Modular design with an extensional rack
  • Equipped with a banknote acceptor/recycler, and coin hopper/recycler for cash transactions
  • Integrated high-speed barcode scanner
  • Supports RFID and 2"/3" thermal printers
  • Compatible with a credit card machine holder
  • Optional weight scale available

產品規格

Display
  • Display Type: 21.5" FHD TFT LCD, optional 15.6” HD TFT LCD)
  • Brightness (cd/m2): 250 nits, optional 15.6" at 220 nits
  • Resolution:1920 (H) x 1080 (V), optional 15.6": 1366 (H) x 768 (V)
  • Aspect Ratio: 16:9
  • Touchscreen: 10-point projected capacitive touch
System
  • Intel® Celeron® processor J6412
  • 260-pin DDR4-3200 SO-DIMM, up to 32GB
I/O
  • By request
Devices
  • Banknote acceptor and recycler: JCM VEGA-RC (a cashbox for 1,000 notes with two 30-note recyclers)
  • Coin hopper and recycler: ITL Smart Coin System
  • Barcode Scanner: Honeywell
  • RFID Reader: Mafire 13.56 MHz, ISO14443A card read
  • EFT: EFT holder
  • Printer: 2"/3" thermal printer
Others
  • 1 x M.2 Key E 2230 socket for Wi-Fi/Bluetooth
  • 128GB M.2 Key B 2242
Front Bezel
  • Aluminum extrusion
Power Supply
  • 150W DC adapter
  • Average 200W
Operating Temperature
  • 0°C to +40°C (+32°F to +104°F)
Mounting
  • Floor stand
  • Countertop
Dimensions (W x D x H)
  • TBD
Weight (net/gross)
  • 150kg
Operation System
  • Windows
Certifications
  • CE, FCC Class A (more by request)

訂購資訊

  • SSK724 (Customizable Kiosk)
    21.5" Self-service kiosk with 9th/8th Intel® Core™ i7/i5/i3 processor
