GOT818A-TGL-WCD

產品階段 : 供應中

18.5" FHD TFT IP66 & IP69K-rated Stainless Steel Fanless PCT Panel Computer with Intel® Core™ i5-1145G7E or Celeron® 6305E Processor and Flat Bezel Design (-20°C to +50°C)

  • 產品特色
  • 產品規格
  • 訂購資訊
  • 技術文件
  • 常見問題

產品特色

  • 18.5" FHD TFT flat bezel LCD display
  • IP66/IP69K-rated (NEMA 4X) water/dust/corrosion-proof design
  • Full stainless-steel enclosure with SUS 304
  • -20°C to +50°C wide operating temperature range
  • Fanless design with Intel® Core™ i5-1145G7E processor
  • Wi-Fi kit for wireless network connectivity (optional)
  • 12 to 24 VDC wide range power input
  • Supports VESA mount
  • M12-type connectors for harsh environments
IP66 and IP69K Washdown Durability
Durability & Resistance

IP66 & IP69K Rating
CID2 Compliance

Rugged Industrial Design
Rugged Design

-20 °C to +50 °C Operating Temperature
12 - 24 VDC Power Input

Projected Capacitive PCAP Multi-Touch Screen
Smooth User Interaction

Projected Capacitive Multi-Touch



Class I Division 2 (CID2) Compliance for Hazardous Environments

The GOT818A-TGL-WCD has obtained the CID2 certification to mitigate safety risks in hazardous environments such as oil, gas, and chemical manufacturing. With CID2 compliance, the GOT818A-TGL-WCD provides peace of mind for operators and facility managers, allowing continuous and reliable operation in hazardous locations while maintaining industrial-grade performance and durability.

Water and Dust Resistance

To withstand high-pressure and steam cleaning, the GOT818A-TGL-WCD is fully waterproof with an IP69K-rated stainless steel enclosure and IP66-rated M12-type I/O connectors. This rugged design ensures complete protection against dust ingress and powerful water jets, making it ideal for washdown environments commonly found in food processing, pharmaceutical manufacturing, and chemical industries.

Focus Industries Segment

The GOT818A-TGL-WCD features high durability with SUS 304/316 stainless steel enclosure, IP69K-rated protection, and M12-type connectors. It is completely dustproof and can withstand high-pressure, high-temperature water ingress to apply in food processing, chemical plants, and pharmaceutical manufacturing.

M12 Connectors

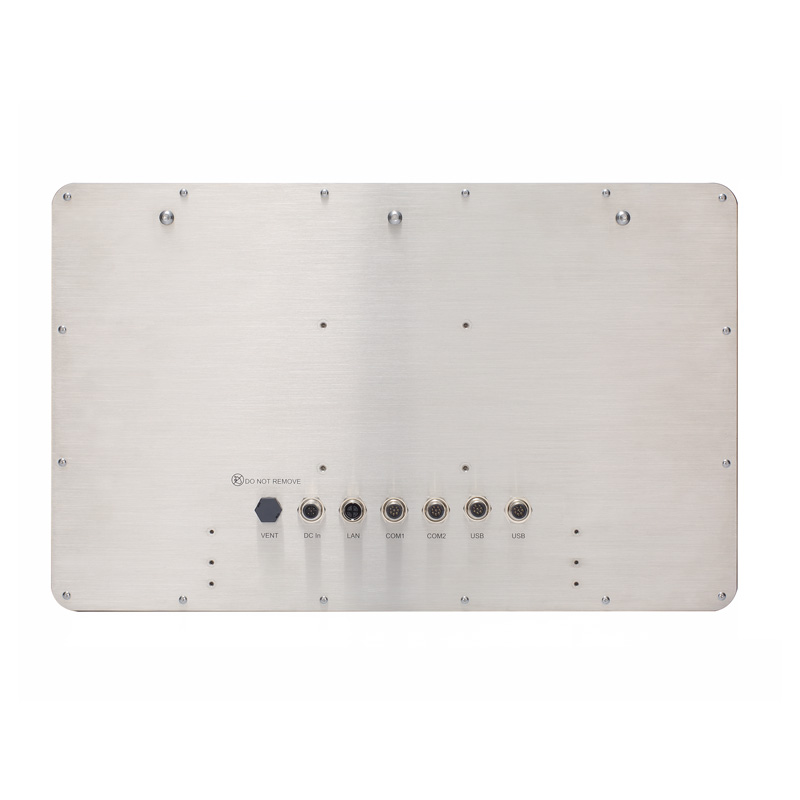

The robust GOT818A-TGL-WCD features abundant I/O ports by using M12 connectors, including two RS-232/422/485, four USB 2.0 ports, one 2.5 GbE LAN port, and one DC power connector.

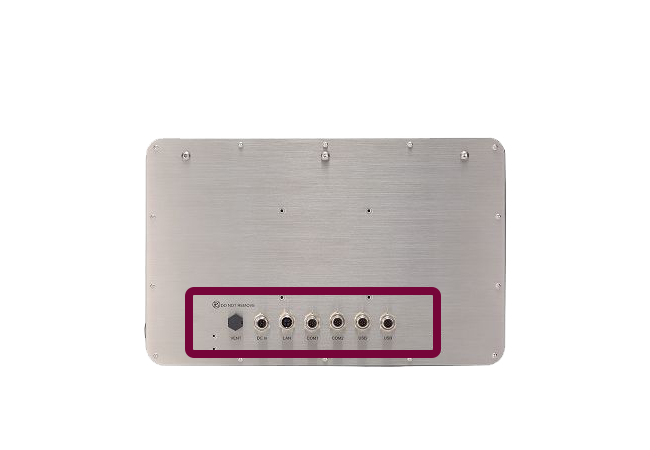

GOT818A-TGL-WCD Abundant M12-type Waterproof I/O Connectors Layout

For Strict Hygiene Requirements

The GOT818A-TGL-WCD adopts a SUS 304/316 stainless steel enclosure and a full flat front bezel for better reliability and strict hygiene demands.

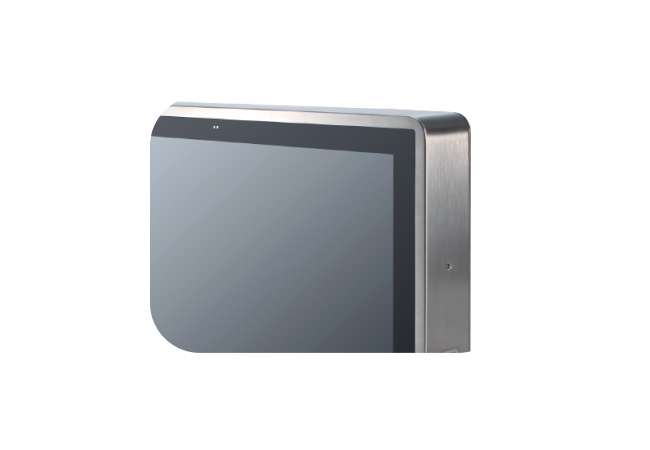

GOT818A-TGL-WCD 18.5-inch Full Flat Front Bezel with SUS 304/316 Stainless Steel Enclosure

Rich I/O Interfaces

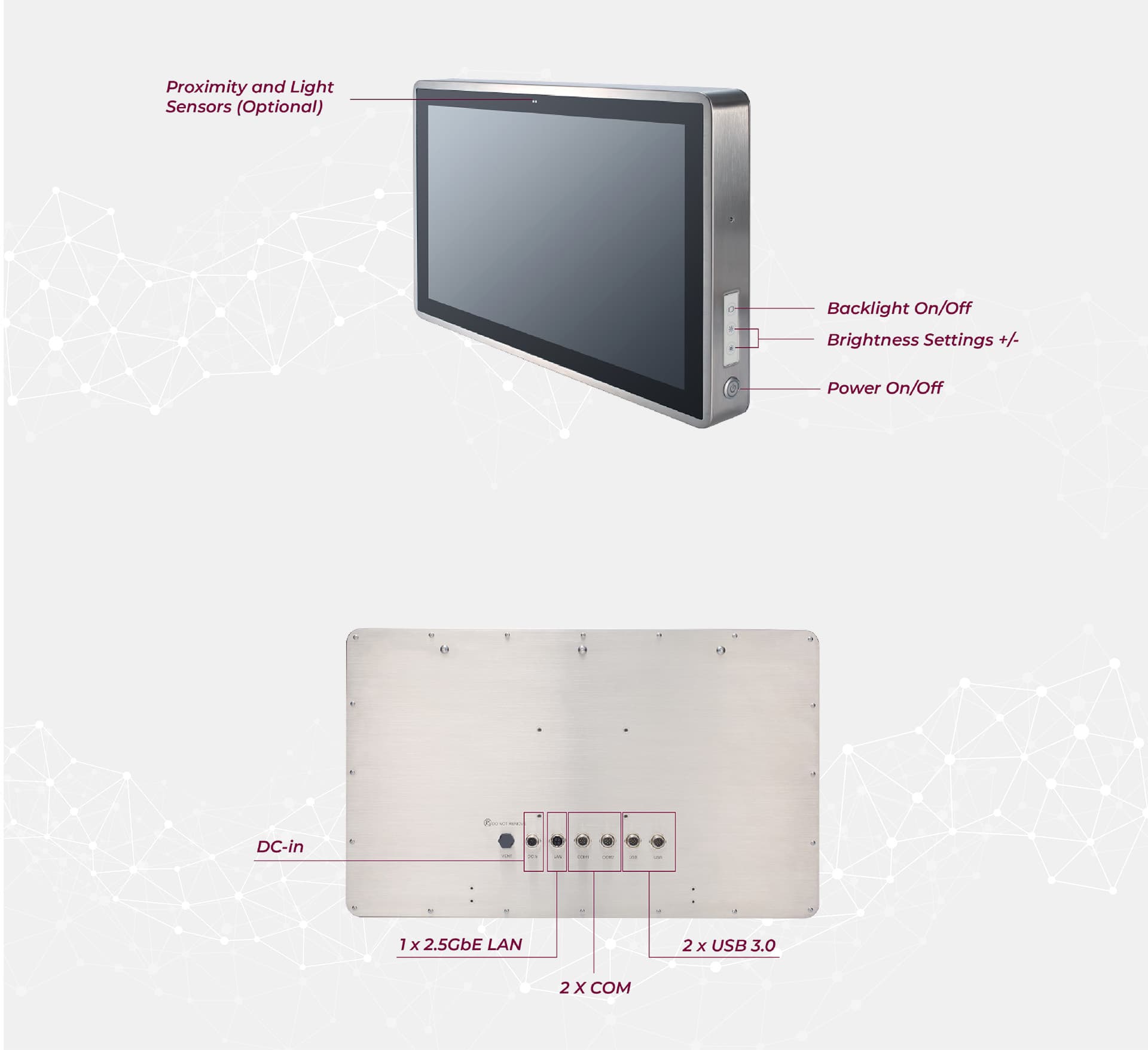

Axiomtek GOT818A-TGL-WCD Stainless Steel IP69K Touch Panel PC Front View Layout

產品規格

LCD Panel
  • 18.5" FHD TFT LCD
  • 350 nits
  • 1920 x 1080 pixels
CPU
  • Intel® Core™ i5-1145G7E 2.6 GHz or Celeron® 6305E 1.8GHz
Chipset
  • SoC integrated
System Memory
  • 1 x 260-pin DDR4-3200 SO-DIMM, up to 32GB
BIOS
  • AMI
COM
  • 2 x RS-232/422/485 (default RS-232, A-coded)
USB
  • 4 x USB 2.0 (A-coded)
Ethernet
  • 1 x 2.5GBASE-T Ethernet with Intel® I225 (TSN and X-coded)
Display
  • N/A
Audio
  • N/A
Storage
  • 1 x 2.5" SATA SSD (9.5mm height)
Expansion
  • 1 x M.2 Key E 2230 slot (with PCIe x1 and USB 2.0 supported)
Others
  • TPM 2.0 onboard
Touchscreen
  • Projected capacitive multi-touch
Enclosure
  • Stainless steel (SUS) 304 or 316 (optional)
Power Supply
  • 1 x DC power connector (M12)
  • 12 to 24 VDC
Power Consumption
  • 76.8W
Watchdog Timer
  • 65536 levels, 0 to 65535 sec.
Operating Temperature
  • -20°C to +50°C (-4°F to +122°F)
Relative Humidity
  • 10% - 95% @ +40°C, non-condensing
Vibration
  • 1G, 5 - 500Hz, random for 2.5" SSD
Dimensions (W x D x H)
  • 485.0 x 55 x 302.4 mm (19.1" x 2.2" x 11.91")
Weight (net/gross)
  • 7.30 kg (16.09 lb)/10.5 kg (23.15 lb)
Certifications
  • CE, EN 61000-6-2, EN 61000-6-4, and FCC Class A
  • CID2 compliance (must install I/O cover: 882B818A0A0E/882B818A1A0E)
EOS
  • Windows® 10 IoT, Windows® 11 IoT
Mounting
  • VESA mount

訂購資訊

  • GOT818A-TGL-WCD (P/N-E22B818A00)
    18.5" FHD fanless IP66 & IP69K-rated stainless steel touch panel computer with Intel® Core™ i5-1145G7E, projected capacitive touch screen, 350 nits LCD, and 12 to 24 VDC power input
  • GOT818A-11C-WCD (P/N-E22B818A01)
    18.5" FHD fanless IP66 & IP69K-rated stainless steel touch panel computer with Intel® Celeron 6305E, projected capacitive touch screen, 350 nits LCD, and 12 to 24 VDC power input
  • 594B8122100E
    Water-proof COM cable (1.8 m)
  • 594B7102700E
    Water-proof LAN cable (1.8 m)
  • 594B8122820E
    USB cable M12-8P-F/2*A type 180 cm
  • 509000002200
    Adapter 24V 90W, M12 A-code 5P
  • 882B818A0A0E
    GOT818A-C1D2-Cover-DN Kit (E)
  • 882B818A1A0E
    GOT818A-C1D2-Cover-UP Kit (E)

技術文件

Drivers

日期 說明 版本 下載檔案
2023/10/19 Graphic-2 VA1.0
2023/10/19 Graphic-1 VA1.0
2023/10/19 ME VA1.0
2023/10/19 Serial IO VA1.0
2023/10/19 LAN VA1.0
2023/10/19 Chipset VA1.0

Software

Manual

日期 說明 版本 下載檔案
2023/10/19 User's manual VA1.0

Design Guide

Technical Announcement

Certificates

日期 說明 版本 下載檔案
2023/08/31 FCC Verification
2023/08/31 CE EMC Verification
2023/07/05 UKCA Declaration of Conformity
2023/07/05 CE-Conformity Declaration
