GOT521-RPL-WCD

產品階段 : 供應中

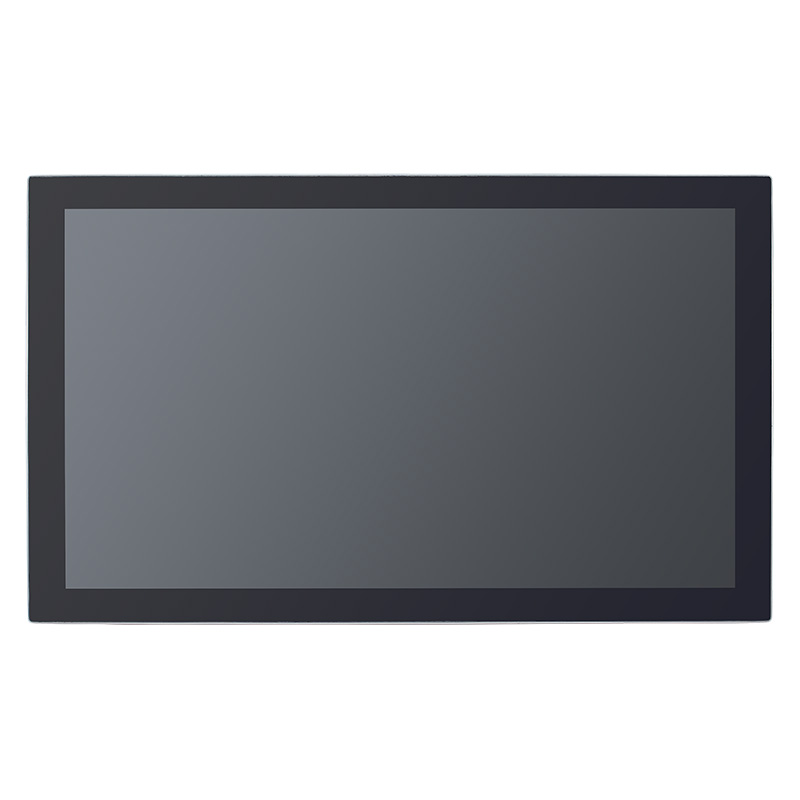

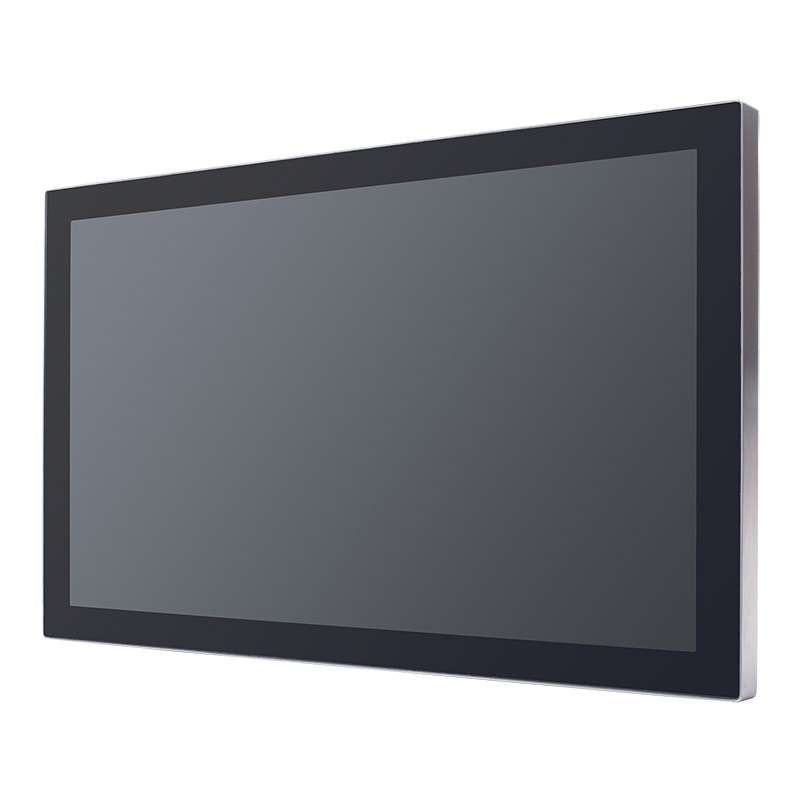

21.5" FHD TFT IP66 & IP69K-rated Stainless Steel Fanless PCT Panel Computer with Intel® Core™ i5-1335UE or Processor U300E and Flat Bezel Design (-20°C to +50°C)

產品規格表 (PDF)
產品規格表 (PDF)
加入比較
加入比較
立即詢價
立即詢價
GOT521-RPL-WCD
GOT521-RPL-WCD
GOT521-RPL-WCD
GOT521-RPL-WCD
GOT521-RPL-WCD
Fanless

Fanless

High Brightness

High Brightness

IP66 & IP69

IP66 & IP69

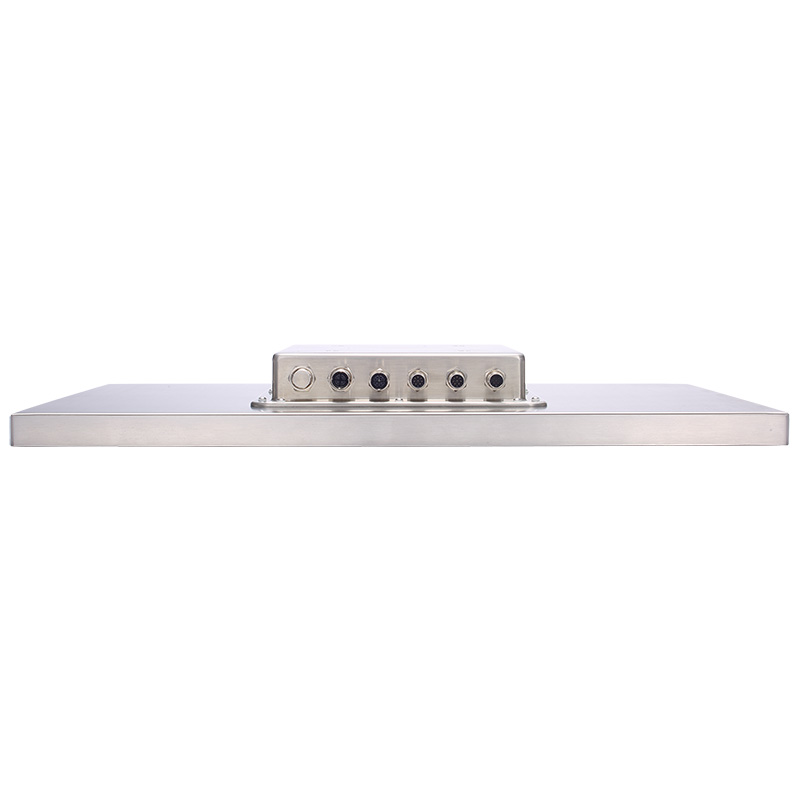

M12 Connector

M12 Connector

Wide Temperature

Wide Temperature

  • 產品特色
  • 產品規格
  • 訂購資訊
  • 技術文件
  • 常見問題

產品特色

  • 21.5" FHD TFT flat bezel LCD display
  • Fanless design with Intel® Core™ i5-1335UE or U300E processor
  • Full SUS304 stainless steel enclosure with IP66 & IP69K

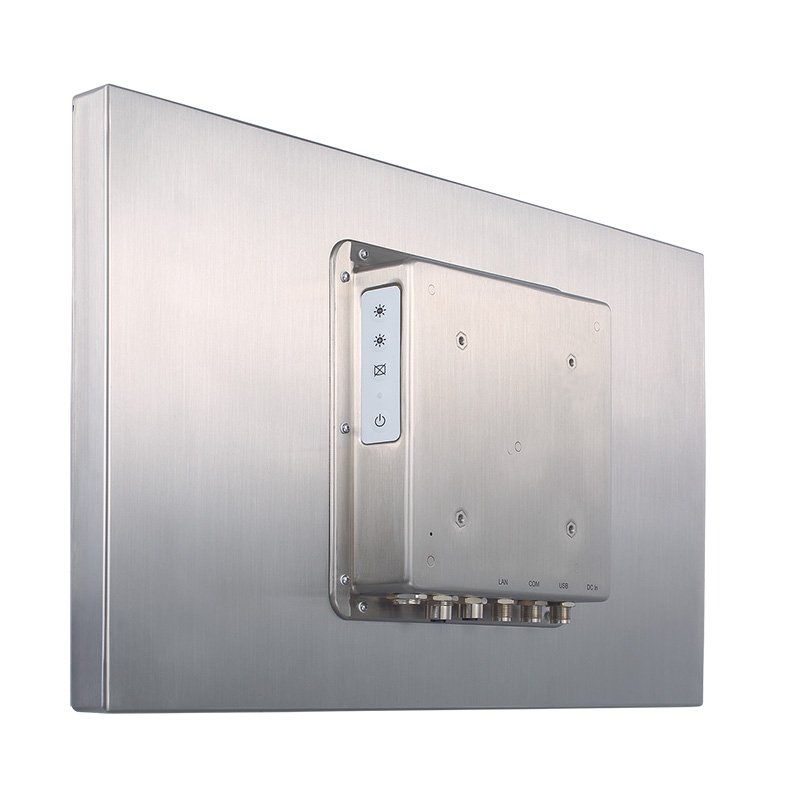

  • Supports vertical installation with 90° rotated I/O
  • Supports proximity and light sensors
  • EC control (backlight on/off, brightness, light sensor, touch on/off, and Super I/O)
  • Smart Ignition for intelligent power management
  • Programmable OSD function key
  • Operating temperature: -20°C to +50°C
  • Optional high brightness display (1000 nits)

產品規格

LCD Panel
  • 21.5" FHD TFT LCD
  • 400 nits (default)/1000 nits (optional)
  • 1920 x 1080 pixels
CPU
  • Intel® Core™ i5-1335UE 1.3 GHz or processor U300E 1.1 GHz
Chipset
  • SoC integrated
System Memory
  • 1 x 262-pin DDR5 SO-DIMM, up to 48GB
BIOS
  • AMI
COM
  • 1 x RS-232/422/485 (default RS-232, A-coded)
USB
  • 1 x USB 2.0 dual-port (A-coded)
Ethernet
  • 1 x 2.5GBase-T Ethernet with Intel® I226 (X-coded)
  • 1 x 1GBase-T Ethernet with Intel® I210 (X-coded)
Display
  • N/A
Audio
  • N/A
Storage
  • 1 x M.2 2280, NVMe (Gen4x4) or auto-detect SATA
  • 1 x mSATA
Expansion
  • 1 x Full-size PCIe Mini Card slot (USB + PCIe/SATA) with nano-SIM socket; supports PCIe Mini Card or mSATA with auto-detection
  • 1 x M.2 Key E 2230 slot for Wi-Fi + Bluetooth module
  • 1 x M.2 Key M 2280 slot (PCIe Gen4 x
Others
  • dTPM2.0
Touchscreen
  • Projected capacitive multi-touch
Enclosure
  • Stainless steel (SUS) 304 or 316 (optional)
Power Supply
  • 9 to 36VDC
Power Consumption
  • 86.4W
Watchdog Timer
  • 65536 levels, 0 to 65535 sec.
Operating Temperature
  • 20°C to +50°C (-4°F to +122°F)
Relative Humidity
  • 10% to 95% @ +40°C, non-condensing
Vibration
  • 1G, 5 to 500Hz, random for M.2 SSD
Dimensions (W x D x H)
  • 531.6 x 60.5 x 318 mm (20.93" x 2.38" x 12.52")
Weight (net/gross)
  • 7.5 kg (16.53 lb)/11 kg (24.25 lb)
Certifications
  • CE Class A, IEC/EN 61000-6-4, IEC/EN 61000-6-2
  • FCC 47 CFR Part 15 Subpart B (Class A)
  • UKCA
  • RoHS standard
EOS
  • Windows® 10, Windows® 11 and Linux
Mounting
  • VESA mount

訂購資訊

  • GOT521-RPL-WCD (P/N-E22B521100)
    21.5" FHD TFT IP66 & IP69K-rated stainless steel fanless PCT panel computer with Intel® Core™ i5-1335UE processor and flat bezel design
  • GOT521-13C-WCD (P/N-E22B521101)
    21.5" FHD TFT IP66 & IP69K-rated stainless steel fanless PCT panel computer with Intel® Core™ U300E processor and flat bezel design
  • Wi-Fi 6/6E/7 kit
  • LTE 4G kit
  • 509000002200
    24V/90W adapter, M12 A-coded 5P, AC to DC VOUT=24V,3.75A/100 to 240V, FSP090-AAAN3
  • 594B8120B30E
    DC-in cable M12 female 5P 180cm without ACC
  • 594B8122820E
    USB cable M12-8P-F/2*A type 180CM
  • 594B8152710E
    LAN cable M12-XCODE/RJ-45 plug CAT6 180CM
  • 594B8122100E
    RS-232 cable M12-8F to DSUB 9M 180CM

技術文件

Drivers

日期 說明 版本 下載檔案
2025/05/28 COM port patch VA1.0
2025/05/28 CANBus VA1.0
2025/05/28 Audio VA1.0
2025/05/28 Serial IO VA1.0
2025/05/28 LAN VA1.0
2025/05/28 Graphic VA1.0
2025/05/28 ME VA1.0
2025/05/28 Chipset VA1.0

Software

Manual

日期 說明 版本 下載檔案
2025/05/28 User's manual VA3.0

Design Guide

Technical Announcement

Certificates

日期 說明 版本 下載檔案
2025/07/14 CE EMC Verification
2025/07/14 CE-Conformity Declaration
2025/07/14 UKCA Declaration of Conformity
2025/07/14 FCC Verification
